| Specifications |

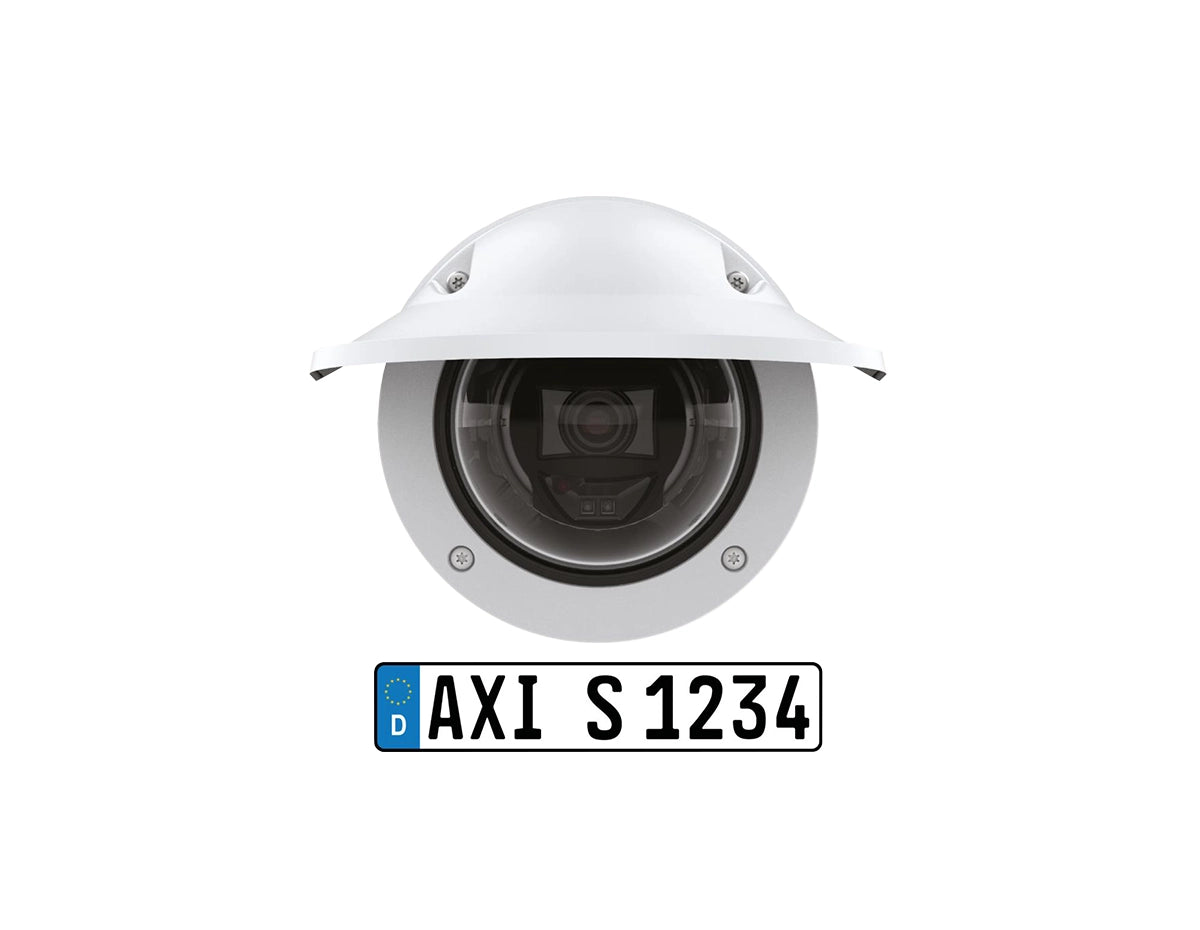

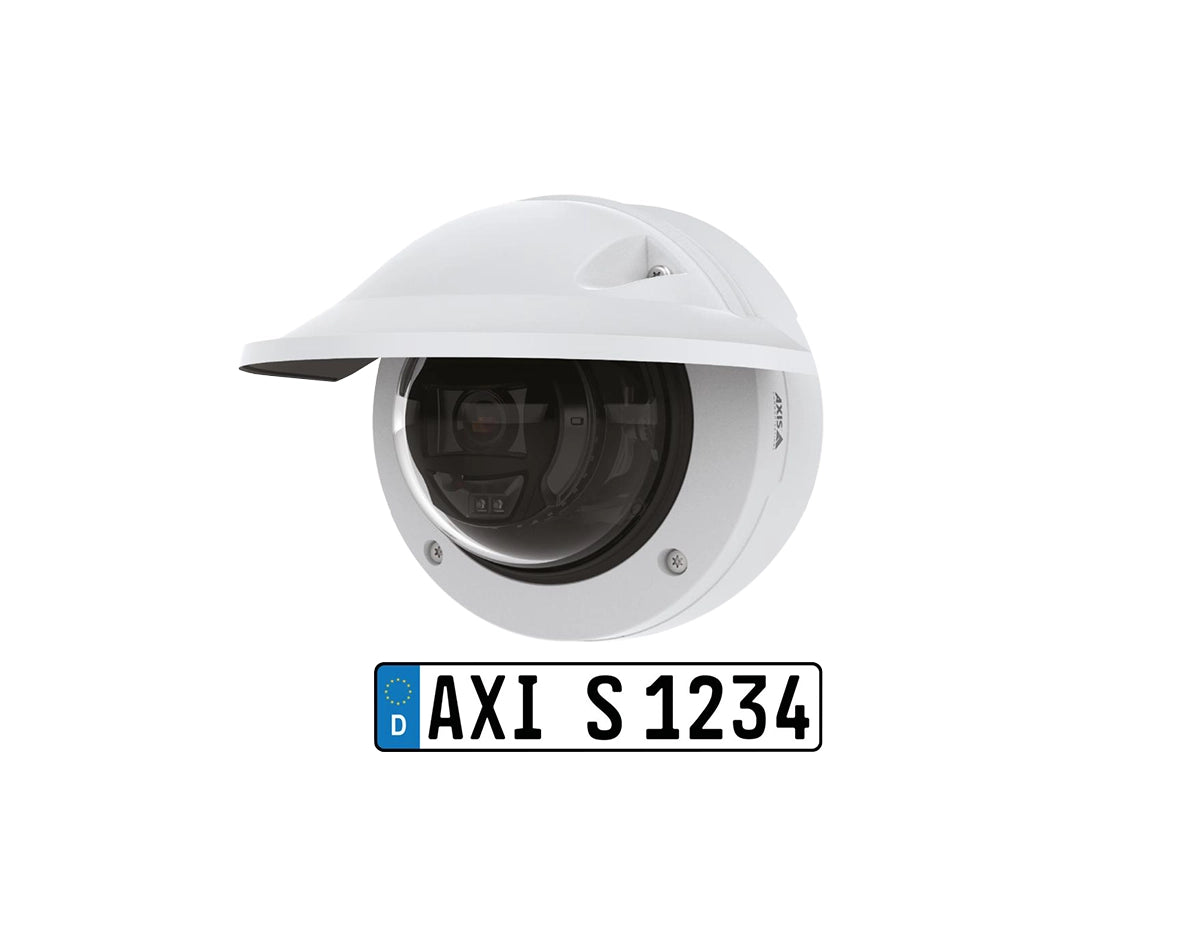

AXIS P3265-LVE-3 License Plate Verifier Kit |
| Camera |
| Image sensor |
1/2.8” progressive scan RGB CMOS |
| Lens |
Varifocal, 3.4–8.9 mm, F1.8 |
| Horizontal field of view: 100°–36° |
| Vertical field of view: 53°–20° |
| Minimum focus distance: 0.5 m (1.6 ft) |
| IR corrected, remote zoom and focus, P-Iris control |
| Day and night |
Automatic IR-cut filter |
| Hybrid IR filter |
| Minimum illumination |
With Lightfinder 2.0: |
| Color: 0.1 lux at 50 IRE, F1.8/1.6 |
| B/W: 0.02 lux at 50 IRE, F1.8/1.6 |
| 0 lux with IR illumination on |
| Shutter speed |
1/66500 s to 2 s |
| Camera angle adjustment |
Pan ±180°, tilt +75°, rotation ±175° |
| System on chip (SoC) |
| Model |
ARTPEC-8 |
| Memory |
1024 MB RAM, 8192 MB Flash |
| Compute capabilities |
Deep learning processing unit (DLPU) |
| Video |
| Video compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles |
| H.265 (MPEG-H Part 2/HEVC) Main Profile |
| Motion JPEG |
| Resolution |
16:9: 1920x1080 to 160x90 |
| 16:10: 1440x900 to 160x100 |
| 4:3: 1440x1080 to 160x120 |
| Frame rate |
With WDR: Up to 25/30 fps (60/50 Hz) in all resolutions |
| Without WDR: Up to 50/60 fps (60/50 Hz) in all resolutions |
| Video streaming |
Up to 20 unique and configurable video streams* Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 Low latency mode Video streaming indicator |
| *: We recommend a maximum of 3 unique video streams per camera or channel, for optimized user experience, network bandwidth, and storage utilization. A unique video stream can be served to many video clients in the network using multicast or unicast transport method via built-in stream reuse functionality. |
| Signal-to-noise ratio |
>55 dB |
| WDR |
Forensic WDR: Up to 120 dB depending on scene |
| WDR – forensic capture |
| Multi-view streaming |
2 individually cropped out view areas |
| Noise reduction |
Spatial filter (2D noise reduction) |
| Temporal filter (3D noise reduction) |
| Image settings |
Saturation, contrast, brightness, sharpness, white balance, |
| day/night threshold, local contrast, tone mapping, exposure |
| mode, exposure zones, defogging, compression, rotation: 0°, |
| 180° including mirroring, text and image overlay, dynamic text |
| and image overlay, privacy masks, polygon privacy mask, target |
| aperture |
| Image processing |
Axis Zipstream, Lightfinder 2.0, OptimizedIR |
| Pan/Tilt/Zoom |
Digital PTZ, preset positions |
| Audio |
| Audio features |
AGC automatic gain control |
| Network speaker pairing |
| Audio streaming |
Configurable duplex: Two-way (half duplex, full duplex) |
| Audio input |
10-band graphic equalizer |
| Input for external unbalanced microphone, optional 5 V |
| microphone power |
| Digital input, optional 12 V ring power |
| Unbalanced line input |
| Audio output |
Output via network speaker pairing |
| Line output |
| Audio encoding |
24bit LPCM, AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 |
| ADPCM 8 kHz, Opus 8/16/48 kHz |
| Configurable bit rate |
| Network |
| Network protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS*, HTTP/2, TLS*, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| System Integration |
| Application Programming Interface |
Open API for software integration, including VAPIX®, metadata, |
| and AXIS Camera Application Platform (ACAP); specifications at |
| axis.com/developer-community. ACAP includes Native SDK and |
| Computer Vision SDK. |
| One-click cloud connection |
| ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and |
| ONVIF® Profile T, specifications at onvif.org |
| Support for Session Initiation Protocol (SIP) for integration with |
| Voice over IP (VoIP) systems, peer to peer or integrated with |
| SIP/PBX. |
| Video management systems |
Compatible with AXIS Companion, AXIS Camera Station, video |
| management software from Axis’ Application Development |
| Partners available at axis.com/vms |
| Onscreen controls |
Day/night shift |
| Defogging |
| Wide dynamic range |
| Video streaming indicator |
| IR illumination |
| Heater |
| Event conditions |
Application |
| Audio: audio clip playing |
| Device status: above operating temperature, above or below |
| operating temperature, below operating temperature, within |
| operating temperature, IP address removed, new IP address, |
| network lost, system ready, ring power overcurrent protection, |
| live stream active |
| Digital audio input status |
| Edge storage: recording ongoing, storage disruption, storage |
| health issues detected |
| I/O: digital input, manual trigger, virtual input, digital output |
| MQTT: stateless |
| Scheduled and recurring: schedule |
| Video: average bitrate degradation, day-night mode, tampering |
| Event actions |
Audio clips: play, stop |
| Day-night mode |
| Defog |
| I/O: toggle I/O once, toggle I/O while the rule is active |
| Illumination: use lights, use lights while the rule is active |
| MQTT: publish |
| Notification: HTTP, HTTPS, TCP and email |
| Overlay text |
| Recordings: SD card and network share |
| SNMP traps: send, send while the rule is active |
| Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network |
| share and email |
| WDR mode |
| Built-in installation aids |
Pixel counter, remote zoom and focus, straighten image, level |
| grid |
| Analytics |
| Metadata |
Object data: Classes: humans, faces, vehicles (types: cars, buses, |
| trucks, bikes), license plates |
| Confidence, position |
| Attributes: Vehicle color, upper/lower clothing color, confidence, |
| position |
| Event data: Producer reference, scenarios, trigger conditions |
| Applications |
Included |
| AXIS License Plate Verifier |
| AXIS Video Motion Detection, active tampering alarm, audio |
| detection |
| Supported |
| Support for AXIS Camera Application Platform enabling installation of third-party applications, see axis.com/acap |
| Approvals |
| Product markings |
CSA, UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM |
| Supply chain |
TAA compliant |
| EMC |
CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, |
| EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, |
| EN 61000-6-2 |
| Australia/New Zealand: RCM AS/NZS CISPR 32 Class A |
| Canada: ICES-3(A)/NMB-3(A) |
| Japan: VCCI Class A |
| Korea: KS C 9835, KS C 9832 Class A |
| USA: FCC Part 15 Subpart B Class A |
| Railway: IEC 62236-4 |
| Safety |
CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, |
| IEC/EN 62471 risk group exempt, IS 13252 |
| Environment |
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, |
| IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, |
| IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) |
| Network |
NIST SP500-267 |
| Cybersecurity |
| Edge security |
Software: Signed firmware, brute force delay protection, digest |
| authentication, password protection, AES-XTS-Plain64 256bit |
| SD card encryption |
| Software: Signed firmware, brute force delay protection, digest |
| authentication and OAuth 2.0 RFC6749 OpenID Authorization |
| Code Flow for centralized ADFS account management, password |
| protection, AES-XTS-Plain64 256bit SD card encryption |
| Hardware: Secure boot, Axis Edge Vault with Axis device ID, |
| signed video, secure keystore (CC EAL4+ certified hardware |
| protection of cryptographic operations and keys) |
| Secure element (CC EAL 6+), secure keystore, secure bootSecure |
| boot, Axis Edge Vault with Axis device ID, signed video, |
| secure keystore (CC EAL4+ certified hardware protection of |
| cryptographic operations and keys) |
| Secure element (CC EAL 6+), system-on-chip security (TEE), Axis |
| device ID, secure keystore, signed video, secure boot, encrypted |
| filesystem (AES-XTS-Plain64 256bit)Secure boot, Axis Edge Vault |
| with Axis device ID, signed video, secure keystore (CC EAL4+ |
| certified hardware protection of cryptographic operations and |
| keys) |
| Hardware: , Axis Edge Vault with Axis device ID, signed video, |
| secure keystore (CC EAL4+ certified hardware protection of |
| cryptographic operations and keys) |
| Secure element (CC EAL 6+), secure keystore, secure boot, Axis |
| Edge Vault with Axis device ID, signed video, secure keystore (CC |
| EAL4+ certified hardware protection of cryptographic operations |
| and keys) |
| Secure element (CC EAL 6+), system-on-chip security (TEE), Axis |
| device ID, secure keystore, signed video, secure boot, encrypted |
| filesystem (AES-XTS-Plain64 256bit), Axis Edge Vault with Axis |
| device ID, signed video, secure keystore (CC EAL4+ certified |
| hardware protection of cryptographic operations and keys) |
| Hardware: , signed video, secure keystore (CC EAL4+ certified |
| hardware protection of cryptographic operations and keys) |
| Secure element (CC EAL 6+), secure keystore, secure boot, signed |
| video, secure keystore (CC EAL4+ certified hardware protection |
| of cryptographic operations and keys) |
| Hardware: Axis Edge Vault cybersecurity platform |
| Secure element (CC EAL 6+), secure keystore, secure bootAxis |
| Edge Vault cybersecurity platform |
| Secure element (CC EAL 6+), system-on-chip security (TEE), |
| Axis device ID, secure keystore, signed video, secure boot, |
| encrypted filesystem (AES-XTS-Plain64 256bit), signed video, |
| secure keystore (CC EAL4+ certified hardware protection of |
| cryptographic operations and keys) |
| Network security |
IEEE 802.1X (EAP-TLS)b , IEEE 802.1AR, HTTPS/HSTSb , TLS v1.2/v1.3b , Network Time Security (NTS), X.509 Certificate PKI, IP address filtering IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2)b , IEEE 802.1AR, HTTPS/HSTSb , TLS v1.2/v1.3b , Network Time Security (NTS), X.509 Certificate PKI, IP address filtering |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| Documentation |
AXIS Hardening Guide |
| AXIS Vulnerability Management Policy |
| AXIS Security Development Model |
| AXIS OS Software Bill of Material (SBOM) |
| To download documents, go to axis.com/support/cybersecurity/resources |
| To read more about Axis cybersecurity support, go to axis.com/cybersecurity |
| General |
| Casing |
IP66-, NEMA 4X- and IK10-rated |
| Polycarbonate hard-coated dome |
| Polycarbonate (PC) casing and weathershield |
| Color: white NCS S 1002-B |
| For repainting instructions, go to the product’s support |
| page. For information go to |
| axis.com |
| Mounting |
Mounting bracket with junction box holes (double-gang, |
| single-gang, 4” square, and 4” octagon) |
| ¼”-20 UNC tripod screw thread |
| Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 |
| Typical 4.8 W, max 10.7 W |
| Connectors |
Network: RJ45 10BASE-T/100BASE-TX PoE |
| I/O: 4-pin 2.5 mm terminal block for 1 digital input and 1 output |
| (12 V DC output, max. load 25 mA) |
| Audio: 4-pin 2.5 mm terminal block for audio in and out |
| IR illumination |
OptimizedIR with power-efficient, long-life 850 nm IR LEDs |
| Range of reach 40 m (130 ft) or more depending on the scene |
| Storage |
Support for microSD/microSDHC/microSDXC card |
| Support for SD card encryption (AES-XTS-Plain64 256bit) |
| Recording to network-attached storage (NAS) |
| For SD card and NAS recommendations see axis.com |
| Operating conditions |
(-40°C to 50 °C) (-40 °F to 122 °F) |
| Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C |
| (165 °F) |
| Start-up temperature: -30 °C to 50 °C (-22 °F to 122 °F) |
| Humidity 10–100% RH (non-condensing) |
| Storage conditions |
(-40 °C to 65 °C (-40 °F to 149 °F) |
| Humidity 5–95% RH (non-condensing) |
| Dimensions |
Without weathershield: |
| Height: 104 mm (4.09 in) |
| ø 149 mm (5.87 in) |
| Weight |
With weathershield: |
| 800 g (1.8 lb) |
| System tools |
AXIS Site Designer, AXIS Device Manager, product selector, |
| accessory selector, lens calculator |
| Available at axis.com |
| Languages |
English, German, French, Spanish, Italian, Russian, Simplified |
| Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese |
| English, German, French, Spanish, Italian, Russian, Simplified |
| Chinese, Japanese, Korean, Portuguese, Polish, Traditional |
| Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, |
| Vietnamese |
| Sustainability |
| Substance control |
PVC free in accordance with JEDEC/ECA Standard JS709 |
| RoHS in accordance with EU RoHS Directive 2011/65/EU/ and |
| EN 63000:2018 |
| REACH in accordance with (EC) No 1907/2006. For SCIP UUID, |
| see echa.europa.eu |
| Materials |
Screened for conflict minerals in accordance with OECD |
| guidelines |
| To read more about sustainability at Axis, go to |
| axis.com/about-axis/sustainability |
Deals
