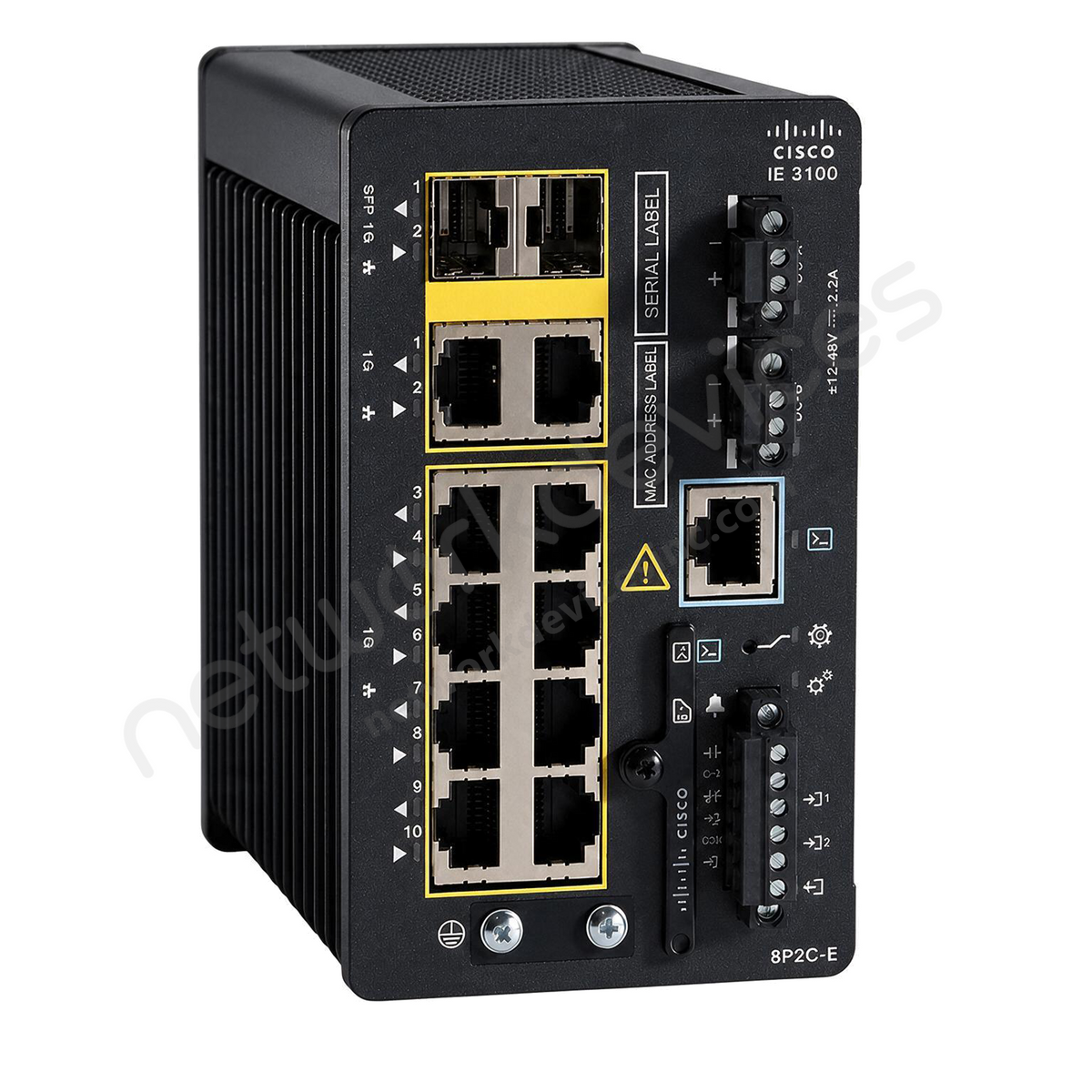

Cisco Catalyst IE3100 8GE PoE+ 2GE Combo Switch (IE-3100-8P2C-E)

The Cisco Catalyst IE3100 8GE PoE+ 2GE Combo Switch is a rugged industrial Ethernet switch designed to deliver reliable, high-speed connectivity in challenging environments. With support for eight PoE+ ports and a maximum PoE power budget of 240W, this switch is ideal for powering devices such as IP cameras, access points, and sensors. The IE3100 features robust resiliency, enhanced security with Cisco IOS XE, and industrial protocol support, making it a versatile solution for industries like manufacturing, transportation, energy, and smart cities. Its compact DIN rail mountable design allows for seamless integration into space-constrained deployments.

Key Features:

• High Performance: Equipped with 8 x 10/100/1000BASE-T Gigabit Ethernet PoE+ ports and 2 x Gigabit Ethernet SFP Combo uplink ports.
• PoE+ Support: Provides a PoE budget of up to 240W to power connected devices.
• Robust Resiliency: Supports Media Redundancy Protocol (MRP) and Resilient Ethernet Protocol (REP) for enhanced network stability.
• Industrial-Grade Design: Built to withstand harsh environments with DIN rail mountable form factor.
• Advanced Security: Cisco IOS XE with Secure Boot and Trust Anchor ensures trusted network access.
• Industrial Protocol Support: Supports EtherNet/IP, Modbus, and PROFINET for industrial automation.
• Management Tools: Features WebUI and compatibility with Cisco Catalyst Center for simplified management.

Technical Specifications:

• Total Network Ports: 8 x 10/100/1000BASE-T PoE+ RJ-45
• Expansion Slots: 2 x Gigabit Ethernet SFP Combo
• PoE Budget: 240W
• Power Source: DC (9.6V to 60V)
• Power Consumption: 20W
• Layer Supported: Layer 2
• Form Factor: DIN Rail Mountable
• Operating Standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.1x, and more
• Dimensions: 5" x 3" x 5.1" (H x W x D)
• Weight: Compact and lightweight design
