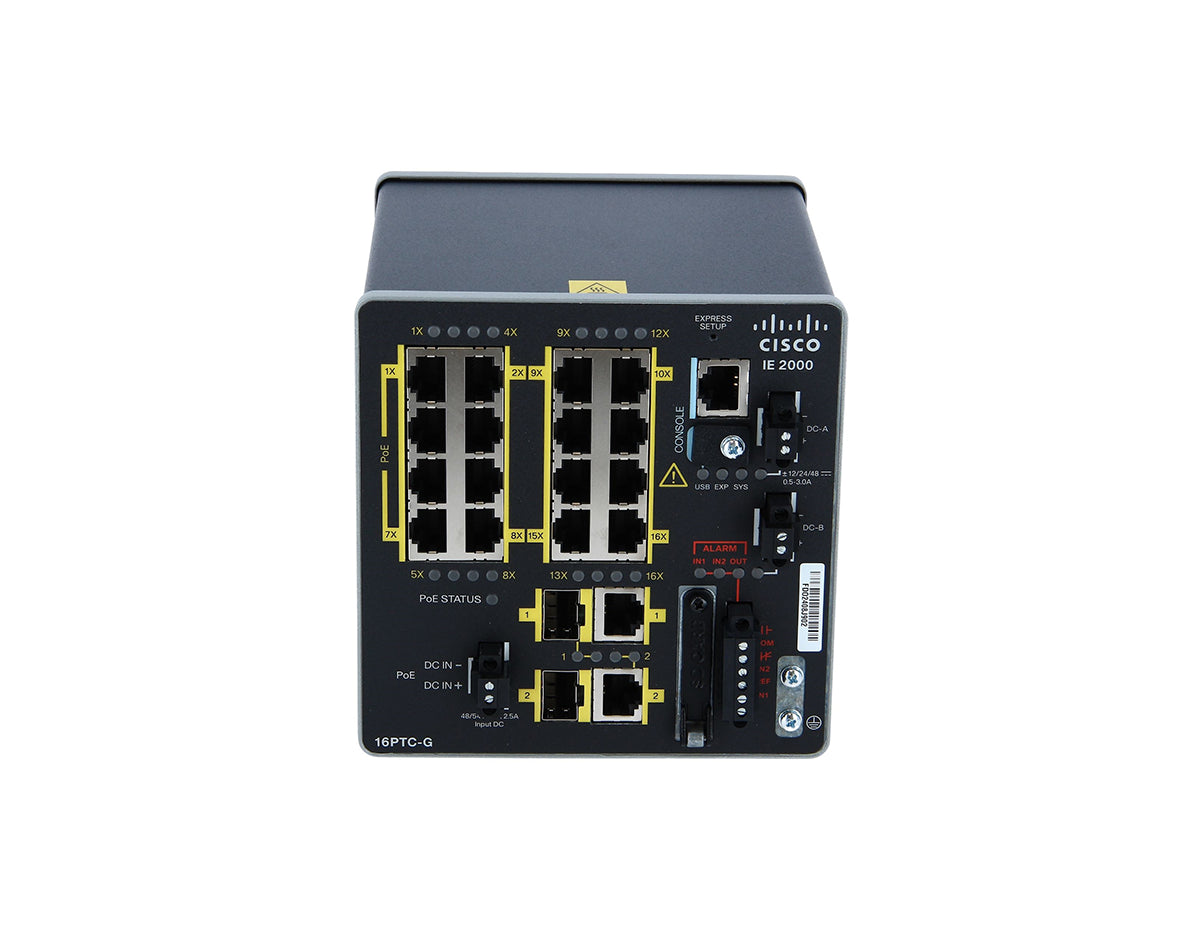

Cisco IE-2000-16TC-G-L Switch

Name: Cisco IE-2000-16TC-G-L Switch
Brand: Cisco
SKU: IE-2000-16TC-G-L-NEW
Price: 1595.00 USD
Availability: InStock

Part Number: IE-2000-16TC-G-L

Technical Details

Switch Managed 16 x 10/100 + 2 x combo GE (SFP/RJ-45) + 2 x FE SFP DIN Rail Mountable

$3,223.37

$1,595.00

51% OFF

You Save: $1,628.37

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

Cisco IE-2000-16TC-G-L Industrial Ethernet Switch

The Cisco IE-2000-16TC-G-L is a rugged industrial Ethernet switch designed to provide reliable network connectivity in harsh environments. This switch features 16 Fast Ethernet ports and 2 Gigabit combo ports (Ethernet/SFP), plus 2 Fast Ethernet SFP uplinks, making it an ideal solution for connecting various industrial devices such as IP cameras, sensors, and controllers. The IE-2000-16TC-G-L is engineered to withstand extreme conditions, ensuring continuous operation in demanding industrial settings while offering essential Layer 2 management features for effective network segmentation and traffic control.

Key Features:

16 x Fast Ethernet Ports: Provides reliable and efficient data connectivity for a wide range of industrial devices, ensuring stable network communication.
2 x Gigabit Combo Ports: Offers flexible uplink options with Ethernet and SFP connectivity, ensuring high-speed data transfer and network scalability.
2 x Fast Ethernet SFP Uplinks: Adds additional fiber uplink flexibility for diverse topologies.
Ruggedized Design: Built to operate in challenging industrial environments, capable of withstanding extreme temperatures, shock, and vibration.
Layer 2 Management: Includes essential Layer 2 features such as VLANs, QoS, and IGMP snooping, providing flexibility and control over network traffic.

Technical Overview:

Recommended for: Industrial environments requiring reliable Ethernet connectivity with flexible uplinks and basic management features.
Ports: 16 x Fast Ethernet ports, 2 x Gigabit combo ports (Ethernet/SFP), 2 x Fast Ethernet SFP uplinks.
Operating Temperature: Designed to operate in a wide temperature range suitable for industrial applications.
Management: Managed through a web interface, CLI, and SNMP for easy network setup and monitoring.
Form Factor: Rugged, compact design suitable for space-constrained industrial environments.

You can check the related tab for the Cisco IE-2000-16TC-G-L datasheet.

Properties

Properties	Cisco IE-2000-16TC-G-L
Description	IE2000 with 16FE Copper, 2GE SFP/RJ-45 combo, and 2FE SFP (LAN Lite)
Product Family	Industrial Ethernet 2000
Product Type	Ethernet Switch
Switches
Total Ports	20
RJ45 Ports	16 FE
Combo Ports (SFP or RJ45)	2 GE
SFP Ports	2 FE
Manufacturing License	LAN Lite
Type of Possible Upgrade	3
IEEE 1588	-
NAT	-
PoE(+)	-
Conformal Coating	-
Type of possible upgrade legend
1	LAN Base to IP Lite Cisco IOS Software Upgrade
2	Enhanced LAN Base to IP Lite Cisco IOS Software Upgrade
3	LAN Lite to LAN Base Cisco IOS Software Upgrade
4	LAN Base to Enhanced LAN Base Cisco IOS Software Upgrade and License Upgrade
U	Upgradable to L2NAT via Enhanced LAN Base or IP Lite license
Software Features
LAN Lite License	Baseline Features
Layer 2 Switching	IEEE 802.1, 802.3, 802.3at, 802.3af standard (see Table 8), VTPv2, NTP, UDLD, CDP, LLDP, Unicast MAC filter, Resilient Ethernet Protocol (REP), Media Redundancy Protocol (MRP) Ring (IEC 62439-2)
Security	SCP, SSH, SNMPv3, TACACS+, RADIUS Server/Client, MAC Address Notification, BPDU Guard, SPAN session
Multicast	IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier
Management	Fast Boot, Express Setup, Web Device Manager, CNA, Cisco Prime, LMS, MIB, SmartPort, SNMP, syslog
Industrial Ethernet	EtherNet/IP, PROFINET v2
Dimensions (HxWxD) Inches	5.1"H x 5.0"W x 5.26"D (130mm H x 127mm W x 134mm D)
Weight	4.35 lb (1.97 kg)

Specifications

Specifications	IE-2000-16TC-G-L
DRAM	256 MB DRAM with ECC Memory
Flash Memory	64 MB
Hardware	IEEE 1588v2 FPGA 1 GB removable SD flash memory card (optional) Mini-USB connector
Max. Forwarding Bandwidth	3.8 Gbps
Max. Switching Bandwidth	7.6 Gbps
Max. Forwarding Rate	5.66 Mpps
Egress Buffer	2 MB
Unicast MAC Addresses	8000
Internet Group Management Protocol (IGMP) Multicast Groups	255
Max. VLANs	1005
IPv4 MAC Security ACEs	384 (default TCAM template) Bidirectional 128 NAT translation entries
IPv4 Routing	3500
IPv6 Routing	1750
Alarm	Alarm I/O: Two alarm inputs to detect dry contact open or close; one alarm output relay
Power consumption	21-30 W
Connectors and cabling	100BASE-FX MMF (2 km), -LX SMF (10 km) -ZX SMF (100 km), BX10 SMF (10 km) SFP and CWDM SFP- based ports: LC fiber connectors 10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
Mean Time Between Failure (MTBF)	374,052 hours (42.7 years)
Operating Temperature	-40C to +70C (vented enclosure - 40 LFM Air Flow) -40C to +60C (sealed enclosure 0 LFM Air Flow) -34C to +75C (fan or blower-equipped enclosure 200 LFM Air Flow) -40C to +85C (IEC 60068-2-2 Environmental Type Testing 16 hours)
Storage Temperature	-40 C to +85 C
Operating Altitude	Up to 15,000 ft
Safety Certifications	UL/CSA 60950-1 EN 60950-1 CB to IEC 60950-1 (with country deviations) NOM to NOM-019-SCF1 (through partners and distributors) CE Marking
EMI Emissions and Immunity Compliance	FCC 47 CFR Part 15 Class A EN 55022A Class A VCCI Class A RoHS compliance AS/NZS CISPR 22 Class A, AS/NZS CISPR 24 CISPR11 Class A, CISPR22 Class A ICES 003 Class A KCC -Korea CE Marking C-Tick (Australia) Russia certification Brazil certification IEC/EN/EN61000-4-2 (Electro Static Discharge), 15kV /8kV contact IEC/EN 61000-4-3 (Radiated Immunity, 10 and 20 V/m) IEC/EN 61000-4-4 (Fast Transients - 4kV power line, 4kV data line) IEC/EN 61000-4-5 (Surge 2 kV/1 kV) IEC/EN 61000-4-6 (Conducted Immunity, 10 V/emf) IEC/EN 61000-4-8 (Power Frequency Magnetic Field Immunity) IEC/EN 61000-4-9 (Pulse Magnetic Field Immunity) IEC/EN 61000-4-10 (Oscillatory Magnetic Field Immunity) IEC/EN 61000-4-11 (AC power Voltage Immunity) IEC/EN 61000-4-29 (Voltage Dips Immunity) IEC/EN 61000-6-1 (Immunity for Light Industrial Environments) IEC/EN 61000-6-2 (Immunity for Industrial Environments) IEC/EN 61000-6-4 Class A EN 61326
Shock and Vibration	IEC 60068-2-27 (Operational Shock: 30G 11ms, half sine) IEC 60068-2-27 (Non-Operational Shock 55-70G, trapezoidal) IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Operational Vibration) IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Non-operational Vibration)
Industry Standards	UL508 CSA C22.2 No. 142 EN 61131-2 (EMC/EMI, environmental, mechanical) Protective coating (specific models only) Marine DnV Substation KEMA (IEEE 1613, IEC 61850-3) Railway EN 50155 (EMI/EMC, environmental, mechanical) EN50121-3-2 EN50121-4 NEMA TS-2 (EMC, environmental, mechanical) ABB Industrial IT certification IP30 ODVA Industrial Ethernet/IP support PROFINETv2.3 support
Hazard Locations (* Cabinet enclosure required)	ANSI/ISA 12.12.01 (Class1, Div2 A-D) * EN 60079-0, -15 ATEX Certificate (Class 1, Zone2 A-D) *
Humidity	IEC 60068-2-52 (salt fog mist, test Kb) marine environments IEC 60068 -2-3 IEC 60068-2-30 Relative humidity: 5% to 95% non-condensing

Accessories

Accessories and License Upgrade PIDs
SD-IE-1GB	1 GB Ruggedized SD memory card (must be ordered, not included by default)
STK-RACK-DINRAIL	19 in. DIN Rail mount kit
IE-LICENSE-SPARE	Spare license for software upgrade (L2 to L3 features, MRP ring, etc.)
L-IE2000-L-B	IE2000 LAN Lite to LAN Base e-license
L-IE2000-B-E	IE2000 LAN Base to Enhanced LAN Base e-license
LIC-IE2000-IP-L	IE2000 LAN Base or Enhanced LAN Base to IP Lite e-license
LIC-IE2000-L-IP	IE2000 LAN Lite to IP Lite e-license
LIC-MRP-MANAGER	MRP Ring Manager license
LIC-MRP-Client	MRP Ring Client license
Wallmount-IE2k-16	Wall mount kit accessory for IE2000 16-ports downlink PID
IE 2000 Series Power Supplies
Product Number	Wattage
PWR-IE50W-AC	50W AC Power Supply
PWR-IE50W-AC-L	50W AC-L Power Supply
PWR-IE65W-PC-AC	65W PC- AC Power Supply
PWR-IE65W-PC-DC	65W PC - DC Power Supply
PWR-IE170W-PC- AC	170W PC - AC Power Supply
PWR-IE170W-PC- DC	170W PC - DC Power Supply
PWR-IE240W-PCAC-L	240W PC - AC-L Power Supply
PWR-IE480W-PCAC-L	480W PC - AC-L Power Supply
