AXIS P1265 Mk II Modular Pinhole Camera (02858-001)

AXIS P1265 Mk II Modular Pinhole Camera (02858-001)

Name: AXIS P1265 Mk II Modular Pinhole Camera (02858-001)
Brand: Axis
SKU: 02858-001-NEW
Price: 432.2 USD
Availability: InStock

Part Number: 02858-001

Technical Details

Complete, extremely discreet pinhole camera delivers full HD resolution, Tiny, pinhole -sized sensor unit, HDTV 1080p with 91 degree field of view, Detachable cable up to 15 m, Support for analytics with deep learning, AXIS Object Analytics pre-installed

$432.20

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Special Order

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

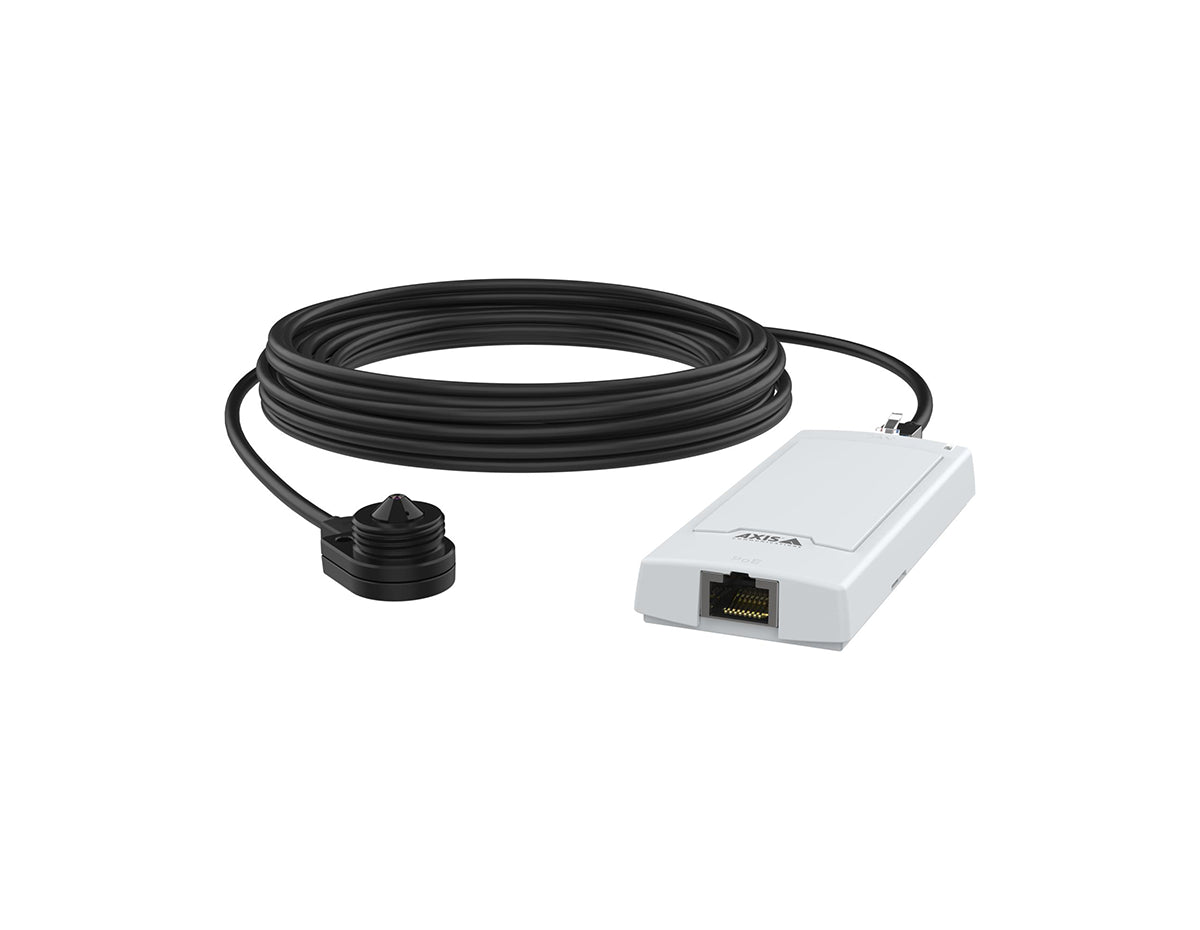

AXIS P1265 Mk II is a modular pinhole camera with Deep Learning modular capabilities. It has on a small-sized main unit and an AXIS FA1125 Pinhole Sensor Unit which are designed for extremely discreet indoor installations. The camera provides HDTV 1080p resolution, 91 degree horizontal FoV and WDR - Forensic Capture. Supports multiple streams in H.264, H265 and Motion JPEG, Axis’ Zipstream technology for lower bandwidth and storage needs, and edge storage using microSD card. The main unit is powered with PoE. The sensor unit has a built in connector with a detachable cable (8 m/26 ft.) for easy installation and maintenance. It comes with metal nuts for the installation.

Feature	AXIS P1245 Mk II	AXIS P1265 Mk II	AXIS P1275 Mk II	AXIS P1280-E	AXIS P1290-E
Max video resolution	1920x1080	1920x1080	1920x1080	640x480	640x480
Thermal sensor resolution	-	-	-	208x156	208x156
Horizontal field of view	111	91	99 - 53	35.4 / 63	35.4
Alarm inputs/outputs	-	-	-	-	-
Zipstream	✔	✔	✔	✔	✔
Image sensor	CMOS	CMOS	CMOS	Uncooled microbolometer	Uncooled microbolometer
Thermal sensitivity (NETD)	-	-	-	<100 mK	<100 mK

Properties

Product Name	AXIS P1265 Mk II Modular Pinhole Camera
Product Description	Complete, extremely discreet pinhole camera delivering full HD resolution
Image Sensor	CMOS
Resolution	HDTV 1080p (1920x1080)
Lens	Fixed 3.7 mm, F2.5
Horizontal Field of View	91°
Vertical Field of View	45°
Minimum Illumination	Color: 0.2 lux
Wide Dynamic Range	Forensic WDR
Video Compression	H.264 (High, Main), H.265, Motion JPEG
Frame Rate	Up to 25/30 fps
Analytics	AXIS Object Analytics pre-installed; deep learning capabilities
Cybersecurity	HTTPS encryption, IEEE 802.1X authentication
Audio Support	Not supported
Local Storage	microSD/microSDHC/microSDXC card slot
Operating Conditions	-20 °C to 45 °C (-4 °F to 113 °F)
Power Supply	Power over Ethernet (PoE) Class 2
Mounting Options	Discreet indoor installation; sensor unit can be mounted up to 15 m (49 ft) from main unit
Environmental Ratings	IP3X-rated
Additional Features	Detachable cable for flexible installation; Axis Zipstream technology for bandwidth efficiency

Specifications

Image Sensor	CMOS
Lens	Fixed 3.7 mm, F2.5
Minimum Illumination	Color: 0.2 lux at 50 IRE, F2.0
Shutter Speed	1/16500 to 1/5 s
Video Streaming	Multiple, individually configurable streams in H.264, H.265, and Motion JPEG
Noise Reduction	3D noise reduction
Local Storage	microSD/microSDHC/microSDXC card slot supporting
Power Consumption	Typical 3.4 W, max 4.1 W
Weight (Main Unit)	75 g
Weight (Sensor)	12.2 g
Compliance	Certifications: CE, FCC, IC, RCM, VCCI, KC, UL, CB, IEC/EN/UL 62368-1
Ingress Protection	IP3X-rated
Impact Resistance	Not applicable
Power Requirements	PoE IEEE 802.3af/802.3at Type 1 Class 2
Cable Type	Detachable 8 m (26 ft) cable included
