| Specifications |

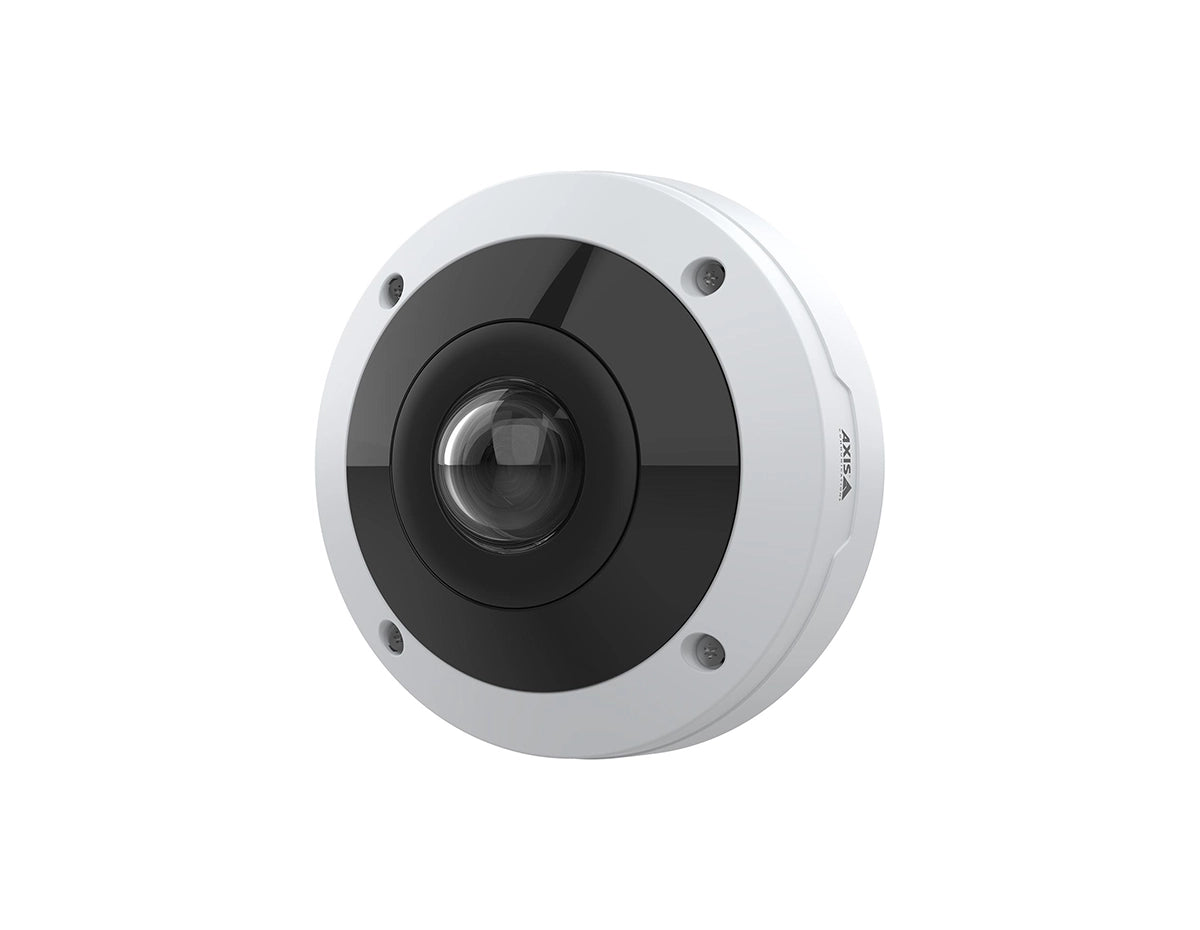

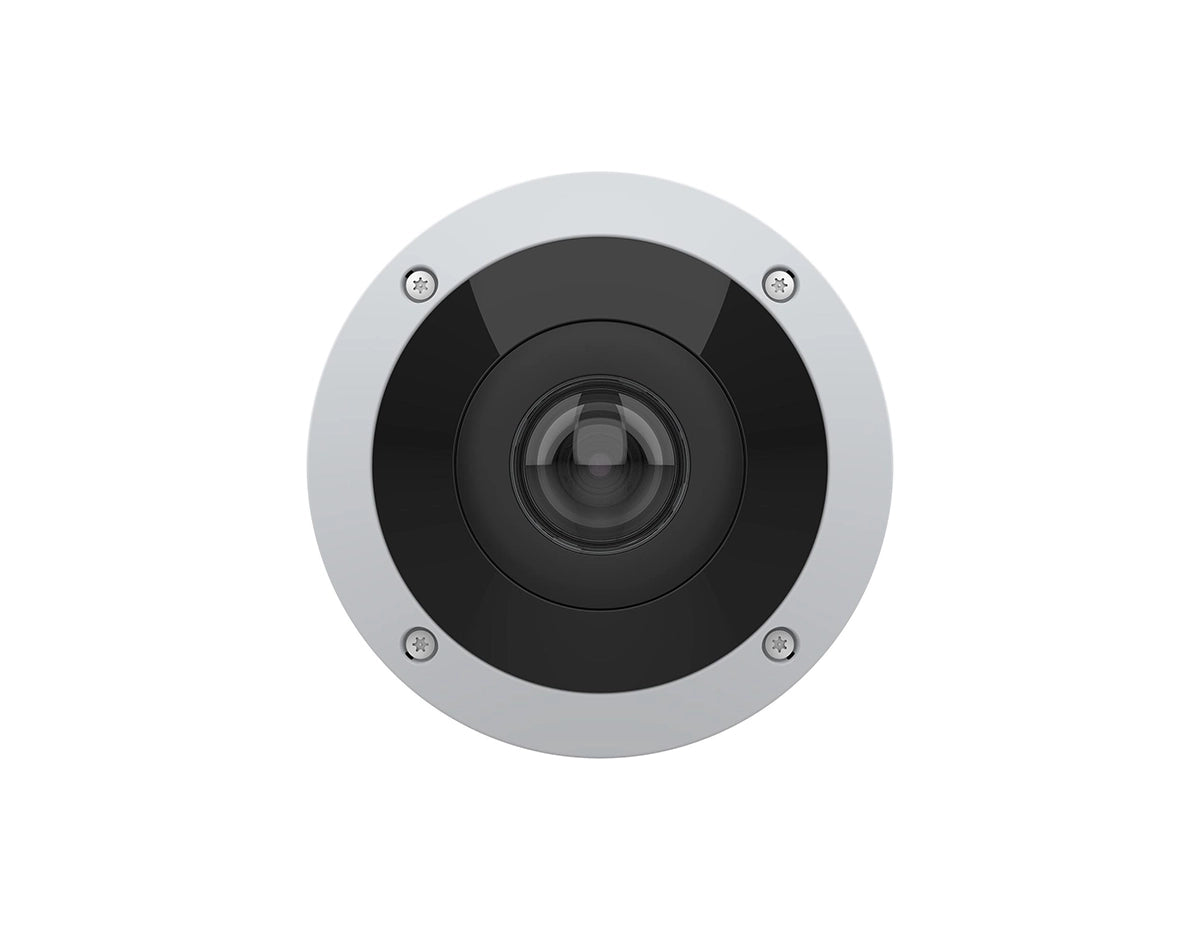

AXIS M4317-PLVE Panoramic Camera |
| Camera |
| Image sensor |
1/1.8” progressive scan RGB CMOS |
| Lens |
Focal length: 1.1 mm, F2.2 — Horizontal/Vertical FOV: 182° |
| Day and night |
Automatic IR-cut filter |
| Minimum illumination |
Color: 0.16 lux; B/W: 0.03 lux; 0 lux with IR |
| Shutter speed |
1/33500 s to 0.2 s |
| Camera angle adjustment |
Digital roll: ±180° |
| System on Chip (SoC) |
| Model |
ARTPEC-8 |
| Memory |
2048 MB RAM, 8192 MB Flash |
| Compute capabilities |
Deep learning processing unit (DLPU) |
| Video |
| Video compression |
H.264, H.265, Motion JPEG |
| Resolution |
2160x2160 to 160x160 (various panorama, corner, quad views) |
| Frame rate |
Up to 25/30 fps (50/60 Hz) in all resolutions |
| Video streaming |
Multiple configurable streams; Axis Zipstream; VBR/ABR/MBR |
| WDR |
Forensic WDR: Up to 120 dB |
| Noise reduction |
Spatial + Temporal (2D/3D) |
| Image settings |
Saturation, contrast, brightness, tone mapping, white balance, exposure zones, compression, mirroring, privacy masks |
| Image processing |
Axis Zipstream, Lightfinder, OptimizedIR |
| Pan/Tilt/Zoom |
Digital PTZ, preset positions, guard tours |
| Audio |
| Audio input/output |
Two-way audio via portcast; voice enhancer; network speaker pairing |
| Network |
| Protocols |
IPv4/IPv6, HTTP/HTTPS, TLS v1.2/v1.3, SNMP, QoS, FTP, SFTP, DNS, NTP, DHCP, SSH, MQTT, IEEE 802.1X |
| System Integration |
| API |
VAPIX®, ACAP (Native + Computer Vision SDK), ONVIF G/M/S/T, SIP/VoIP integration |
| Video management systems |
Compatible with AXIS Camera Station Edge, AXIS Camera Station Pro, AXIS Camera Station 5, and partner VMS |
| Analytics |
| Built-in analytics |
AXIS Object Analytics, AXIS Video Motion Detection, Audio Detection, AXIS Scene Metadata, AXIS Image Health Analytics |
| Supported analytics |
AXIS People Counter, AXIS Queue Monitor, AXIS Occupancy Estimator, third-party ACAP applications |
| Cybersecurity |
| Edge security |
Signed firmware, secure boot, Axis Edge Vault, secure keystore, encrypted SD card (AES-XTS-Plain64 256-bit) |
| Network security |
IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), HTTPS/HSTS, TLS v1.2/v1.3, IP filtering, NTS, PKI X.509 certificates |
| Approvals |
| Safety |
IEC/EN/UL 62368-1 ed.3, IEC/EN 62471 (risk group exempt) |
| EMC |
EN 55032 Class A, EN 55035, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A) |
| Environment |
IEC 60068-2-1/2/6/14/27, IEC/EN 60529 IP42, IEC/EN 62262 IK08 |
| General |
| Casing |
IP42 and IK08 rated polycarbonate dome; aluminum base; color: white NCS S 1002-B |
| Power |
PoE IEEE 802.3af/at Type 1 Class 2, typical 3.5 W, max 5.2 W |
| Connectors |
RJ45 10BASE-T/100BASE-TX PoE, HDMI type D, Audio I/O via portcast technology |
| Storage |
MicroSD/microSDHC/microSDXC slot, NAS recording supported |
| Operating conditions |
0 °C to 40 °C (32 °F to 104 °F), humidity 10–85% RH non-condensing |
| Storage conditions |
–30 °C to 65 °C (–22 °F to 149 °F), humidity 5–95% RH non-condensing |
| Dimensions |
Height: 71 mm (2.8 in), Ø 120 mm (4.72 in) |
| Weight |
850 g (1.9 lb) |
| Languages |
EN, FR, DE, ES, IT, RU, ZH, JA, KO, PT, PL, TR, SV, NL, TH |
| Sustainability |
PVC-free, BFR/CFR-free, RoHS, REACH, recycled plastics used |
