Model: C9400-LC-48P
, Switch
, 48 x 10/100/1000, Plug-in module, PoE+
List Price: US$8,872.00
You Save: $3,134.77 (35% OFF)
Condition: Brand New Sealed
Availability: SPECIAL ORDER
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside New Jersey

The Cisco Catalyst 9400 is Cisco's lead modular enterprise switching access platform built for security, IoT and cloud. This switch series forms the foundational building blocks for SD-Access - Cisco's leading enterprise architecture. The platform provides unparalleled investment protection with a chassis architecture that is capable of supporting up to 9Tbps of system bandwidth and unmatched power delivery for high density IEEE 802.3BT (60W PoE). Redundancy is now table stakes across the portfolio.


Specifications C9400-LC-48P
Standards Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3an, IEEE 802.3an
Features ●      48 ports nonblocking

●      10/100/1000 module (RJ-45)

●      Supported on Cisco IOS XE Software Release 16.8.1 or later

●      PoE+ is enabled, capable of up to 30W on all ports in the line card

●      Energy Efficient Ethernet 802.3az

●      Supports IEEE 802.3af/at

●      IEEE 802.1AE (MACsec-256) capability in hardware

●      Layer 2 to Layer 4 Jumbo Frame support up to 9216 bytes

●      Enterprise and commercial design to power next-generation IP phones, wireless base stations, video cameras, virtual desktop clients, and other PoE

●      Ideal for campus and branch applications requiring enhanced performance for large file transfers and network backups
Bandwidth per slot by chassis
C9400 Supervisor Engine-1 (C9400-SUP-1) Bandwidth per slot
Chassis C9404R: 80 Gbps
Chassis C9407R: 80 Gbps
Chassis C9410R: 80 Gbps
Oversubscription: 1:1
C9400 Supervisor Engine-1XL (C9400-SUP-1XL) Bandwidth per slot
Chassis C9404R: 240 Gbps
Chassis C9407R: 120 Gbps
Chassis C9410R: 80 Gbps
Oversubscription: 1:1
C9400 Supervisor Engine-1XL-Y (C9400-SUP-1XL-Y) Bandwidth per slot
Chassis C9404R: 240 Gbps
Chassis C9407R: 120 Gbps
Chassis C9410R: 80 Gbps
Oversubscription: 1:1
C9400 Supervisor Engine-2XL (C9400X-SUP-2XL) Bandwidth per slot
Chassis C9404R: 480 Gbps
Chassis C9407R: 480 Gbps
Chassis C9410R: 480 Gbps
Oversubscription: 1:1
C9400 Supervisor Engine-2 (C9400X-SUP-2) Bandwidth per slot
Chassis C9404R: 240 Gbps
Chassis C9407R: 240 Gbps
Chassis C9410R: 240 Gbps
Oversubscription: 1:1
Operating temperature ●  Normal Operating * Temperature and Altitudes:
    ◦    23° to 113°F (-5 to +45°C), up to 6,000 feet (1800 m)

    ◦    23° to 104°F (-5 to +40°C), up to 10,000 feet (3000 m)

    ◦    *Minimum ambient temperature for cold startup is 0°C

●  Short-Term ** Exceptional Conditions:
    ◦    23° to 131°F (-5 to +55°C), up to 6,000 feet (1800 m)

    ◦    23° to 122°F (-5 to +50°C), up to 10,000 feet (3000 m)

    ◦    **Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences
Storage temperature -40° to 158° F (-40° to 70°C)
Relative humidity 10 to 95%, noncondensing
Operating altitude -60 to 3000m
Rated MTBF (hours) 980,440
Safety conditions Fiber optic lasers: Class 1 laser products
Safety certifications ●  UL 60950-1
●  CAN/CSA-C222.2 No. 60950-1
●  EN 60950-1
●  IEC 60950-1
●  AS/NZS 60950.1
●  IEEE 802.3
Electromagnetic emissions certifications ●  47 CFR Part 15
●  CISPR22 Class A
●  EN 300 386 V1.6.1
●  EN 55022 Class A
●  EN 55032 Class A
●  CISPR 32 Class A
●  EN61000-3-2
●  EN61000-3-3
●  ICES-003 Class A
●  TCVN 7189 Class A
●  V-3 Class A
●  CISPR24
●  EN 300 386
●  EN55024
●  TCVN 7317
ROHS compliance ROHS5

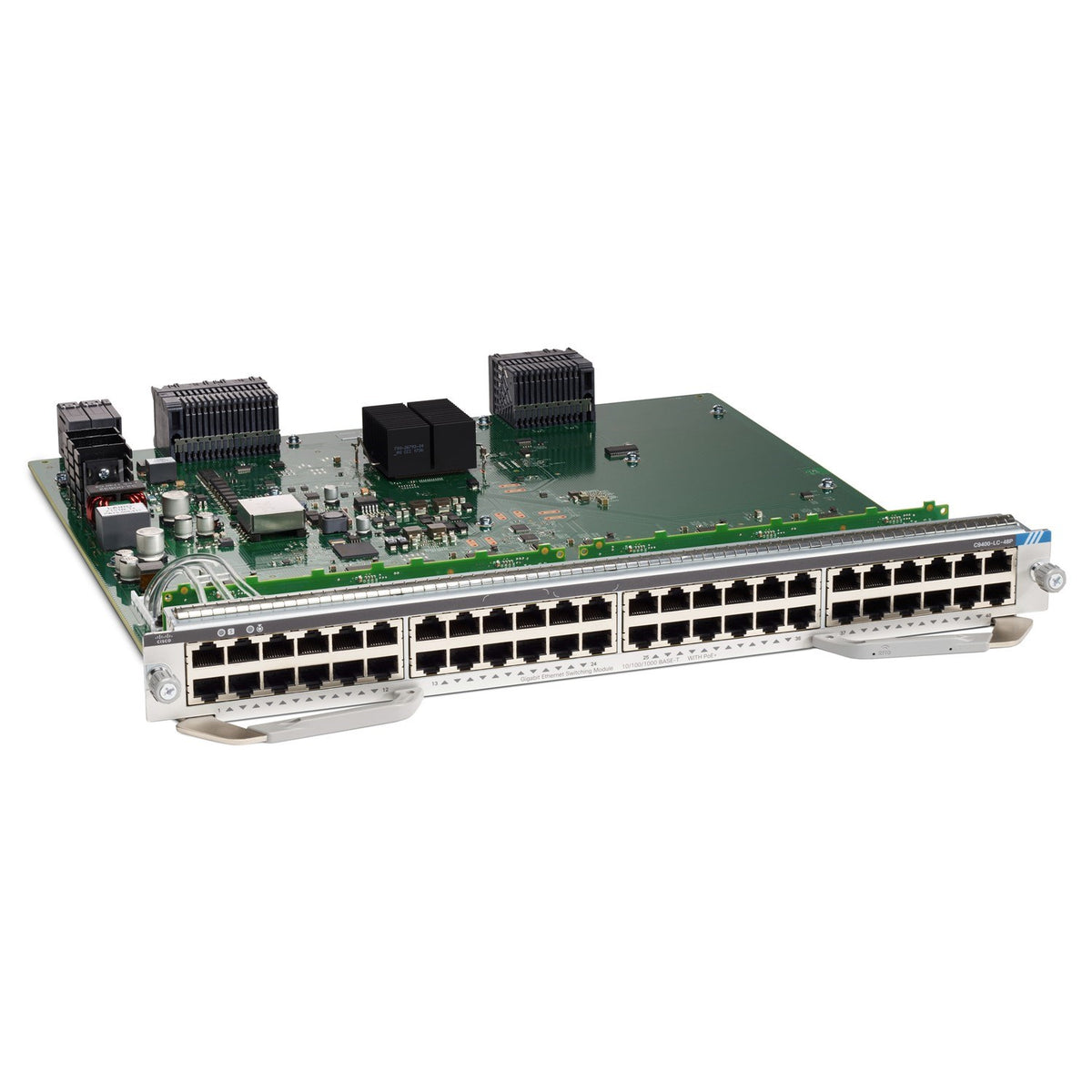

Properties Cisco C9400-LC-48P
Description Cisco Catalyst 9400 Series 48-Port POE+ 10/100/1000 (RJ-45)
Product Family Catalyst 9400
Product Type Switch Line Card
Number of ports 48
Port speed 10/100/1000M
Port type RJ-45 POE+ IEEE 802.3at, IEEE 802.3af, Cisco pre-standard
Cisco Catalyst 9400 Series switch min/max ports
C9404R 48/96
C9407R 48/240
C9410R 48/384
Physical dimensions Occupies one slot in Cisco Catalyst 9400 Series switches

Dimensions (H x W x D): 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm)
Max rated power (W) 65
