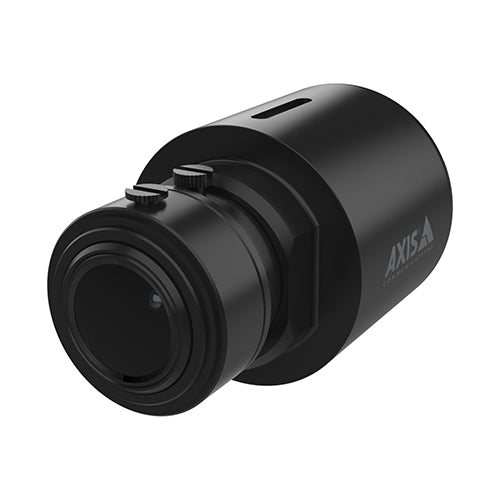

AXIS F2135-RE Fisheye Sensor (02641-001)

Name: AXIS F2135-RE Fisheye Sensor (02641-001)
Brand: Axis
SKU: 02641-001-NEW
Price: 282.45 USD
Availability: InStock

Part Number: 02641-001

Technical Details

2nd generation: Discreet fisheye sensor with 1080p, Only compatible with 2nd generation main units and cables, Up to 60 fps at 1080p and up to 180 fps at 720p, 185° horizontal field of view, Rugged sensor unit, IP66/IP67/IP6K9K rated, 2nd gen cable is required

$282.45

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

AXIS F2135-RE Fisheye Sensor (02641-001)

The AXIS F2135-RE Fisheye Sensor provides discreet 1080p surveillance with a 185° field of view, delivering up to 60 fps at 1080p and 180 fps at 720p. It’s designed for use with 2nd generation F91 main units and connects via a single SMA interface to Axis SMA-FAKRA cables. Built to withstand harsh environments, it is IP66/IP67/IP6K9K and NEMA 4X rated, ideal for both indoor and outdoor use.

Quick Specs:

Only compatible with 2^nd generation main units and cables
Up to 60 fps at 1080p and up to 180 fps at 720p
Rugged sensor unit
IP66/IP67/IP6K9K rated

Please see the related tabs for the 02641-001 datasheet and compatible accessories.

Feature	AXIS F2105-RE Standard Sensor	AXIS F2115-R Varifocal Sensor	AXIS F2135-RE Fisheye Sensor	AXIS F4105-LRE Dome Sensor	AXIS F4105-SLRE Dome Sensor	AXIS F7225-RE Pinhole Sensor
Outdoor Ready	✔	–	✔	✔	✔	✔
Horizontal field of view	108	107.4 - 56.3	185	110	110	92

Properties

Properties	AXIS F2135-RE
Description	AXIS F2135-RE Fisheye Sensor is ideal for indoor installation, in ATMs, vending machines, buses, and emergency vehicles. It offers up to 1080p at 60 fps, 185° field of view, and good low-light performance in color.
Product Family	Axis Cameras
Product Type	Sensor
Image sensor	1/2.8” progressive scan RGB CMOS
Wide dynamic range	–
PoE Class	–
Connectors	SMA connector (uses Axis cables with SMA-FAKRA connectors)
Built-in IR	–
Local storage (memory card slot)	–
Outdoor Ready	Yes
Vandal rating	–
IP rating	IP66, IP67, IP6K9K, NEMA 4X
Power (max)	1.7 W
Power (average)	1.0 W
Dimensions	46 mm (1.8 in) ø 29.8 mm (1.2 in)
Weight	50 g (0.1 lb)
Operating Temperature	-40 °C to 60 °C (-40 °F to 140 °F)
Sustainability	PVC free

Specifications

Specifications	AXIS F2135-RE
Min illumination/ light sensitivity (Color)	0.1 lux
Min illumination/ light sensitivity (B/W)	-
Max video resolution	1920x1080
Max frames per second	180
Day and Night functionality	–
Electronic image stabilization	–
Focal length	1.98 mm
Varifocal lens	No
Aperture	2.0
Horizontal field of view	185°
Vertical field of view	97°
Lens mount	M12
Replaceable lens	Yes
Audio Support	–

Accessories

Optional accessories
AXIS TU6002	Right-angle SMA Adaptor
AXIS TU6004-E	2nd generation Indoor and outdoor rated cable for AXIS F Series modular cameras
AXIS TU6005	2nd generation Plenum Cable
AXIS TU6007-E	2nd generation Indoor and outdoor rated cable for AXIS F Series modular cameras
AXIS TF1801-R	Lens Hood
AXIS TF1201-RE	Recessed mounting of modular sensor units
AXIS TF1203-RE	Recessed mounting of modular sensors
AXIS TF1803-RE	Lens Protector
AXIS TF1901-RE	Swivel Mount
AXIS TF1902-RE	Mounting Bracket
