AXIS F2115-R VARIFOCAL SENSOR
| Model: | 02639-001 |
| Detail: |
|
| Price: | $310.00 |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

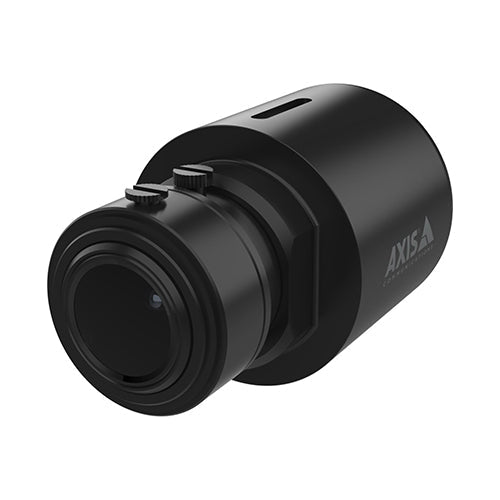

AXIS F2115-R is a 1080p Varifocal sensor part for the 2nd generation F-series. The focus as well as the focal length has to be manually adjusted on the lens. The Horizontal Field of View varies from 107 degree to 56 degree. The focal length varies from 3.2mm to 5.7mm. AXIS F2115-R is a rugged indoor sensor. It can deliver up a 1080p resolution at 60fps (all AXIS F91 main units) or 720p at 180fps (AXIS F9111 main unit only). There is no cable included with AXIS F2115-R Varifocal sensor. An AXIS TU600X cable has to be purchased separately. There is no mounting accessory included with AXIS F2115-R Varifocal sensor. Mounting accessories can be purchased separately. AXIS F2115-R Varifocal sensor is NOT compatible with the 1st generation F-series main unit (F34, F41 or F44)
| Feature | AXIS F2105-RE Standard Sensor | AXIS F2115-R Varifocal Sensor | AXIS F2135-RE Fisheye Sensor | AXIS F4105-LRE Dome Sensor | AXIS F4105-SLRE Dome Sensor | AXIS F7225-RE Pinhole Sensor |
|---|---|---|---|---|---|---|
| Outdoor Ready | ✔ | – | ✔ | ✔ | ✔ | ✔ |
| Horizontal field of view | 108 | 107.4 - 56.3 | 185 | 110 | 110 | 92 |
Accessories
| Optional accessories | |
| AXIS TU6002 | Right-angle SMA Adaptor |
| AXIS TU6004-E | 2nd generation Indoor and outdoor rated cable for AXIS F Series modular cameras |
| AXIS TU6005 | 2nd generation Plenum Cable |
| AXIS TF1901-RE | Swivel Mount |
Specifications
| Specifications | AXIS F2115-R |
| Min illumination/ light sensitivity (Color) | 0.1 lux |
| Min illumination/ light sensitivity (B/W) | - |
| Max video resolution | 1920x1080 |
| Max frames per second | 180 |
| Day and Night functionality | – |
| Electronic image stabilization | – |
| Focal length | 3.2 - 5.7 mm |
| Varifocal lens | Yes |
| Aperture | 2.2 - 3.1 |
| Horizontal field of view | 107.4 - 56.3 ° |
| Vertical field of view | 57.3 - 31.5 ° |
| Lens mount | M12 |
| Replaceable lens | – |
| Audio Support | – |
Properties
| Properties | AXIS F2115-R |
| Description | AXIS F2115-R Varifocal Sensor is ideal for indoor installation, in ATMs, vending machines, buses, and emergency vehicles. It uses cables from Axis with SMA-FAKRA connectors to withstand vibrations and ensure a ruggedized installation. |
| Product Family | Axis Cameras |
| Product Type | Sensor |
| Image sensor | 1/2.8” progressive scan RGB CMOS |
| Wide dynamic range | – |
| PoE Class | – |
| Connectors | SMA-FAKRA connectors |
| Built-in IR | |
| Local storage (memory card slot) | – |
| Outdoor Ready | – |
| Vandal rating | – |
| IP rating | IP5X |
| Power (max) | 4.0 W |
| Power (average) | 1.0 W |
| Dimensions | 50 mm (1.9 in) ø 29.8 mm (1.2 in) |
| Weight | 50 g (0.1 lb) |
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Sustainability | PVC and BFR/CFR free |
