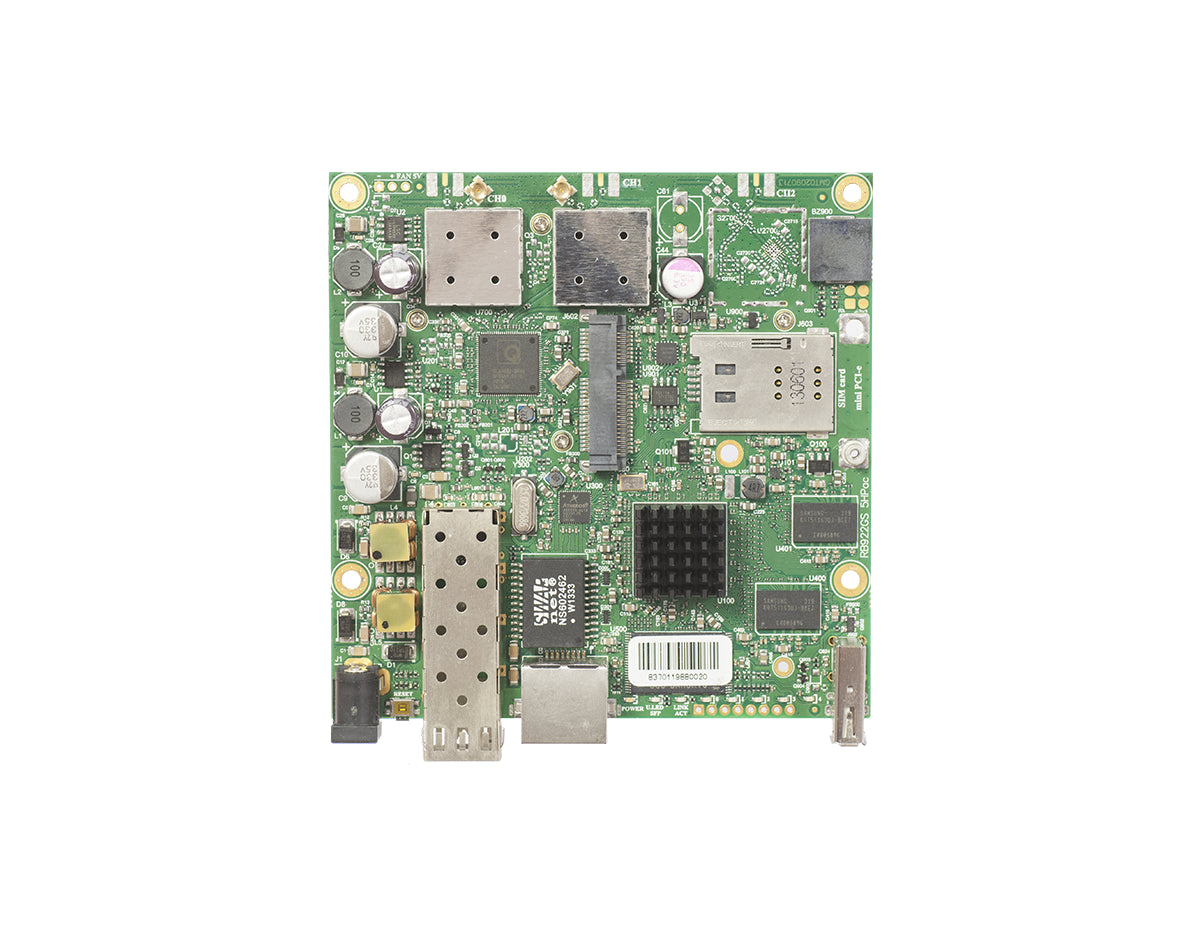

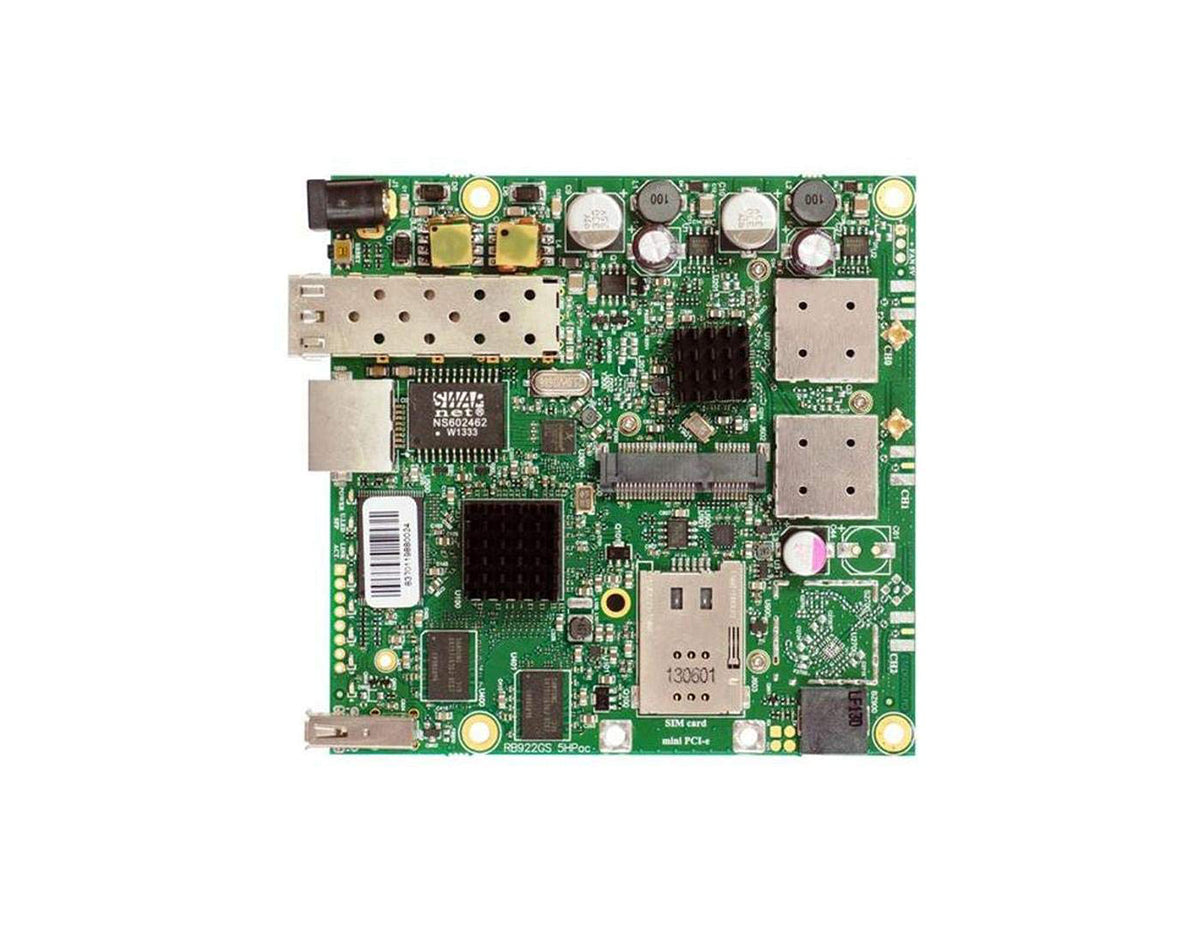

MikroTik RB922UAGS-5HPacD Router

The RB922UAGS-5HPacD is a versatile wireless router that can be customized to meet individual needs. It supports the latest 802.11ac standard, providing high-speed wireless capabilities with a maximum data rate of 866Mbit and support for 20/40/80MHz channels. The device includes multiple ports and slots, such as a 1x SFP cage, a mini-PCIe slot with SIM for 3G/4G modem or an additional wireless card, a USB port, a Gigabit Ethernet port, and two MMCX connectors for the integrated powerful 802.11ac 2x2 radio. Moreover, it comes with a RouterOS L4 (AP) license. The RB922UAGS-5HPacD supports a range of 5150 MHz-5875MHz.

Quick Specs:

• 1x 10/100/1000 Ethernet Port
• 1x SFP uplink port / SFP DDMI
• QCA9557, 1 core, 720 MHz CPU
• 128 MB RAM

Please see the related tabs for the RB922UAGS-5HPacD datasheet and compatible accessories.

Properties	MikroTik RB922UAGS-5HPacD Router
Description	The MikroTik RB922UAGS-5HPacD is a professional-grade dual-band wireless router with high-power output. It provides fast internet speeds, multiple Gigabit Ethernet ports, and advanced security features, making it ideal for demanding environments like ISPs, businesses, and enterprises.
Product Family	Mikrotik RouterBOARD
Product Type	Routerboard
Key Features	• Dual-Band Wireless (2.4 GHz and 5 GHz) • High-power output for extended coverage • Multiple Gigabit Ethernet ports • Advanced security features • Professional-grade performance • Ideal for ISPs, businesses, and enterprises

Specifications	MikroTik RB922UAGS-5HPacD Router
Product code	RB922UAGS-5HPacD
Architecture	MIPSBE
CPU	QCA9557
CPU core count	1
CPU nominal frequency	720 MHz
Dimensions	105x105mm
RouterOS license	4
Operating System	RouterOS
Size of RAM	128 MB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 100'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
Powering
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	8-30 V
Max power consumption	17 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	8-30 V
Wireless specifications
Wireless 5 GHz Max data rate	867 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n/ac
Wireless 5 GHz chip model	QCA9882
Wireless 5 GHz generation	Wi-Fi 5
Ethernet
10/100/1000 Ethernet ports	1
Fiber
SFP DDMI	yes
SFP ports	1
Peripherals
Number of SIM slots	1 Modem (Mini-SIM)
MiniPCI-e slots	1
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1
Other
PCB temperature monitor	Yes
Voltage Monitor	Yes
Beeper	Yes
Certification & Approvals
Certification	CE, FCC, IC, EAC, ROHS
IP	IP00
Wireless specifications (2.4 GHz)
6MBit/s	Transmit (dBm): 31 Receive Sensitivity: -96
54MBit/s	Transmit (dBm): 27 Receive Sensitivity: -81
MCS0	Transmit (dBm): 30 Receive Sensitivity: -96
MCS7	Transmit (dBm): 27 Receive Sensitivity: -77
MCS9	Transmit (dBm): 22 Receive Sensitivity: -72
