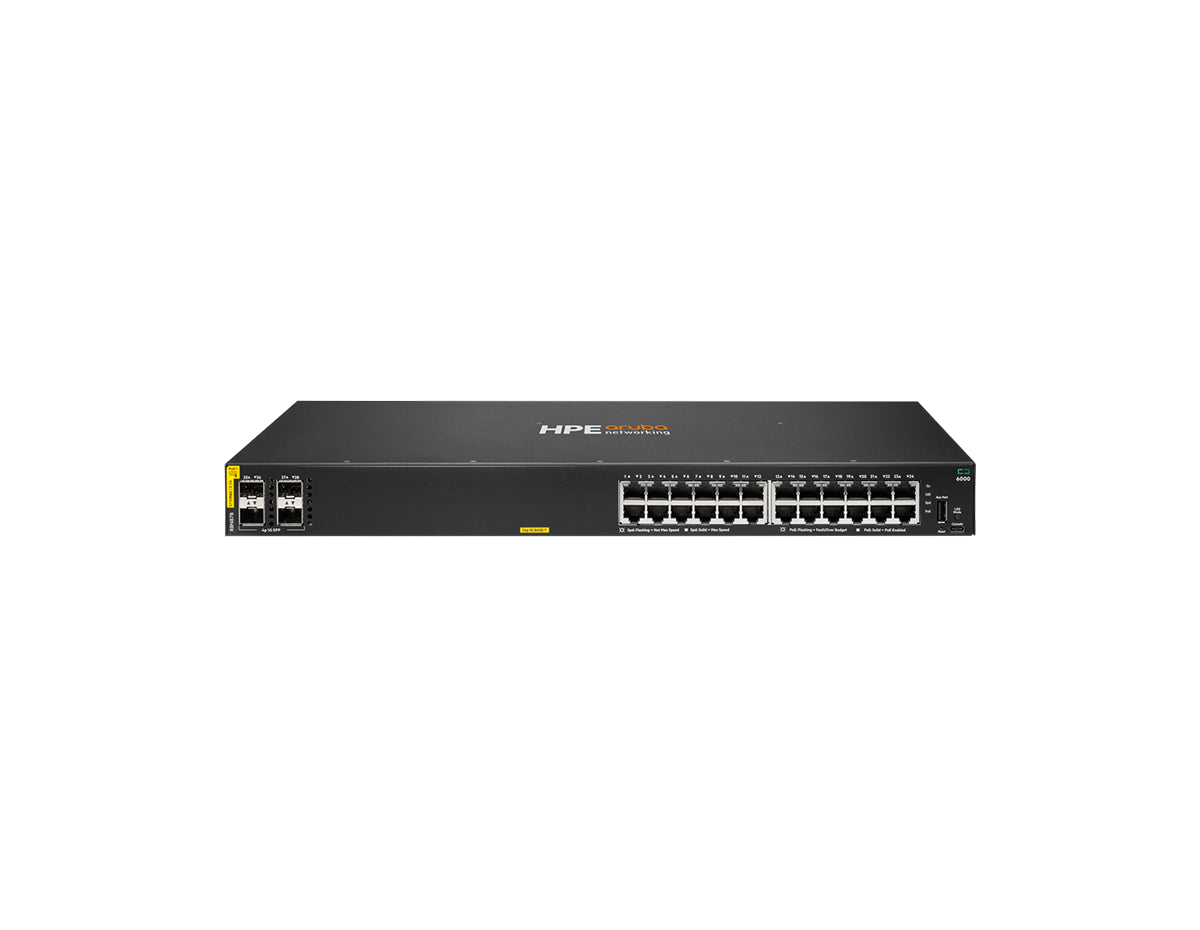

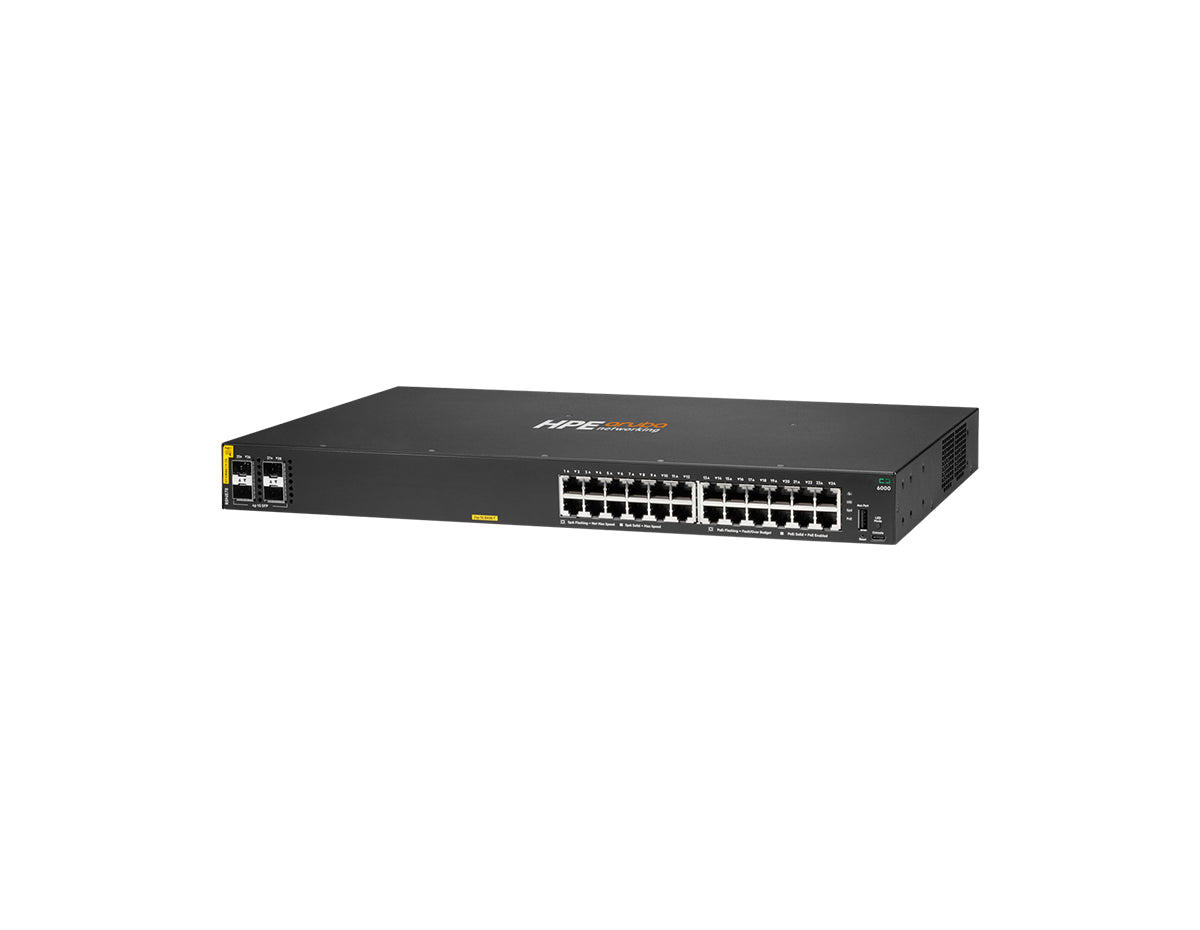

HPE Aruba CX 6000 R8N87B 24-Port PoE+ Switch, 4x 1G SFP Uplinks, 370W PoE Budget

Brand:
HPE Aruba
Part Number:
R8N87B

The R8N87B is a 24-port PoE+ (24x 10/100/1000BASE-T) Layer 2 switch with 4x 1G SFP uplinks. It is fan-cooled and has no published stacking, with 370W of Class 4 PoE and no license tier required.

$1,395.00

Net 30 or as low as $—/month Apply Now

Quote

Overview

The HPE Aruba CX 6000 Switch Series delivers Layer 2 access connectivity with enhanced access security, traffic prioritization and IPv6 support. The R8N87B is the 24-port PoE configuration on the rack-mounted, actively cooled side of the series, where the 8-port and 12-port models are compact and fanless instead. What separates this series from a web-managed switch is the management model rather than a license tier: the same hardware runs AOS-CX with a Web GUI and CLI from first boot, and can later be adopted into HPE Aruba Networking Central, in the cloud or on premises, or configured in bulk through HPE Networking Switch Multi-Edit Software, with REST APIs available for scripted changes. Two things decide the fit beyond the port count. The first is the uplink: all four SFP slots are 1G and there is no SFP+ cage anywhere in the series, so the path to the aggregation layer is gigabit fibre. The second is the power budget: 370 W of Class 4 PoE is allocated across the access ports by usage or by class, with LLDP and LLDP-MED, so a closet full of access points needs its draw counted against that figure rather than against a per-port maximum.

Technical Details

The HPE Aruba CX 6000 R8N87B is a Layer 2 managed 1U rackmount switch with 24 10/100/1000BASE-T access ports and 4x 1G SFP uplinks, running AOS-CX. Switching capacity is 56 Gbps and the forwarding rate is 41.6 Mpps. The PoE budget is 370 W of IEEE 802.3af and 802.3at Class 4 power, shared across the access ports at up to 30 W per port. Routing is limited to static IPv4 and IPv6, with support for 16 dual-stack switched virtual interfaces. It is deployed in a campus or branch wiring closet, powering access points, IP phones and IP cameras over 1G fibre uplinks back to the aggregation layer.

  • Enterprise Branch
  • Small & Midsize Business

Best For

The R8N87B suits a campus or branch wiring closet that needs 24 gigabit access ports with 370 W of Class 4 PoE and four 1G fibre uplinks for access points, IP phones and IP cameras. It fits sites that want AOS-CX management through a Web GUI and CLI now and the option of HPE Aruba Networking Central later, with no license tier to choose and no subscription needed to keep the switch running. The budget is shared across the access ports, so a deployment should be sized by the total draw of the powered devices rather than by port count.

Not suitable if:

  • your powered devices need more than 370 W in total, since that budget is shared across all access ports
  • you need more than 30 W to a single port, since the ports deliver IEEE 802.3at Class 4 power
  • you need uplinks faster than 1G, since all four SFP slots are 1G and the series has no SFP+ cage
  • you need dynamic routing such as OSPF or BGP, since the series routes only static IPv4 and IPv6
  • you need multigigabit access ports, since every access port is 10/100/1000BASE-T
  • you need a hardened or extended-temperature switch for an industrial or outdoor site
  • you need switch stacking, since no stacking capability is published for this series

R8N87B Specifications

Class & Licensing
License TierNone
License Detail / MTBFNone; MTBF Not published
Ports & Uplinks
PoE Budget370 W (IEEE 802.3af/802.3at Class 4, up to 30 W per port)
Port Speed1 GbE (10/100/1000BASE-T)
Uplink Configuration4×1G SFP
Performance & Scale
StackingNot published
Switching Capacity56 Gbps
Forwarding Rate41.6 Mpps
MAC Table8,192 entries
Hardware & Memory
DRAM4 GB DDR3
Flash16 GB eMMC
Power & Thermal
Power Input / PSUFixed power supply; 100-127 VAC / 200-240 VAC input (50/60 Hz)
Redundant PSUNo
CoolingFixed fans; side-to-side airflow
Physical & Environmental
Dimensions (H x W x D)1.73 × 17.4 × 10.56 in (4.39 × 44.25 × 26.82 cm)
Weight8.11 lbs (3.68 kg)
Operating Temperature32 to 113 °F (0 to 45 °C) up to 5,000 ft (1.5 km); derate 1 °C per 1,000 ft (305 m) to 10,000 ft (3.0 km)
Software
Operating SystemAOS-CX

Part Number Decode

  • R8N87 is the order code for the CX 6000 24-port PoE model, and it is opaque: the code does not encode the port count, uplink type or PoE state, which are carried in the model name HPE Aruba Networking 6000 24G Class4 PoE 4SFP 370W Switch. —
  • B marks the rev-B model, which HPE documents as carrying Trusted Platform Module 2.0. —
  • TAA variants of the CX 6000 are separate order codes in the S4R20A to S4R29A range rather than a suffix on this part number, so a TAA requirement means a different SKU. —

Add-ons

Image Part Number Product Title Price Add to cart
HPE Aruba  J4858D Transceiver Module J4858D HPE Aruba J4858D Transceiver Module $85.00
HPE Aruba  J4859D 1G SFP LC LX 10km SMF Transceiver J4859D HPE Aruba J4859D 1G SFP LC LX 10km SMF Transceiver $205.00

FAQ

How much PoE does the HPE Aruba CX 6000 R8N87B provide?

The R8N87B provides 370 W of IEEE 802.3af and 802.3at Class 4 Power over Ethernet across its 24 access ports, at up to 30 W per port. The budget is a shared pool rather than a per-port guarantee, so the switch allocates it by usage or by class, using LLDP and LLDP-MED to negotiate with the powered device. Size a deployment on the total draw of the access points, phones and cameras attached, not on how many ports are populated.

What transceivers does the R8N87B take?

The four uplink slots are 1G SFP, and HPE lists three transceivers for the series: J4858D for 1G SX over multimode, J4859D for 1G LX over single-mode and J8177E for 1G over Cat5e copper. There is no SFP+ cage on any CX 6000 model, so 10G optics do not apply. Transceivers are sold separately. Other 1G optics can be enabled through HPE's unsupported-transceiver mode, which carries no warranty or support.

Can the R8N87B be stacked?

No stacking capability is published for the CX 6000 Series. The QuickSpecs documents no stacking technology and no virtual switching framework for this family, so the R8N87B should be planned as a standalone access switch with its uplinks carrying traffic to the aggregation layer. Where several closets need to be managed as one, that is done through HPE Aruba Networking Central or HPE Networking Switch Multi-Edit Software rather than through a stack.

What is the difference between the R8N87B and the R8N88B?

The R8N88B is the 24-port data-only model. Both are 1U rack-mounted switches with fixed fans, and they share 4x 1G SFP uplinks, switching performance, AOS-CX software and static IPv4 and IPv6 routing; Power over Ethernet is the functional difference, and the PoE model is deeper and heavier.

Does the R8N87B need a subscription to work?

No. The CX 6000 Series has no license tiers and the switch software is embedded, with no subscription required to enable it. The R8N87B boots into AOS-CX with its Web GUI and CLI available immediately. HPE Aruba Networking Central is a separate management platform, ordered on its own in the cloud or on premises; it adds central monitoring and configuration but is not a condition of the switch operating.

What routing can the R8N87B do?

The R8N87B routes static IPv4 and IPv6 only. HPE's Layer 3 Routing section for the series grants static routing, ARP, a dual IP stack and 16 dual-stack switched virtual interfaces, and lists no dynamic routing protocols. Inter-VLAN traffic that needs a dynamic protocol has to be routed by a device above this switch.

How is the R8N87B managed?

The R8N87B runs AOS-CX, the same operating system used across HPE Aruba Networking CX switching, and is managed from a built-in Web GUI or the CLI from first boot. It can be adopted into HPE Aruba Networking Central for cloud or on-premises management, configured in bulk with HPE Networking Switch Multi-Edit Software, or driven through REST APIs for scripted changes. Colorless ports with local user roles and local MAC authentication let a port's policy follow the device rather than the patch panel.

Is the R8N87B still current, and where is its lifecycle status published?

Network Devices Inc. sells the R8N87B as new, factory-sealed stock. HPE publishes product and lifecycle information for the CX 6000 Switch Series through its QuickSpecs and product data sheet; no end-of-life notice for this model was retrievable. Buyers should confirm the current status with HPE before ordering.

What condition is the R8N87B sold in, and what warranty applies?

The R8N87B is sold new and factory-sealed. It is covered by a Network Devices Inc. one-year warranty and a 30-day return policy.
