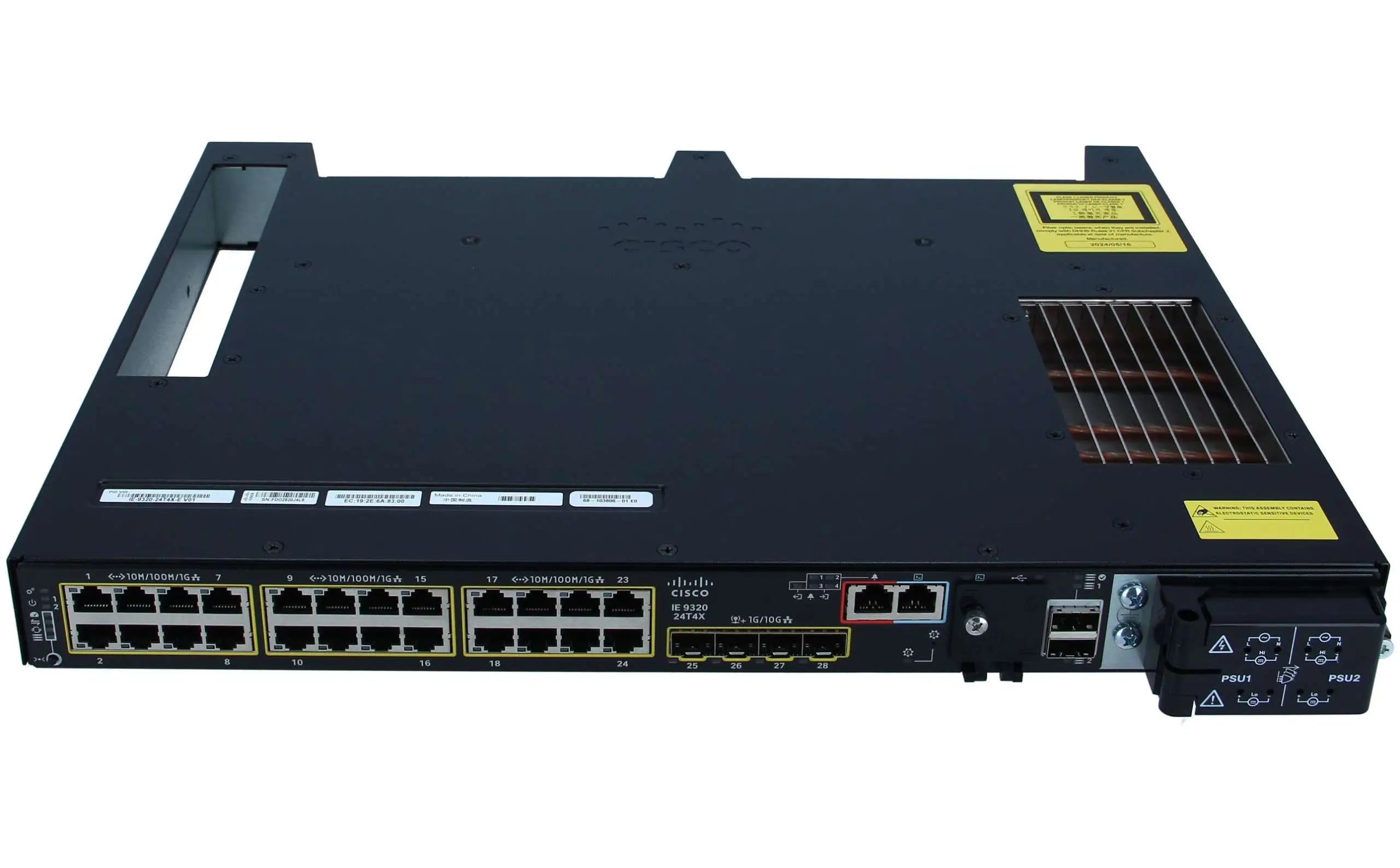

Cisco Catalyst IE-9320-24T4X-E Rugged Ethernet Switch

Name: Cisco Catalyst IE-9320-24T4X-E Rugged Ethernet Switch
Brand: Cisco
SKU: IE-9320-24T4X-E-NEW
Price: 5450.0 USD
Availability: InStock

Part Number: IE-9320-24T4X-E

Technical Details

24x 10/100/1000 RJ45, 4x 1/10G SFP+, Network Essentials, rack-mount, fanless

$8,758.12

$5,450.00

38% OFF

You Save: $3,308.12

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

Reliable High-Performance Switching for Demanding Environments

The Cisco Catalyst IE-9320-24T4X-E delivers ruggedized Gigabit and 10 Gigabit Ethernet connectivity in a compact 1RU rack-mount form factor. Designed for harsh industrial conditions, it supports extended temperature ranges and vibration tolerance, making it ideal for energy, manufacturing, transportation, and smart city deployments. Powered by Cisco IOS XE, it combines high resiliency with strong security foundations and easy management.

Key Benefits & Features

Industrial-grade design: Built for -40°C to 75°C operation with fanless cooling and resistance to shock, vibration, and electrical noise.
Flexible high-speed uplinks: Four 1/10G SFP+ uplinks enable scalable backbone connectivity for bandwidth-intensive applications.
Security options that scale: Hardware root of trust and MACsec-128 on Network Essentials, with optional MACsec-256 and TrustSec on Network Advantage; integrates with Cisco Cyber Vision.
Zero-touch management: Simplified setup with Cisco WebUI, API-driven automation, and Cisco Catalyst Center integration.
Resilient Ethernet designs: Supports REP/MRP and EtherChannel with dual power inputs to maximize uptime.

Ideal Use Cases

Industrial automation and process control networks
Transportation and smart city infrastructure
Energy and utility substations requiring rugged networking
Outdoor enclosures with extended environmental exposure
Secure remote access and monitoring in OT environments

Technical Specifications

Ports: 24x 10/100/1000 RJ45 downlinks, 4x 1/10G SFP+ uplinks
Switching Capacity: 128 Gbps full duplex
Forwarding Rate: 95.23 Mpps
VLANs: 4096 IDs, up to 1024 active
MAC Addresses: 24,000 entries
Operating Temperature: -40°C to 75°C
Form Factor: 1RU, rack-mountable, fanless
Dimensions: 1.72 x 17.5 x 14.0 in (H x W x D)
Weight: 9.5 lb (4.3 kg)
Software License: Network Essentials

Deploy Rugged Cisco Performance Today

Boost your industrial network with the Cisco IE-9320-24T4X-E. Built tough for mission-critical performance. Order now.

Properties

Model	Cisco Catalyst IE-9320-24T4X-E
Product Type	Rugged Managed Industrial Ethernet Switch
Total Ports	28
Downlink Ports	24 x 10/100/1000M RJ45
Uplink Ports	4 x 1/10G SFP+
Software License (Default)	Network Essentials
Switching Capacity	128 Gbps full-duplex
Forwarding Rate	95.23 Mpps
MAC Address Table	24,000 entries
VLAN IDs	4096 (up to 1024 active)
Form Factor	1RU, rack-mountable, fanless
Dimensions (H × W × D)	1.72 × 17.5 × 14.0 in (4.37 × 44.45 × 35.56 cm)
Weight	9.5 lb (4.3 kg)
Power Consumption	35W (system only, without SFP modules)
Operating Temperature	−40 °C to 75 °C (−40 °F to 167 °F)
Storage Temperature	−40 °C to 85 °C (−40 °F to 185 °F)
Humidity	5% to 95% noncondensing
Certifications	IEC/ANSI/ISA-62443-4-1, 62443-4-2, FIPS 140-2, Common Criteria, NEMA TS2
MTBF	651,580 hours

Specifications

Performance	128 Gbps switching capacity, 95.23 Mpps forwarding, 8 egress queues/port
Routing Capacity	IPv4: 8192 direct / 7000 indirect routes; IPv6: 3500 indirect routes
Security	Secure Boot and Cisco Trust Anchor; MACsec-128 on Network Essentials (upgrade to MACsec-256 and TrustSec segmentation with Network Advantage); supports Cisco Cyber Vision and Secure Equipment Access (licenses sold separately)
Management	WebUI, CLI, Cisco Catalyst Center, SNMP, syslog, Flexible NetFlow, API support
Redundancy	REP, MRP, EtherChannel; dual AC/DC power inputs; StackWise stacking (IE-9320 family)
Memory	8 GB DRAM, 8 GB flash (2.5 GB user-accessible), optional SD card
Alarms	4 dry-contact inputs, 1 Form-C relay output
Console Ports	1 x RJ45 RS-232, 1 x Micro-USB
Environmental	Shock and vibration tested (IEC 60068), corrosion resistant, IP30 rating
Compliance	FCC Part 15 Class A, EN 55032 Class A, IEC 61850-3, IEEE 1613, ATEX, UL/CSA 62368-1

Accessories

Rack-Mount Kits	RM-RGD-19IN (19"), RM-RGD-23IN (23"), RM-RGD-ETSI (ETSI standard)
Power Supplies	PWR-RGD-LOW-DC-H (150W DC 24–60V), PWR-RGD-AC-DC-H (150W AC/DC 85–264VAC/88–300VDC), PWR-RGD-AC-DC-250 (250W AC/DC), PWR-RGD-AC-DC-400 (400W AC/DC)
Optional Memory	SD-IE-16GB (16GB SD storage card)
Stacking Accessories	CAB-STK-0.5M (0.5m stack cable), CAB-STK-1M (1m stack cable)
