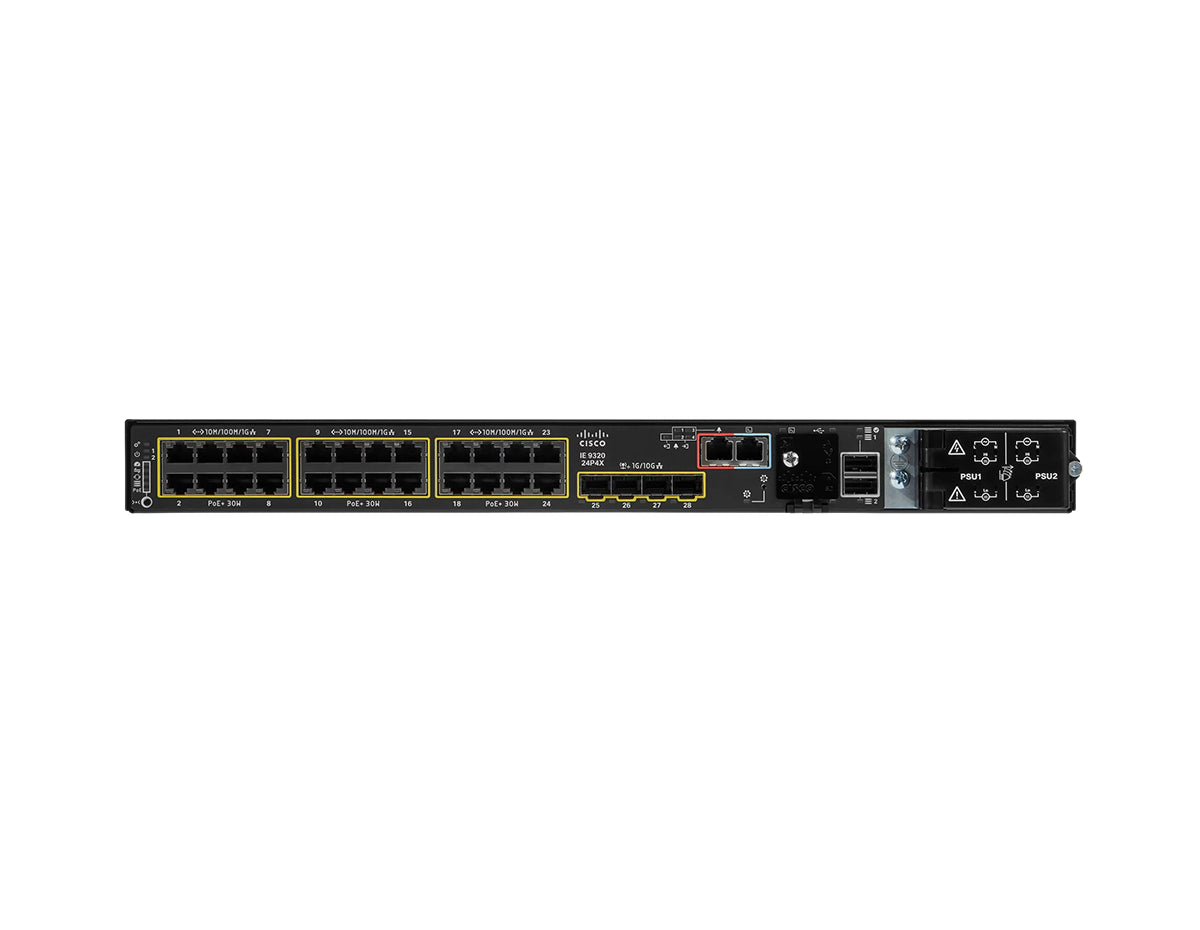

Cisco Catalyst IE-9320-24P4X-E Industrial Switch 24xGE PoE+ 4x10G SFP+

The Cisco Catalyst IE-9320-24P4X-E is a powerful industrial-grade Layer 3 managed switch designed for harsh environments across industries such as utilities, transportation, and smart cities. With 24 PoE+ downlink ports and four 10G SFP+ uplinks, it delivers both high-speed data and up to 720W of PoE power for devices like IP cameras, Wi-Fi 6 access points, and industrial sensors. Built with a fanless design and tested against extreme temperature, vibration, and surge standards, this switch provides resilient Ethernet in outdoor enclosures or cabinets. The IE9320 supports advanced Layer 3 protocols, industrial redundancy, and is manageable via WebUI, CLI, or Cisco DNA Center, ensuring reliable uptime in mission-critical networks.

Key Features:

• Industrial PoE+ Power: 24 x 10/100/1000Base-T PoE+ ports with up to 720W total PoE budget using dual 400W power supplies
• High-Speed Uplinks: 4 x 10G SFP+ uplinks for fiber backbone aggregation and long-distance connectivity
• Ruggedized for Harsh Environments: Designed to operate in -40°C to 75°C with IP30-rated protection and shock, vibration, and corrosion resistance
• Comprehensive Layer 3 Routing: Supports static routing, RIP, OSPF, and IPv6 for scalable segmented networks
• Industrial Automation Support: Native EtherNet/IP, PROFINET, PTP (1588v2), GOOSE messaging, and CIP protocol classification
• Advanced Security Features: Includes MACsec-128, 802.1X, IP Source Guard, DHCP snooping, AAA, and SGT/SGACL support
• Modular Dual Power: Supports redundant 150W, 250W, or 400W AC/DC hazardous-rated power modules for uninterrupted uptime
• WebUI and DNA Integration: Easily configurable via intuitive WebUI and Cisco DNA Center, with full SNMP and NetFlow visibility

Technical Specifications:

• Model: IE-9320-24P4X-E
• Ports: 24 x Gigabit Ethernet PoE+ (10/100/1000Base-T), 4 x 10G SFP+
• PoE Budget: Up to 720W with dual 400W PSUs
• Switching Capacity: 128 Gbps full duplex
• Forwarding Rate: 64 Gbps line rate
• MAC Address Table: 16,000 entries
• IPv4/IPv6 Routing: 4000 IPv4 routes, 2000 IPv6 indirect routes
• MTBF: 250,037 hours (per Telcordia Std)
• RAM / Flash Memory: 4 GB RAM, 8 GB Flash (2.5 GB user accessible)
• Dimensions: 1.72 x 17.5 x 14.0 in (standard PSU) / 1.72 x 17.5 x 15.57 in (with 400W PSU)
• Weight: Approx. 9.7 lb (4.4 kg)
• Operating Temp: -40°F to 167°F (-40°C to 75°C)
• Power Supply Support: Dual redundant hot-swappable PSUs (150W / 250W / 400W)
• Certifications: UL 121201, CSA 213, EN/IEC 60079-0/7, IEC 61850-3, IEEE 1613, ATEX
• Management: WebUI, CLI, SNMP, RESTCONF, NETCONF, Cisco DNA Center
• Layer 3 Features: OSPF, RIP, PBR, VRF-Lite, HSRP, BGP, IS-IS (Adv. license)
• QoS: Modular CLI, LLQ, Auto-QoS, 802.1p, DSCP support
• Redundancy: REP, PRP, HSR, dual ring support, 2 stack ports
• Software License: Network Essentials (default), Network Advantage (optional)
