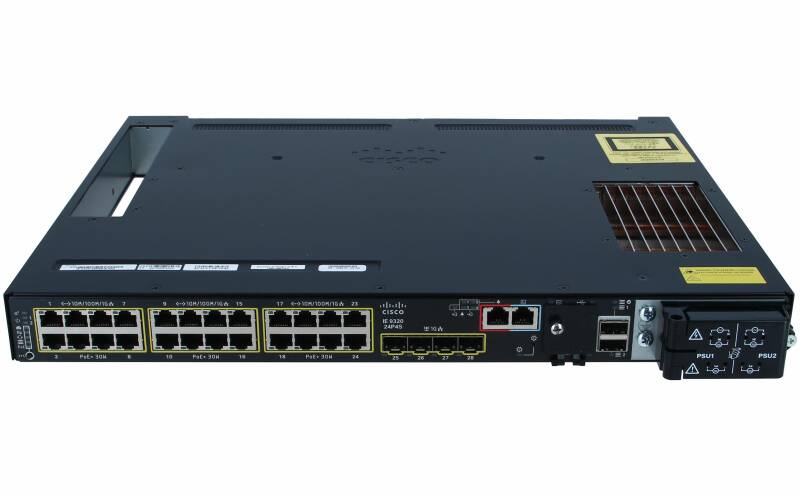

Cisco Catalyst IE-9320-24P4S-A Rugged Ethernet Switch
24x Gigabit PoE+ ports, 4x SFP uplinks, 385W PoE budget, 56 Gbps switching, rack-mountable, fanless
$16,119.98
$6,668.00
Instant Savings
$9,451.98
Reliable Industrial Networking with Ruggedized Cisco Performance
The Cisco Catalyst IE-9320-24P4S-A delivers secure, high-performance switching in extreme environments. Featuring 24 PoE+ Gigabit ports and 4 SFP uplinks, it provides robust connectivity for manufacturing, transportation, energy, and smart city networks. With a compact 1RU form factor, fanless design, and hardened environmental tolerances, this switch is engineered for mission-critical uptime.
Key Benefits & Features
- Ruggedized Build: Operates from -40°F to 167°F with IP30 compliance for harsh industrial conditions.
- High PoE Budget: 385W PoE+ power supports IP cameras, access points, and IoT devices without external injectors.
- Advanced Security: Includes MACsec encryption, TrustSec, ACLs, and secure authentication protocols for protected networks.
- Flexible Uplinks: 4 SFP slots ensure scalable fiber connectivity for backbone and aggregation deployments.
- Enterprise Features: Supports BGP, OSPF, EIGRP, VRF, and advanced traffic management with Cisco Network Advantage software.
Ideal Use Cases
- Smart cities requiring resilient edge infrastructure
- Transportation networks with high bandwidth and ruggedized needs
- Oil, gas, and mining operations in extreme conditions
- Industrial automation with PoE-powered sensors and devices
- Secure energy and utility grid deployments
Technical Specifications
- Ports: 24 x 10/100/1000 PoE+ RJ-45, 4 x Gigabit SFP uplinks
- PoE Budget: 385W total
- Switching Capacity: 56 Gbps
- Forwarding Rate: 41.66 Mpps
- Memory: 4 GB RAM, 8 GB flash
- MAC Address Table: 16K entries
- Protocols: BGP, EIGRP, OSPF, IS-IS, VRF, STP, IGMP
- Redundancy: Dual power supply support (1+1)
- Operating Temp: -40°F to 167°F
- Form Factor: 1RU rack-mountable, fanless design
Boost your industrial edge with Cisco IE-9320-24P4S-A today.
Order now to secure rugged, high-performance connectivity for mission-critical networks.
| Model | IE-9320-24P4S-A |
| Product Type | Managed Ethernet Switch |
| Series | Cisco Catalyst IE9320 Rugged Series |
| Form Factor | Rack-mountable, 1RU |
| Ports | 24 x 10/100/1000 Base-T PoE+; 4 x Gigabit SFP uplink |
| PoE Budget | 385 W |
| Performance | Switching bandwidth: 56 Gbps; Forwarding rate: 28 Gbps |
| MAC Address Table | 16K entries |
| Flash Memory | 8 GB |
| RAM | 4 GB |
| Redundant Power Supply | Supported (1+1) |
| Software | Cisco Network Advantage |
| MTBF | 250,037 hours |
| Dimensions (W × H × D) | 17.5 × 1.7 × 17.5 in (445 × 44 × 445 mm) |
| Weight | 9.7 lbs (4.4 kg) |
| Operating Temperature | -40 °F to 167 °F (-40 °C to 75 °C) |
| Storage Temperature | -40 °F to 185 °F (-40 °C to 85 °C) |
| Operating Humidity | 5% to 95% (non-condensing) |
| Compliant Standards | IEEE 1588v2, IEEE 802.1ab, IEEE 802.1ae, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3z |
| Features | ACL support, EtherChannel, Flexible NetFlow, MACsec, NAT, HSR, PRP, REP, PROFINET, TrustSec, SGACL, NSF, PTP |
| Routing Protocols | BGP, EIGRP, HSRP, IGMP, IS-IS, LISP, MSDP, STP, VRF |
| Remote Management | HTTP, HTTPS, SNMP |
| Authentication Methods | RADIUS, TACACS+, SSH |
| Capacity | ACL entries: 1408; VLANs: 1024; IGMP groups: 1000; IPv4 routes: 4000; IPv6 routes: 2000; SVIs: 984 |
| Interfaces Provided | 1 × alarm output, 1 × micro-USB console, 1 × serial RJ-45 console, 2 × network stack, 2 × USB 2.0, 24 × RJ-45 PoE+, 4 × alarm input, 4 × SFP uplink |
| Power Consumption | 37 W (operational) |
| Power Supply | Supports dual redundant PSUs (not included) |
| Certifications | UL, CSA, IEC, EN, FCC, ICES, NOM, VCCI, WEEE, IP30, IEEE 1613, IEC 61850-3, and others |
| Energy Certifications | ENERGY STAR: No; EPEAT: No; TCO: No |
| Optional | Redundant power supplies (supported, sold separately) |
