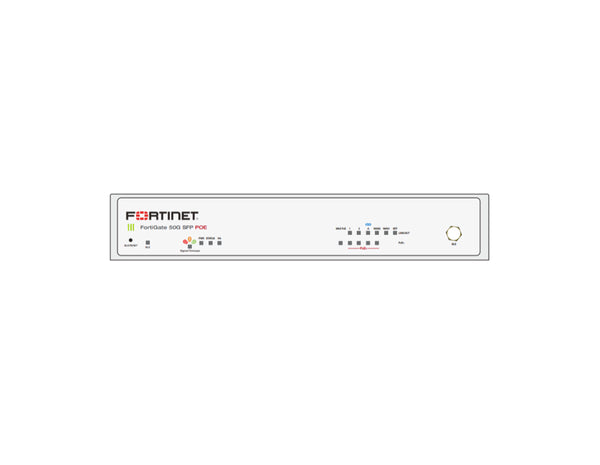

The FortiGate 50G-SFP-POE series simplifies SD-Branch architecture by integrating advanced security, SD-WAN, and power delivery into a single compact appliance. Built on the Fortinet Secure SD-WAN ASIC SP5, it delivers high-speed inspection while providing integrated PoE+ capabilities to support essential downstream devices such as wireless access points and IP phones directly from the firewall. This bundle includes FortiCare Premium and FortiGuard Enterprise Protection for a 3-year contract term.
Designed for flexibility and reduced device footprint, the FG-50G-SFP-POE features a fanless desktop form factor ideal for noise-sensitive environments. It includes a dedicated SFP port for fiber uplinks and multiple PoE+ capable RJ45 ports (including a PoE+ WAN port and FortiLink), allowing for diverse connectivity options and streamlined deployment in retail stores, small offices, and distributed enterprise sites.
Converged Security with Integrated PoE+ Power
Key Benefits
- Integrated Power over Ethernet: Powers compatible devices over PoE+ to reduce the need for separate injectors and simplify installations.
- SP5 ASIC Acceleration: Built on Fortinet’s Secure SD-WAN ASIC SP5 to enhance performance for security and SD-WAN use cases.

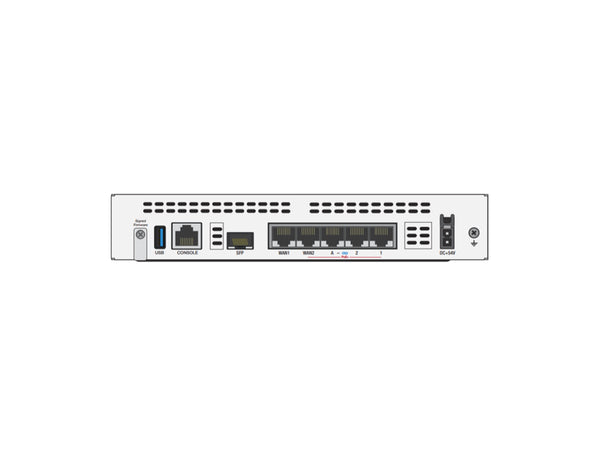

- Fiber & Copper Connectivity: Supports fiber uplinks via SFP alongside RJ45 WAN/LAN connectivity for flexible deployments.
- Unified Management: Centralizes control of networking, security, and connected devices through the FortiOS operating system.
- Silent Operation: Fanless design supports quiet desktop or open-office deployments.
- Bundle Coverage Included: FortiCare Premium and FortiGuard Enterprise Protection (3-year contract) included with the device.
Ideal Use Cases
- SD-Branch Deployment: Powers and secures branch infrastructure like Wi-Fi APs and VoIP phones with a single consolidated device.
- Retail Point of Sale: Secures transaction data while powering surveillance cameras or IP-connected retail devices.
- Small Office Connectivity: Provides fiber uplink capability (SFP) and local wired connectivity with enterprise-grade protection.
- Remote Work: Delivers secure, high-performance VPN access for remote employees with simplified requirements.
Technical Specifications Summary
- Firewall throughput: 5 / 5 / 4 Gbps (1518/512/64 byte UDP packets).
- IPS throughput (Enterprise Mix): 2.25 Gbps.
- NGFW throughput: 1.25 Gbps.
- Threat protection throughput: 1.1 Gbps.
- IPsec VPN throughput: 4.5 Gbps (512 byte).
- SSL inspection throughput: 1.3 Gbps.
- Firewall latency: 2.42 μs (64 byte UDP packets).
- Session capacity: 720,000 concurrent sessions; 85,000 new sessions/second.
- PoE power: 60 W total available PoE power budget (max 30 W per PoE/+ port, 802.3at).
- Power and physical: 75.4 W / 76.3 W (average/max), fanless; 1.6 x 8.5 x 6.3 in (40.5 x 216 x 160 mm).
Upgrade Your Network Security
Deploy the FortiGate 50G-SFP-POE Bundle (FG-50G-SFP-POE-BDL-809-36) today for a streamlined, powerful, and power-capable security solution, including FortiCare Premium and FortiGuard Enterprise Protection coverage for 3 years.
