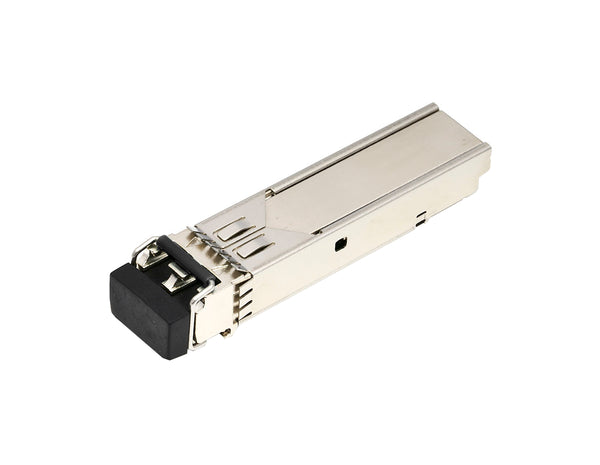

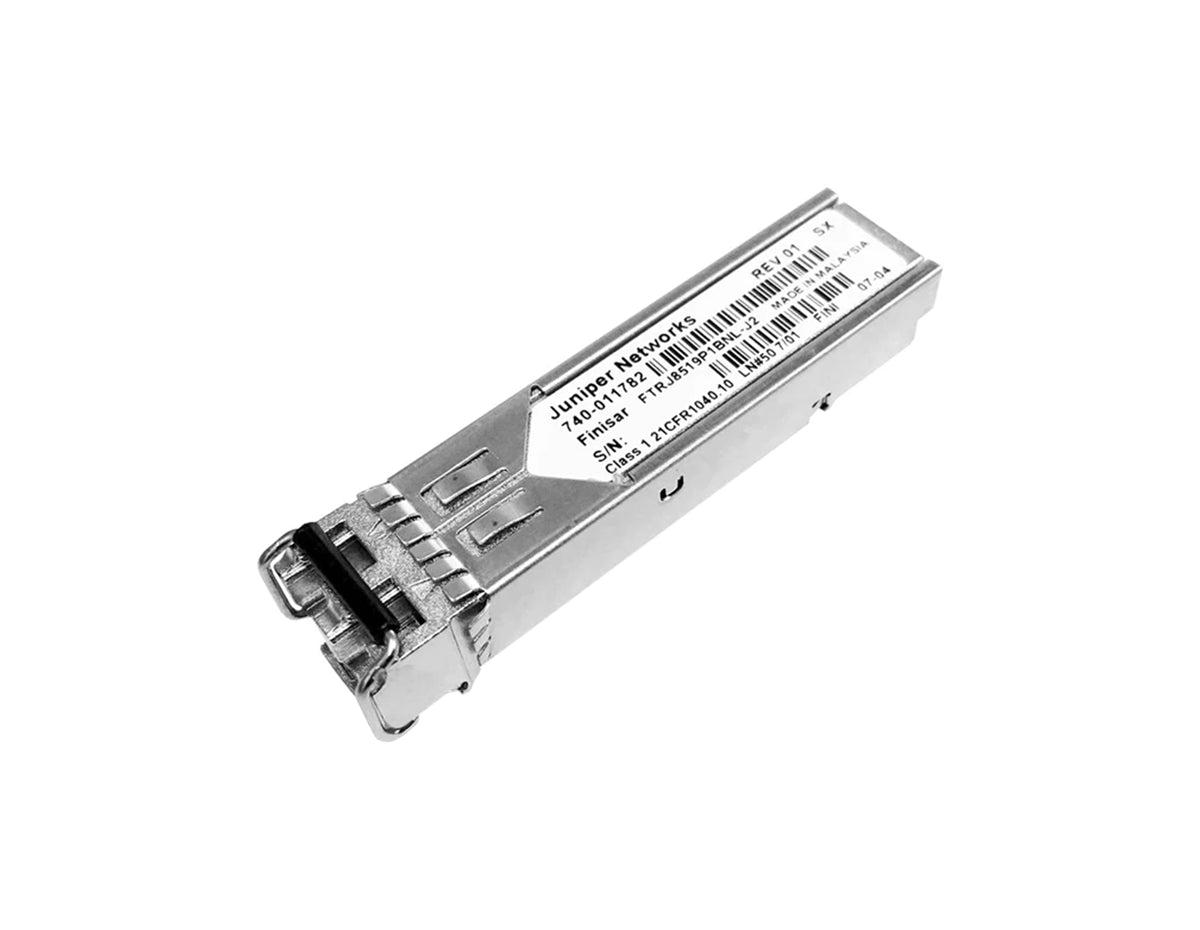

Juniper EX-SFP-1GE-SX Transceiver

Juniper EX-SFP-1GE-SX Transceiver

The Juniper Networks EX-SFP-1GE-SX SFP transceiver provides 1000Base-SX throughput up to 550m over multi-mode fiber (MMF) at a wavelength of 850nm using an LC connector. This product features a 1000 Mbps signaling rate and dual transmitter fibers.

Quick Specs:

• Signaling rate, each lane: 1000 Mbps
• Transmitter wavelengths: 850 nm
• Operating Temperature: -10 C to 85 C
• Transceiver Type: SFP

Please see the related tabs for the EX-SFP-1GE-SX datasheet and compatible accessories.

Specifications	EX-SFP-1GE-SX
Description	EX-SFP-1GE-SX is a SFP 1000Base-SX  Gigabit Ethernet Optics Module, 850nm
Product Family	Juniper Transceivers
Product Type	Optical Transceiver
Transceiver Type	SFP
Signaling rate, each lane	1000 Mbps
Connectors	Duplex LC
Fiber mode	MMF
Transmitter wavelengths (range)	850 nm
Transmit power range	-9.5 to -3
Receive power range	-21 to 0
Max Power consumption (W)	1 W
Operating Temperature	0° C to 70° C
DOM	Yes

Wavelength   (nm)	Cable Type	Core Size   (Microns)	Modal Bandwidth   (MHz*km)	Cable Distance
850	MMF	62.5	160(FDDI)	220 m
			200(OM1)	275 m
		50.0	400	500 m
			500(OM2)	550 m
			2000(OM3)	500 m
			4700(OM4)	550 m
