Precision Long-Range Surveillance with AI Intelligence

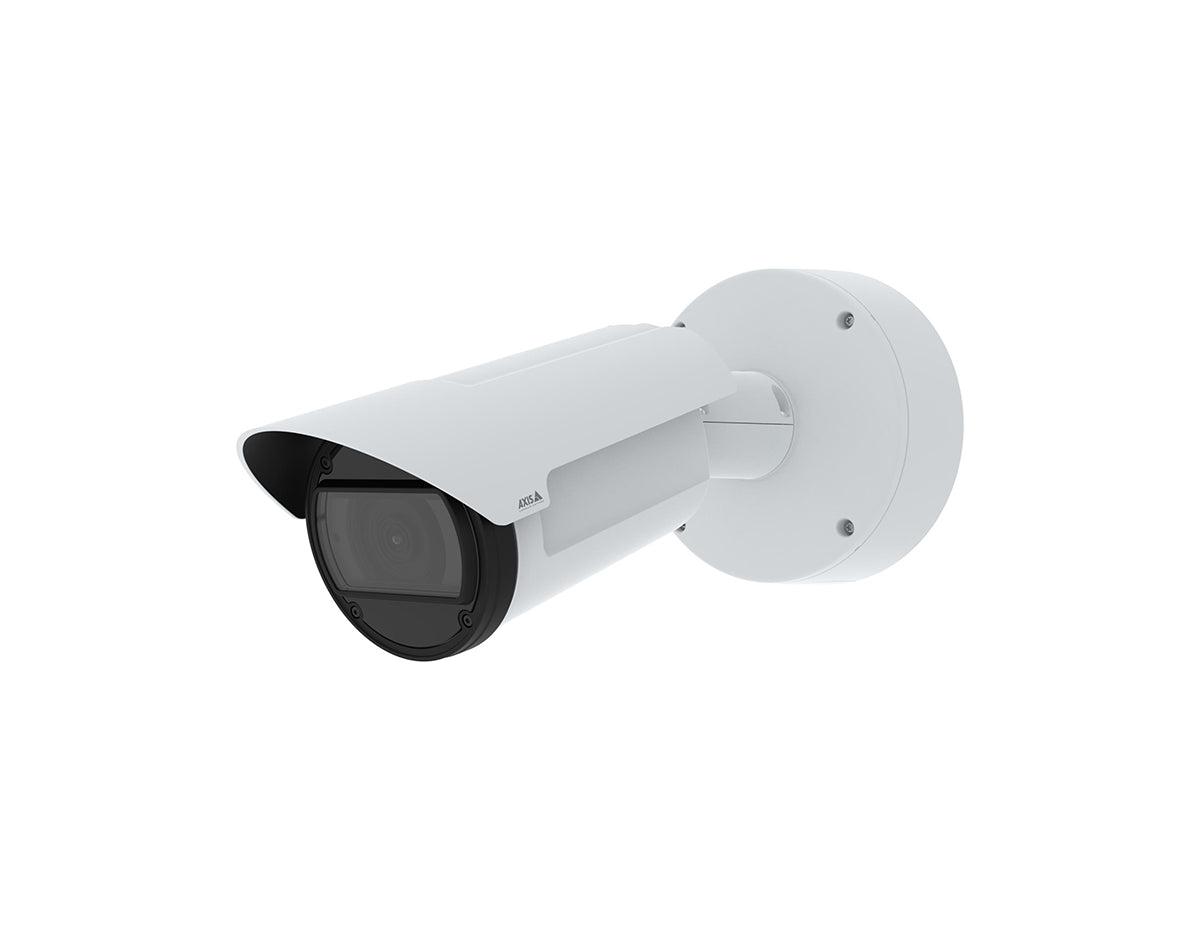

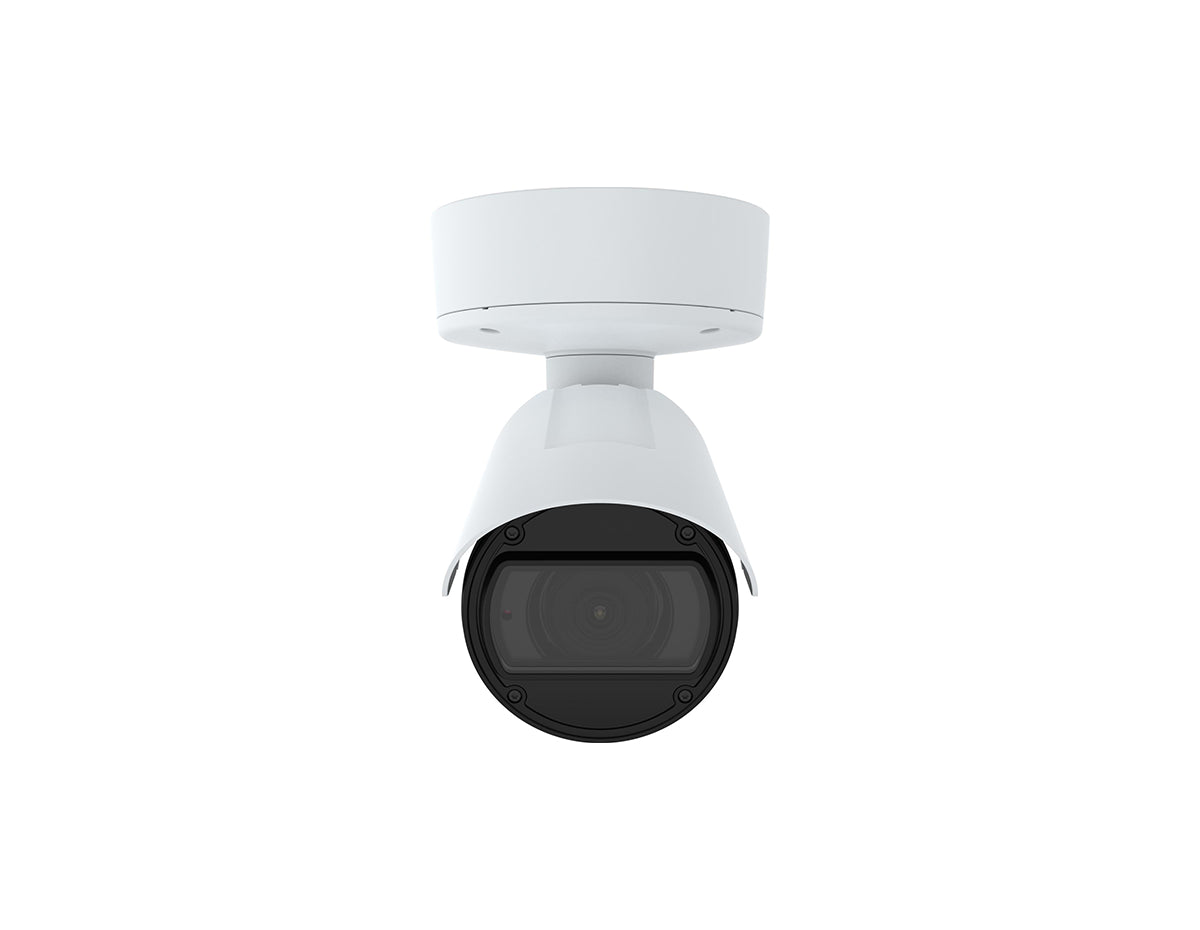

The AXIS Q1806-LE Bullet Camera delivers forensic-level 4 MP video at up to 90 fps combined with powerful 32x optical zoom for exceptional long-distance identification. Built on the ARTPEC-8 SoC with an integrated deep learning processing unit, this high-performance outdoor camera enables advanced edge analytics while maintaining low bandwidth through Axis Zipstream technology.
Designed for mission-critical perimeter protection, transportation hubs, and city surveillance, it combines OptimizedIR, Forensic WDR up to 120 dB, and Lightfinder 2.0 to ensure clarity in extreme lighting conditions.
Key Benefits & Features
- 4 MP at 90 fps: Capture smooth, high-resolution video in fast-moving environments with detailed forensic clarity.
- 32x Optical Zoom (4.3 to 137 mm): Varifocal lens with remote zoom and focus enables accurate long-range detection and identification.
- Deep Learning Analytics: Integrated DLPU supports AXIS Object Analytics for real-time classification of humans and vehicles directly at the edge.
- OptimizedIR up to 100 m: Adaptive 850 nm IR illumination ensures even coverage in complete darkness.
- Axis Edge Vault Security: TPM 2.0 with FIPS 140-2 level 2 certification, secure boot, signed OS, and encrypted storage.
- PoE-Out Capability: Power an additional device such as a strobe siren or speaker directly from the camera.
Ideal Use Cases
- Critical infrastructure and perimeter security
- Airports, railways, and transportation hubs
- City surveillance and traffic monitoring
- Industrial facilities and logistics centers
- Large commercial campuses
Technical Specifications
- Image Sensor: 1/1.8 inch progressive scan RGB CMOS
- Resolution: Up to 2880x1620 (16:9)
- Frame Rate: Up to 90 fps (without WDR)
- WDR: Forensic WDR up to 120 dB
- Minimum Illumination: 0.08 lux color, 0 lux with IR
- IR Range: Up to 100 m (328 ft)
- Video Compression: H.264, H.265, Motion JPEG
- Power: PoE IEEE 802.3at/bt, 10 to 28 V DC, 20 to 24 V AC
- Operating Temperature: -40C to 60C
- Protection Rating: IP66, IP67, IK10, NEMA 4X
Deploy Intelligent Surveillance with Confidence
Secure your site with advanced AI-driven video performance and hardened cybersecurity. Order today to elevate your surveillance infrastructure.
| Feature | AXIS Q1800-LE | AXIS Q1800-LE-3 | AXIS Q1805-LE | AXIS Q1806-LE | AXIS Q1808-LE | AXIS Q1809-LE |
|---|---|---|---|---|---|---|
| Max video resolution | 1920x1080 | 1920x1080 | 1920x1080 | 2880x1620 | 3712x2784 | 7424x5568 |
| Image sensor size | 1/2.8 | 1/2.8 | 1/2.8 | 1/1.8 | 4/3 | 4/3 |
| Optical zoom | - | - | 32 | 32 | 4/3 | - |
| OptimizedIR | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Horizontal field of view | 38 - 2.3 | 38 - 2.3 | 60 - 2.3 | 60 - 2.3 | 90 - 21 / 21 - 7 | - |
| Alarm inputs/outputs | 2 | 2 | 2 | 2 | 2 | 2 |
| Lightfinder | Lightfinder 2.0 | Lightfinder 2.0 | Lightfinder 2.0 | Lightfinder 2.0 | Lightfinder 2.0 | Lightfinder 2.0 |
| Wide dynamic range | Forensic WDR | Forensic WDR | Forensic WDR | Forensic WDR | Forensic WDR | Forensic WDR |
| Zipstream | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Electronic image stabilization | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Analytics compute capability | DLPU | DLPU | DLPU | DLPU | DLPU | DLPU |
| Edge to edge | Microphone pairing, Network speakers, Radar pairing | Microphone pairing, Network speakers, Radar pairing | Microphone pairing, Network speakers | Microphone pairing, Network speakers | Microphone pairing, Network speakers | Microphone pairing, Network speakers |
| Axis Edge Vault | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
