AXIS P3818-PVE PANORAMIC CAMERA
| Model: | 02060-001 |
| Detail: |
|
| List Price: | |
| Price: | $1,765.00 |
| You Save: | $174.00 (9% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

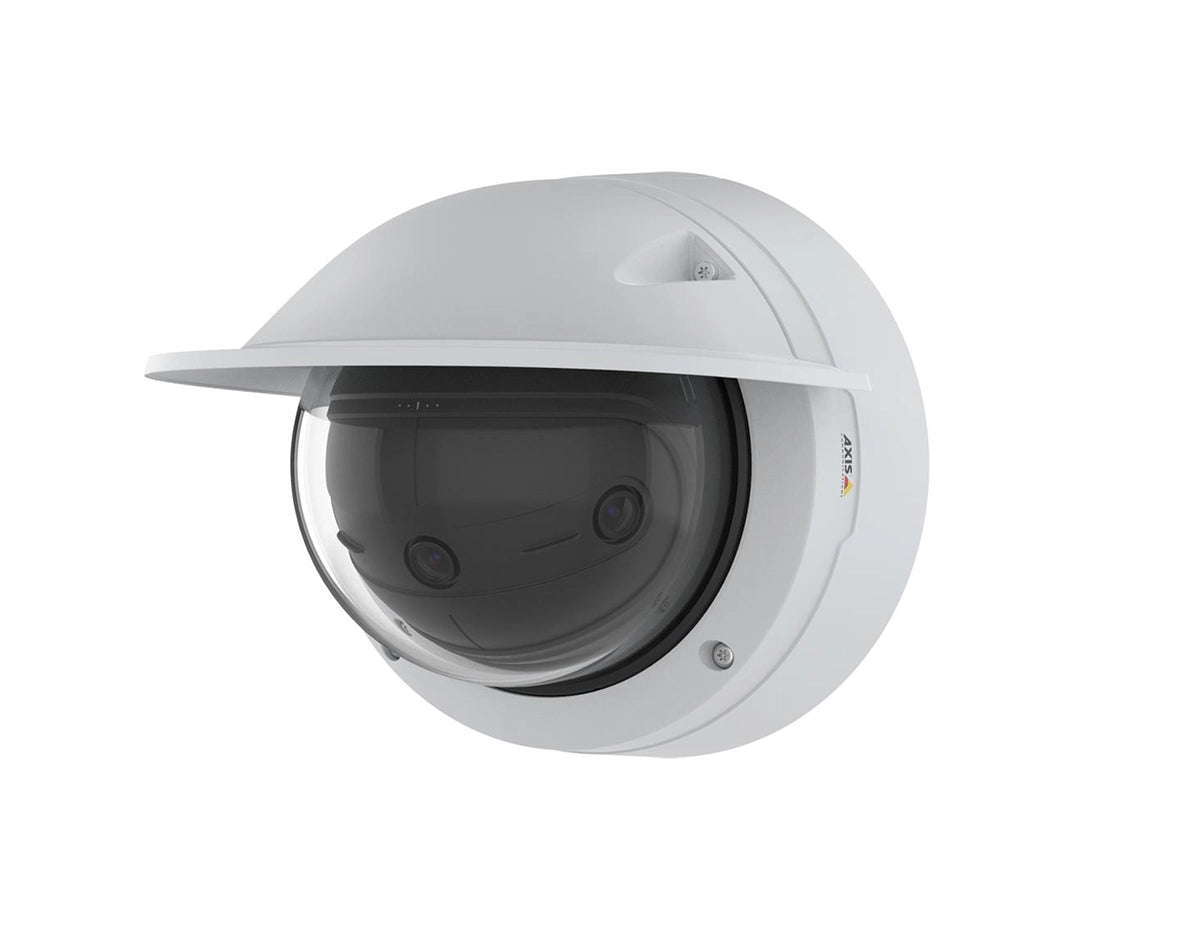

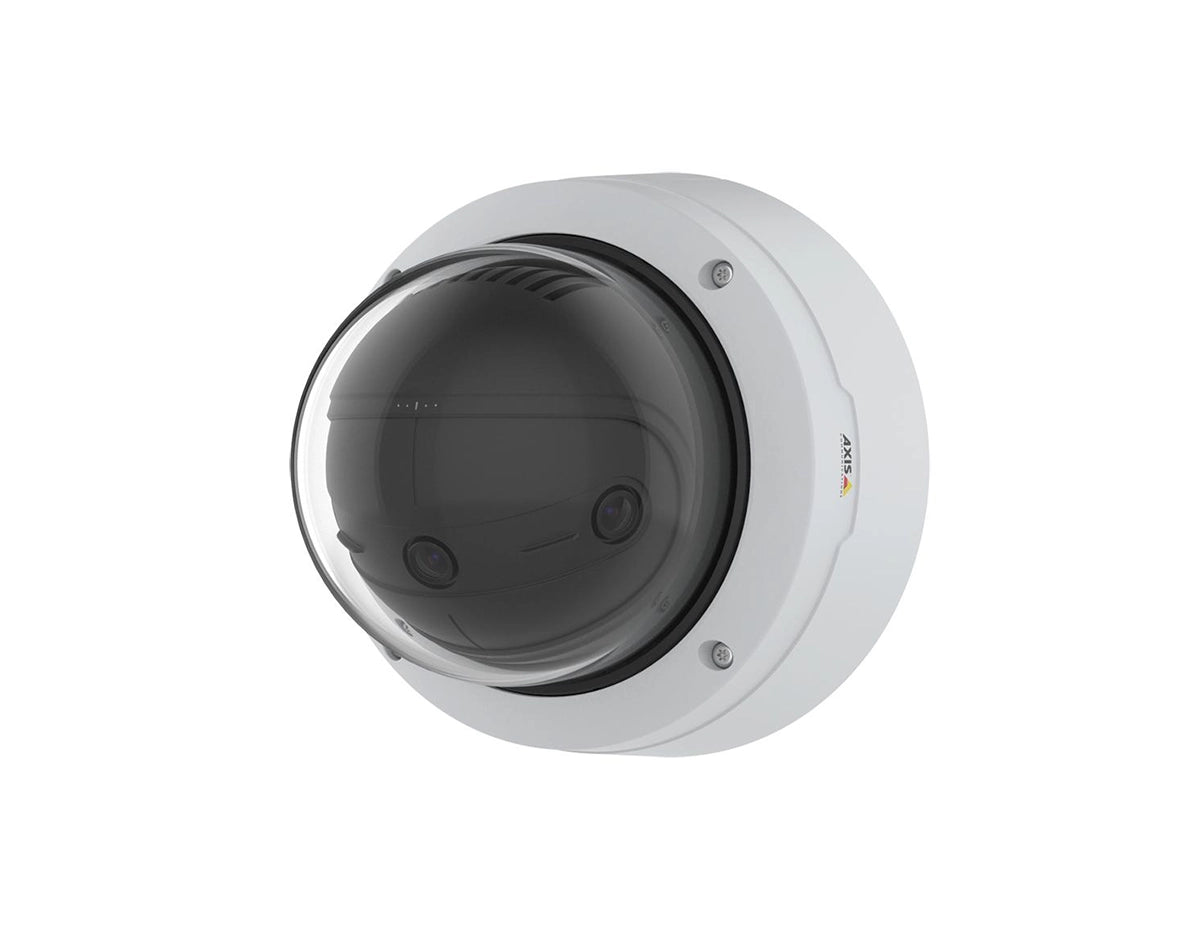

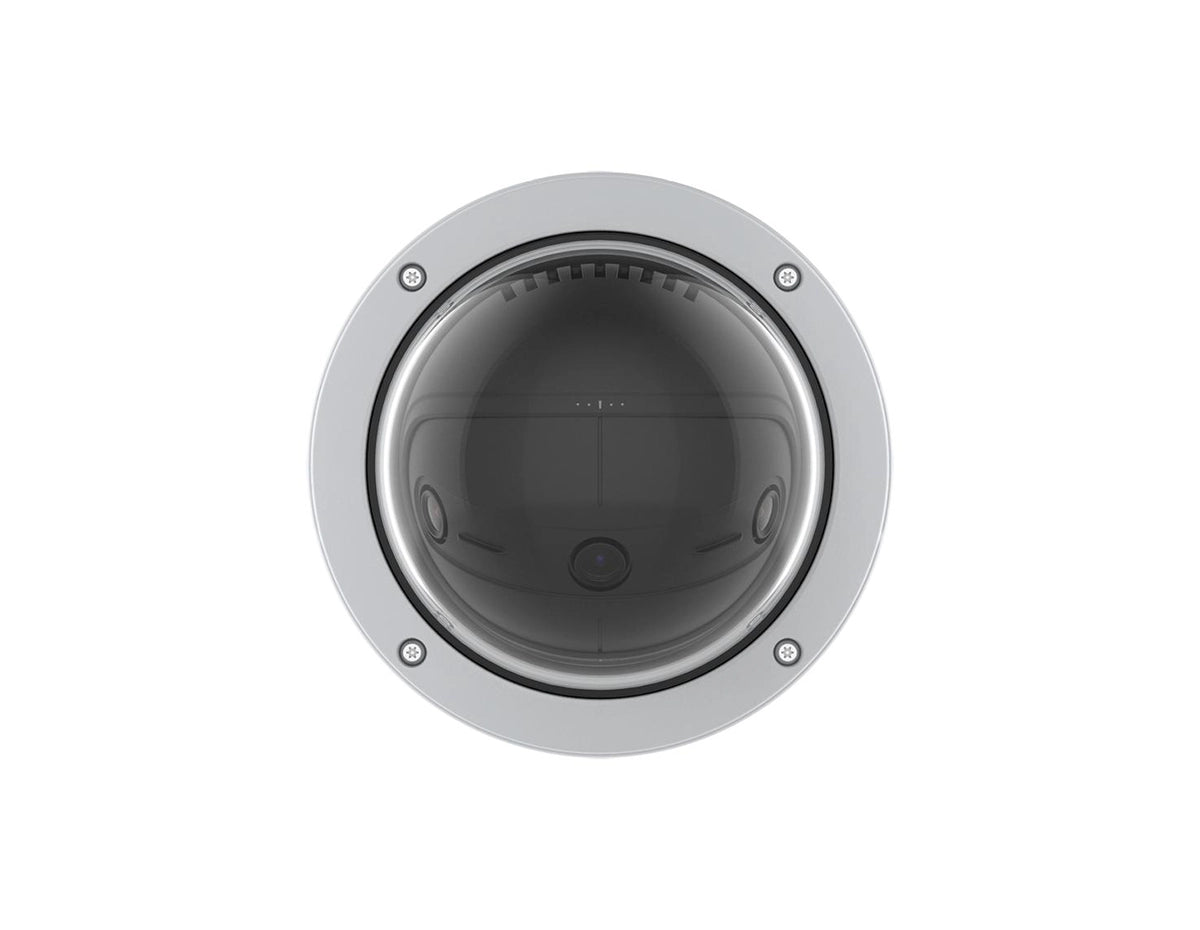

AXIS P3818-PVE Panoramic Camera (02060-001)
This camera has 13 megapixels and features multiple sensors. It is called the P3818-PVE camera and provides 180° horizontal coverage and 90° vertical coverage without any blind spots. Users can also mount two of these cameras back-to-back using the Axis T94V01C Dual Camera mount, which allows for a more comprehensive situational awareness over larger areas and distances. The P3818-PVE camera provides seamless stitching across all three images, resulting in a single, smooth video stream with a coherent-looking image.
Quick Specs:
- 13 MP multisensor with seamless stitching
- Seamless pan/tilt/roll
- AXIS Edge Vault
- Built-in cybersecurity features
Please see the related tabs for the 02060-001 datasheet and compatible accessories.
Accessories
| Optional accessories | • AXIS T8415 Wireless Installation Tool • AXIS Surveillance Cards • AXIS TQ3102 Pendant Kit • AXIS TQ3101–E Pendant Kit • AXIS TQ3201–E Recessed Mount • AXIS T94V01C Dual Camera Mount |
Specifications
| Specifications | AXIS P3818-PVE Panoramic Camera |
| Camera | |
| Image sensor | 3 x 5 MP 1/2.8” progressive scan RGB CMOS |
| Lens | Fixed 3.2 mm, F2.0 Horizontal field of view: 180° Vertical field of view: 90° |
| Day and night | Automatically removable infrared-cut filter |
| Minimum illumination | With Forensic WDR and Lightfinder: Color: 0.16 lux, F2.0 B/W: 0.05 lux, F2.0 |
| Shutter speed | 1/91000 to 1/25 s With WDR: 1/50000 to 1/25 s |
| Camera angle adjustment | Pan ±180° Tilt 0° to 50° Roll ±5 |
| System on chip (SoC) | |
| Model | ARTPEC-7 (x2) |
| Memory | 2048 MB RAM (x2), 512 MB Flash |
| Compute capabilities | Machine learning processing unit (MLPU) |
| Video | |
| Video compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG |
| Resolution | 5120x2560 (13.1 MP) to 608x128 |
| Frame rate | 13.1 MP @ 25/30 fps (50/60 Hz) WDR |
| Video streaming | 13.1 MP: 1 configurable stream in H.264, H.265 and Motion JPEG in full frame rate Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 |
| Image settings | Saturation, contrast, brightness, sharpness, Forensic WDR: up to 120 dB depending on scene, white balance, day/night threshold, exposure mode, compression, dynamic text and image overlay, orientation aid, exposure control, noise reduction, fine-tuning of behavior at low light, polygon privacy masks |
| Audio | |
| Audio streaming | Two-way audio via edge-to-edge technology |
| Audio output/output | External microphone input, line input, digital audio input, automatic gain control, network speaker pairing |
| Audio encoding | 24bit LPCM, AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz, 44.1 kHz ACC-LC, LPCM Configurable bit rate |
| Network | |
| Security | Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X (EAP-TLS) network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, protection of cryptographic keys with FIPS 140-2 certified TPM 2.0 module, Axis Edge Vault with Axis device ID |
| Supported protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, CDP, MQTT, Syslog, Link-Local address (ZeroConf) |
| System Integration | |
| Application Programming Interface | Open API for software integration ONVIF® Profile G, ONVIF® Profile S and ONVIF® Profile T |
| Event conditions | Analytics, external input, supervised external input, edge storage events, virtual inputs through API Audio: audio detection Digital audio: digital signal contains Axis metadata, digital signal as invalid sample rate, digital signal missing, digital signal ok Device status: above operating temperature, above or below operating temperature, below operating temperature, fan failure, IP address removed, network lost, new IP address, shock detected, storage failure, system ready, within operating temperature, casing open, ring power overcurrent protection Edge storage: recording ongoing, storage disruption, storage health issues detected I/O: digital input, manual trigger, virtual input MQTT subscribe Scheduled and recurring: scheduled event Video: live stream open, average bitrate degradation, day-night mode, tampering |
| Event actions | Day/night mode, overlay text, video recording to edge storage, pre- and post-alarm video buffering, send SNMP trap, play audio clipm I/O events, status LED events File upload: FTP, SFTP, HTTP, HTTPS network share, email MQTT publish Notification: email, HTTP, HTTPS TCP |
| Data streaming | Event data |
| Built-in installation aids | Pixel counter, leveling guide |
| Analytics | |
| Applications | Included AXIS Fence Guard, AXIS Motion Guard, AXIS Loitering Guard AXIS Video Motion Detection, active tampering alarm, audio detection Supported Support for AXIS Camera Application Platform enabling installation of third-party applications, see axis.com/acap |
| General | |
| Casing | IP66-/IP67- and NEMA 4X-rated, IK10-rated impact-resistant casing with polycarbonate hard coated clear dome, aluminum base and dehumidifying membrane Color: white NCS S 1002-B Casing open detection For repainting instructions and impact on warranty, contact your distributor partner. |
| Mounting | Mounting bracket with junction box holes (double-gang, single-gang, 4” square, and 4” octagon) and for wall or ceiling mount ¾” (M25) conduit side entries |
| Sustainability | PVC free |
| Power | Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4 Typical 11 W, max 18 W |
| Connectors | Shielded RJ45 1000BASE-T Terminal block for two configurable supervised inputs/digital outputs (12 V DC output, max load 50 mA), 3.5 mm analog/digital mic/line in |
| Storage | Support for microSD/microSDHC/microSDXC card Support for SD card encryption Support for recording to network-attached storage (NAS) |
| Operating conditions | (-40 °C to 50 °C) (-40 °F to 122 °F) Humidity 10–100% RH (condensing) Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C (165 °F) Start-up temperature: -40 °C |
| Storage conditions | (-40 °C to 65 °C) (-40 °F to 149 °F) Humidity 5-95% RH (non-condensing) |
| Approvals | EMC EAC, EN 55032 Class A, EN 55035, EN 50121-4, IEC 62236-4, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, CISPR 24, CISPR 35 Safety IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-22 Environment IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9), MIL-STD-810H (Method 501.7, 502.7, 505.7, 506.6, 507.6, 509.7, 512.6) Network NIST SP500-267 |
| Dimensions | Height: 170 mm (6.6 in) Width in diameter: 195 mm (7.6 in) With weathershield: Height 221 mm (8.7 in) Width 206 mm (8.1 in) |
| Weight | 2.2 kg (4.9 lb) |
| Mounting height | Recommended: 4–15 m |
| Included accessories | Installation guide, Windows® decoder 1-user license, weathershield, RESITORX® T20 bit, connector guard |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
| Warranty | 5-year warranty |
Properties
| Properties | AXIS P3818-PVE Panoramic Camera |
| Description | The AXIS P3818-PVE Panoramic Camera provides seamless 180° coverage with 13 MP resolution and 30 fps. With no blind spots, it seamlessly stitches three images for 180° horizontal and 90° vertical coverage. Mounting options allow for a complete 360° overview, and audio support enables transaction monitoring. Built on ARTPEC-8, it includes cybersecurity features for system protection. |
| Product Family | AXIS P3818-PVE Panoramic Camera |
| Product Type | Camera |
