AXIS M5074 PTZ CAMERA (02345-001)
| Model: | 02345-001 |
| Detail: |
|
| List Price: | |
| Price: | $500.00 |
| You Save: | $49.00 (9% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

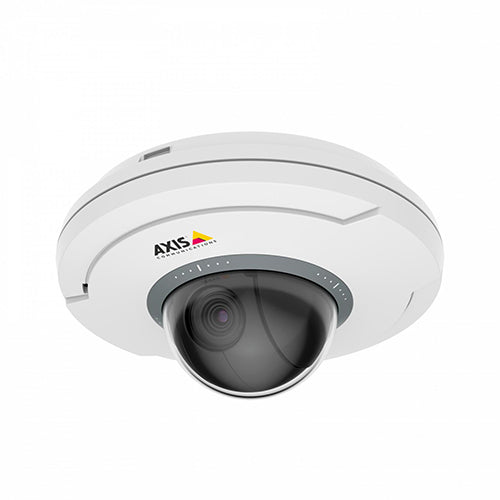

AXIS M5074 PTZ Camera (02345-001)
The AXIS M5074 provides high-quality HDTV 720p/1MP resolution video, offering excellent image clarity. Its PTZ functionality, featuring 5x optical and 12x digital zoom, allows for comprehensive surveillance and detailed observation. This plug-and-play capability provides a cost-effective means of enhancing security measures for improved efficiency and effectiveness.
Quick Specs:
- PTZ with 5x optical zoom, 12x digital zoom
- Autofocus and WDR
- Built-in analytics
- Zipstream with H.264/H.265
Please see the related tabs for the 02345-001 datasheet and compatible accessories.
| Feature | AXIS M5000 | AXIS M5000-G | AXIS M5074 | AXIS M5075 | AXIS M5075-G |
|---|---|---|---|---|---|
| Max video resolution | 1920x1080 | 1920x1080 | 1280x720 | 1920x1080 | 1920x1080 |
| Horizontal field of view | 61.8-6.7 | 61.8-6.7 | 71-14 | 71-14 | 71-14 |
| Alarm inputs/outputs | - | - | - | - | - |
| Local storage (memory card slot) | ✔ | ✔ | ✔ | ✔ | ✔ |
| Wide dynamic range | Forensic WDR | Forensic WDR | Forensic WDR | Forensic WDR | Forensic WDR |
| Zipstream | ✔ | ✔ | ✔ | ✔ | ✔ |
| Optical zoom | 10 | 10 | 5 | 5 | 5 |
| Digital zoom | 12 | 12 | 12 | 12 | 12 |
| Built-in microphone | - | - | ✔ | - | 1 |
| Audio detection | ✔ | ✔ | ✔ | ✔ | ✔ |
| Vandal rating | - | - | - | - | - |
Accessories
| Optional accessories | • AXIS M50 Clear Dome Cover A |
Specifications
| Specifications | AXIS M5074 PTZ Camera |
| Camera | |
| Image sensor | 1/2.8” progressive scan RGB CMOS |
| Lens | Varifocal. 2.2–11.0 mm, F1.4–F2.5 |
| Horizontal field of view: 14°–71° | |
| Vertical field of view: 8°–40° | |
| Autofocus | |
| Minimum illumination | Color: 0.1 lux at 30 IRE F1.4 |
| Shutter speed | 1/17000 s to 2 s |
| Pan/Tilt/Zoom | Pan: ±179°, 100°/s |
| Tilt: 90°, 100°/s | |
| Zoom: 5x optical, 12x digital | |
| 256 preset positions, control queue, on-screen directional | |
| indicator, set new pan 0°, autofocus area, focus recall | |
| System on chip (SoC) | |
| Model | ARTPEC-7 |
| Memory | 1024 MB RAM, 512 MB Flash |
| Video | |
| Video compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High profiles |
| H.265 (MPEG-H Part 2/HEVC) Main Profile | |
| Motion JPEG | |
| Resolution | 1280x720 to 320x180 (16:9) |
| Frame rate | Up to 50/60 fps (50/60 Hz) in all resolutions |
| Video streaming | Multiple, individually configurable streams in H.264, H.265 and |
| Motion JPEG | |
| Axis Zipstream technology in H.264 and H.265 | |
| Controllable frame rate and bandwidth | |
| VBR/ABR/MBR H.264 | |
| Video streaming indicator | |
| Image settings | Saturation, contrast, brightness, sharpness, WDR, white balance, |
| day/night threshold, local contrast, tone mapping , exposure | |
| mode, exposure zones, compression, rotation: 0°, 180°, barrel | |
| distortion correction, text and image overlay, polygon privacy | |
| masks | |
| Audio | |
| Audio streaming | One-way |
| Audio encoding | 24 bit LPCM, AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, |
| G.726 ADPCM 8 kHz, Opus 8/16/48 kHz | |
| Configurable bit rate | |
| Audio input | Built-in microphone |
| Network | |
| Security | Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1x (EAP-TLS)* network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, secure boot |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young | |
| Supported protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS* , HTTP/2, TLS* , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young | |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX® and |
| AXIS Camera Application Platform; specifications at axis.com | |
| One-click cloud connection | |
| ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S and | |
| ONVIF® Profile T, specification at onvif.org | |
| Onscreen controls | Day/night shift |
| Video streaming indicator | |
| Focus recall zone | |
| Privacy masks | |
| Event conditions | Audio: audio detection |
| Device status: above operating temperature, above or below | |
| operating temperature, below operating temperature, IP address | |
| removed, network lost, new IP address, storage failure, system | |
| ready, within operating temperature | |
| Edge storage: recording ongoing, storage disruption, storage | |
| health issues detected | |
| I/O: manual trigger, virtual input | |
| MQTT subscribe | |
| PTZ: PTZ malfunctioning, PTZ movement, PTZ preset position | |
| reached, PTZ ready | |
| Scheduled and recurring: scheduled event | |
| Video: average bitrate degradation, day-night mode, live stream | |
| open, tampering | |
| Event actions | Day-night mode |
| MQTT publish | |
| Overlay text | |
| Preset positions | |
| Recordings | |
| Status LED | |
| WDR mode | |
| Notification: email, HTTP, HTTPS, TCP and SNMP trap | |
| Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network | |
| share and email | |
| Data streaming | Event data |
| Built-in installation aids | Leveling assistant, pixel counter |
| Analytics | |
| Applications | Included |
| AXIS Video Motion Detection, audio detection, active tampering | |
| alarm, gatekeeper, AXIS Scream Detection, AXIS Removed Object | |
| Detection | |
| Support for additional applications if the device is used with | |
| compatible accessories. For more information, contact your Axis | |
| partner. | |
| Support for AXIS Camera Application Platform enabling | |
| installation of third-party applications, see axis.com/acap | |
| General | |
| Casing | IP51-rated plastic casing, clear dome |
| Color: white NCS S 1002-B | |
| For repainting instructions, go to the product’s support | |
| page. For information about the impact on warranty, go to | |
| axis.com/warranty-implication-when-repainting. | |
| Sustainability | PVC free, BFR/CFR free |
| Power | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 |
| Typical 4.2 W, max 9.3 W | |
| Connectors | RJ45 10BASE-T/100BASE-TX PoE |
| Storage | Support for microSD/microSDHC/microSDXC card |
| Support for SD card encryption (AES-XTS-Plain64 256bit) | |
| Recording to network-attached storage (NAS) | |
| For SD card and NAS recommendations see axis.com | |
| Operating conditions | 0 °C to 45 °C (32 °F to 113 °F) |
| Humidity 10–90% RH (non-condensing) | |
| Storage conditions | (-30 °C to 60 °C (-22 °F to 140 °F) |
| Humidity 5–95% RH (non-condensing) | |
| Approvals | EMC |
| EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, | |
| FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), | |
| KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, | |
| VCCI Class A | |
| Safety | |
| CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1, IS 13252 | |
| Environment | |
| IEC/EN 60529 IP51 | |
| Network | |
| NIST SP500-267 | |
| Dimensions | Ø130 x 63 mm (Ø5.1 x 2.5 in) |
| Weight | 380 g (0.84 lb) |
| Included accessories | AXIS M50 Mounting Kit, Installation Guide, Windows decoder |
| 1-user license | |
| Video management software | AXIS Companion, AXIS Camera Station, video management |
| software from Axis Application Development Partners available | |
| at axis.com/vms | |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified |
| Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese | |
Properties
| Properties | AXIS M5074 PTZ Camera |
| Description | The AXIS M5074 PTZ Camera is a discreet, palm-sized solution delivering sharp HDTV 720p/1MP video. With 5x optical zoom and 12x digital zoom, it offers sweeping overviews and detailed zoom-ins. Equipped with a built-in microphone, autofocus, and WDR, it includes analytics like scream detection for alerts. The camera also prioritizes cybersecurity with built-in features, ensuring system protection. Additionally, it utilizes Zipstream for efficient H.264/H.265 compression. |
| Product Family | AXIS M5074 PTZ Camera |
| Product Type | Camera |
