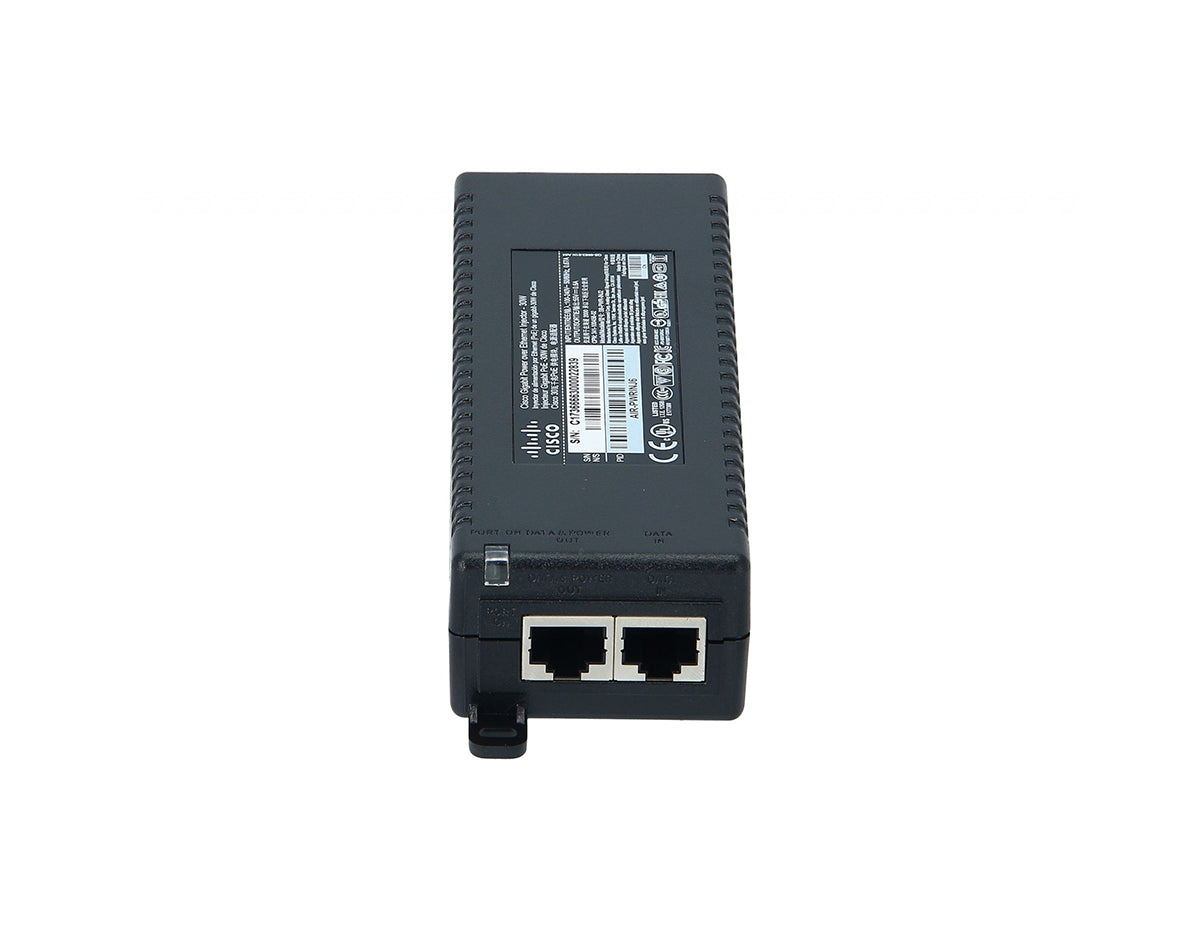

CISCO AIR-PWRINJ6 POE INJECTOR

Model: AIR-PWRINJ6
Detail: Cisco AIR-PWRINJ6= POE Injector The Cisco Aironet Power Injector AIR-PWRINJ6= is a single-port PoE injector that can provide up to 30 Watts of power and is compliant with IEEE 802.3af
List Price: US$208.00
Price:
$70.99
You Save: $137.01 (66% OFF)
Condition: Brand New Sealed
Availability: IN STOCK
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside NJ and TX
Quantity:
+
-

Cisco AIR-PWRINJ6= POE Injector

The Cisco Aironet Power Injector AIR-PWRINJ6= is a single-port PoE injector that can provide up to 30 Watts of power and is compliant with IEEE 802.3af (15.4 W) and IEEE 802.3at (30 W) systems. It connects to a 10/100/1000 Ethernet switch, hub, or network using a Category 5 or better Ethernet cable, and another cable carries power and data to the access point's WAN Ethernet port.

Key Features:

  • Built-in power supply
  • C13 connector
  • For Cisco Aironet Systems

For detailed specifications, refer to the AIR-PWRINJ6 datasheet in the tabs.

Specifications

Specifications AIR-PWRINJ6
Description The Cisco Aironet Power Injector AIR-PWRINJ6= increases wireless LAN deployment flexibility of supported Cisco Aironet Access Points by providing an alternative powering option to local power, inline power-capable multiport switches, and multiport power patch panels.
Product Family Cisco Aironet Power Injector
Product Type Power Injector
Dimensions (W, H, L) Model 1: 53 mm x 32.5 mm x 140 mm
2.09 in x 1.28 in x 5.5 in
Model 2: 65 mm x 36 mm x 140 mm
2.55 in x 1.42 in x 5.51 in
Data Rates 10/100/1000 Mbps
PoE Output Pin Assignment and Polarity:
IEEE 802.3at compliant
Output Power Voltage: 55V DC
User Port Power 30 Watts
Input Power Requirements AC Input Voltage: 100 to 240V AC
AC Input Current: 0.8 A @ 100 - 240 V AC
AC Frequency: 50 to 60 Hz
Connectors Shielded RJ-45, EIA 568A and 568B
Operating Temperature  -4ºF to 104ºF (-20ºC to 40ºC) at 30 W
-4ºF to 122ºF (-20ºC to 50ºC) at 25 W
Reliability MTBF: 100,000 hrs @ 25ºC
Thermal Rating 20 BTU/Hr @ 240 V AC
Regulatory Compliance IEEE 802.3 at (PoE), China RoHS Compliant, WEEE Compliant, CE Compliant
Electromagnetic Emission and Immunity FCC Part 15, Class B
EN 55022 Class B (Emissions)
EN 55024 (Immunity)
VCCI
Safety UL 60950-1
IEC/EN 60950-1
