AXIS P1280-E 2.2MM 8.3 FPS THERMAL NETWORK CAMERA
| Model: | 02114-001 |
| Detail: |
|
| List Price: | |
| Price: | $835.00 |
| You Save: | $34.00 (4% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

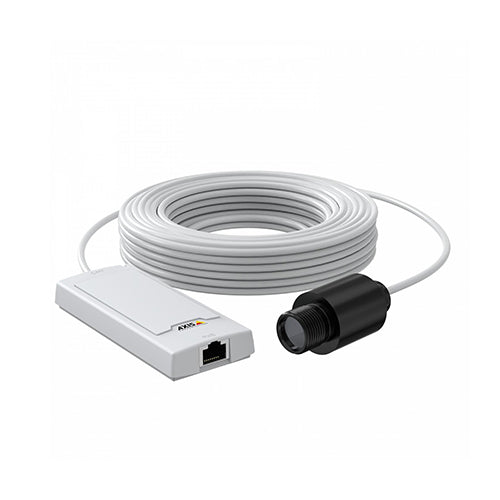

AXIS P1280-E Thermal Network Camera is a modular thermal camera based on a small-sized main unit (AXIS P12 Thermal) and an outdoor ready thermal sensor unit with a 12 m/ 39.4ft cable. The camera provides 208x156 resolution, a 4 mm lens with 35.4 degree horizontal FOV. It supports multiple streams in H.264 and Motion JPEG, Axis’ Zipstream technology for lower bandwidth and storage needs, edge storage using microSD card and built-in analytics with support for AXIS Camera Application Platform, which enables the usage of a broad range of third-party applications. The flexible form factor allows it to be placed in locations with limited space and a wide range of mounting accessories enables wall, ceiling and recessed installations. The main unit is powered with PoE. The sensor unit has 12 m/39.4 ft cable. The product contains U.S.-origin controlled technology/component, the US Export Administration Regulations (EAR) are always applicable to the product. You should comply at all times with all applicable national and international (re-) export control regulations.
| Feature | AXIS P1245 Mk II | AXIS P1265 Mk II | AXIS P1275 Mk II | AXIS P1280-E | AXIS P1290-E |
|---|---|---|---|---|---|
| Max video resolution | 1920x1080 | 1920x1080 | 1920x1080 | 640x480 | 640x480 |
| Thermal sensor resolution | - | - | - | 208x156 | 208x156 |
| Horizontal field of view | 111 | 91 | 99 - 53 | 35.4 / 63 | 35.4 |
| Alarm inputs/outputs | - | - | - | - | - |
| Zipstream | ✔ | ✔ | ✔ | ✔ | ✔ |
| Image sensor | CMOS | CMOS | CMOS | Uncooled microbolometer | Uncooled microbolometer |
| Thermal sensitivity (NETD) | - | - | - | <100 mK | <100 mK |
Accessories
| Optional accessories | • AXIS F8203 Fixed Mount Bracket • AXIS F8204 Mounting band AXIS F8205 Bullet Accessory • AXIS F8212 Trim Ring • AXIS T8415 Wireless Installation Tool • AXIS Surveillance Cards AXIS T8120 15 W Midspan 1-port • AXIS RJ12 Plug AXIS T8129 PoE Extender |
Specifications
| Specifications | AXIS P1280-E 4mm 8.3 fps Thermal Network Camera |
| Camera | |
| Image sensor | Uncooled Microbolometer 208 x 156 pixels, Pixel size 12 µm, |
| Spectral range: 8-14 µm | |
| Lens | AXIS P1280-E 4 mm: |
| Athermalized, 4 mm, F1.2 | |
| Horizontal field of view: 35.4° | |
| Vertical field of view: 28° | |
| Near focus distance: 1m | |
| Sensitivity | NETD < 100 mK |
| Video | |
| Video compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles |
| Motion JPEG | |
| Resolution | Sensor is 208 x 156. Image can be scaled up to 640 x 480 |
| Frame rate | Up to 8.3 fps |
| Video streaming | Multiple, individually configurable streams in H.264 (Main, |
| Baseline and High Profiles) and Motion JPEG | |
| Axis Zipstream technology in H.264 | |
| Controllable frame rate and bandwidth | |
| VBR/ABR/MBR H.264 | |
| Image settings | Brightness, sharpness, contrast, automatic gain control, gain, |
| rotation, palette, compression, mirroring, text and image overlay, | |
| Axis Corridor Format | |
| Network | |
| Security | Password protection, IP address filtering, HTTPS (*) encryption, IEEE 802.1X (EAP-TLS) (*) network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware |
| (*: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/), and cryptographic software written by Eric Young) | |
| Supported protocols | IPv4, IPv6 USGv6, HTTP, HTTPS(*) , SSL/TLS(*) , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, MQTT v3.1.1 |
| (*: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/), and cryptographic software written by Eric Young) | |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX® and |
| AXIS Camera Application Platform; specifications at axis.com | |
| One-click cloud connection | |
| ONVIF® Profile G and ONVIF® Profile S | |
| Event triggers | Analytics, hardware temperature, edge storage events, time |
| scheduled, video motion detection, live stream accessed | |
| Event actions | File upload: email, FTP, HTTP, HTTPS, network share |
| Notification: email, HTTP, HTTPS and TCP | |
| Pre- and post-alarm video buffering | |
| Send SNMP trap | |
| Data streaming | Event data |
| Built-in installation aids | Pixel counter |
| Analytics | |
| Applications | Included |
| AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard | |
| AXIS Video Motion Detection, AXIS Guard Suite | |
| Supported | |
| AXIS Perimeter Defender | |
| Support for AXIS Camera Application Platform enabling | |
| installation of third-party applications, see axis.com/acap | |
| General | |
| Casing | Main unit: Polycarbonate casing |
| Color: White NCS S 1002-B | |
| Thermal sensor unit: IP66-, IP67-rated, Aluminum | |
| Memory | 512 MB RAM, 256 MB Flash |
| Power | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2 |
| max 4.0 W, typical 2.5 W | |
| Connectors | Female RJ45 for 10BASE-T/100BASE-TX PoE |
| RJ12 for sensor unit | |
| Storage | Support for microSD/microSDHC/microSDXC cards (not included) |
| Support for SD card encryption | |
| Support for recording to network-attached storage (NAS) | |
| For SD card and NAS recommendations, see axis.com | |
| Operating conditions | Main unit: -20 °C to 50 °C (-4 °F to 122 °F) |
| Humidity 10-85% RH (non-condensing) | |
| Thermal sensor unit: -30 °C to 55 °C (-22 °F to 131 °F) | |
| Humidity 10-100% RH (condensing) | |
| Storage conditions | (-40 °C to 65 °C) (-40 °F to 149 °F) |
| Approvals | EN 55032 Class B, EN 55024, EN 61000-6-1, EN 61000-6-2, |
| FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, | |
| RCM AS/NZS CISPR 23 Class B, IEC/EN/UL 62368-1, EN 50581, | |
| EN 50121-4 , IEC 62236-4, EAC, KC KN32 Class B, KC KN35 | |
| Thermal sensor unit: IEC 60068-2-1, IEC 60068-2-2, | |
| IEC 60068–2–6, IEC 60068-2-14, IEC 60068–2–27, | |
| IEC 60068-2-30, IEC 60068-2-78, IEC 60529 IP66/IP67, | |
| IEC/EN/UL 60950-22 | |
| Network | |
| NIST SP500-267 | |
| Dimensions | Main unit: 16 x 46 x 109 mm (0.6 x 1.8 x 4.3 in) |
| Thermal sensor unit AXIS P1280-E 4 mm: | |
| 62 mm (2.4 in) | |
| ø 30 mm (1.2 in) cable: 12 m (39 ft) | |
| Weight | Main unit: 72 g (0.16 lb) |
| Thermal sensor unit with cable: 370 g (0.8 lb) | |
| Included accessories | Installation Guide, Windows decoder 1-user license, AVHS |
| Authentication key | |
| AXIS F8201 Vari-angle Mounting Bracket | |
| Video management software | AXIS Companion, AXIS Camera Station, video management |
| software from Axis Application Development Partners available | |
| at axis.com/vms | |
Properties
| Properties | AXIS P1280-E 4mm 8.3 fps Thermal Network Camera |
| Description | The AXIS P1280-E Thermal Network Camera is a cost-effective and discreet surveillance solution for indoor and outdoor use. With thermal technology, it ensures reliable detection and a low false alarm rate. The camera offers flexibility with two lens options for different viewing requirements. It comes with built-in analytics, supports third-party analytics, and is outdoor-ready. The versatile design allows for inconspicuous installation on surfaces, walls, or recessed locations. |
| Product Family | AXIS P1280-E Thermal Network Camera Series |
| Product Type | Thermal Camera |
