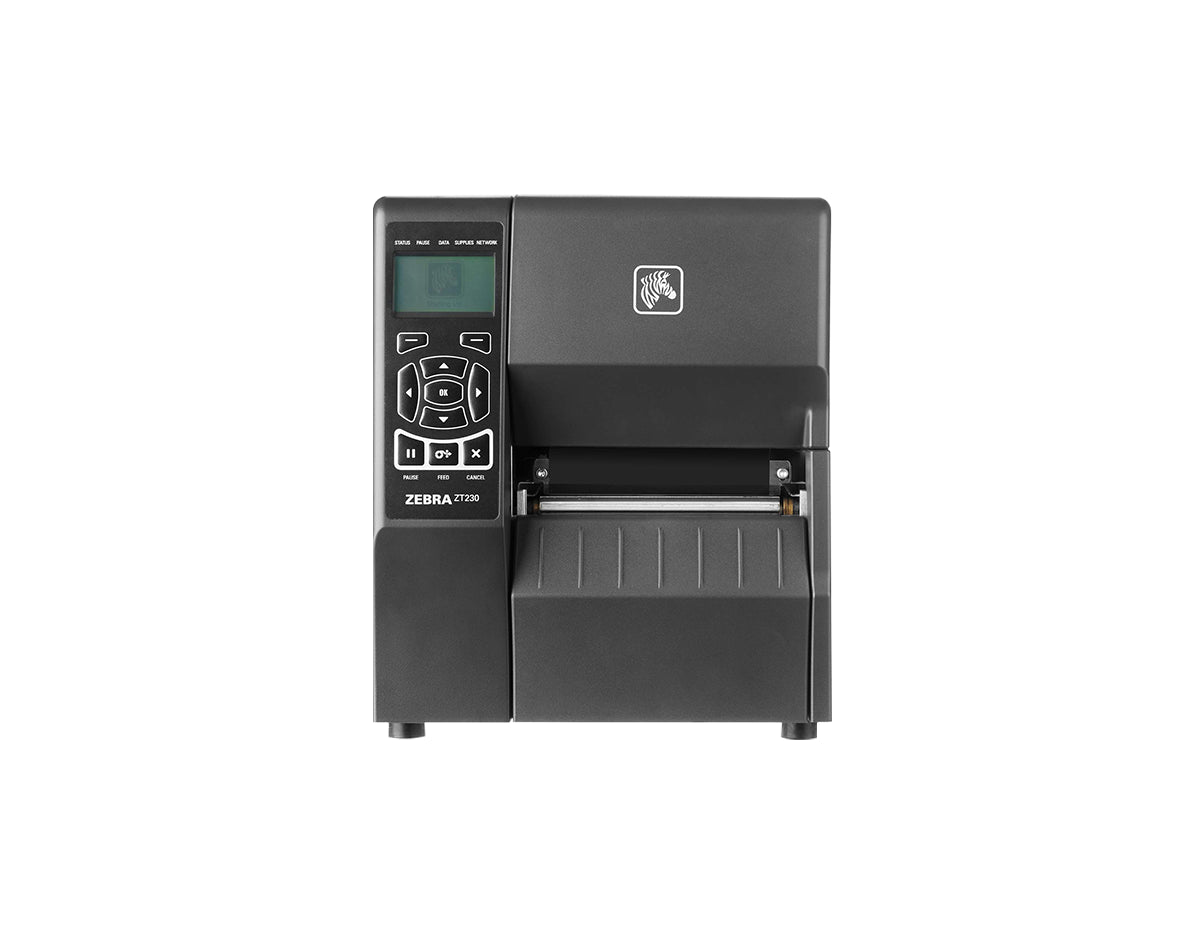

ZEBRA ZT23043-T01200FZ INDUSTRIAL PRINTER (ZT230)

Accessories

Options and Accessories
Communication	ZebraNet® a/b/g/n Print Server (internal) ZebraNet® 10/100 Print Server (internal or external) Centronics® Parallel port (internal)
Media Handling	Peel a front-mount, passive-peel with no take-up spindle Peel a front-mount, passive-peel with liner take-up spindle (factory-fit only) Cutter a front-mount guillotine cutter
Real Time Clock (RTC)
Keyboard Display Unit	ZKDU keyboard display units for stand-alone printing applications

Specifications

Specifications	ZT230
Memory	128 MB SDRAM memory 128 MB on-board linear Flash memory
Maximum Print Width	4.09 in./104 mm
Maximum Print Length	73/1854 mm
Maximum Print Speed	6 in./152 mm per second
Media Sensors	Transmissive and reflective sensors
Media Width	0.75 in./19.4 mm to 4.50 in./114 mm
Media Roll Size	8.0 in./203 mm O.D. on a 3.0 in./76 mm I.D. core 6.0 in./152 mm O.D. on a 1.0 in./25 mm I.D. Core
Media Thickness	0.003 in./0.076 mm to 0.010 in./0.25 mm
Media Types	Continuous, die-cut, notch, black mark
Standard Ribbon Length	1,476 ft./450 m
Ribbon Width	1.57 in./40 mm to 4.33 in./110 mm
Ribbon Core	1.0 in./25.4 mm
Fonts and Graphics	7 bitmapped, 1 smooth-scalable (CG Triumvirate Bold Condensed*) Pre-loaded Unicode-compliant scalable fonts for EMEA character sets International character sets supporting the following code page: IBM® Code Page 850 Supports user-defined fonts and graphics, including custom logos ZPL II drawing commands including boxes and lines 58 MB user available non-volatile memory storage for downloadable objects 4 MB user-available SDRAM *Contains UFST® from Agfa Monotype Corporation
Barcode Symbologies
Barcode Ratios	2:1, 7:3, 5:2, & 3:1
Linear Barcodes	Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code
2-Dimensional	Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS14 (and composite), Aztec
Software	ZebraDesigner Pro An intuitive, easy-to-use software program for creating complex label designs (option). ZebraDesigner Offers basic features for simple label design ZebraNet Bridge Enterprise Centrally manage Zebra printers from a single PC screen anywhere on your global network. Zebra Setup Utility fast and simple printer setup and configuration ZebraDesigner printer drivers for 32 bit and 64 bit Windows XP, 2008, Vista, Windows 7 CUPS Driver - Linux/Unix drivers available at CUPS.org
Firmware	ZPL II Universal language for Zebra printers. Simplifies label formatting and enables format compatibility with existing systems that run Zebra printers
Operating Temperature	Thermal transfer: 40ºF to 105ºF/5º to 40ºC Direct thermal: 32ºF to 105ºF/0º to 40ºC
Storage Temperature	-40º to 140ºF (-40º to 60ºC)
Operating Humidity	20% to 85% non-condensing
Storage Humidity	5% to 85% non-condensing
Agency Approvals	IEC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3 ZT220: cTUVus, CE, FCC, ICES-003, VCCI, C-Tick, NOM, Gost-R, BSMI, S-Mark (Argentina), KC, CCC, UkrSepro, SII, SABS ZT230: cTUVus, CE, FCC, ICES-003, VCCI, C-Tick, NOM, Gost-R, BSMI, S-Mark (Argentina), KC, CCC, UkrSepro, SII, SABS

Properties

Properties	Zebra ZT230 ZT23043-T01000FZ
Description	Label printer, Thermal transfer, Roll (4.5 in), 300 dpi, Up to 359.1 inch/min, USB 2.0, LAN
Product Family	ZT200 Series
Product Type	Label Printer
Standard Features	Print methods: Thermal Transfer print method Construction: metal frame with metal media cover Bi-fold media door with large clear window Side-loading supplies path for simplified media and ribbon loading Thin film printhead with E3 Element Energy Equalizer for superior print quality Bi-color LEDs for quick printer status Icon-based LCD multilingual graphical user interface and full function keypad Communications: USB 2.0 and RS-232 Serial ports ENERGY STAR® certified ZebraDesigner Essentials easy label design tool free at www.zebra.com/zebradesigner
Communication and Interface Capabilities	USB 2.0, high-speed High-speed serial interfaces o RS-232C, with DB9F connector o Configurable baud rate (4800 115,200kB), parity, and data bits. Stop bits at 1 or 2. o Software (XON/XOFF), hardware (DTR/DSR, or RTS/CTS) communication handshake protocols Bi-directional parallel interface ZebraNet® 10/100 Print Server supports 10/100 Ethernet networks internally integrated option that enables the use of ZebraLink Webview and Alert features. ZebraNet® n Printer Server supports 802.11 a/b/g/n networks via an internally integrate option.
Printing	Thermal Transfer print method
Resolution	300 dpi/12 dots per mm
Dimensions (W x H x D)	9.4 x 11 x 17 in. (239 mm x 280 mm x 432 mm)
Weight	20 lbs./9.1 kg
Power	Universal auto-ranging (PFC-compliant) power supply, 100-240 VAC; 47-63 Hz; ENERGY STAR certified
