Description

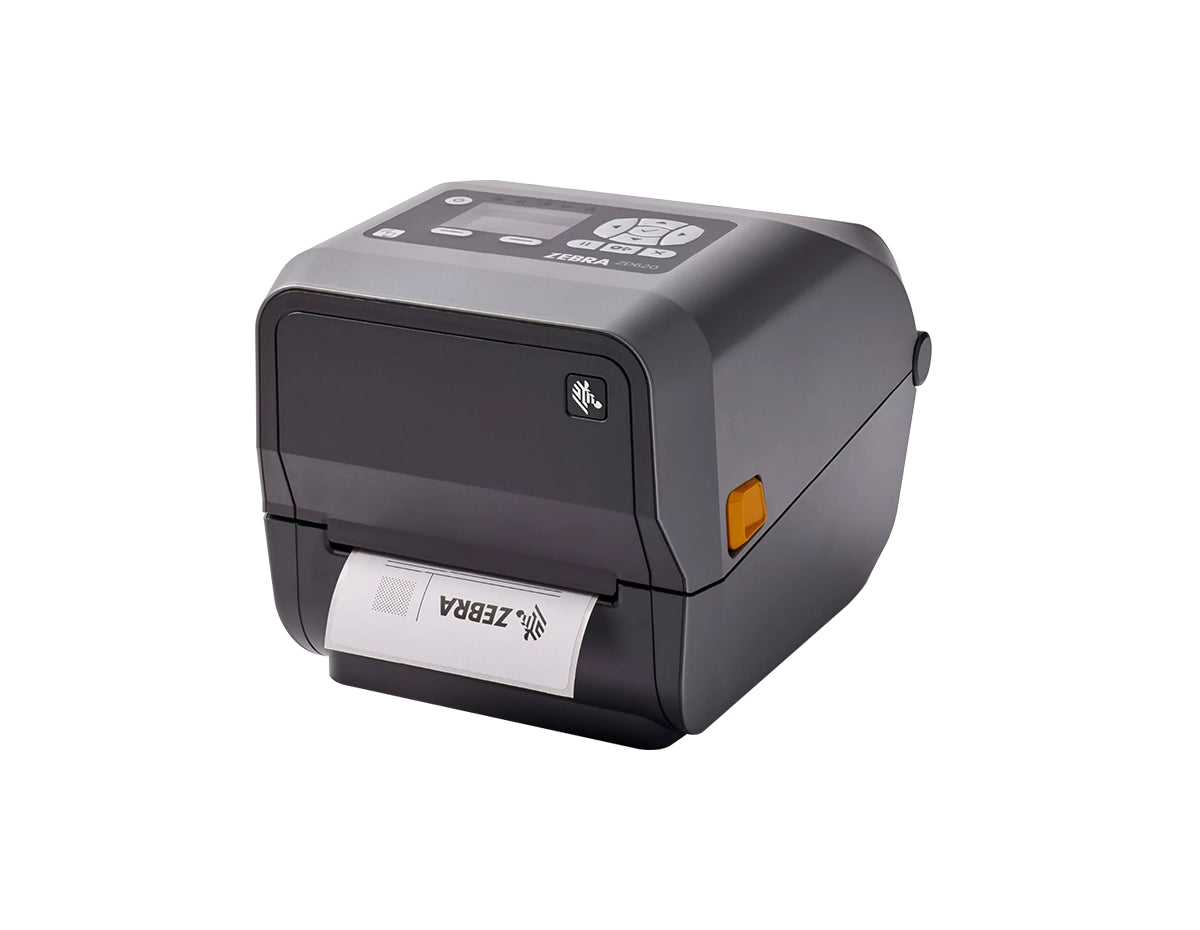

Zebra ZD6A142-D01L02EZ Barcode Label Printer

The Zebra ZD6A142-D01L02EZ, part of the ZD621d series, is a high-performance desktop label printer designed for efficient direct thermal printing without the need for ribbons. It delivers superior print quality with a 203 dpi resolution and supports a maximum print width of 4.25 inches (108 mm). Featuring multiple connectivity options, including USB, Ethernet, Wi-Fi (802.11ac), Bluetooth 4.1, and Serial interfaces, it provides seamless integration into various environments. The printer’s compact design and intuitive color touch LCD make it ideal for applications requiring high-quality, reliable label printing.

Ribbon Requirement: No Ribbon Required (for Direct Thermal printing)

Key Features:

• Direct Thermal Printing: Eliminates the need for ribbons, reducing maintenance and supply costs.
• High Print Resolution: 203 dpi resolution ensures crisp, clear text and barcodes.
• Versatile Media Compatibility: Supports continuous labels, die-cut labels, fanfold labels, receipt paper, tag stock, and wristband labels.
• Multiple Connectivity Options: USB 2.0, USB Host, Ethernet, Serial, Wi-Fi (802.11ac), and Bluetooth 4.1.
• Compact & User-Friendly: Features a color touch LCD for easy operation.
• Efficient Power Usage: ENERGY STAR® certified for reduced energy consumption.

Technical Specifications:

• Printing Technology: Direct Thermal
• Print Resolution: 203 dpi
• Maximum Print Width: 4.25 inches (108 mm)
• Interfaces: USB 2.0, USB Host, Ethernet, Serial, Wi-Fi (802.11ac), Bluetooth 4.1
• Display: Color Touch LCD

Media Specifications:

• Supported Media Types: Continuous labels, die-cut labels, fanfold labels, receipt paper, tag stock, wristband labels
• Media Width: 0.585 inches (15 mm) to 4.65 inches (118 mm)
• Maximum Media Roll Diameter: 5 inches (127 mm)
• Media Thickness: 0.003 inches (0.08 mm) to 0.0075 inches (0.19 mm)

Environmental Conditions:

• Operating Temperature: 40°F to 105.8°F (4.4°C to 41°C)
• Storage Temperature: -40°F to 140°F (-40°C to 60°C)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 95% non-condensing

Power Specifications:

• Input Voltage: AC 100-240V
• Frequency: 50/60 Hz
• Power Supply: External power adapter
• Power Consumption: ENERGY STAR certified for efficient power usage

Compliance & Certifications:

• ENERGY STAR® Certified
• RoHS 2011/65/EU Amendment 2015/863
• FCC Class B certified
• IEC 60950-1, IEC 62368-1
• EN55022 Class B, EN55024
• VCCI, C-Tick, BSMI, CCC, KCC, BIS, SABS, INMETRO, NOM, CU, S Mark

Physical Dimensions:

• Width: 7 inches (177 mm)
• Depth: 8.7 inches (220 mm)
• Height: 5.9 inches (151 mm)
• Weight: 3.53 lbs (1.6 kg)
