Description

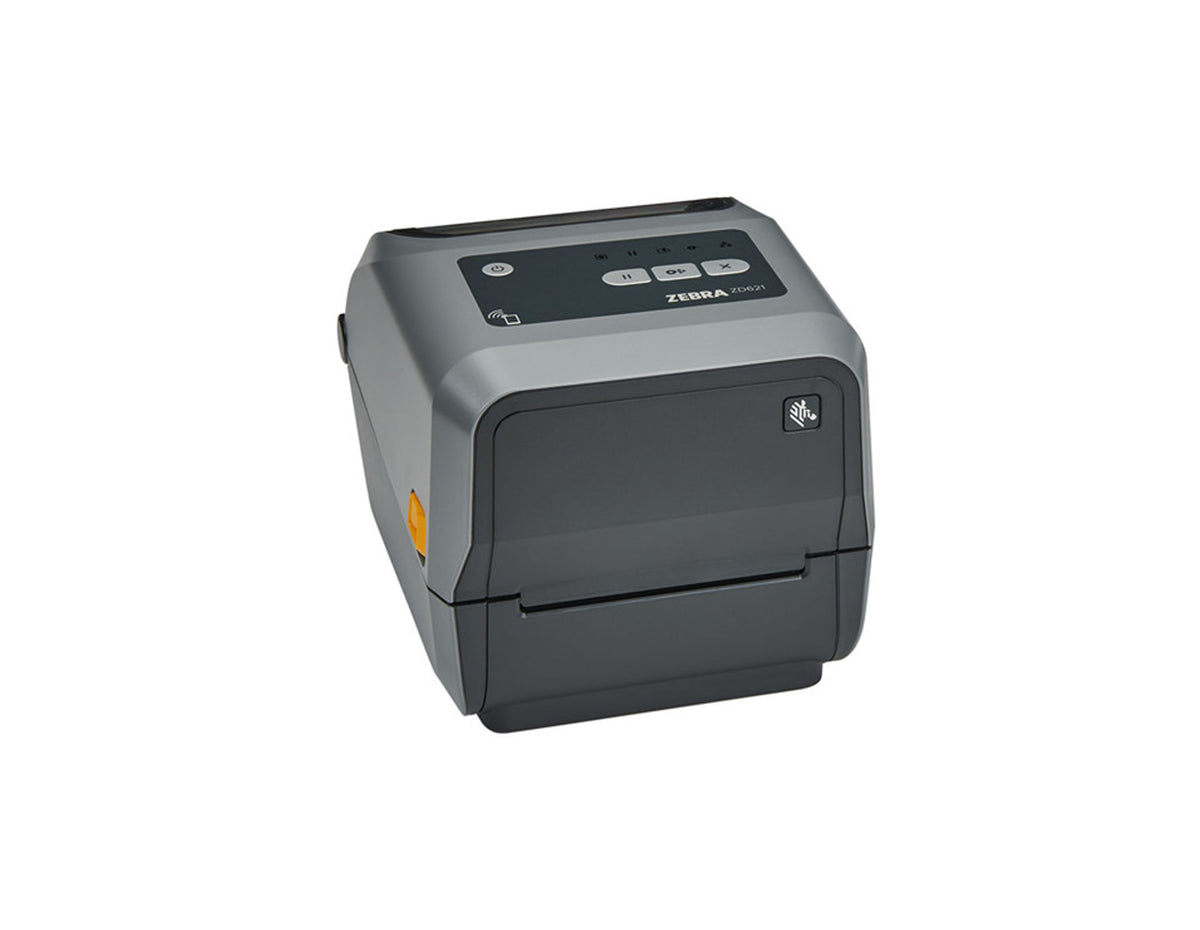

Zebra ZD6A042-301F00EZ Thermal Barcode Label Printer (ZD621)

The Zebra ZD621 is a premium thermal transfer barcode label printer designed for high-quality, long-lasting label printing in industrial, retail, and healthcare applications. With a 203 dpi print resolution and a print speed of up to 7.99 inches per second, it ensures crisp and efficient label production. Equipped with USB, USB Host, Ethernet, Serial, and Bluetooth LE 5.0, the ZD621 seamlessly integrates into various business environments. The printer supports both 0.5-inch and 1-inch ribbon cores, providing flexibility for different ribbon types. Its dual-wall frame and compact design make it a reliable and space-efficient solution for demanding workflows.

Ribbon Requirement: Ribbon Required (for Thermal Transfer printing)

Key Features:

• Thermal Transfer Printing: Produces long-lasting, high-quality labels with ribbon-based printing.
• Fast Print Speed: Prints at up to 7.99 inches per second for optimized efficiency.
• Multiple Connectivity Options: Supports USB, USB Host, Ethernet, Serial, and Bluetooth LE 5.0.
• Compact & Durable Design: Built with a dual-wall frame for long-lasting reliability.
• Flexible Ribbon Support: Compatible with both 0.5-inch and 1-inch ribbon cores.
• Advanced Media Handling: Supports roll-fed, fanfold, die-cut, black mark, tag stock, and wristbands.
• Real-Time Clock: Enables precise time-stamped printing.

Technical Specifications:

• Print Technology: Thermal Transfer
• Print Resolution: 203 dpi
• Maximum Print Speed: 7.99 in/sec
• Maximum Print Width: 4.09 inches
• Memory: 256MB
• Interface Options: USB, USB Host, Ethernet, Serial, Bluetooth LE 5.0
• Supported Barcode Symbologies: ZPL, EPL, ZPL II, EPL2, XML, ZBI
• Supported Media Types: Roll-fed, fanfold, die-cut, black mark, tag stock, continuous roll, wristbands
• Maximum Roll Diameter: 5 inches
• Maximum Label Width: 4.65 inches
• Maximum Label Length: 39.02 inches
• Ribbon Core Size: 0.5 inch, 1 inch
• Power Supply: AC input
• Dimensions (H x W x D): 7.5 x 8 x 10.5 inches
• Weight: 5.50 lb
