ZEBRA ZD4A042-D01M00EZ PRINTER (ZD421D)
| Model: | ZD4A042-D01M00EZ |
| Detail: |
|
| List Price: | |
| Price: | $449.00 |
| You Save: | $276.11 (38% OFF) |
| Condition: | Brand New Sealed |
| Availability: | Out of Stock |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

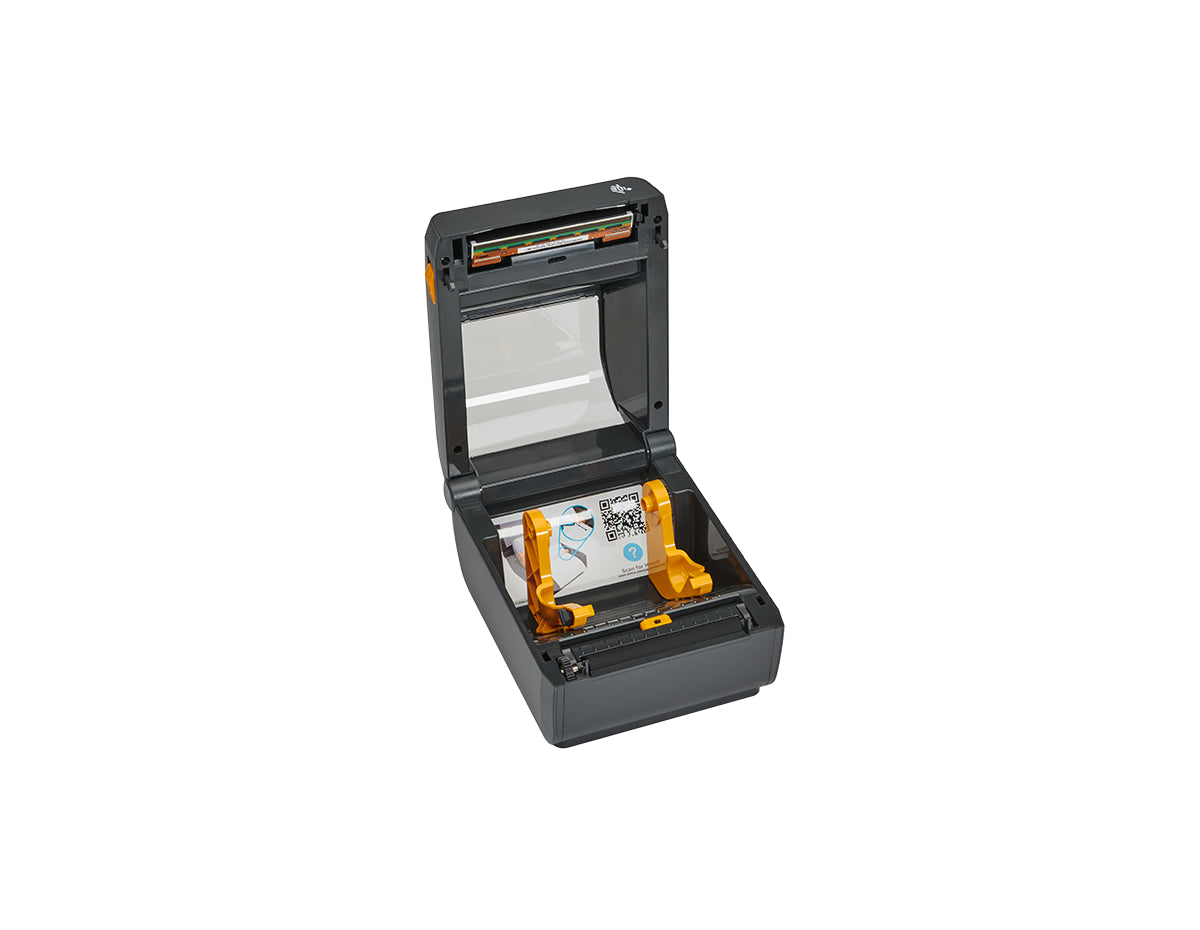

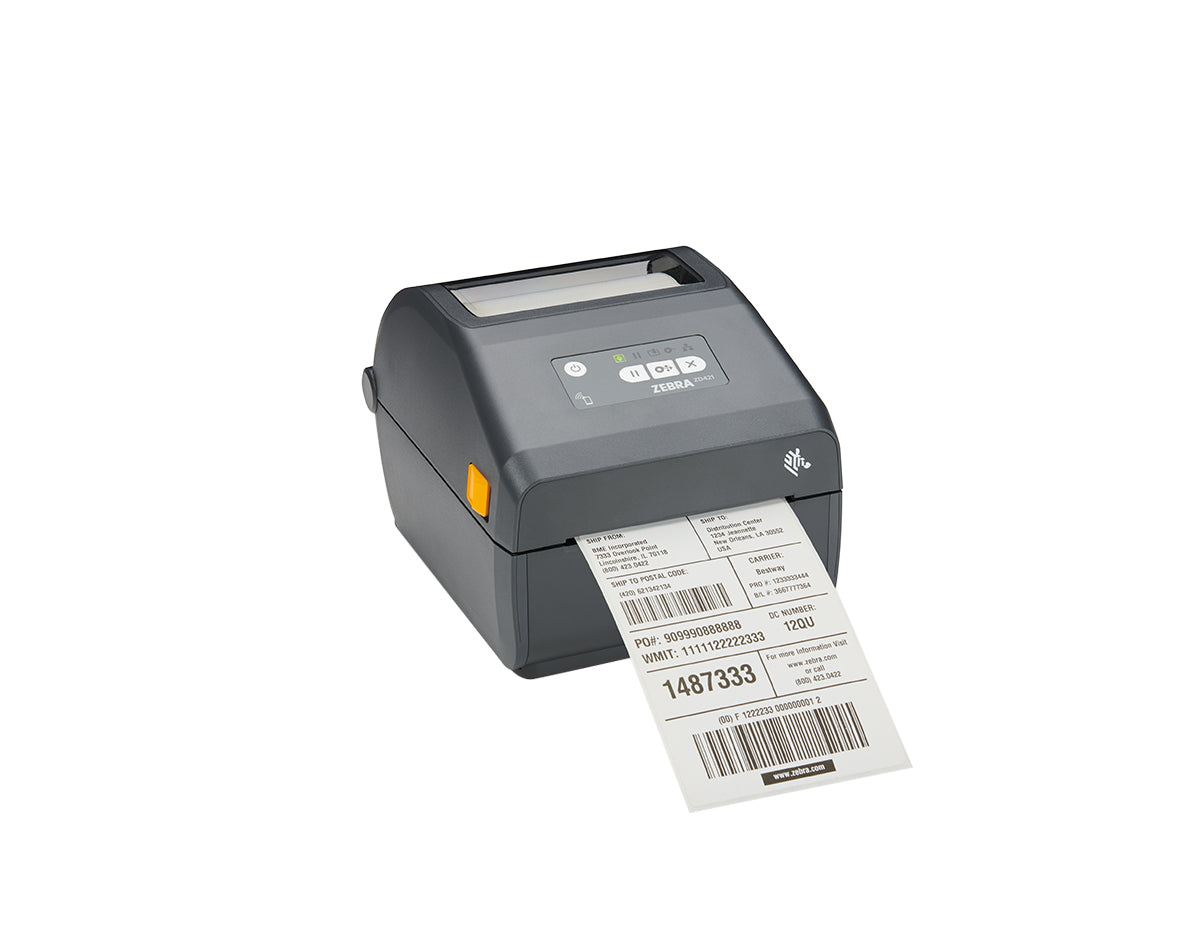

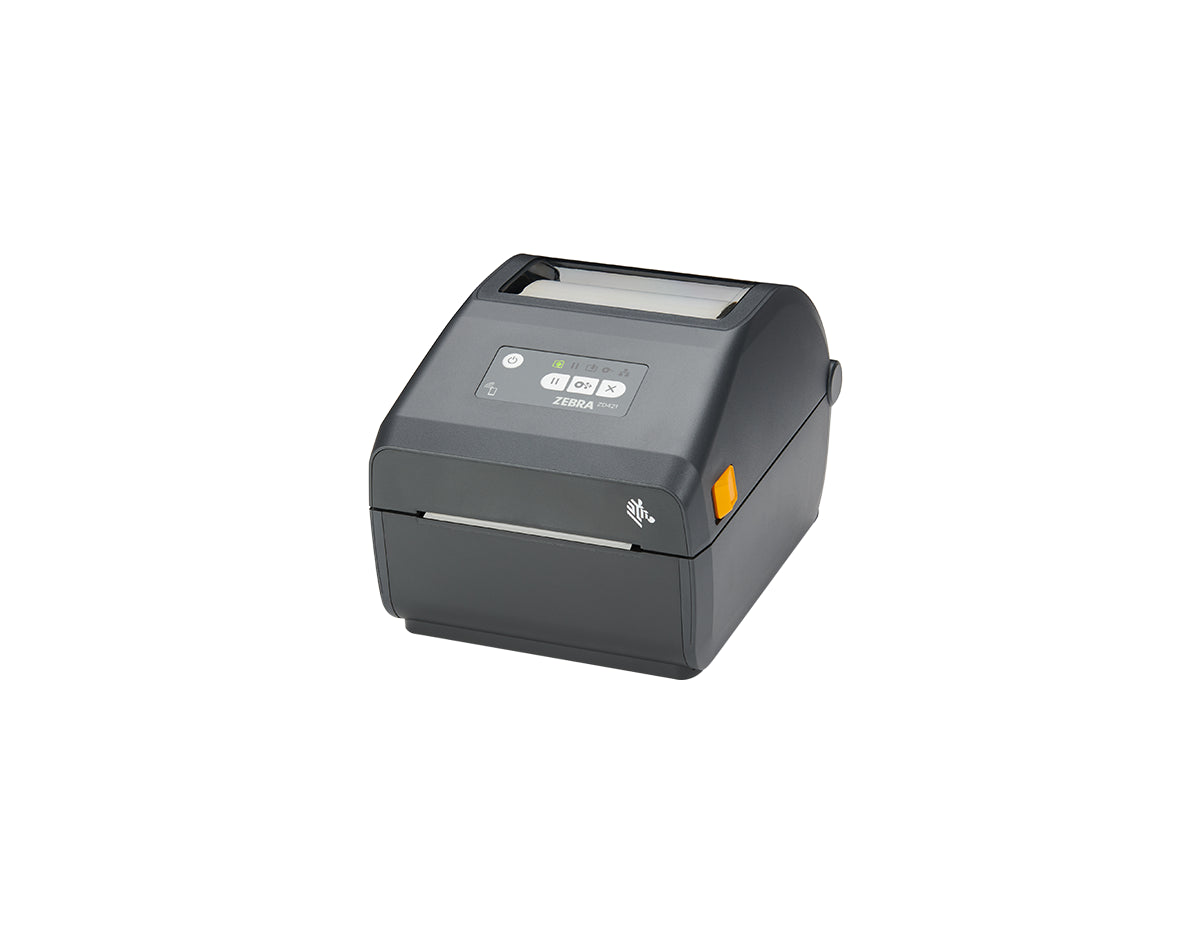

Zebra ZD4A042-D01M00EZ Printer (ZD421d)
The ZD4A042-D01M00EZ is a direct thermal model from the ZD421 desktop printer series. You can easily set up your printer with the help of the mobile app via BLTE5. It has USB 2.0, USB Host, Bluetooth, and NFC options. You can use your reliable ZD4A042-D01M00EZ in various sectors such as healthcare, manufacturing, retail, and transportation.
Quick Specs:
- 6 ips print speed
- 203 dpi print resolution
- Real Time Clock (RTC)
- OpenACCESS for easy media loading
Please see the related tabs for the ZD4A042-D01M00EZ datasheet and compatible accessories.
Accessories
| Accessories | |
| Media Handling | Dispenser/Peeler: label peel and present with label present sensor (field installable) Cutter (field installable) |
| Battery | Provides power to the printer to support a full shift of printing at maximum print speed; supports all connectivity and media handling options |
| Carrying Case | Carrying case with shoulder strap and handles makes it easy to bring your desktop printer and battery to the point of application |
| Keyboard Display Unit | Zebra Keyboard Display Unit (ZKDU) unit for standalone printing solutions |
| Real Time Clock | Real time clock included as standard on network connected models |
| Enclosed Power Supply | Attached power supply accessory for cord-free installation |
| Mounting Plate | Secure ZD Series printers to countertops or shelves |
Specifications
| Specifications | ZD421 |
| Memory | 512 MB Flash; 256MB SDRAM 64 MB user available non-volatile memory 8 MB user available SDRAM |
| Maximum Print Width | 4.09 in./104 mm |
| Maximum Print Speed | 6 in./152 mm per second (203 dpi) |
| Media Sensors | Full width, moveable reflective/black mark sensor; multi-position transmissive/ gap sensor |
| Label Length | Maximum: 39.0 in./991 mm Minimum: 0.25 in./6.4 mm |
| Media Width | 0.585 in./15 mm to 4.25 in./108 mm |
| Media Roll Size | Maximum outer diameter: 5.00 in./127 mm Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1), 2.0 in., (50.8 mm) and 3.0 in. (76.2 mm) using optional adapters |
| Media Thickness | 0.003 in. (0.08 mm) min.; 0.0075 in. (0.19 mm) max. |
| Media Types | Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands |
| Fonts and Graphics | 16 resident expandable ZPL II bitmap fonts, two resident scalable ZPL fonts, five resident expandable EPL2 fonts, native open-type font support, Unicode compliant. China units include SimSun simplified Chinese font |
| Barcode Symbologies | |
| Barcode Ratios | 2:1 and 3:1 |
| Linear Barcodes | Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code |
| 2-Dimensional | Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec |
| Software | ? |
| Firmware | ZPL II; EPL 2; XML; ZBI; PDF Direct |
| Operating Temperature | 40º to 105ºF (4.4º to 41ºC) |
| Storage Temperature | -40º to 140ºF (-40º to 60ºC) |
| Operating Humidity | 10% to 90% non-condensing R.H. |
| Storage Humidity | 5% to 95% non-condensing R.H. |
| Regulatory | IEC 60950-1, IEC 62368-1, EN55022 Class B, EN55024, EN55035, EN61000- 3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM |
| Environment | RoHS Directive 2011/65/EU; Amendment 2015/863 |
Properties
| Properties | Zebra ZD421 ZD4A042-D01000EZ |
| Description | Desktop Printer, Direct thermal, 203 dpi, 6 ips, USB/USB Host/Bluetooth/Modular Connectivity Slot, ZPL/EPL/EZPL, Icon User Interface, 4-inch, Standard Tear, US Cord |
| Product Family | ZD Series |
| Product Type | Label Printer |
| Standard Features | Print methods: Direct Thermal ZPL and EPL programming languages 5 status icon, 3 button user interface USB 2.0, USB Host Printer setup mobile app for Android & iOS via BLE (Bluetooth Low Energy 5) connection* * BLE is intended for use with Zebra printer setup mobile app only Real Time Clock (RTC) OpenACCESS for easy media loading Dual-wall frame construction ENERGY STAR® certified ZebraDesigner Essentials easy label design tool free at www.zebra.com/zebradesigner PDF Direct Two-year standard warranty |
| Communications | Field installable: Ethernet 10/100, 802.11ac Wi-Fi and Bluetooth 4.1 (dual radio); Serial RS-232 autosensing, DB-9 Factory installed: Ethernet 10/100, 802.11ac Wi-Fi and Bluetooth 4.1 (dual radio) |
| Printing | Direct thermal printing |
| Resolution | 203 dpi/8 dots per mm |
| Dimensions (W x H x D) | 6.98 x 5.93 x 8.69 in. (177.5 mm x 150.7 mm x 220.8 mm) |
| Weight | 2.98 lbs./1.35 kg |
| Power | Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR certified; Energy Efficiency Level VI certified; optional 2750 mAh battery; Healthcare models include IEC60601-1 certified power supply |
