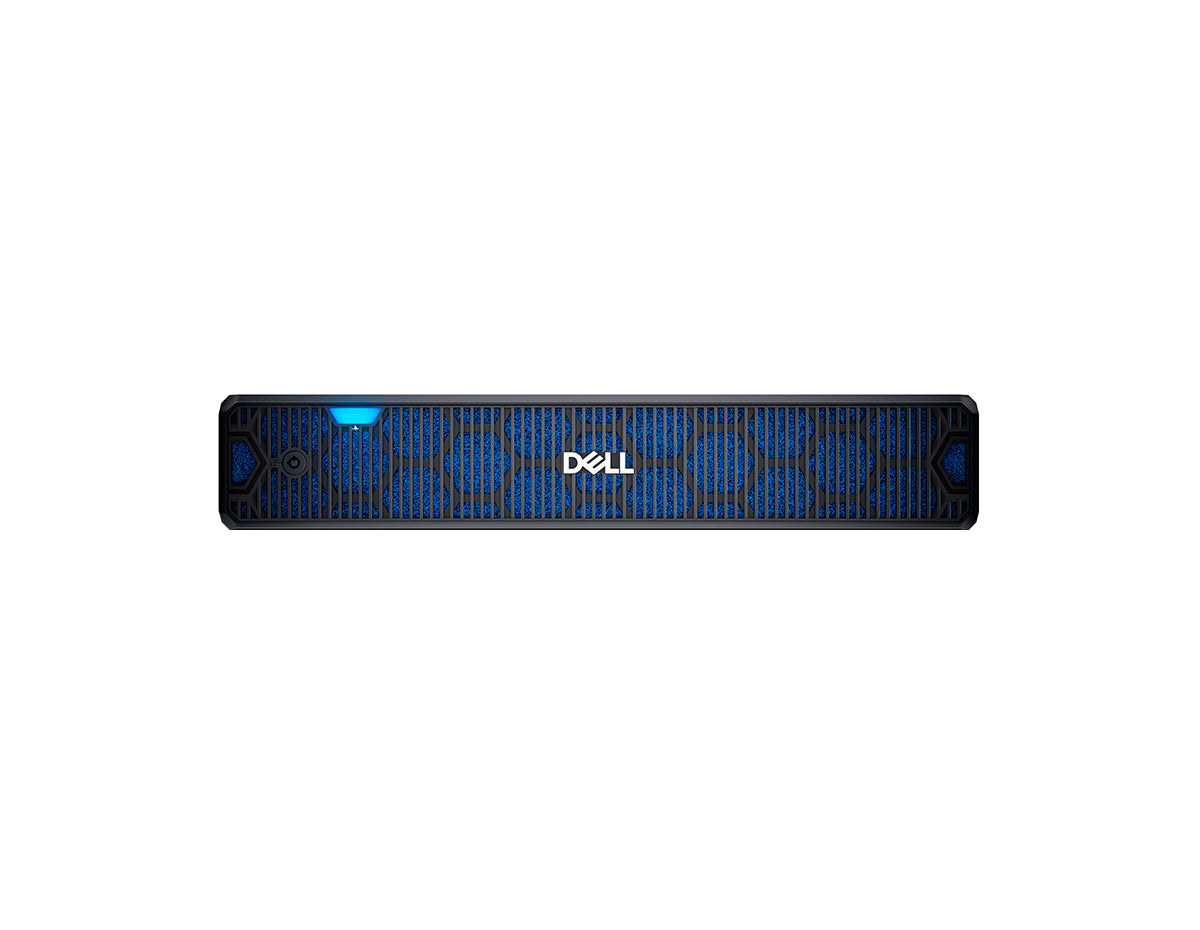

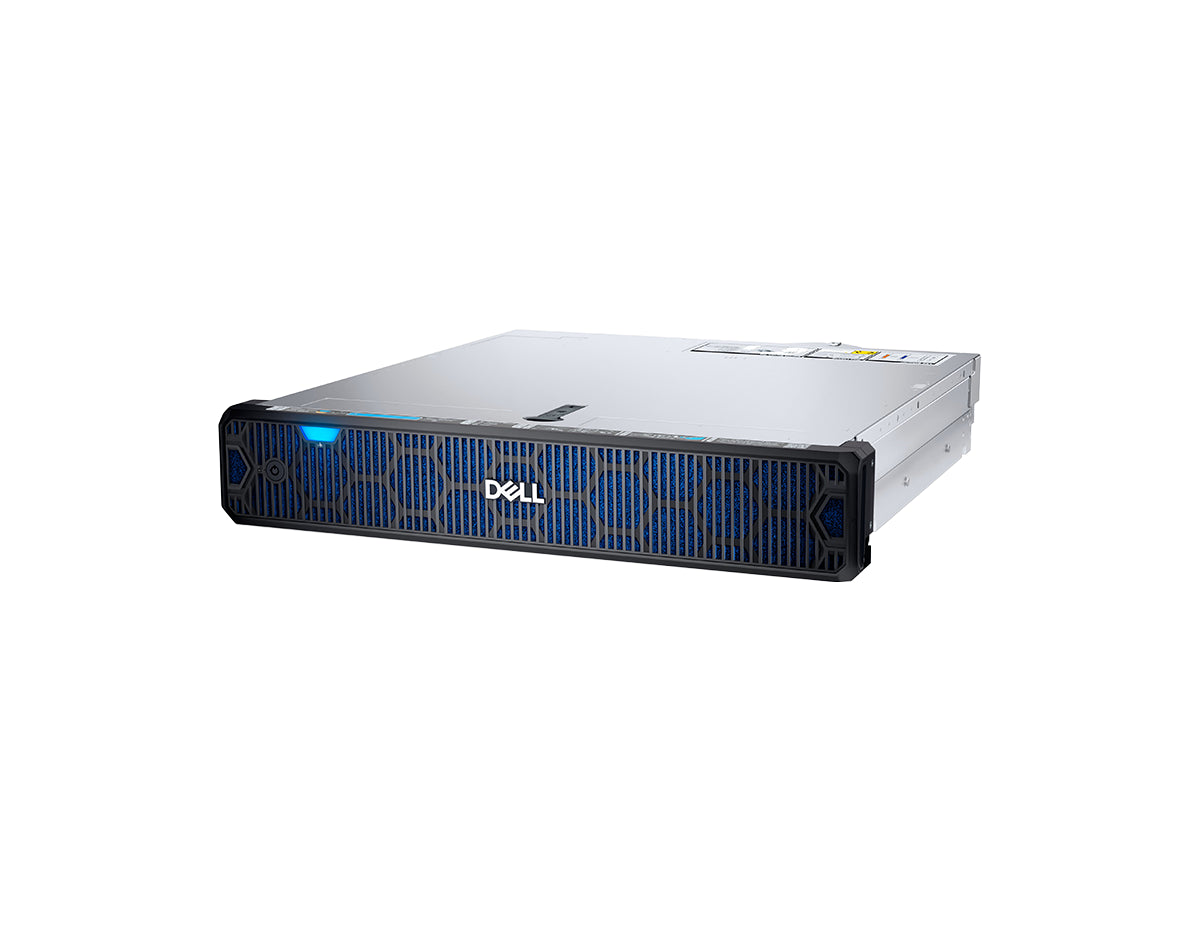

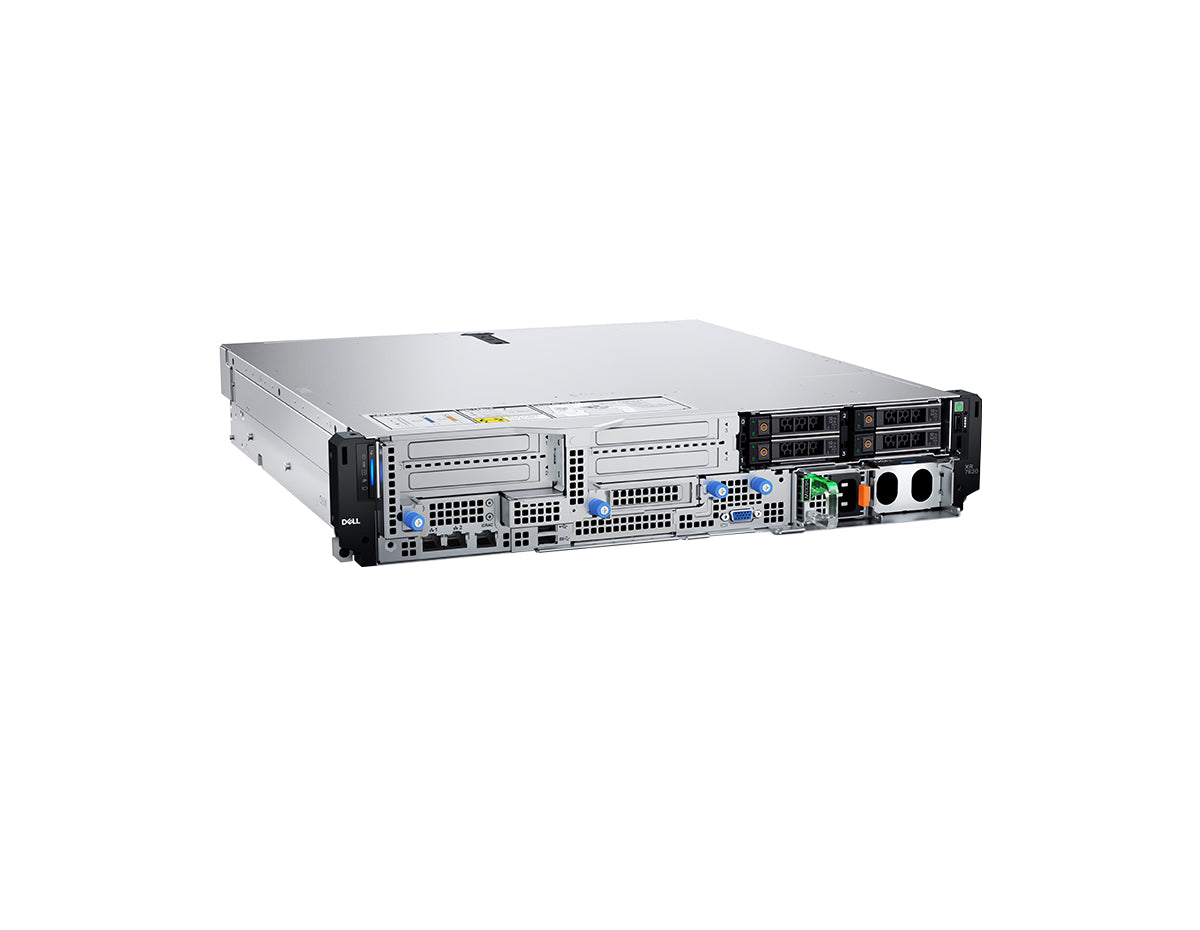

Dell PowerEdge XR7620 Short-Depth Rugged Edge Server

Short-Depth Compute for Demanding Edge Workloads

The Dell PowerEdge XR7620 is a short-depth 2U, 2-socket enterprise edge server built for data center-level compute in space-constrained and harsh operating environments. It is designed for workloads that require high performance, high capacity, reduced latency and reliable edge deployment.

Key Benefits and Features

• Short-depth chassis helps fit enterprise compute into constrained edge spaces.
• Supports two Intel Xeon Scalable processors for demanding edge applications.
• DDR5 memory support improves bandwidth for data-intensive workloads.
• PCIe Gen5 integration enables faster and more efficient data transfer.
• Optional GPU acceleration supports AI inferencing and video analytics workloads.

Ideal Use Cases

• Industrial automation environments requiring rugged edge compute.
• Video analytics deployments with local processing needs.
• Point of sale analytics for distributed retail locations.
• AI inferencing at the edge.
• Edge point device aggregation.

Technical Specifications

• Brand: Dell Technologies
• SKU: XR7620
• Form Factor: 2U rack server
• Processor: Two 4th Generation Intel Xeon Scalable processors with up to 32 cores per processor or two 5th Generation Intel Xeon Scalable processors with up to 16 cores per processor
• Memory: 16 DDR5 DIMM slots, RDIMM support up to 2 TB, speeds up to 5200 MT/s
• Drive Bays: Up to 4 x 2.5-inch SAS, SATA or NVMe SSD drives, or up to 8 x E3.S NVMe direct drives
• Embedded NIC: 2 x 1 GbE LOM
• GPU Options: Up to four 75 W single-width full-height/half-length, one 75 W low-profile, or up to two 350 W double-width full-height/full-length
• Embedded Management: iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module and NativeEdge Endpoint Orchestrator
• Operating Systems: Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Canonical Ubuntu Server LTS and Dell NativeEdge OS

Deploy Edge Compute with Dell PowerEdge XR7620

Choose the Dell PowerEdge XR7620 for compact, high-performance edge infrastructure built for demanding workloads, local data processing and scalable remote operations.

Brand	Dell Technologies
Model	PowerEdge XR7620
SKU	XR7620
Product Type	Edge server
Series	PowerEdge
Form Factor	2U rack server
Processor	Two 4th Generation Intel® Xeon® Scalable processors with up to 32 cores per processor or two 5th Generation Intel® Xeon® Scalable processors with up to 16 cores per processor
Memory	16 DDR5 DIMM slots, supports RDIMM 2 TB max, speeds up to 5200 MT/s
Storage	Up to 4 x 2.5-inch SAS/SATA/NVMe SSD drives, 61.44 TB max, or up to 8 x E3.S NVMe direct drives, 51.2 TB max
Dimensions	86.8 mm x 482.6 mm x 471.8 mm without bezel
Weight	Max 21.16 kg (46.64 pounds)
Operating Temperature	-5°C to 55°C

Memory Type	Supports registered ECC DDR5 DIMMs only
Storage Controllers	PERC H965I, PERC H755, PERC H355, HBA3551
Software RAID	S160
Internal Boot	Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs (cold swap) or internal USB module
Power Supplies	1800 W Titanium 200 to 240 VAC or 240 HVDC; 1400 W Platinum 100 to 240 VAC or 240 HVDC; 1400 W Titanium 277 VAC or 336 VDC; 1100 W Titanium 100 to 240 VAC or 240 HVDC; 1100 W -48 to -60 VDC
Cooling Options	Air cooling
Fans	Six cold swap cooling fans
Embedded Management	iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module, NativeEdge Endpoint Orchestrator
OpenManage Software	CloudIQ for PowerEdge plug in, OpenManage Enterprise, OpenManage Power Manager plugin, OpenManage Service plugin, OpenManage Update Manager plugin
Mobility	OpenManage Mobile
OpenManage Integrations	Microsoft System Center, Windows Admin Center, ServiceNow, VMware vCenter, Red Hat Ansible Modules, Terraform Providers, vRealize Operations Manager
Security Features	Cryptographically signed firmware, Data at Rest Encryption, Secure Boot, Secure Erase, Secured Component Verification, Silicon Root of Trust, System Lockdown, TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
GPU Options	Up to four 75 W single-width full-height/half-length, one 75 W low-profile, or up to two 350 W double-width full-height/full-length
Embedded NIC	2 x 1 GbE LOM
Network Options	1 x OCP card 3.0
PCIe	2 CPU configuration: Up to 5 PCIe slots (4 x16 Gen4/5, 1 x16 LP Gen4)
Operating Systems	Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Canonical Ubuntu Server LTS, Dell NativeEdge OS

Compatible Accessories

Optional security bezel with dust filter
