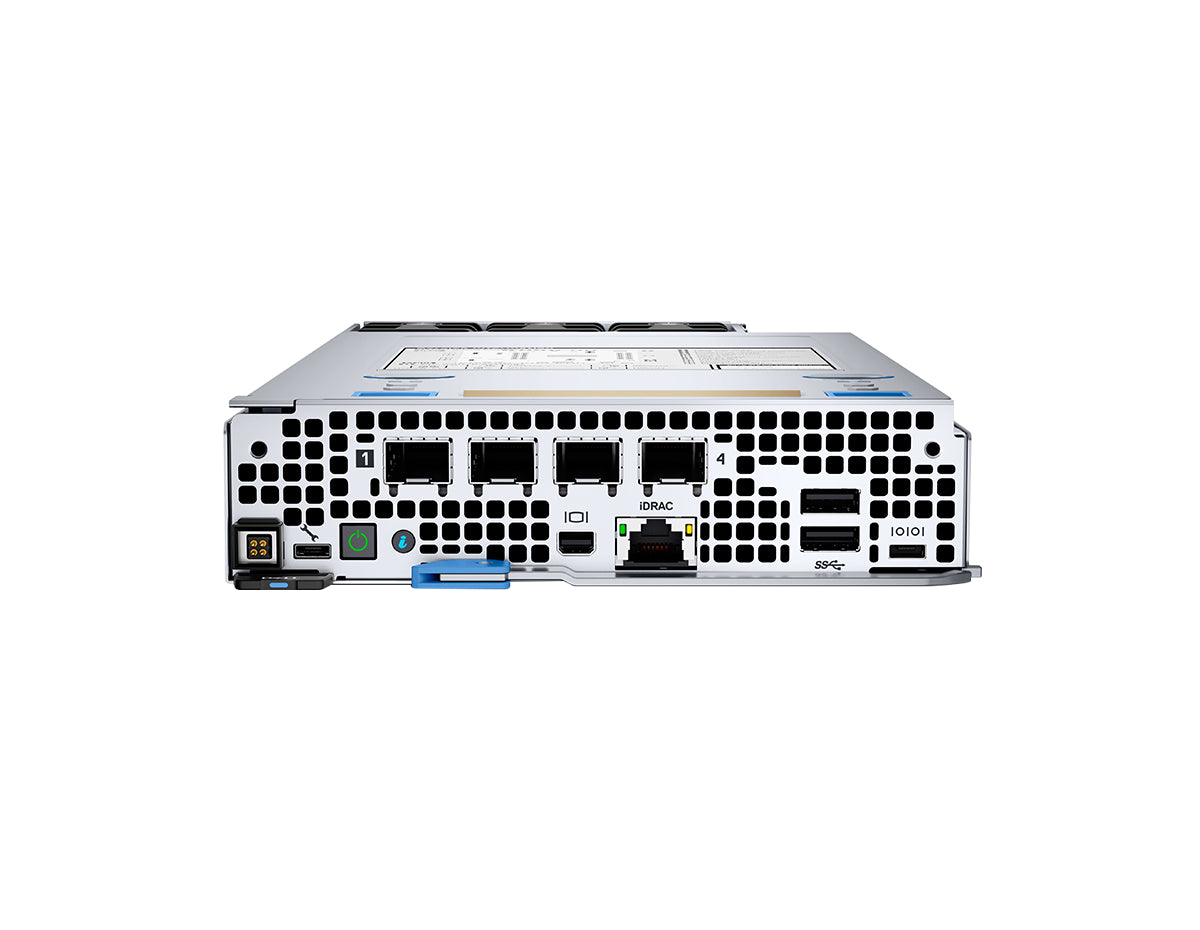

Dell PowerEdge XR4510c Dense Edge Server Sled

Dell XR4510c Compute Sled for Edge Workloads

The Dell PowerEdge XR4510c is a single-width server sled for PowerEdge XR4000 edge server deployments. Built for compact, multi-node environments, it supports high-performance compute at the point of capture for workloads such as VDI, virtual machines, video surveillance, vSAN/VM, point of sale, and data communication.

Key Benefits and Features

• Supports 1 x 3rd Generation Intel Xeon D Scalable processor with up to 20 cores.
• Designed for XR4000r and XR4000z chassis configurations using a pull-replace-repair sled architecture.
• Enables scalable edge compute with up to two XR4510c sleds in an XR4000r chassis or one sled in an XR4000z chassis.
• Supports registered ECC DDR4 memory for server-class reliability and data integrity.
• Includes Dell embedded management options such as iDRAC9 and iDRAC Direct for comprehensive remote orchestration.

Ideal Use Cases

• Edge computing deployments where space is limited and short-depth chassis parameters are required.
• Virtual desktop infrastructure (VDI) and virtual machine workloads.
• Video surveillance and machine vision processing at the point of capture.
• Harsh environments subject to dusting or extreme temperatures (-5C to 55C).
• Multi-node server configurations inside XR4000r or XR4000z infrastructure architectures.

Technical Specifications

• Product Type: Server sled
• SKU: XR4510c
• Processor: 1 x 3rd Generation Intel Xeon D Scalable processor with up to 20 cores
• Memory Slots: 4 x DDR4 DIMM slots
• Memory Support: RDIMM up to 256 GB max or LRDIMM up to 512 GB max
• Memory Speed: Up to 2933 MT/s
• Memory Type: Registered ECC DDR4 DIMMs only
• Storage: 4 x M.2 NVMe SSDs on M.2 riser module
• Dimensions: 41.25 mm H x 167.2 mm W x 342.5 mm D
• Weight: 4.69 kg (10.34 lb)

Deploy Compact Dell Edge Compute with XR4510c

Choose the Dell PowerEdge XR4510c for dense, serviceable edge compute in compatible XR4000 chassis environments. Add it to your infrastructure plan today.
