Cisco WS-C3560CX-8PT-S Switch

Name: Cisco WS-C3560CX-8PT-S Switch
Brand: Cisco
Price: 330.0 USD
Availability: InStock

Part Number: WS-C3560CX-8PT-S

Technical Details

Power Adapter is sold separately. Switch Managed 10 x 10/100/1000 (PoE+) desktop rack-mountable DIN Rail Mountable wall-mountable PoE+ (146 W)

$2,236.99

$330.00

85% OFF

You Save: $1,906.99

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

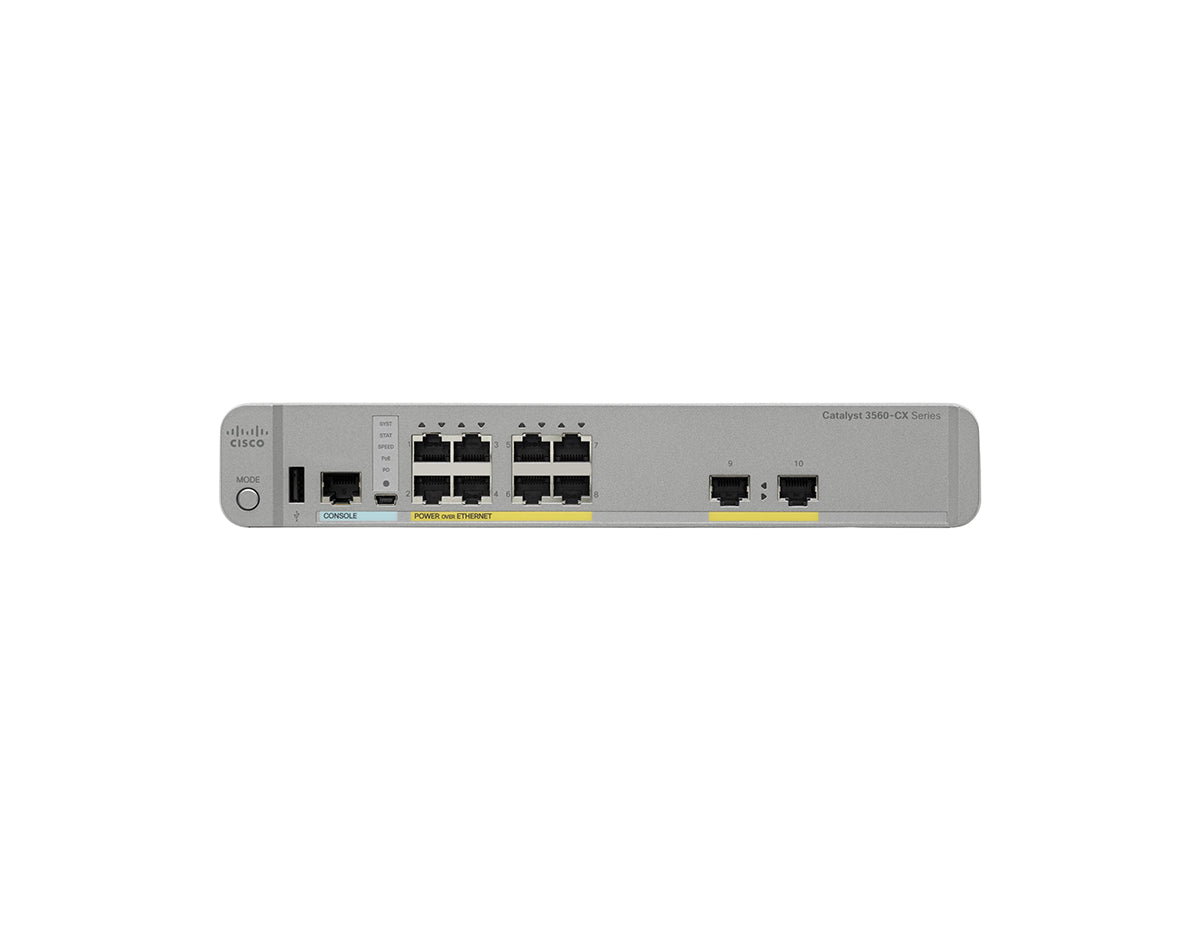

Cisco WS-C3560CX-8PT-S Switch

The Cisco Catalyst 3560-CX Series Switches make it easy to expand your Ethernet and Multigigabit Ethernet infrastructure beyond the wiring closet, allowing you to create new workspaces, extend wireless LANs, and connect PoE devices. With eight downlink ports and two Cisco UPOE input ports, the Cisco Catalyst WS-C3560CX-8PT-S can be powered by another switch, eliminating the need for a separate power supply. These switches are highly flexible and available for deployment because they receive power over the uplink from an upstream PoE or Cisco UPOE device.

Key Features:

2 x 1G copper (Cisco UPOE+ uplinks)
8 PoE+
Optional external AC-DC or DC-DC power adapter

The tabs contain the Cisco WS-C3560CX-8PT-S datasheet with all the specifics you need.

Properties

Properties	WS-C3560CX-8PT-S
Description	3560-CX PD PSE Switch 8 GE PoE+, uplinks: 2 x 1G copper (Cisco UPOE powered input), IP Base
Product Family	Catalyst 3560
Product Type	Ethernet Switch
Ethernet Ports	8 x 10/100/1000 Gigabit Ethernet
PoE Output Ports	8 PoE+
Available PoE Power	Up to 146W
Uplinks	2 x 1G copper (Cisco UPOE+ uplinks)
Default Software	IP Base (IP Services with RTU License)
AC/DC input voltage and current	18-60VDC, 6.0-1.6A
Dimensions in.	1.75 x 10.6 x 7.0

Specifications

Specifications	WS-C3560CX-8PT-S
DRAM	512 MB
Flash Memory	128 MB
Forwarding Rate	14.9 mpps
Switching Bandwith	32 Gbps
Max VLANs	1023
VLAN IDs	4000
Jumbo frames	9198 bytes
MTBF	737,74
Operating Temperature Up to 5,000 ft (1500 m)	-5 to 45 degree C
Operating Temperature Up to 10,000 ft (3000 m)	-5 to 45 degree C
Safety	● UL 60950-1 ● CAN/CSA 22.2 No. 60950-1 ● EN 60950-1 ● IEC 60950-1 ● CE Marking ● GB 4943 ● IEC 60825
EMC: emissions	● FCC Part 15, CFR 47, Class A, North America ● EN/IEC 61000-4-5 ● EN 55022 (CISPR22) and EN 55024 (CISPR24), CE marking, European Union ● AS/NZS, Class A, CISPR22:2004 or EN55022, Australia and New Zealand ● VCCI Class A, V-3/2007.04, Japan ● KCC (Formerly MIC, GB17625.1-1998) Class A, KN24/KN22, Korea ● ANATEL, Brazil ● CCC, China ● GOST, Russia
Environmental	Reduction of Hazardous Substances (RoHS) 6
Telco	Common Language Equipment Identifier (CLEI) code
Telnet - SSH	Yes
TACACS+	Yes
Warranty	An enhanced limited lifetime hardware warranty that includes 90 days of Cisco Technical Assistance Center (TAC) support and next-business-day hardware replacement free of change

Accessories

PWR-CLP=	Power clip for the 3560-CX and 2960-CX compact switches
PWR-ADPT=	AC-DC power adapter for the WS-C3560CX-8PT-S compact switch
PWR-ADPT-DC=	DC-DC power adapter for the WS-C3560CX-8PT-S compact switch
PWR-ADPT-BRKT=	Power adapter bracket for the WS-C3560CX-8PT-S compact switch (needs either CMPCT-DIN-MNT= or CMPCT-MGNT-TRAY =) to work
CMPCT-CBLE-GRD=	Cable guard for the 3560-CX and 2960-CX compact switches
CMPCT-MGNT-TRAY =	Magnet and Mounting Tray for 3560-CX and 2960-CX compact switches
CMPCT-DIN-MNT=	DIN Rail Mount for 3560-CX and 2960-CX compact switches
RCKMNT-19-CMPCT=	19-Inch Rack Mounting Brackets for 3560-CX and 2960-CX compact switches
RCKMNT-23-CMPCT=	23- and 24-Inch Rack Mounting Brackets for 3560-CX and 2960-CX compact switches
