Model: | WS-C3560CX-8PC-S |
Detail: | Switch, Managed, 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP, Desktop, PoE+ (240 W), |
List Price: | |
Price: | $995.00 |
You Save: | $1,528.06 (61% OFF) |
Condition: | Brand New Sealed |
Availability: | IN STOCK |
Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
Tax: | $0.00 Tax Outside New Jersey |
Quantity: |

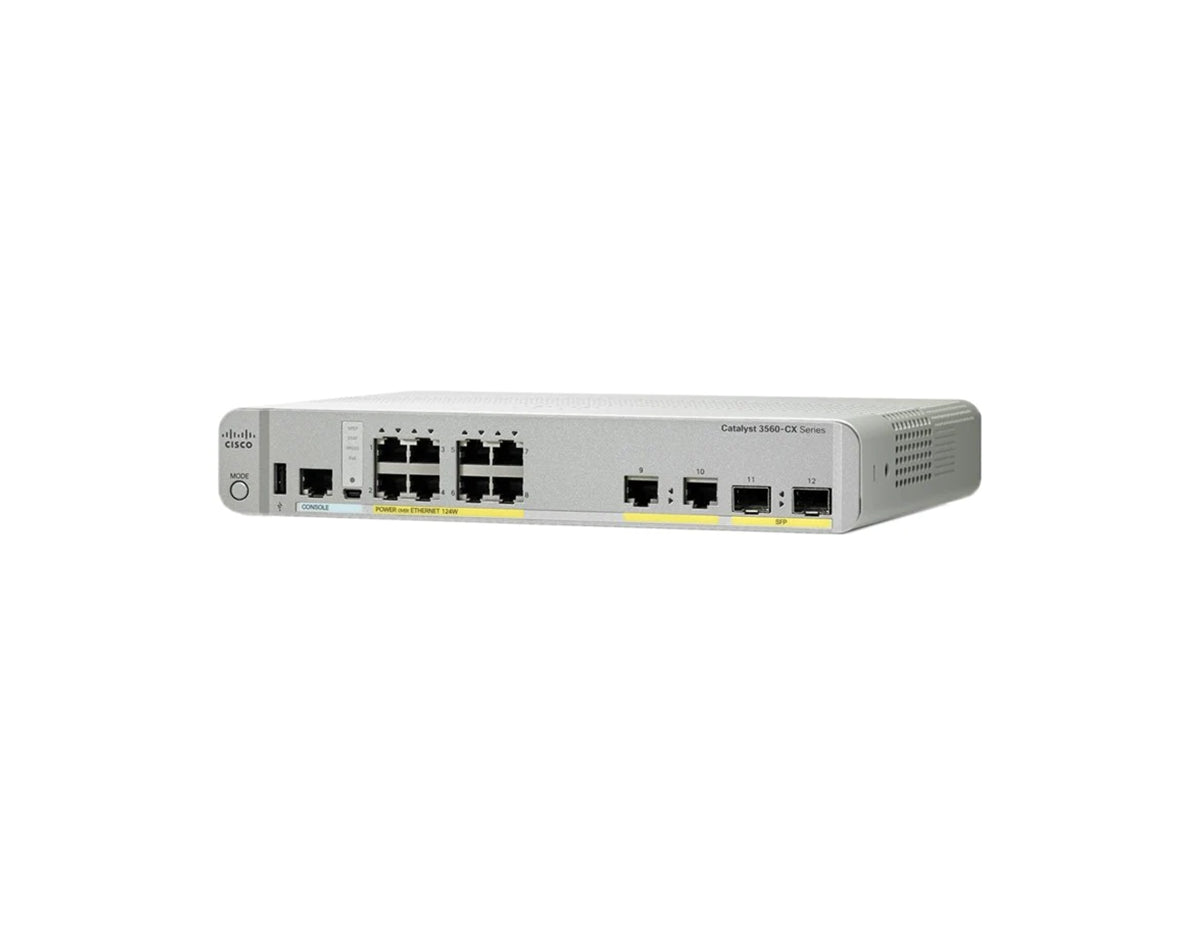

Cisco WS-C3560CX-8PC-S Switch is a perfect choice for network deployment optimization. This switch is Gigabit Ethernet (GbE) managed switch and ideal for high-speed data connectivity, Wi-Fi backhaul, and Power over Ethernet (PoE) connectivity in places where space is at a premium. Use them in offices, classrooms, hotels, retail stores, and other enterprise and branch locations. These switches feature quiet, compact footprint and fan-less design.Ā Ā
Cisco WS-C3560CX-8PC-S Switch enables IP connectivity for devices such as IP phones, surveillance cameras, PCs, wireless access points, and video endpoints. These switches also offer flexible mounting options and open up a range of network design and connectivity options.Ā
Ā
Feature Set | IP Base |
Uplink Interfaces | 2 Gigabit Ethernet RJ-45 uplinks, 2 SFP upliks |
Ports | 8 x Gigabit Ethernet ports |
Forwarding Bandwidth | 16 Gbps |
Switching Bandwidth (full-duplex capacity) | 32 Gbps |
Available POE Power | 240W |
RAM | 512 MB |
Flash Memory | 128 MB |
Dimensions | 4.44 x 26.9 x 23.8 cm |
Package Weight | 4.65 kg |
PoE Output Ports |
8 PoE+ |
Available PoE Power |
240W |
Uplinks | 2 x 1G copper plus 2 x 1G SFP |
Default Software | IP Base (IP Services with RTU License) |
Powering Option | Internal power supply |
Available PoE Power (W) | 240W |
Can Switch Be Powered with Uplinks? | No |
Forwarding Bandwidth | 16 Gbps |
Switching Bandwidth (full-duplex capacity) | 32 Gbps |
Flash memory | 128 MB |
Memory DRAM | 512 MB |
Max VLANs | 1023 |
VLAN IDs | 4000 |
Maximum transmission unit (MTU) | Maximum transmission unit (MTU) |
Jumbo frames | 9198 bytes |
Forwarding rate 64 Byte PacketĀ | 17.9 mpps |
Dimensions (H x W x D) |
1.75 x 10.6 x 8.4 in (4.44 x 26.9 x 21.3cm) |
Weight | 5.0 lb (2.27 Kg) |
Operating* temperature up to 5000 ft (1524 m) | -5C to +45C (+23F to +113F) |
Operating* temperature up to 10,000 ft (3048 m) | -5C to +45C (+23F to +113F) |
Storage temperature up to 15,000 ft (4572 m) | -25C to +70C (-13F to +158F) |
Operating altitude | Up to 3048 m (Up to 10,000 ft) |
Storage altitude | Up to 4000 m (Up to 15,000 ft) |
Operating relative humidity | 5% to 95% noncondensing |
Storage relative humidity | 5% to 95% noncondensing |
MTBF | 569,530 |
Management | BRIDGE-MIB CISCO-CABLE-DIAG-MIB CISCO-CDP-MIB CISCO-CLUSTER-MIB CISCO-CONFIG-COPY-MIB CISCO-CONFIG-MAN-MIB CISCO-DHCP-SNOOPING-MIB CISCO-ENTITY-VENDORTYPE-OID-MIB CISCO-ENVMON-MIB CISCO-ERR-DISABLE-MIB CISCO-FLASH-MIB CISCO-FTP-CLIENT-MIB CISCO-IGMP-FILTER-MIB CISCO-IMAGE-MIB CISCO-IP-STAT-MIB CISCO-LAG-MIB CISCO-MAC-NOTIFICATION-MIB CISCO-MEMORY-POOL-MIB CISCO-PAGP-MIB CISCO-PING-MIB CISCO-POE-EXTENSIONS-MIB CISCO-PORT-QOS-MIB CISCO-PORT-SECURITY-MIB CISCO-PORT-STORM-CONTROL-MIB CISCO-PRODUCTS-MIB CISCO-PROCESS-MIB CISCO-RTTMON-MIB CISCO-SMI-MIB CISCO-STP-EXTENSIONS-MIB CISCO-SYSLOG-MIB CISCO-TC-MIB CISCO-TCP-MIB CISCO-UDLDP-MIB CISCO-VLAN-IFTABLE RELATIONSHIP-MIB CISCO-VLAN-MEMBERSHIP-MIB CISCO-VTP-MIB ENTITY-MIB ETHERLIKE-MIB IEEE8021-PAE-MIB IEEE8023-LAG-MIB IF-MIB INET-ADDRESS-MIB OLD-CISCO-CHASSIS-MIB OLD-CISCO-FLASH-MIB OLD-CISCO-INTERFACES-MIB OLD-CISCO-IP-MIB OLD-CISCO-SYS-MIB OLD-CISCO-TCP-MIB OLD-CISCO-TS-MIB RFC1213-MIB RMON-MIB RMON2-MIB SNMP-FRAMEWORK-MIB SNMP-MPD-MIB SNMP-NOTIFICATION-MIB SNMP-TARGET-MIB SNMPv2-MIB TCP-MIB UDP-MIB ePM MIB |
Standards | Ā IEEE 802.1D Spanning Tree Protocol Ā IEEE 802.1p CoS Prioritization Ā IEEE 802.1Q VLAN Ā IEEE 802.1s Ā IEEE 802.1w Ā IEEE 802.1x Ā IEEE 802.1AB (LLDP) Ā IEEE 802.3ad Ā IEEE 802.3af Ā IEEE 802.3ah (100BASE-X single/multimode fiber only) Ā IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports Ā IEEE 802.3 10BASE-T specification Ā IEEE 802.3u 100BASE-TX specification Ā IEEE 802.3ab 1000BASE-T specification Ā IEEE 802.3z 1000BASE-X specification Ā 100BASE-BX (SFP) Ā 100BASE-FX (SFP) Ā 100BASE-LX (SFP) Ā 1000BASE-BX (SFP) Ā 1000BASE-SX (SFP) Ā 1000BASE-LX/LH (SFP) Ā 1000BASE-ZX (SFP) Ā 1000BASE-CWDM SFP 1470 nm Ā 1000BASE-CWDM SFP 1490 nm Ā 1000BASE-CWDM SFP 1510 nm Ā 1000BASE-CWDM SFP 1530 nm Ā 1000BASE-CWDM SFP 1550 nm Ā 1000BASE-CWDM SFP 1570 nm Ā 1000BASE-CWDM SFP 1590 nm Ā 1000BASE-CWDM SFP 1610 nm Ā RMON I and II standards Ā SNMPv1, SNMPv2c, and SNMPv3Ā Ā Ā Ā Ā Ā Ā Ā |
RFC compliance | Ā RFC 768: UDP Ā RFC 783: TFTP Ā RFC 791: IP Ā RFC 792: ICMP Ā RFC 793: TCP Ā RFC 826: ARP Ā RFC 854: Telnet Ā RFC 951: Bootstrap Protocol Ā RFC 1542: BOOTP Extensions Ā RFC 959: FTP Ā RFC 1058: RIP Routing Ā RFC 1112: IP Multicast and IGMP Ā RFC 1157: SNMPv1 Ā RFC 1166: IP Addresses Ā RFC 1253: OSPF Routing Ā RFC 1256: ICMP Router Discovery Ā RFC 1305: NTP Ā RFC 1492: TACACS+ Ā RFC 1493: Bridge MIB Ā RFC 1542: Bootstrap Protocol Ā RFC 1583: OSPFv2 Ā RFC 1643: Ethernet Interface MIB Ā RFC 1723: RIPv2 Routing Ā RFC 1757: RMON Ā RFC 1812: IP Routing Ā RFC 1901: SNMPv2C Ā RFC 1902-1907: SNMPv2 Ā RFC 1981: MTU Path Discovery IPv6 Ā FRC 2068: HTTP Ā RFC 2080: RIP for IPv6 Ā RFC 2131: DHCP Ā RFC 2138: RADIUS Ā RFC 2233: IF MIB Ā RFC 2236: IP Multicast Ā RFC 2328: OSPFv2 Ā RFC 2273-2275: SNMPv3 Ā RFC 2373: IPv6 Aggregatable Addrs Ā RFC 2453: RIPv2 Routing Ā RFC 2460: IPv6 protocol Ā RFC 2461: IPv6 Neighbor Discovery Ā RFC 2462: IPv6 Autoconfiguration Ā RFC 2463: ICMP IPv6 Ā RFC 2474: DiffServ Precedence Ā RFC 2597: Assured Forwarding Ā RFC 2598: Expedited Forwarding Ā RFC 2571: SNMP Management Ā RFC 2740: OSPF for IPv6 Ā RFC 3046: DHCP Relay Agent Information Option Ā RFC 3101, 1587: NSSAs Ā RFC 3376: IGMPv3 Ā RFC 3580: 802.1x RADIUS |
Safety standards | Ā UL 60950-1 Ā CAN/CSA 22.2 No. 60950-1 Ā EN 60950-1 Ā IEC 60950-1 Ā CE Marking Ā GB 4943 Ā IEC 60825 |
Electromagnetic emissions certifications | Ā FCC Part 15, CFR 47, Class A, North America Ā EN/IEC 61000-4-5 Ā EN 55022 (CISPR22) and EN 55024 (CISPR24), CE marking, European Union Ā AS/NZS, Class A, CISPR22:2004 or EN55022, Australia and New Zealand Ā VCCI Class A, V-3/2007.04, Japan Ā KCC (Formerly MIC, GB17625.1-1998) Class A, KN24/KN22, Korea Ā ANATEL, Brazil Ā CCC, China Ā GOST, Russia |
Environmental | Reduction of Hazardous Substances (ROHS) 6 |
Telco | Common Language Equipment Identifier (CLEI) code |
