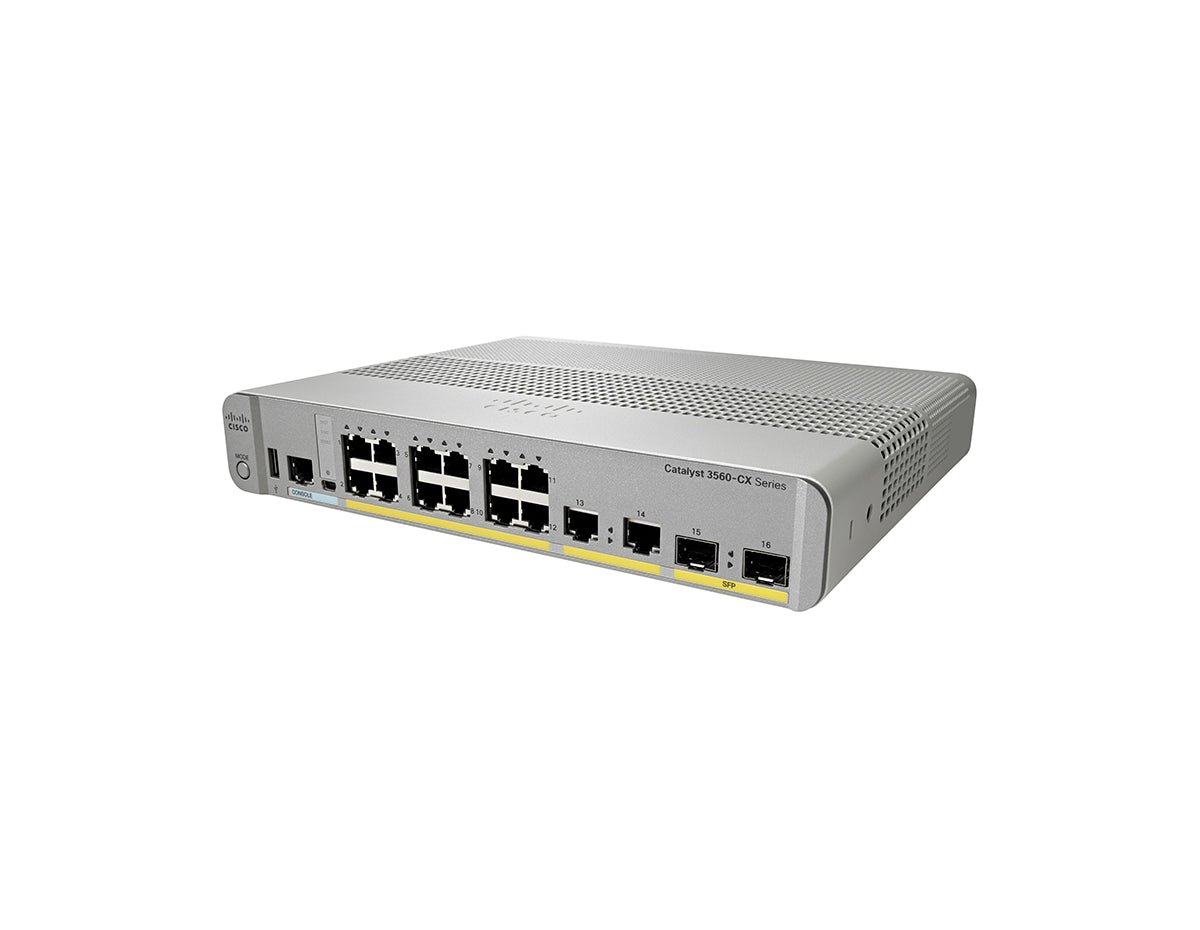

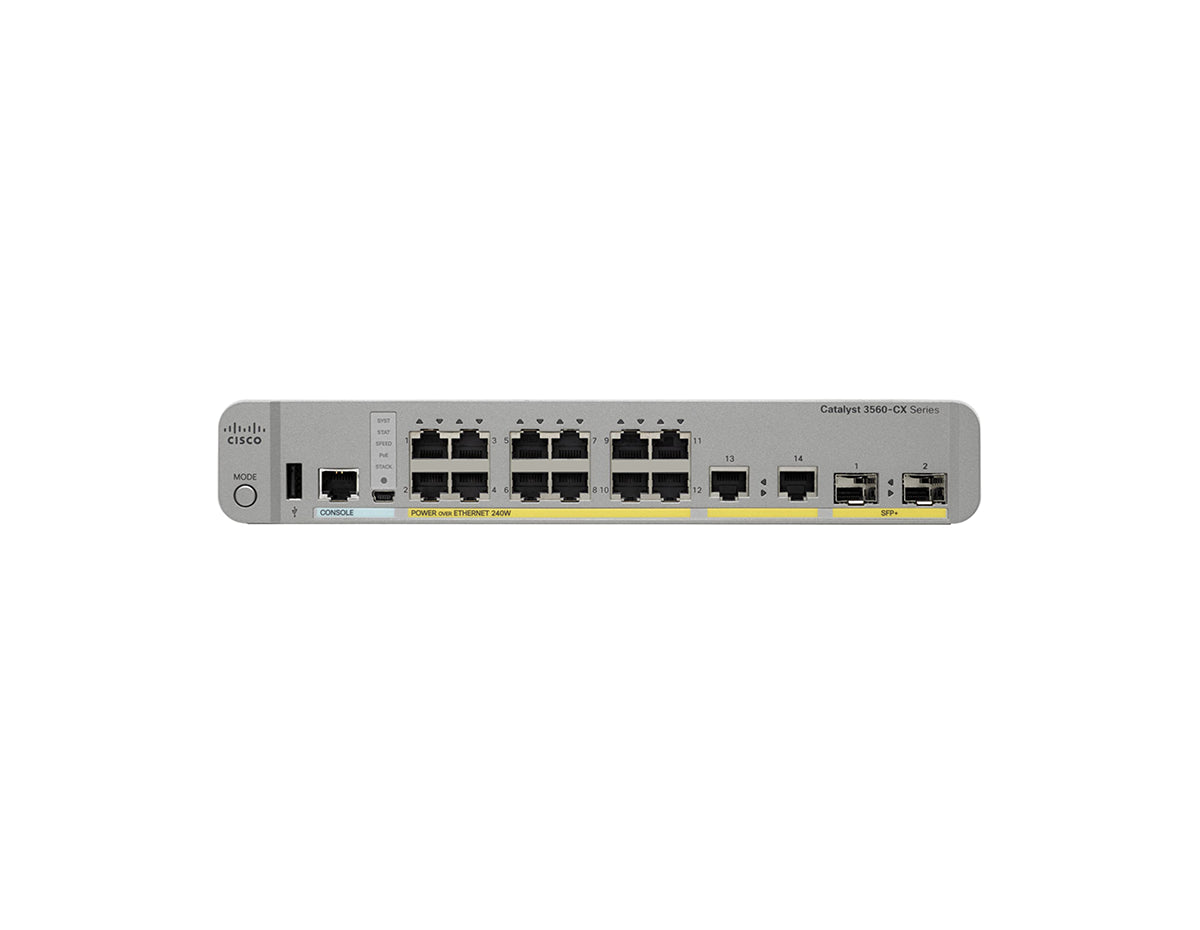

CISCO WS-C3560CX-12TC-S ETHERNET SWITCH

Model: WS-C3560CX-12TC-S
Detail:
12x 10/100/1000 Gigabit Ethernet Ports, Layer 3, Standalone, 2x 1G SFP / 2x 1G Copper Uplinks, IP Base, Managed,
List Price: US$2,632.00
Price:
$1,350.00
You Save: $1,282.00 (49% OFF)
Condition: Brand New Sealed
Availability: IN STOCK
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside New Jersey
Quantity:
+
-

-->Ā

Use Cisco WS-C3560CX-12TC-S Switch for Advanced Security Solutions

Cisco WS-C3560CX-12TC-S Switch is a small form-factor Gigabit Ethernet and Fast Ethernet switch. It is designed for deployments outside the wiring closet. Cisco WS-C3560CX-12TC-S Switch allows enterprise and commercial customers to deliver advanced security services, unified communications, wireless, IP video cameras, and other applications for the office workspace, branch office, classroom, cruise ship, and other wiring-constrained environments.Ā


Key Benefits of Cisco WS-C3560CX-12TC-S Switch

Cisco WS-C3560CX-12TC-S Switch is designed for effective work environment to encourage collaboration. It can create many possibilities for designing workspaces, with their quiet, fanless solution. Cisco WS-C3560CX-12TC-S Switch can reside nearly anywhere outside a wiring closet. Cisco WS-C3560CX-12TC-S Switch is built to enable users to bring sensors, LED lights, building controllers, and other IoT devices onto the network using Power over Ethernet (PoE). This switch can provide up to 240 watts of power for PoE devices - twice the capacity of current switches.

Ā

Feature Set IP Base
Uplink Interfaces 2 x 1G copper plus 2 x 1G SFP
Ports 12 x 10/100/1000 Gigabit Ethernet
Forwarding Bandwidth 16 Gbps
Switching Bandwidth (full-duplex capacity) 32 Gbps
RAM 512 MB
Flash Memory 128 MB
Dimensions 4.44 x 26.9 x 21.3 cm
Package Weight 4.65 Kg

Specifications

Ethernet Ports 12 x 10/100/1000 Gigabit Ethernet
PoE
Output Ports
NA
Available
PoE Power
NA
Default Software IP Base (IP Services with RTU License)
Powering Option Internal power supply
Available PoE Power (W) 0W
Can Switch Be Powered with Uplinks? No
Forwarding Bandwidth 16 Gbps
Switching Bandwidth (full-duplex capacity) 32 Gbps
Flash memory 128 MB
Memory DRAM 512 MB
Max VLANs 1023
VLAN IDs 4000
Maximum transmission unit (MTU) Up to 9000 bytes
Jumbo frames 9198 bytes
Forwarding rate 64 Byte PacketĀ  23.8 mpps
Dimensions
(H x W x D)
1.75 x 10.6 x 8.4 in (4.44 x 26.9 x 21.3 cm)
Weight 3.9 lb (1.77 Kg)
Operating* temperature up to 5000 ft (1524 m) -5C to +45C (+23F to +113F)
Operating* temperature up to 10,000 ft (3048 m) -5C to +45C (+23F to +113F)
Storage temperature up to 15,000 ft (4572 m) -25C to +70C (-13F to +158F)
Operating altitude Up to 3048 m (Up to 10,000 ft)
Storage altitude Up to 4000 m (Up to 15,000 ft)
Operating relative humidity 5% to 95% noncondensing
Storage relative humidity 5% to 95% noncondensing
MTBF 755,270
Management Ā  BRIDGE-MIB

Ā  CISCO-CABLE-DIAG-MIB

Ā  CISCO-CDP-MIB

Ā  CISCO-CLUSTER-MIB

Ā  CISCO-CONFIG-COPY-MIB

Ā  CISCO-CONFIG-MAN-MIB

Ā  CISCO-DHCP-SNOOPING-MIB

Ā  CISCO-ENTITY-VENDORTYPE-OID-MIB

Ā  CISCO-ENVMON-MIB

Ā  CISCO-ERR-DISABLE-MIB

Ā  CISCO-FLASH-MIB

Ā  CISCO-FTP-CLIENT-MIB

Ā  CISCO-IGMP-FILTER-MIB

Ā  CISCO-IMAGE-MIB

Ā  CISCO-IP-STAT-MIB

Ā  CISCO-LAG-MIB

Ā  CISCO-MAC-NOTIFICATION-MIB

Ā  CISCO-MEMORY-POOL-MIB

Ā  CISCO-PAGP-MIB

Ā  CISCO-PING-MIB

Ā  CISCO-POE-EXTENSIONS-MIB

Ā  CISCO-PORT-QOS-MIB

Ā  CISCO-PORT-SECURITY-MIB

Ā  CISCO-PORT-STORM-CONTROL-MIB

Ā  CISCO-PRODUCTS-MIB

Ā  CISCO-PROCESS-MIB

Ā  CISCO-RTTMON-MIB

Ā  CISCO-SMI-MIB

Ā  CISCO-STP-EXTENSIONS-MIB

Ā  CISCO-SYSLOG-MIB

Ā  CISCO-TC-MIB

Ā  CISCO-TCP-MIB

Ā  CISCO-UDLDP-MIB

Ā  CISCO-VLAN-IFTABLE

Ā  RELATIONSHIP-MIB

Ā  CISCO-VLAN-MEMBERSHIP-MIB

Ā  CISCO-VTP-MIB

Ā  ENTITY-MIB

Ā  ETHERLIKE-MIB

Ā  IEEE8021-PAE-MIB

Ā  IEEE8023-LAG-MIB

Ā  IF-MIB

Ā  INET-ADDRESS-MIB

Ā  OLD-CISCO-CHASSIS-MIB

Ā  OLD-CISCO-FLASH-MIB

Ā  OLD-CISCO-INTERFACES-MIB

Ā  OLD-CISCO-IP-MIB

Ā  OLD-CISCO-SYS-MIB

Ā  OLD-CISCO-TCP-MIB

Ā  OLD-CISCO-TS-MIB

Ā  RFC1213-MIB

Ā  RMON-MIB

Ā  RMON2-MIB

Ā  SNMP-FRAMEWORK-MIB

Ā  SNMP-MPD-MIB

Ā  SNMP-NOTIFICATION-MIB

Ā  SNMP-TARGET-MIB

Ā  SNMPv2-MIB

Ā  TCP-MIB

Ā  UDP-MIB

Ā  ePM MIB
Standards Ā  IEEE 802.1D Spanning Tree Protocol

Ā  IEEE 802.1p CoS Prioritization

Ā  IEEE 802.1Q VLAN

Ā  IEEE 802.1s

Ā  IEEE 802.1w

Ā  IEEE 802.1x

Ā  IEEE 802.1AB (LLDP)

Ā  IEEE 802.3ad

Ā  IEEE 802.3af

Ā  IEEE 802.3ah
(100BASE-X single/multimode fiber only)

Ā  IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports

Ā  IEEE 802.3 10BASE-T specification

Ā  IEEE 802.3u 100BASE-TX specification

Ā  IEEE 802.3ab 1000BASE-T specification

Ā  IEEE 802.3z 1000BASE-X specification

Ā  100BASE-BX (SFP)

Ā  100BASE-FX (SFP)

Ā  100BASE-LX (SFP)

Ā  1000BASE-BX (SFP)

Ā  1000BASE-SX (SFP)

Ā  1000BASE-LX/LH (SFP)

Ā  1000BASE-ZX (SFP)

Ā  1000BASE-CWDM SFP 1470 nm

Ā  1000BASE-CWDM SFP 1490 nm

Ā  1000BASE-CWDM SFP 1510 nm

Ā  1000BASE-CWDM SFP 1530 nm

Ā  1000BASE-CWDM SFP 1550 nm

Ā  1000BASE-CWDM SFP 1570 nm

Ā  1000BASE-CWDM SFP 1590 nm

Ā  1000BASE-CWDM SFP 1610 nm

Ā  RMON I and II standards

Ā  SNMPv1, SNMPv2c, and SNMPv3
RFC compliance Ā  RFC 768: UDP

Ā  RFC 783: TFTP

Ā  RFC 791: IP

Ā  RFC 792: ICMP

Ā  RFC 793: TCP

Ā  RFC 826: ARP

Ā  RFC 854: Telnet

Ā  RFC 951: Bootstrap Protocol

Ā  RFC 1542: BOOTP Extensions

Ā  RFC 959: FTP

Ā  RFC 1058: RIP Routing

Ā  RFC 1112: IP Multicast and IGMP

Ā  RFC 1157: SNMPv1

Ā  RFC 1166: IP Addresses

Ā  RFC 1253: OSPF Routing

Ā  RFC 1256: ICMP Router Discovery

Ā  RFC 1305: NTP

Ā  RFC 1492: TACACS+

Ā  RFC 1493: Bridge MIB

Ā  RFC 1542: Bootstrap Protocol

Ā  RFC 1583: OSPFv2

Ā  RFC 1643: Ethernet Interface MIB

Ā  RFC 1723: RIPv2 Routing

Ā  RFC 1757: RMON

Ā  RFC 1812: IP Routing

Ā  RFC 1901: SNMPv2C

Ā  RFC 1902-1907: SNMPv2

Ā  RFC 1981: MTU Path Discovery IPv6

Ā  FRC 2068: HTTP

Ā  RFC 2080: RIP for IPv6

Ā  RFC 2131: DHCP

Ā  RFC 2138: RADIUS

Ā  RFC 2233: IF MIB

Ā  RFC 2236: IP Multicast

Ā  RFC 2328: OSPFv2

Ā  RFC 2273-2275: SNMPv3

Ā  RFC 2373: IPv6 Aggregatable Addrs

Ā  RFC 2453: RIPv2 Routing

Ā  RFC 2460: IPv6 protocol

Ā  RFC 2461: IPv6 Neighbor Discovery

Ā  RFC 2462: IPv6 Autoconfiguration

Ā  RFC 2463: ICMP IPv6

Ā  RFC 2474: DiffServ Precedence

Ā  RFC 2597: Assured Forwarding

Ā  RFC 2598: Expedited Forwarding

Ā  RFC 2571: SNMP Management

Ā  RFC 2740: OSPF for IPv6

Ā  RFC 3046: DHCP Relay Agent Information Option

Ā  RFC 3101, 1587: NSSAs

Ā  RFC 3376: IGMPv3

Ā  RFC 3580: 802.1x RADIUS
Safety standards Ā  UL 60950-1

Ā  CAN/CSA 22.2 No. 60950-1

Ā  EN 60950-1

Ā  IEC 60950-1

Ā  CE Marking

Ā  GB 4943

Ā  IEC 60825
Electromagnetic emissions certifications Ā  FCC Part 15, CFR 47, Class A, North America

Ā  EN/IEC 61000-4-5

Ā  EN 55022 (CISPR22) and EN 55024 (CISPR24), CE marking, European Union

Ā  AS/NZS, Class A, CISPR22:2004 or EN55022, Australia and New Zealand

Ā  VCCI Class A, V-3/2007.04, Japan

Ā  KCC (Formerly MIC, GB17625.1-1998) Class A, KN24/KN22, Korea

Ā  ANATEL, Brazil

Ā  CCC, China

Ā  GOST, Russia
Environmental Reduction of Hazardous Substances (ROHS) 6
Telco Common Language Equipment Identifier (CLEI) code
