Cisco WS-C2960CX-8TC-L Switch
- Switch
- Layer 3
- Standalone
- 2x 1G SFP / 2x 1G Copper Uplinks
- LAN Base
- Managed
$1,560.57
$995.00
Instant Savings
$565.57

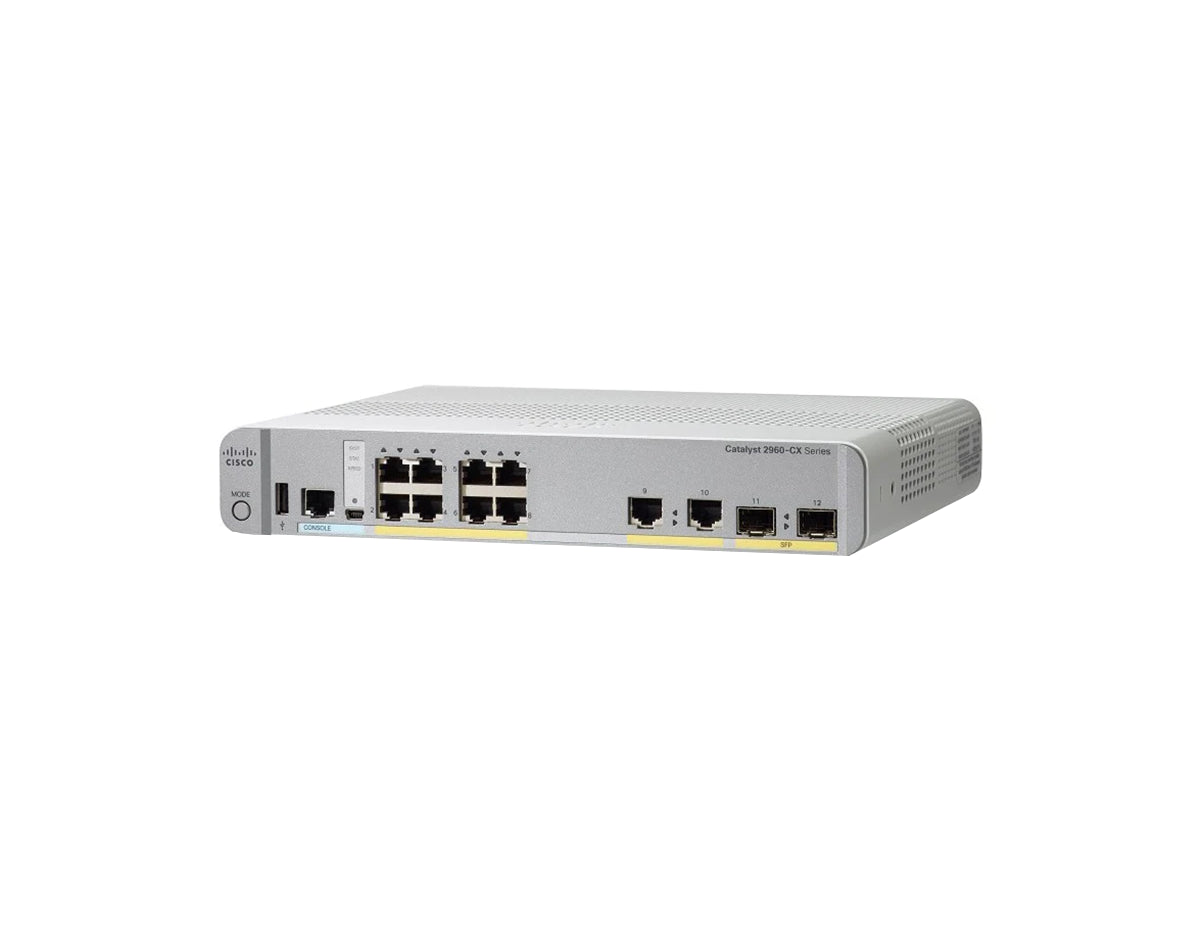

Cisco WS-C2960CX-8TC-L Switch
The Cisco Catalyst 2960-CX Series is created to enhance network deployments in space-constrained environments with its quiet and trim design. The switches come with the LAN Base Cisco IOS Software, providing advanced Layer 2 switching and intelligent network services for voice, video, and wireless LAN at the network edge. The WS-C2960CX-8TC-L Switch is equipped with the LAN Base version of Cisco IOS Software, delivering advanced Layer 2 switching and intelligent services for network edge applications.
Key Features:
- Flexible mounting options
- 8 GE, 2 x 1G SFP and 2 x 1G copper uplinks
- Limited lifetime warranty
For detailed specifications, refer to the Cisco WS-C2960CX-8PC-L datasheet in the tabs.
| Properties | WS-C2960CX-8TC-L |
| Description | 2960-CX Switch 8 GE, uplinks: 2 x 1G SFP and 2 x 1G copper LAN Base |
| Product Family | Catalyst 2960-CX |
| Product Type | Ethernet Switch |
| Number of Ports | 8 |
| Uplink Interfaces | 2 x 1G copper plus 2 x 1G SFP |
| Available PoE power | N/A |
| Default Software | LAN Base |
| Dimensions in. | 1.75 x 10.6 x 8.4 |
| Specifications | WS-C2960CX-8TC-L |
| Console Ports | 2 x 1G copper plus 2 x 1G SFP |
| DRAM | 512 MB |
| Flash Memory | 128 MB |
| Forwarding Bandwidth | 12 Gbps |
| Switching Bandwidth | 24 Gbps |
| Maximum Active VLANs | 255 |
| Operating Temperature Up to 5,000 ft (1500 m) |
-5 to 45 degree C |
| Operating Temperature Up to 10,000 ft (3000 m) |
-5 to 45 degree C |
| Safety | UL 60950-1 CAN/CSA 22.2 No. 60950-1 EN 60950-1 IEC 60950-1 CE Marking GB 4943 IEC 60825 |
| EMC: emissions | FCC Part 15, CFR 47, Class A, North America EN/IEC 61000-4-5 EN 55022 (CISPR22) and EN 55024 (CISPR24), CE marking, European Union AS/NZS, Class A, CISPR22:2004 or EN55022, Australia and New Zealand VCCI Class A, V-3/2007.04, Japan KCC (Formerly MIC, GB17625.1-1998) Class A, KN24/KN22, Korea ANATEL, Brazil CCC, China GOST, Russia |
| Environmental | Reduction of Hazardous Substances (ROHS) 6 |
| Telco | Common Language Equipment Identifier (CLEI) code |
| Ethernet interfaces | 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 Unshielded Twisted-Pair (UTP) cabling 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling |
| Telnet - SSH | Yes |
| TACACS, TACACS+, Radius | Yes |
| Part Number | Description |
| PWR-CLP | Power clip for the 3560-CX and 2960-CX compact switches |
| CMPCT-CBLE-GRD | Cable guard for the 3560-CX and 2960-CX compact switches |
| CMPCT-MGNT-TRAY | Magnet and Mounting Tray for 3560-CX and 2960-CX compact switches |
| CMPCT-DIN-MNT | DIN Rail Mount for 3560-CX and 2960-CX compact switches |
| RCKMNT-19-CMPCT | 19-Inch Rack Mounting Brackets for 3560-CX and 2960-CX compact switches |
| RCKMNT-23-CMPCT | 23- and 24-Inch Rack Mounting Brackets for 3560-CX and 2960-CX compact switches |
