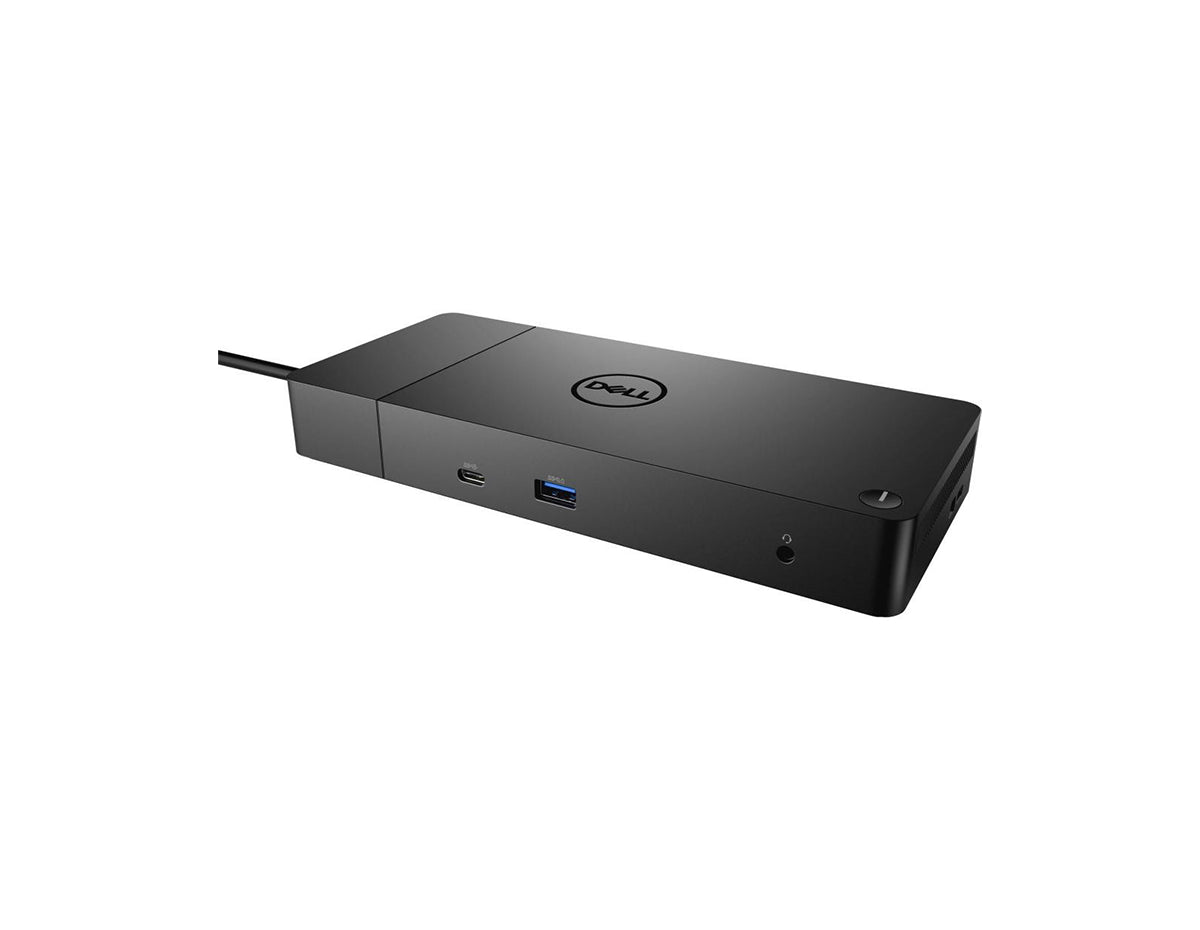

DELL THUNDERBOLT DOCK - WD19TB
| Model: | WD19TB |
| Detail: | Dell WD19TB Docking Station Broaden your ports and connectivity options by incorporating the Dell WD19TB Thunderbolt Dock. By leveraging the Thunderbolt 3 port, users can access a wide array of |
| Price: | $250.00 |
| Condition: | Brand New Sealed |
| Availability: | Out of Stock |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description
Dell WD19TB Docking Station
Broaden your ports and connectivity options by incorporating the Dell WD19TB Thunderbolt Dock. By leveraging the Thunderbolt 3 port, users can access a wide array of ports and connectors. This includes a USB 3.2 Gen 2 Type-C port and a USB Type-C port designed for DisplayPort functionality. Additionally, the dock offers two full-size DisplayPort 1.4 outputs and a single HDMI output for video connectivity. Audio capabilities are facilitated through the 3.5mm headphone/mic combo jack or the 3.5mm Line-out jack.
Quick Specs:
- 1x Thunderbolt 3 Port
- 2x DisplayPort 1.4 Output
- 1x Gigabit Ethernet RJ45 LAN Jack
- Windows & Linux compatible
Please see the related tabs for the WD19TB datasheet and compatible accessories.
Accessories
Specifications
| Technical Specifications | WD19TB |
| Product Type | Docking Station |
| Display Support with Dual USB-C input | For a HBR2* PC 3 x FHD @ 60Hz 3 x QHD @ 60Hz 2 x 4K @ 30Hz For a HBR3 PC 4 x FHD @ 60Hz 4 x QHD @ 60Hz 2 x 4K @ 60Hz |
| Max Resolution | 5120 x 2880 @ 60Hz with DP 1.2 Thunderbolt systems |
| Video interfaces | 2 x Full size DP1.4 1 x HDMI 1 x MFDP USB-C 1 x Thunderbolt 3™ USB-C |
| USB Ports | 3 x USB-A 3.1 Gen 1 2 x USB-C 3.1 Gen 2 |
| Audio Ports | 1 x Combo 1 x Speaker output |
| Networking | Gigabit Ethernet |
| Security Slot Type (cable lock sold separately | 1 x Kensington lock slot 1 x Noble Wedge lock slot |
| LED Indicators | Power Adapter LED Power Button LED RJ45 LEDs |
| Power | Power Adapter 180 Watt AC with up to 130 Watt power delivery Up to 90 Watts power delivery to non-Dell systems |
| Dimensions | 8.07in x 3.54in x 1.14in |
| Dock Weight (without power adapter) | 585g 1.29lbs |
| Operating Systems | Microsoft Windows 10 Ubuntu 18.04 Red Hat Enterprise Linux |
| Systems Management | Wireless vPro supported by Notebook or Workstation |
| Docking Interface | Thunderbolt 3™ (Type-C Connector) |
| MAC Address | Pass-Through MAC Address |
| Management Features | PXE Boot Wake-On-LAN MAC address pass-through Port Disablement Wake-On-Dock button Wake-On-Dock Dell Command Update (DCU) Error messages and dock event notifications |
