Dell Performance Dock WD19DCS

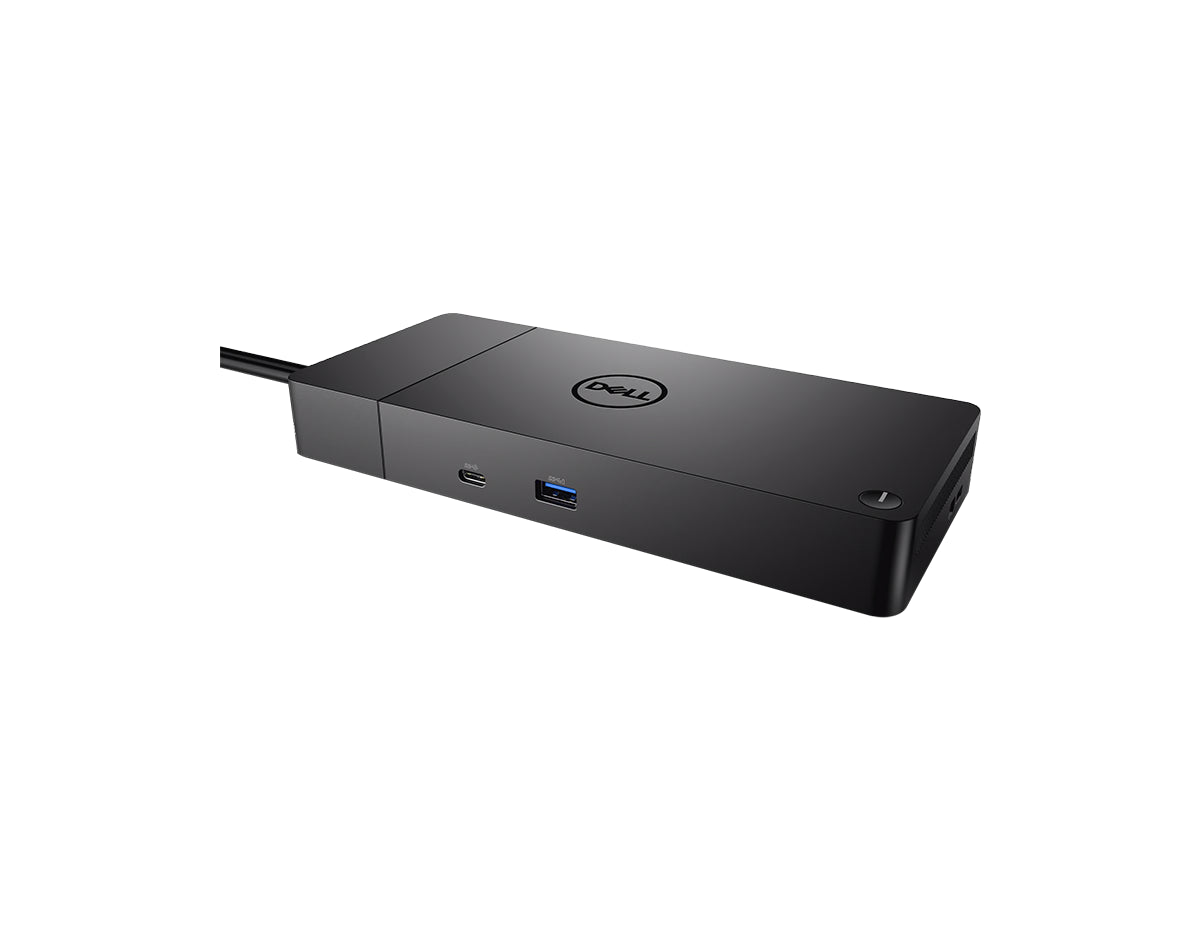

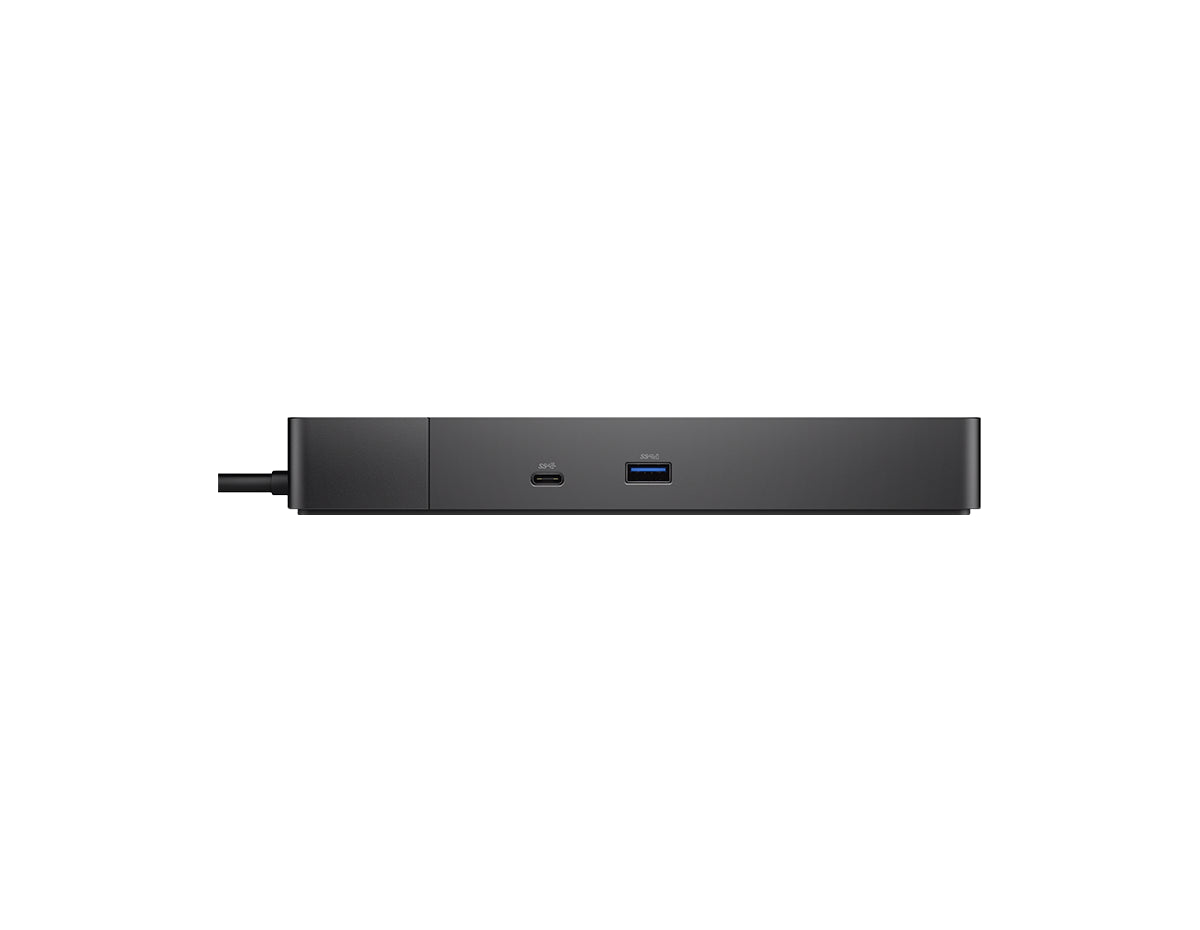

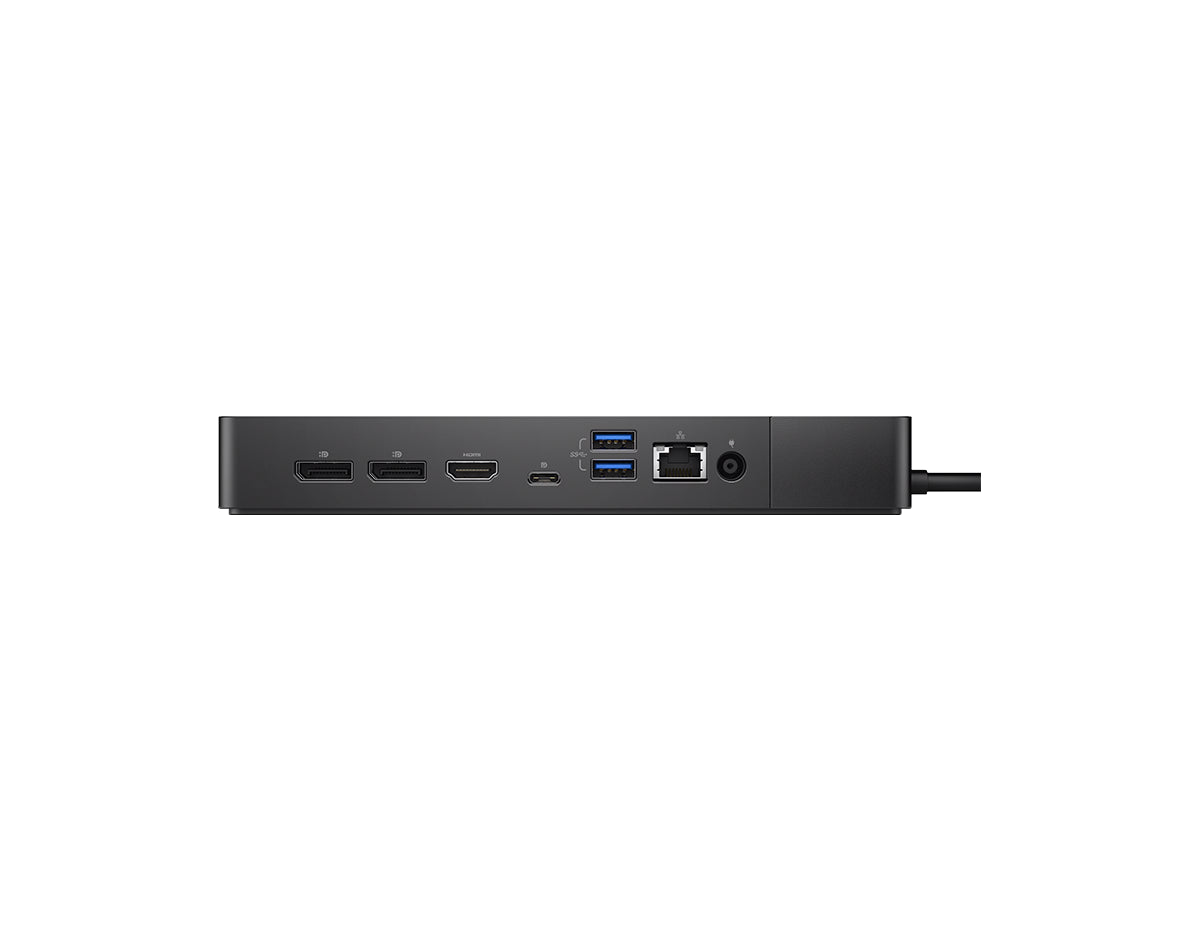

Dell WD19DCS Performance Docking Station

The Dell WD19DCS Performance Docking Station, which is compatible with both Windows and Linux operating systems, comes with two USB Type-C host connections that are connected by an integrated cable. You can use both of these connectors to provide up to 210W power to a Dell laptop or 90W power to a non-Dell device. Additionally, this docking station features three USB 3.1 Gen 1 Type-A or two USB 3.1 Gen 2 Type-C ports that can be used to connect accessories. You can also connect to the internet via an RJ45 connector that supports Gigabit Ethernet.

Quick Specs:

• Supports up to 210W of Power Delivery
• Dual USB Type-C Host Connectors
• 1x Kensington Lock Slot / 1x Noble Wedge Lock Slot
• Intelligent Management

Please see the related tabs for the WD19DCS datasheet and compatible accessories.



Technical Specifications	WD19DCS
Product Type	Docking Station
Display Support with Dual USB-C input	For a HBR2* PC 3 x FHD @ 60Hz 3 x QHD @ 60Hz 1 x 4K @ 60Hz For a HBR3 PC 3 x FHD @ 60Hz 3 x QHD @ 60Hz 2 x 4K @ 60Hz 1 x 8K @ 30 Hz
Max Resolution	5120 x 2880 @ 60Hz
Video interfaces	2 x Full size DP1.4 1 x HDMI 1 x MFDP USB-C
USB Ports	3 x USB-A 3.1 Gen 1 2 x USB-C 3.1 Gen 2
Networking	Gigabit Ethernet
Security Slot Type (cable lock sold separately	1 x Kensington lock slot 1 x Noble Wedge lock slot
LED Indicators	Power Adapter LED Power Button LED RJ45 LEDs
Power	Power Adapter 240 Watt AC with up to 210 Watts power delivery (When only one cable is connected to the system, the second USB-C cable behaves as USB-C with PowerShare providing power for a peripheral or mobile phone.) Up to 90 Watts power delivery to non-Dell systems
Dimensions	8.07in x 3.54in x 1.14in
Dock Weight (without power adapter)	585g 1.29lbs
Operating Systems	Microsoft Windows 10 Ubuntu 18.04 Red Hat Enterprise Linux
Systems Management	Wireless vPro supported by Notebook or Workstation
Docking Interface	Separable Dual DisplayPort over USB-C
MAC Address	Pass Through MAC Address
Management Features	PXE Boot Wake-On-LAN MAC address pass-through Port Disablement Wake-On-Dock button Wake-On-Dock Dell Command Update (DCU) Error messages and dock event notifications
