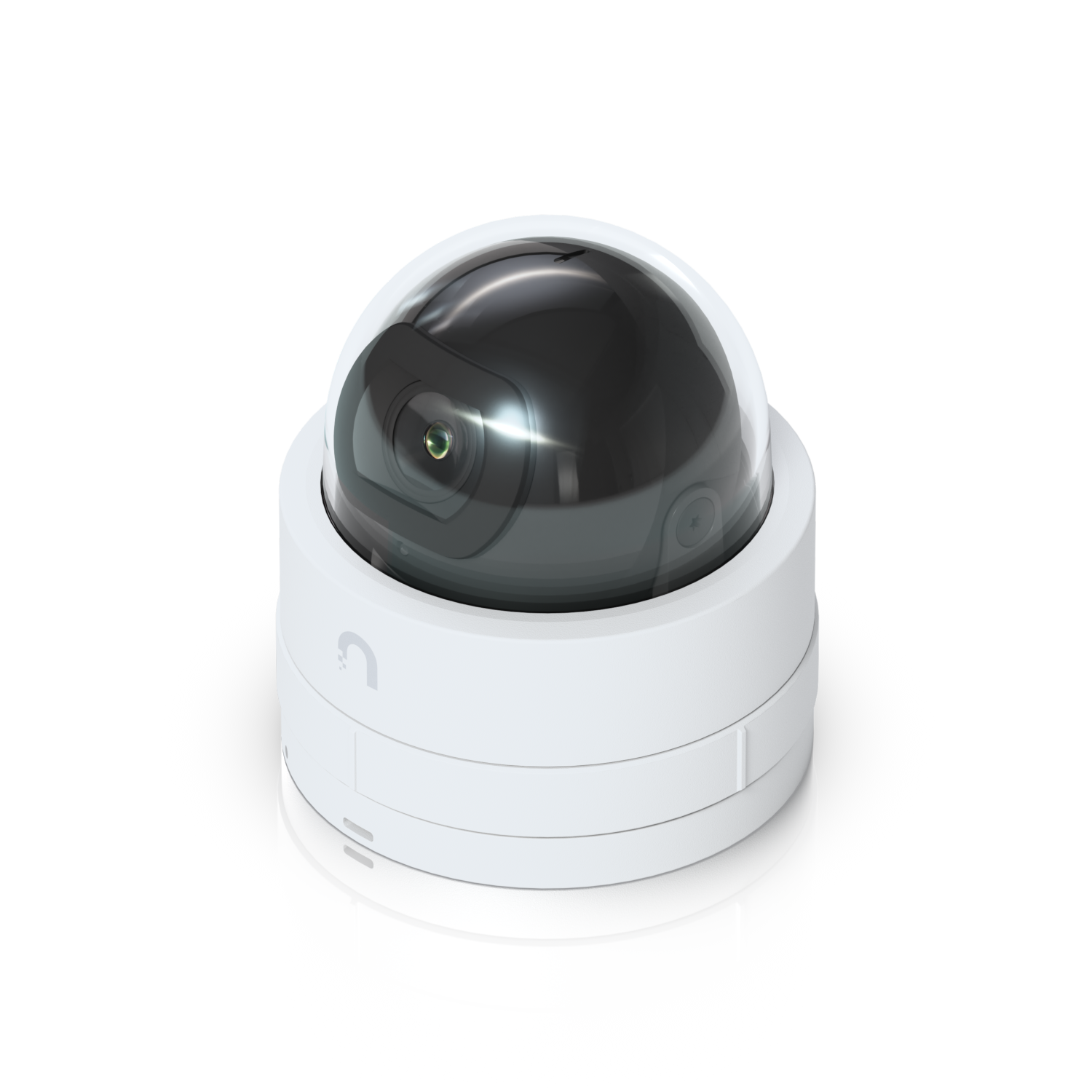

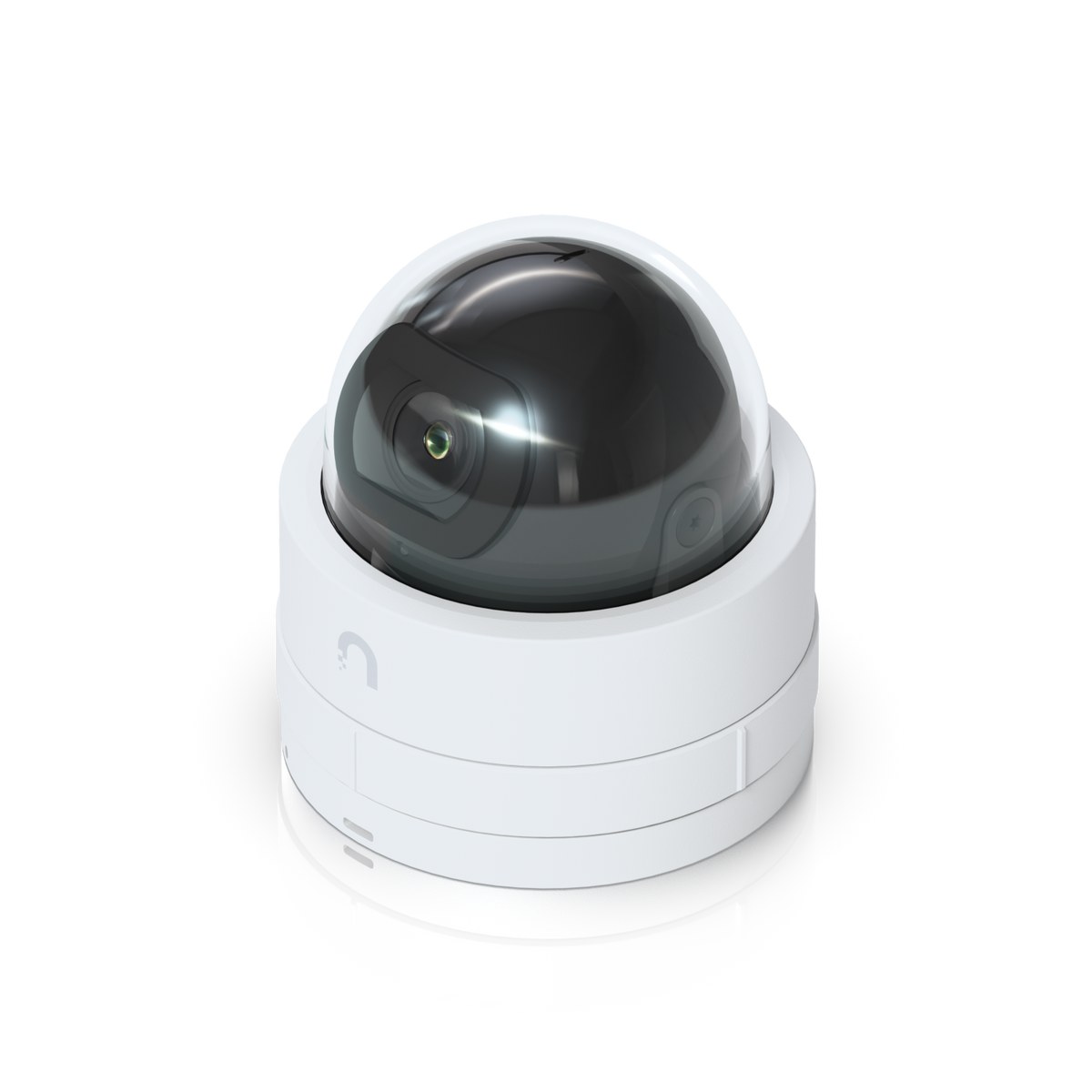

UniFi G5 Dome Ultra (UVC-G5-Dome-Ultra)

The UniFi G5 Dome Ultra is a powerful 4MP dome camera designed for high-definition surveillance in various environments. With 2K resolution and 30 fps video capture, this camera delivers crystal-clear images in both day and night conditions. Its built-in IR LED provides up to 65 feet of night vision, making it ideal for 24/7 monitoring. The camera is also IK06-rated for vandal resistance and can be ceiling or wall-mounted, ensuring flexible installation options. Powered via PoE, the G5 Dome Ultra is an excellent choice for secure and reliable surveillance.

Key Features:

• 2K Resolution (4MP): Offers 2688 x 1512 resolution for clear, high-quality images.
• 30 fps Frame Rate: Provides smooth video capture for reliable surveillance.
• 65 ft IR Night Vision: Built-in IR LED illumination enables monitoring in complete darkness up to 65 feet.
• IK06 Vandal Resistance: Rugged design for resistance to impact and vandalism.
• Flexible Mounting Options: Can be ceiling or wall-mounted to suit various installation needs.
• PoE Powered: Powered by Power over Ethernet (PoE) for simplified installation.

Technical Specifications:

• Sensor: 1/2.4" CMOS
• Lens: Fixed focal length
• View Angle: H: 102.4°, V: 54.9°, D: 120.6°
• IR Distance: 20 m (65 ft)
• Power Consumption: 4.2W
• Power Method: PoE (37-57V DC)
• Operating Temperature: -20 to 40°C (-4 to 104°F)
• Weight: 175 g (0.4 lbs)
• Dimensions: 63.6 x 68.2 mm (2.5 x 2.7 inches)





Mechanical
Dimensions	Ø63.6 x 68.2 mm (Ø2.5 x 2.7")
Weight	175 g (6.2 oz)
Enclosure material	Aluminum alloy, polycarbonate
Mount material	Stainless steel
Resistance	IK06
Power method	PoE
Supported voltage range	37—57V DC
Output power	5V DC, 1A per port
Display	0.96" color display
Button	Factory reset
Mounting	Wall, ceiling mount
Ambient operating temperature	-20 to 40° C (-4 to 104° F)
Ambient operating humidity	10 to 90% noncondensing
Certifications	FCC, IC, CE
Audio
Microphone	Supports optional AI Theta Audio module for two-way audio (sold separately)
Speaker	Supports optional AI Theta Audio module for two-way audio (Sold separately)
Software
UniFi OS application	UniFi Protect
Mobile app	UniFi Protect iOS™ and Android™
