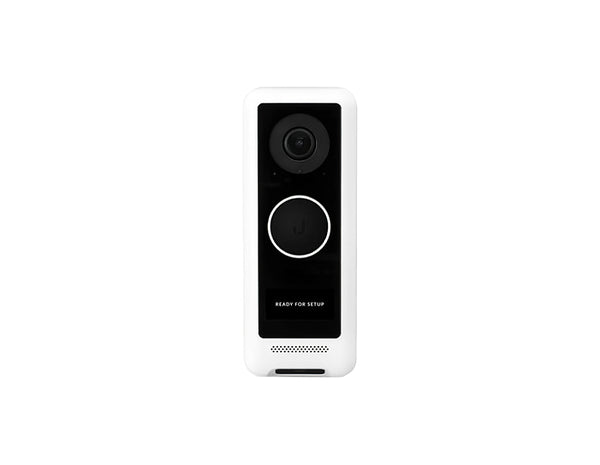

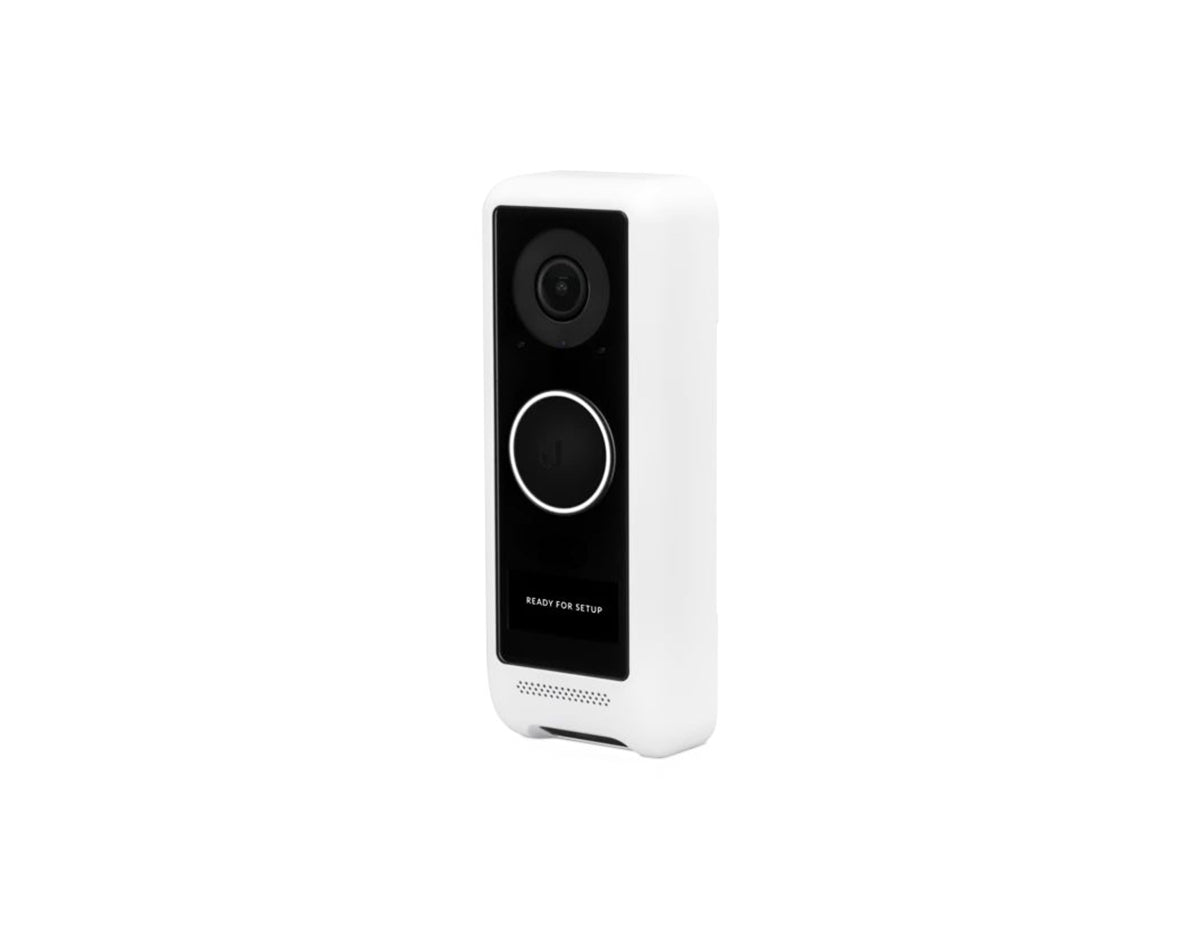

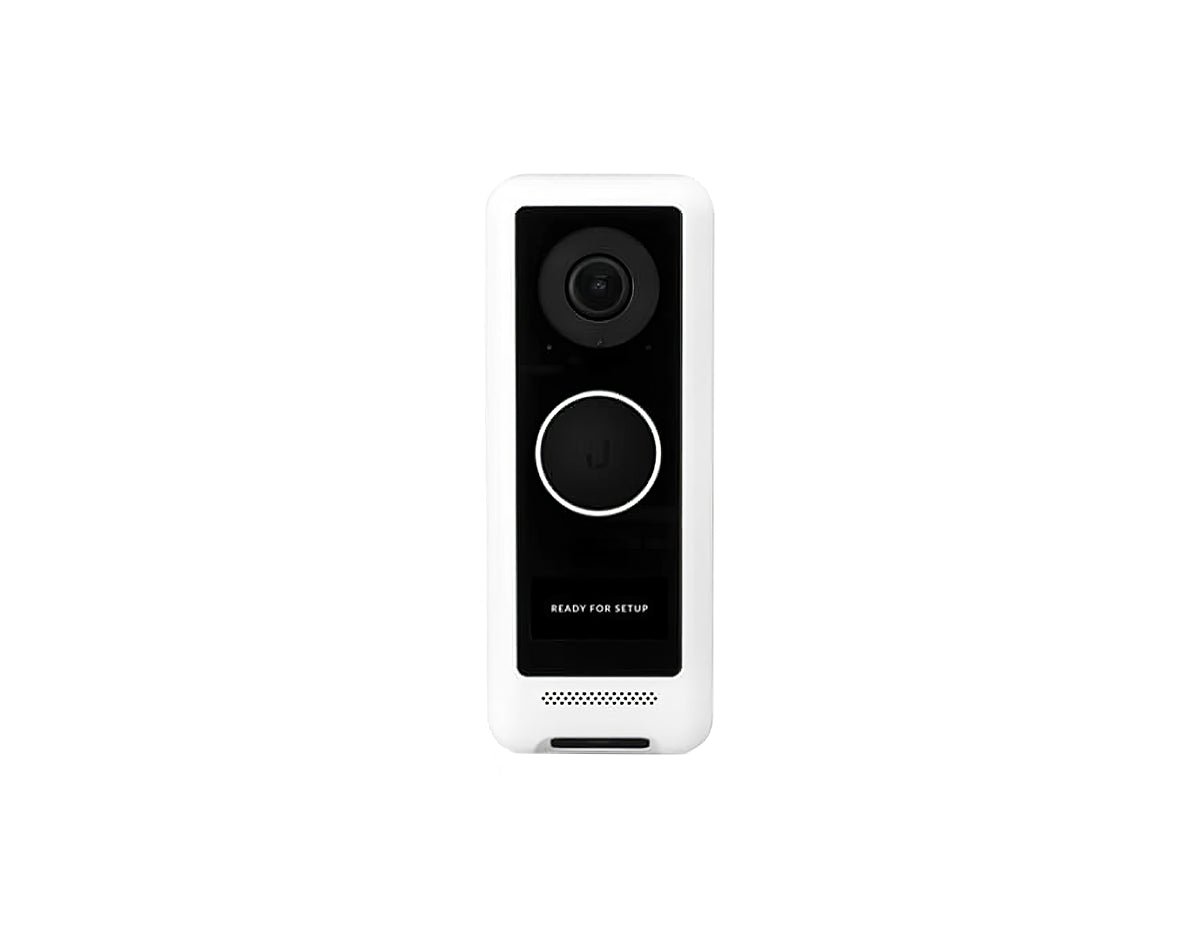

Ubiquiti UniFi Protect G4 Doorbell (UVC-G4-DoorBell)



Ubiquiti UniFi UVC-G4-DOORBELL

The UniFi Protect G4 Doorbell is a Wi-Fi video doorbell featuring real-time two-way audio communication and an integrated display. The camera has an excellent 5MP sensor with improved low-light performance. You can view image streams up to 2MP HD resolution at 30 frames per second. A PIR sensor is built into the UniFi Protect G4 Doorbell to provide immediate motion detection alerts. An intuitive user interface is made possible by integration with UniFi Protect.

Quick Specs:

• 1600x1200 (2MP) HD stream with night vision
• Dual-band 802.11ac Wi-Fi
• Real-time two-way audio with echo cancellation
• Built-in display

Please see the related tabs for the UVC-G4-DOORBELL datasheet and compatible accessories.

Properties	UVC-G4-Doorbell
Description	The Ubiquiti UniFi Protect G4 Doorbell is a Wi-Fi video doorbell with a 5MP sensor and two-way audio. To maximize its features, use it with UniFi Protect and recommend pairing it with UniFi Dream Machine PRO or UniFi Protect NVR.
Product Family	Ubiquiti UniFi Protect
Product Type	Doorbell
Networking interface	802.11 ac WiFi
Weatherproofing	IPX4
Link/activity LED	Yes
Button	Factory reset
Max. power consumption	12VA
Power requirements	16—24V AC, 20VA, 50/60 Hz
Dimensions	118.3 x 46.8 x 25.8 mm (4.66 x 1.84 x 1.02")
Weight	Without mount: 130 g (4.59 oz) With  at wall mount: 178 g (6.28 oz) With 20° wedge mount: 200 g (7.05 oz)
Enclosure material	Polycarbonate
Mount materials	Flat wall mount: aluminum alloy 20° wedge mount: polycarbonate

Processor specs	Quad-core Arm® Cortex®-A53 based chip
Sensor	5 MP CMOS sensor
Lens	Fixed focal length
View angle	H: 138°, V: 114°, D: 155°
Night mode	Built-in IR LED illumination and IR cut filter
Video compression	H.264
Resolution	1600 x 1200 (4:3)
Maximum frame rate	30 FPS
Microphone	Yes (can be disabled in software)
Speaker	Yes
Controller software	UniFi Protect
Mobile apps	UniFi Protect iOS™ and Android™
Operating temperature	-10 to 40º C (14 to 104º F)
Operating humidity	0 to 90% noncondensing
Certifications	FCC, IC, CE
