UBIQUITI USW-PRO-MAX-24-POE UNIFI SWITCH 24XGE POE 2X10G SFP+
| Part No: | USW-PRO-MAX-24-POE |
| Detail: | Ubiquiti USW-PRO-MAX-24-POE is a 24-port Layer 3 UniFi switch featuring PoE++ support, high-speed 2.5GbE ports, and 10G SFP+ uplinks, optimized for enterprise networking, |
| Price: |
$815.00
|
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ, TX, FL and PA |
| Quantity: |
|
Ubiquiti USW-PRO-MAX-24-POE UniFi Switch 24xGE POE 2x10G SFP+

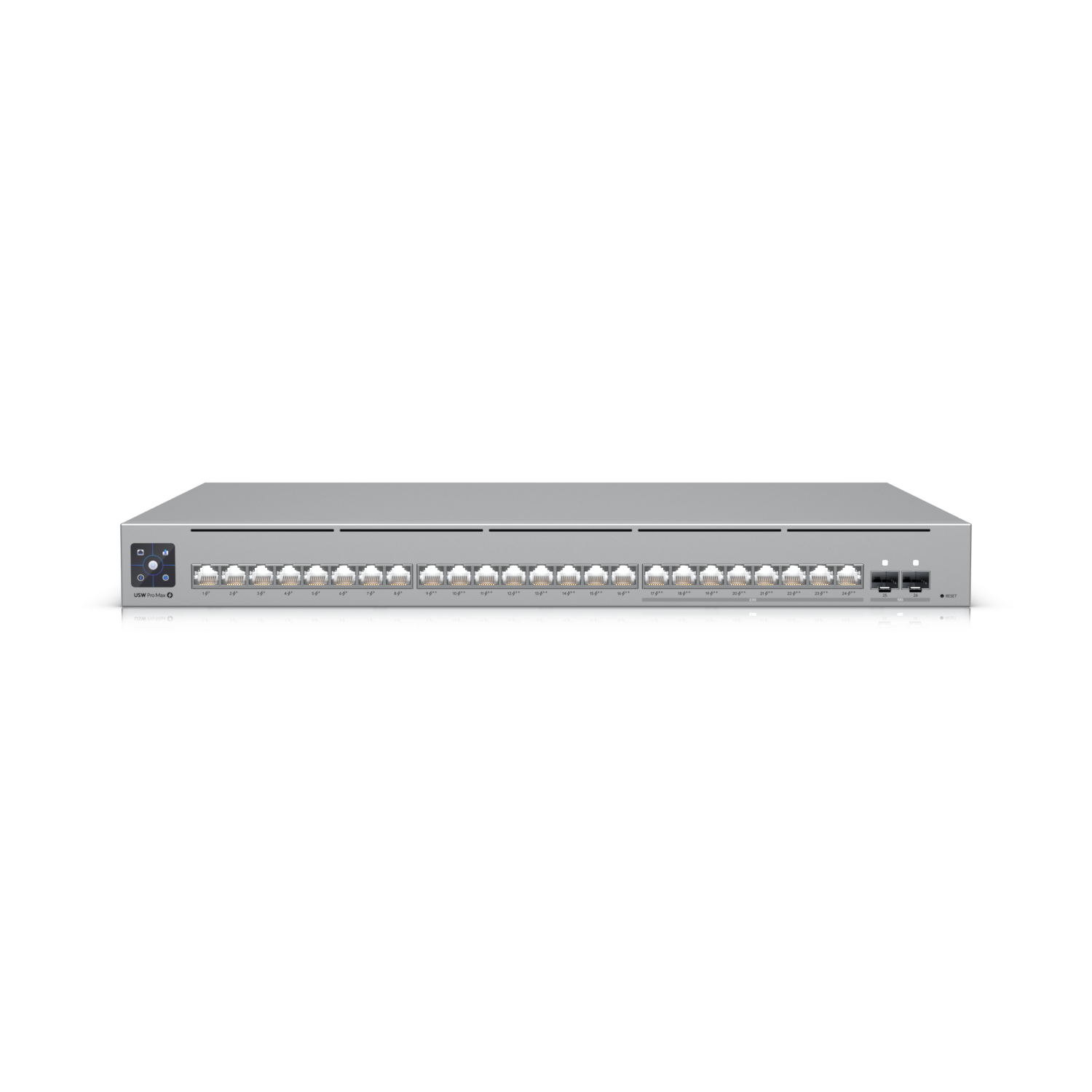

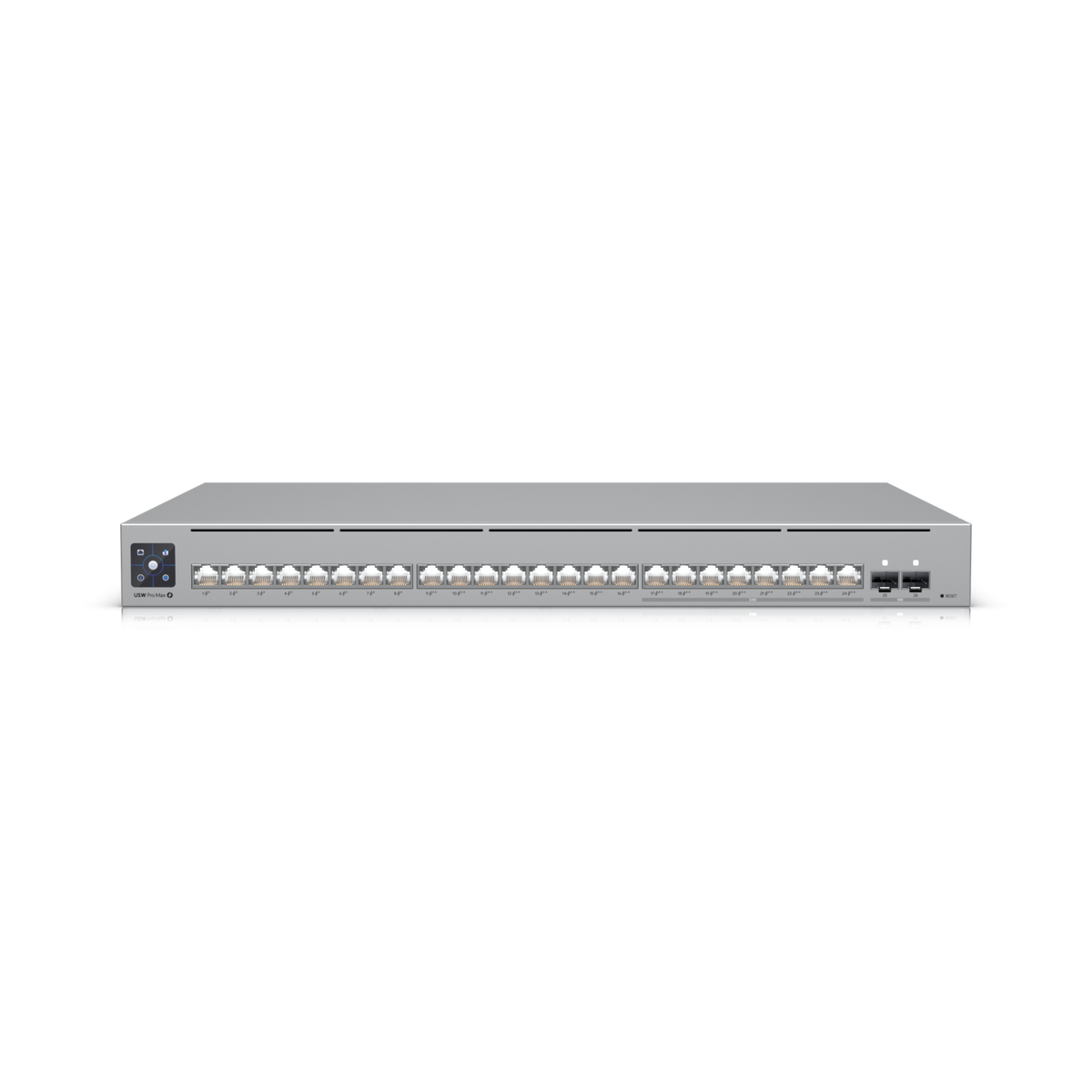

The Ubiquiti USW-PRO-MAX-24-POE is a high-performance Layer 3 UniFi switch designed for businesses and enterprise environments requiring advanced networking features and PoE++ support. Equipped with 24 RJ45 ports, including 16 PoE++ and 8 PoE+ ports, this switch delivers a total PoE budget of 400W. Additionally, it features 8 x 2.5GbE RJ45 ports and 2 x 10G SFP+ uplinks for ultra-fast connectivity. With a rack-mountable 1U form factor, Etherlighting™ technology, and advanced security protocols, the USW-PRO-MAX-24-POE ensures seamless network performance and management.
Key Features:
- Enterprise-Grade Networking: 24 RJ45 ports, including 16 PoE++ and 8 PoE+ ports.
- High-Speed Uplinks: 8 x 2.5GbE RJ45 ports and 2 x 10G SFP+ uplinks for high-bandwidth applications.
- Powerful PoE Support: PoE+ (32W per port) and PoE++ (64W per port) with a total power budget of 400W.
- Advanced Layer 3 Features: Supports DHCP server, DHCP relay, inter-VLAN routing, and static routing.
- Etherlighting™ Technology: Provides visual port status indication for easy diagnostics.
- Comprehensive Security: 802.1X authentication, DHCP snooping, MAC-based ACLs, and port isolation.
- Optimized for Audio/Video Streaming: Features QoS (DSCP), IGMP snooping, Pro AV profiles, and multicast control.
- Compact & Efficient: 1U rack-mountable design with an LCM touchscreen display.
Technical Specifications:
- Switching Capacity: 112 Gbps
- Total Non-Blocking Throughput: 56 Gbps
- Forwarding Rate: 83 Mpps
- Supported VLANs: 1,000
- MAC Address Table: 16,000 entries
- Layer 3 Features: DHCP Server, DHCP Relay, Inter-VLAN Routing, Static Routing
- Layer 2 Features: LACP, STP, RSTP, IGMP Snooping, QoS, Port Mirroring, Jumbo Frames
- PoE Ports: 16 PoE++ ports, 8 PoE+ ports
- PoE Power Budget: 400W
- Power Consumption: 50W (excluding PoE), 450W (including PoE)
- Power Supply: Internal AC/DC, 550W
- Form Factor: Rack mount (1U)
- LCM Display: 1.3" touchscreen
- Operating Temperature: -5°C to 40°C (23°F to 104°F)
- Operating Humidity: 10% to 90% non-condensing
- Certifications: CE, FCC, IC
- Dimensions: 442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
- Weight: 5.1 kg (11.3 lb) without brackets, 5.2 kg (11.5 lb) with brackets
Specifications
| Specification | |
| Port Layout | - 16 x 1 GbE RJ45 (8 PoE+; 8 PoE++) |
| - 8 x 2.5 GbE RJ45 (All PoE++) | |
| - 2 x 10G SFP+ | |
| Total Non-Blocking Throughput | 56 Gbps |
| Switching Capacity | 112 Gbps |
| Forwarding Rate | 83 Mpps |
| Supported VLANs | 1 |
| MAC Address Table Size | 16 |
| L3 Table Size (ARP Entries) | 6 |
| Packet Buffer Size | 1.5 MB |
| PoE Ports | - 8 x PoE+ |
| - 16 x PoE++ | |
| Max. PoE Wattage per Port | - PoE: 15.4W |
| - PoE+: 32W | |
| - PoE++: 64W | |
| Total Available PoE | 400W |
| Max. Power Consumption | - 50W (Excluding PoE Output) |
| - 450W (Including PoE Output) | |
| Power Method | - Universal input, 100—240V AC, 50/60 Hz |
| - USP RPS DC input | |
| Power Supply | AC/DC, internal, 550W |
| Supported Voltage Range | 100—240V AC |
| Heat Dissipation | 170.6 BTU/hr (Excluding PoE Output) |
| LCM Display | 1.3" touchscreen |
Properties
| Property | |
| Model | USW-Pro-Max-24-PoE |
| Product Type | 24-port, Layer 3 Etherlighting™ switch with PoE++ capability |
| Dimensions | 442 x 325 x 44 mm (17.4 x 12.8 x 1.7") |
| Weight | Without mounting brackets: 5.1 kg (11.3 lb); With mounting brackets: 5.2 kg (11.5 lb) |
| Enclosure Material | SGCC steel |
| Form Factor | Rack mount (1U) |
| Etherlighting™ | Yes |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
