UBIQUITI SWITCH PRO 48 PORT (USW-PRO-48)
| Model: | USW-PRO-48 |
| Detail: |
Networking Interface: (48) GbE RJ45 ports, (4) 1/10G SFP+ ports, Switching Capacity: 176 Gbps, Forwarding Rate: 130.944 Mpps,
< |
| Price: | $573.00 |
| Condition: | Brand New Sealed |
| Availability: | Out of Stock |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |

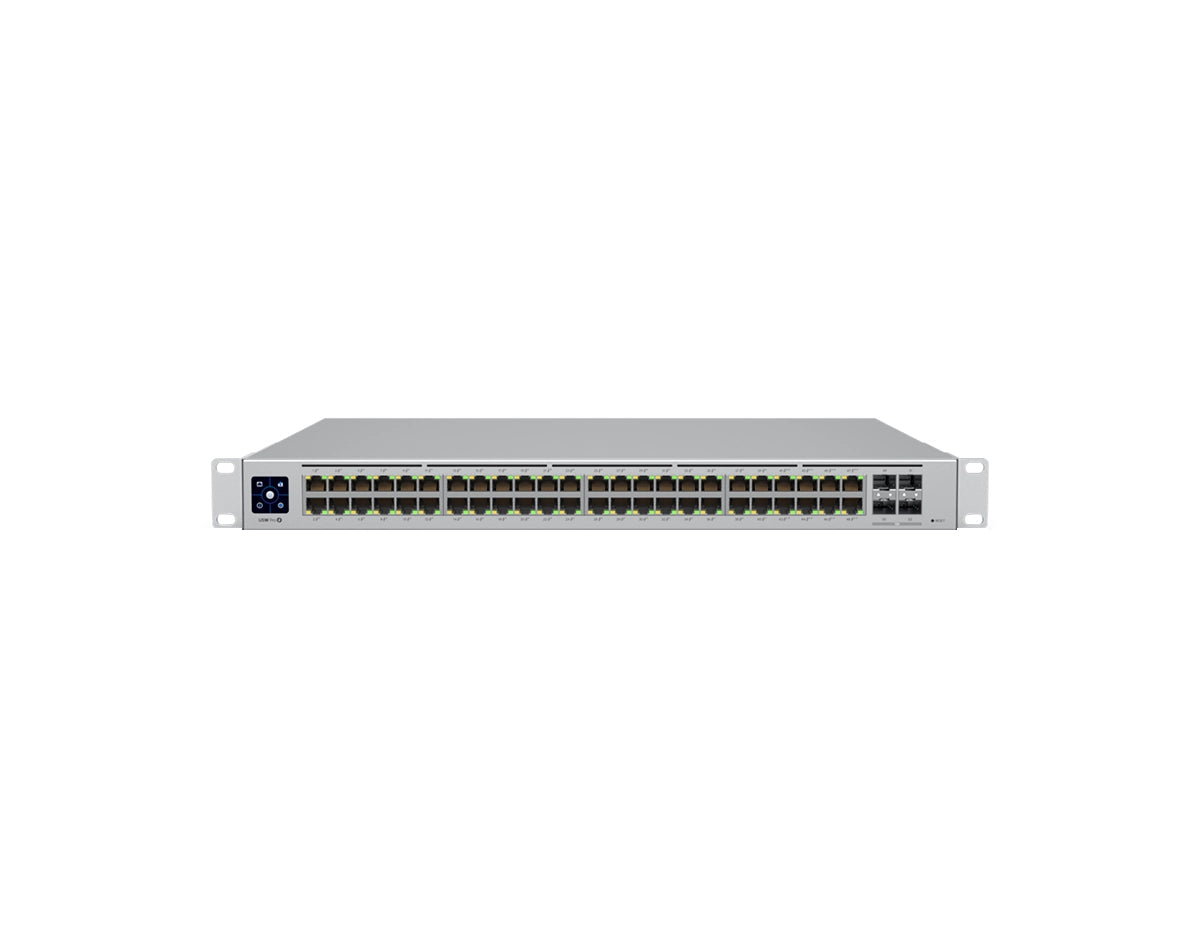

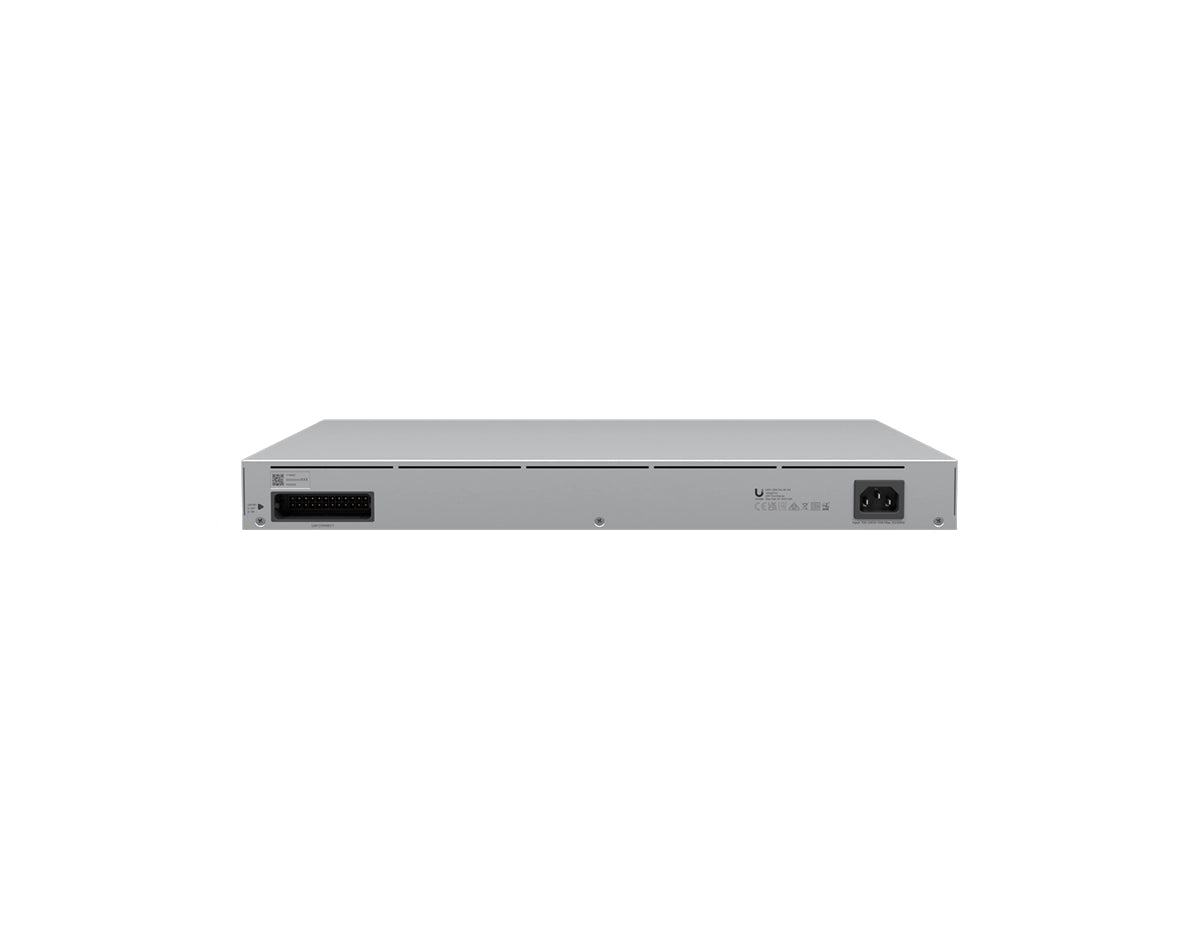

Ubiquiti USW-Pro-48 Switch Pro 48
The Ubiquiti USW-Pro-48 Switch Pro 48 is a highly efficient and versatile switch designed for enterprise networks. With advanced hardware and robust features, the USW-Pro-48 ensures reliable performance and seamless network management.
Quick Specs:
- Dimensions: 442.4 x 285.4 x 43.7 mm (17.4 x 11.2 x 1.7")
- Weight: Without mounting brackets: 4 kg (8.8 lb); With mounting brackets: 4.1 kg (9 lb)
- Enclosure Material: SGCC steel
- Management Interface: Ethernet In-band
- Networking Interface: (48) GbE RJ45 ports, (4) 1/10G SFP+ ports
- Total Non-blocking Throughput: 88 Gbps
- Switching Capacity: 176 Gbps
- Forwarding Rate: 130.944 Mpps
- Power Method: Universal input, 100—240V AC, 50/60 Hz; USP RPS DC input, 11.5V DC, 5.22A
- Power Supply: AC/DC, internal, 60W
- Supported Voltage Range: 100—240V AC
- Max. Power Consumption: 60W
- ESD/EMP Protection: Air: ±16kV, contact: ±12kV
- LCM Display: (1) 1.3" touchscreen
- Button: Factory reset
- Operating Temperature: -5 to 45° C (23 to 113° F)
- Operating Humidity: 10 to 90% noncondensing
- Certifications: CE, FCC, IC
System Status:
- Ethernet Speed/link/activity
- SFP+ Speed/link/activity
- RPS Status
Please see the related tabs for the USW-Pro-48 datasheet and compatible accessories.
Specifications
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.94 Mpps |
| VLAN Support | Supports up to 4,094 VLANs |
| Latency | <1 microsecond for 64-byte packets |
| Certifications | CE, FCC, IC, RoHS compliant |
| Environmental Safety | Complies with RoHS 3 (Directive 2015/863/EU) for hazardous substances |
| EMC Compliance | Meets EN 55032, EN 55024, and FCC Part 15 standards |
| Power Consumption | Maximum 60W |
| Stacking Support | Virtual stacking via UniFi Controller |
| MTBF | >1,200,000 hours |
| Security Features | 802.1X authentication, MAC filtering, DHCP snooping |
| Management Features | Remote monitoring, firmware updates, and configuration via UniFi Controller |
| Quality of Service | Supports 802.1p, DSCP, and priority queuing for traffic prioritization |
| Deployment | Optimized for high-performance networks and multi-gigabit uplink scenarios |
| Monitoring | Real-time network monitoring and diagnostics through UniFi Controller |
| Firmware Compatibility | Supports automatic updates via UniFi Controller |
| Reliability | Features dual redundant power inputs for increased reliability |
Properties
| Product Name | USW-PRO-48 |
| Description | Ubiquiti Switch Pro 48, a 48-port managed Gigabit switch with advanced Layer 3 features, designed for enterprise networks with high performance and reliability. |
| Switch Type | Managed Layer 3 switch |
| Total Ports | 48 x Gigabit Ethernet (10/100/1000 Mbps) |
| Uplink Ports | 4 x 10G SFP+ ports |
| Management | Cloud-based via UniFi Controller |
| Operating Temperature | -5°C to 45°C (23°F to 113°F) |
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| Humidity | 10% to 90% non-condensing |
| Dimensions | 44.0 cm x 28.5 cm x 4.3 cm (17.3 in x 11.2 in x 1.7 in) |
| Weight | 5.7 kg (12.6 lb) |
| Power Supply | Internal AC/DC power supply (200W) |
| Cooling | Active cooling with multiple fans |
| Usage | Suitable for enterprise, campus, and data center networks |
| Durability | Designed to handle continuous 24/7 operation with a MTBF of over 1,200,000 hours |
