UBIQUITI USW-PRO-24-POE SWITCH
| Part Number: | USW-PRO-24-POE |
| Detail: |
|
| Price: | $745.00 |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ, TX and FL |
| Quantity: |
Description

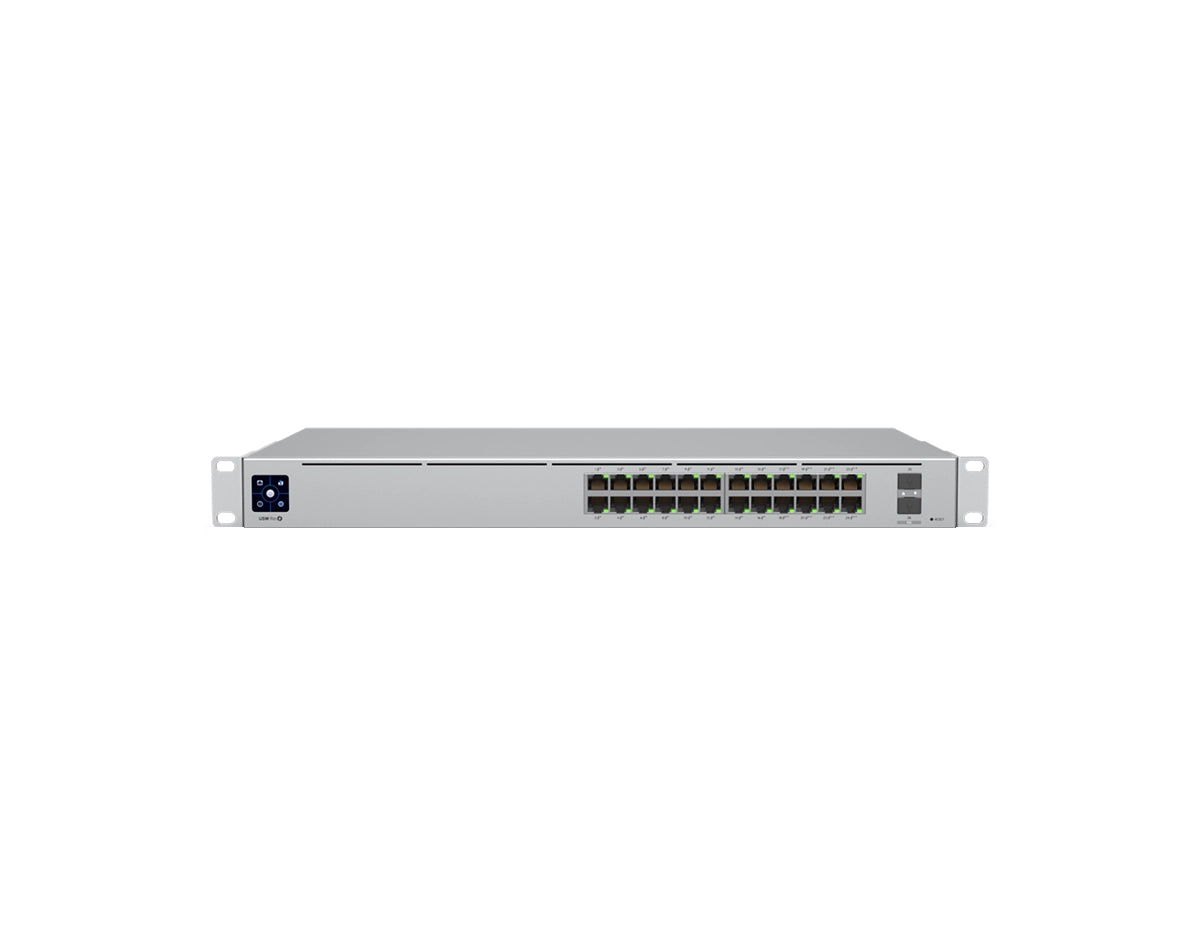

Ubiquiti USW-PRO-24-POE Switch
The USW Pro 24 PoE represents an enhanced iteration of the 24-port switch within the same product range, incorporating hardware advancements and usability enhancements. A notable distinction between the UniFi Switch Pro 24 PoE and its standard counterpart lies in its robust power supply, capable of delivering up to 450W. This feature enables support for 802.3bt on ports 17 to 24, with a maximum power supply of 60 watts for subscriber equipment. Additionally, POE+ distribution is feasible on ports 1 through 16.
Quick Specs:
- 24x 10/100/1000 GbE RJ45 Ethernet Ports (16x 802.3af/at and 8x 802.3bt)
- 2x 1/10G SFP+ ports for uplink
- 1U Rackmountable (hardware included)
- Layer3 switching features
Please see the related tabs for the US-48-500W datasheet and compatible accessories.
Accessories
Specifications
| Specifications | USW-PRO-24-POE |
| Dimensions | 442.4 x 285.4 x 43.7 mm (17.42 x 11.24 x 1.72") |
| Weight With Rackmount Brackets |
4.30 kg (9.48 lb) 4.39 kg (9.68 lb) |
| Interfaces Networking Management |
(24) 10/100/1000 RJ45 Ports (2) 1/10G SFP+ Ethernet Ports Ethernet In-Band |
| Total Non-Blocking Throughput | 44 Gbps |
| Power Method Universal Input USP RPS DC Input |
100-240VAC, 50/60 Hz 52VDC, 7.69A; 11.5VDC, 2.61A |
| Power Supply | AC/DC, Internal, 450W |
| Max. Power Consumption (Excluding PoE Output) | 50W |
| LEDs System RJ45 Data Ports SFP+ Data Ports |
Status PoE; Speed/Link/Activity Link/Activity |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC |
| PoE | |
| Total Available PoE | 400W |
| PoE Interfaces Ports 1-16 Ports 17-24 |
POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) 60W PoE++ IEEE 802.3bt (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-) |
| Max. PoE Wattage per Port by PSE 802.3at 802.3bt |
32W 64W |
| Voltage Range 802.3af Mode | 44-57V |
| Voltage Range 802.3at/bt Mode | 50-57V |
Properties
| Properties | USW-PRO-24-POE |
| Description | USW-Pro-24-PoE 24 RJ45 ports with 2 SFP+ ports |
| Product Family | UniFi Switch USW Pro PoE |
| Product Type | Switch Professional |
| Overview | • Layer 3 Features • Near-Silent Cooling • Fiber Connectivity • 802.3bt PoE++ • Power Supply Redundancy |
| USW-PRO-24-POE provides these features: | • (16) Gigabit RJ45 ports with 802.3af/at • (8) Gigabit RJ45 ports with 802.3bt • (2) 1/10G SFP+ ports • 1U Rackmountable (hardware included) |
