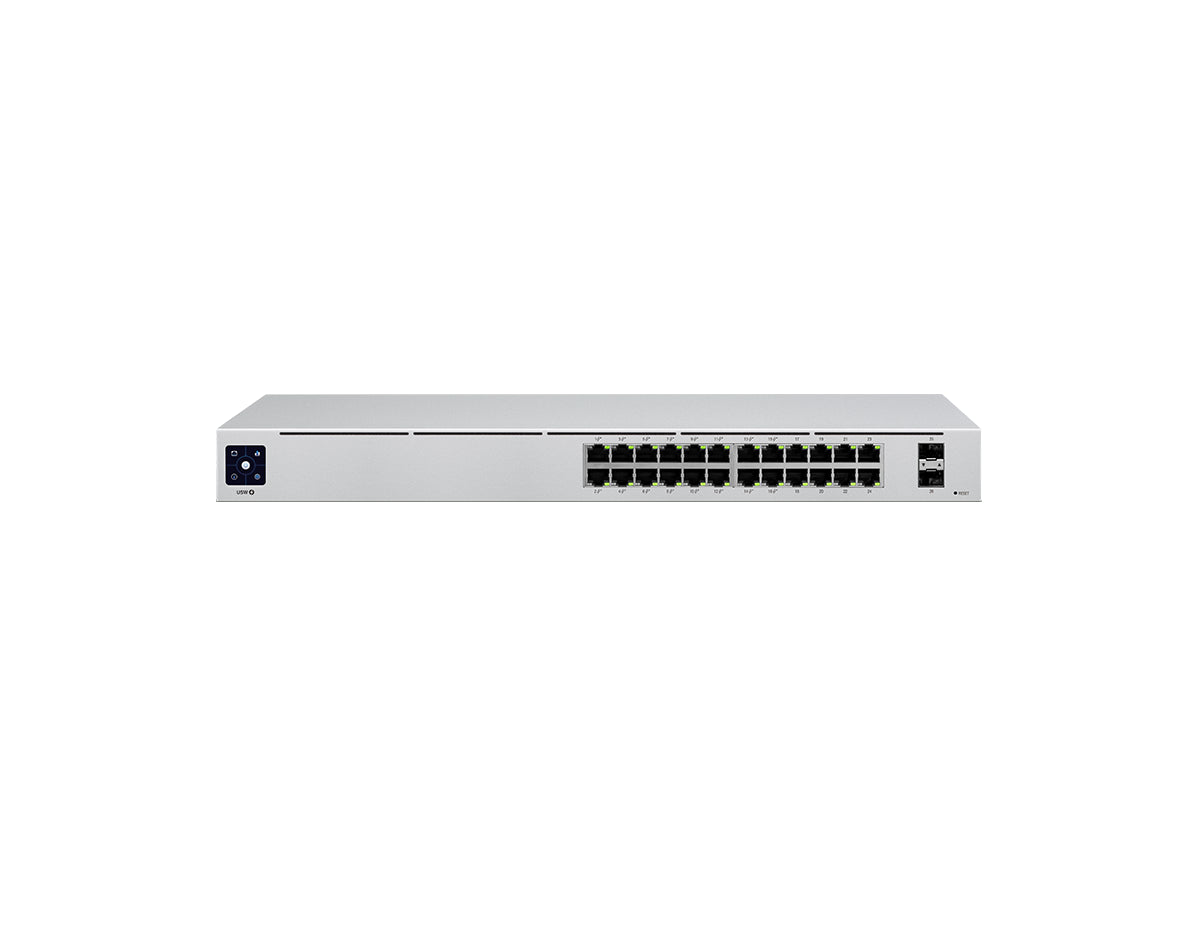

Ubiquiti UniFi Switch Pro 24 (USW-PRO-24)

Ubiquiti UniFi Switch Pro 24 (USW-PRO-24)

Brand:
Ubiquiti
Part Number:
USW-PRO-24

  • Advanced 24-port managed switch with Layer 3 features, designed for robust performance and intelligent switching.

$520.00

Net 30 or as low as $—/month Apply Now

Quote
DescriptionPropertiesSpecifications

Ubiquiti USW-PRO-24 Switch

The USW Pro 24, also known as the Switch Pro 24, is a fully managed switch equipped with 24 GbE RJ45 ports and 2 10G SFP+ ports. It offers a comprehensive range of Layer 2 features and advanced Layer 3 tools, including inter-VLAN routing, static routing, and a DHCP server. The USW Pro 24 is well-suited for use as an aggregation and access layer switch within a UniFi system. It incorporates innovative, nearly silent cooling technology and SmartPower RPS (USP RPS) power redundancy. Additionally, the switch can be remotely monitored and configured using the UniFi Network web application and mobile app, which offer powerful and user-friendly interfaces.

Quick Specs:

  • 24 GbE RJ45 Ports
  • 2x 1/10 Gbps SFP+ Ports
  • Non-blocking throughput: 44 Gbps
  • Switching capacity: 88 Gbps

Please see the related tabs for the USW-PRO-24 datasheet and compatible accessories.

    Properties


    Specifications

    Specifications USW-PRO-24
    Mechanical
    Dimensions 442.4 x 285.4 x 43.7 mm (17.4 x 11.2 x 1.7")
    Weight Without mounting brackets: 3.5 kg (7.7 lb)
    With mounting brackets: 3.6 kg (8 lb)
    Enclosure material SGCC steel
    Hardware
    Managementinterface EthernetIn-band
    Networking interface (24) GbE RJ45 ports
    (2) 1/10G SFP+ ports
    Total non-blocking throughput 44 Gbps
    Switching capacity 88 Gbps
    Forwarding rate 65.472 Mpps
    Power method Universal input, 100—240V AC, 50/60 Hz
    USP RPS DC input 11.5V DC, 2.61A
    Power supply AC/DC, internal, 36W
    Supported voltage range 100—240V AC
    Max. power consumption 30W
    ESD/EMP protection Air: ± 16kV, contact: ± 12kV
    LCM display (1) 1.3" touchscreen
    Button Factory reset
    Shock and vibration ETSI300-019-1.4 Standard
    Operating temperature (-5 to 45° C) (23 to 113° F)
    Operating humidity 10 to 90% noncondensing
    Certifcations CE, FCC, IC
    LEDs
    System Status
    Ethernet Speed/link/activity
    SFP+ Speed/link/activity
    RPS Status
