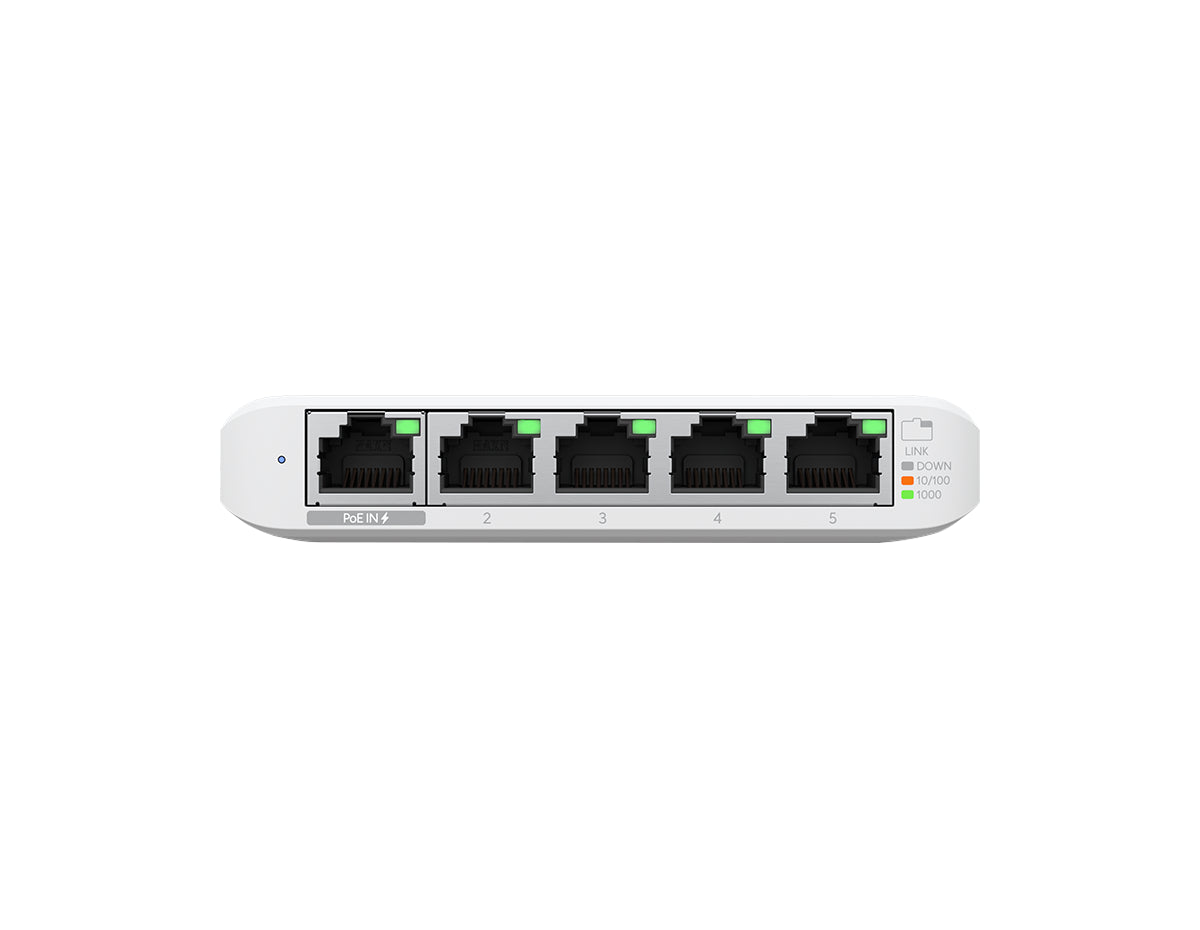

Ubiquiti UniFi Switch Flex Mini 5-Port Gigabit Desktop Switch

Expand Your Network with Compact UniFi Switching

The Ubiquiti USW-Flex-Mini is a compact 5-port Gigabit switch designed for clean, efficient network expansion in offices, workstations, retail counters, and small UniFi deployments. With flexible power through 802.3af/at PoE or a 5V USB-C adapter, it simplifies installation where space and cabling efficiency matter.

Built for the UniFi ecosystem, this Layer 2 desktop switch delivers reliable copper connectivity, centralized management, and line-rate switching performance in a small, low-power form factor.

Key Benefits & Features

• Five Gigabit RJ45 ports: Connect workstations, printers, NAS devices, cameras, consoles, or other wired endpoints with 10/100/1000 Ethernet links.
• Flexible power options: Power the switch using 802.3af/at PoE input or a 5V, 1A USB-C power adapter for adaptable deployment.
• Efficient switching performance: 10 Gbps switching capacity and 5 Gbps non-blocking throughput help process traffic across all ports efficiently.
• UniFi Network management: Configure switching, port mirroring, VLAN settings, jumbo frames, flow control, and storm control through UniFi Network.
• Compact desktop footprint: The small polycarbonate enclosure fits neatly on desks, shelves, kiosks, and space-limited network points.

Ideal Use Cases

• Small office and home office wired network expansion
• Desktop connectivity for computers, printers, and NAS devices
• Retail counters, service desks, and compact workspaces
• UniFi deployments needing a low-power edge switch
• Procurement teams standardizing on Ubiquiti network hardware

Technical Specifications

• Model: USW-Flex-Mini
• Switch Type: Compact Layer 2 Gigabit switch
• Ports: 5 x 10/100/1000 RJ45 ports
• PoE Input: 802.3af/at PoE on one RJ45 port
• Switching Capacity: 10 Gbps
• Total Non-Blocking Throughput: 5 Gbps
• Forwarding Rate: 7.44 Mpps
• Power Method: USB Type-C 5V or 802.3af/at PoE
• Max Power Consumption: 2.5W
• Dimensions: 107.16 x 70.15 x 21.17 mm
• Weight: 150 g
• Operating Temperature: -5 to 45° C

Add Reliable Gigabit Ports in Minutes

Upgrade compact workspaces with efficient UniFi switching and simple deployment. Order today.

Model	USW-Flex-Mini
Product Type	Compact 5-Port Gigabit Switch
Product Family	UniFi Switch Flex Mini
Network System	UniFi Enterprise System
Form Factor	Compact desktop
Networking Interfaces	(5) 10/100/1000 RJ45 ports
PoE Input	802.3af/at PoE, pins 1, 2+; 3, 6-
Management	Ethernet In-Band
Total Non-Blocking Throughput	5 Gbps
Switching Capacity	10 Gbps
Forwarding Rate	7.44 Mpps
Power Method	USB Type C, 5V; 802.3af/at PoE
Max Power Consumption	2.5W
Dimensions	107.16 × 70.15 × 21.17 mm (4.22 × 2.76 × 0.83 in)
Weight	150 g (5.29 oz)
Certifications	CE, FCC, IC

RJ45 Port Speed	Five RJ45 ports offer 10/100/1000 links
PoE Input Details	802.3af/at PoE, 44 - 57VDC, 0.05 - 0.04A
USB Type C Voltage Range	4.7 - 5.3V
802.3af/at PoE Voltage Range	44 - 57VDC
Power Supply	5V, 1A power adapter, included only with the single-pack of the USW-Flex-Mini
System LED	Status
RJ45 Data Port LEDs	Speed, Link, Activity
ESD/EMP Protection	Air: ±16 kV, Contact: ±12 kV
Shock and Vibration	ETSI300-019-1.4 Standard
Operating Temperature	-5 to 45° C (23 to 113° F)
Operating Humidity	10 - 90% noncondensing
Controller Features	Centralized configuration management, configuration cloning, Auto-MDIX
Switch Configuration	Operation mode per port, Network/VLAN configuration, jumbo frame and flow control services, network settings, storm control setting per port
Switch Port Status	Connection speed and duplex mode, TX/RX data rates, Network/VLAN setting
Limitations	Port-based VLANs only; does not support SSH, STP, 802.1X, DNS suffix, or experience in the controller

Included

5V, 1A USB-C power adapter, included only with the single-pack of the USW-Flex-Mini
