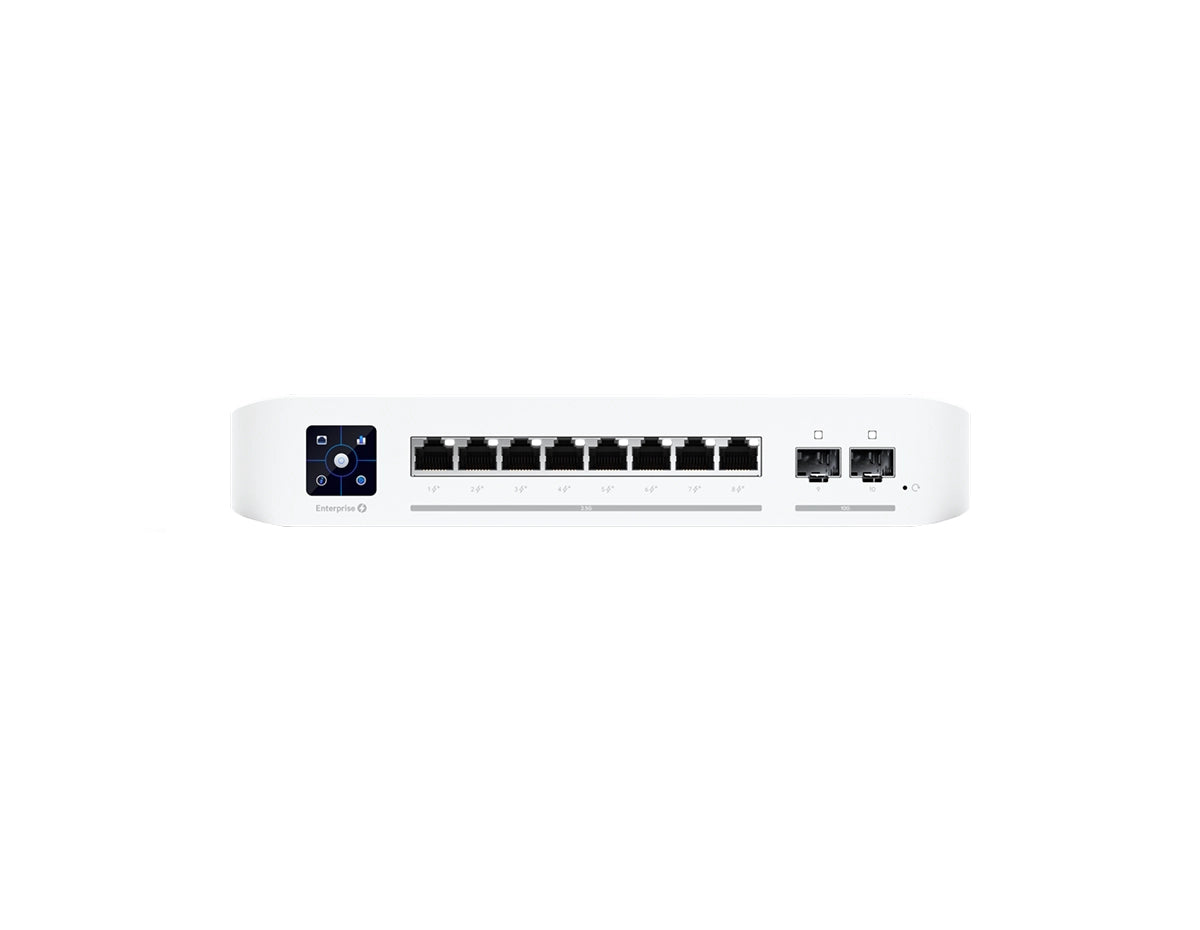

Ubiquiti USW-ENTERPRISE-8-POE Switch Layer 3, PoE with (8) 2.5GbE, 802

Ubiquiti USW-ENTERPRISE-8-POE Switch Layer 3, PoE with (8) 2.5GbE, 802

Brand:
Ubiquiti
Part Number:
USW-ENTERPRISE-8-POE
8× 2.5 GbE PoE+ ports, 2× 10G SFP+ uplinks, 120W PoE budget, 80 Gbps switching capacity, Layer 3 switching, 1.3-inch touchscreen
$400.00

Net 30 or as low as $—/month Apply Now

Quote
DescriptionPropertiesSpecifications

Multi-Gigabit PoE Switching in a Compact Design

The Ubiquiti UniFi Enterprise 8 PoE, model USW-Enterprise-8-PoE, is a compact desktop and wall-mountable switch designed for multi-gigabit network access and PoE-powered device connectivity. It provides eight RJ45 ports supporting 2.5G, 1G, and 100M Ethernet, with PoE+ available across all eight ports.

Two 10G SFP+ interfaces provide high-speed uplink connectivity for aggregation switches, gateways, servers, and other compatible network infrastructure. With 80 Gbps switching capacity, 40 Gbps non-blocking throughput, and Layer 3 functionality, the switch supports demanding business networks while maintaining a space-efficient, flexible form factor.

Key Benefits and Features

  • Eight 2.5 GbE RJ45 ports with PoE+ support for connected network devices
  • Two 10G SFP+ ports for high-bandwidth uplinks and network expansion
  • 120W total PoE availability with up to 32W per PoE+ port
  • Layer 3 support with inter-VLAN routing, static routing, and DHCP server functionality
  • Integrated 1.3-inch touchscreen for real-time device status and AR switch management

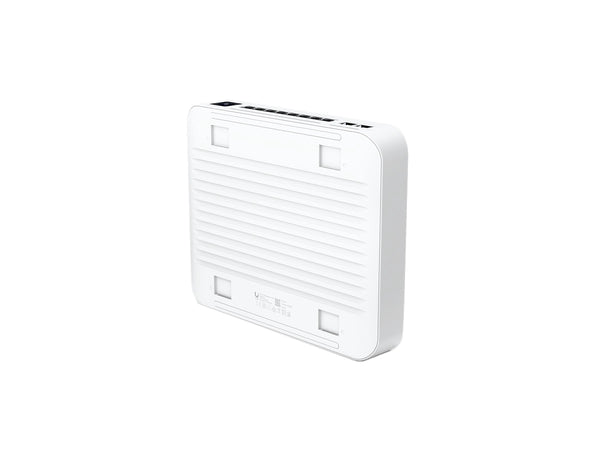

  • Flexible deployment options as a desktop device or mounted via the included wall-mount kit

Ideal Use Cases

  • Multi-gigabit access point deployments
  • PoE-powered surveillance and network device installations
  • Small business and enterprise edge switching
  • VLAN-segmented office networks
  • Compact desktop or wall-mounted network infrastructure

Technical Specifications

  • Model: USW-Enterprise-8-PoE
  • RJ45 Interfaces: 8× 2.5G/1G/100M Ethernet
  • SFP+ Interfaces: 2× 10G/1G SFP+
  • PoE Ports: 8× PoE+
  • Total PoE Availability: 120W
  • Maximum PoE+ Output per Port: 32W
  • Switching Capacity: 80 Gbps
  • Non-Blocking Throughput: 40 Gbps
  • Forwarding Rate: 59.52 Mpps
  • Dimensions: 200 × 248 × 44 mm

Deploy Multi-Gigabit PoE Connectivity with UniFi Enterprise 8 PoE

Choose the USW-Enterprise-8-PoE for compact multi-gigabit access switching, PoE+ device connectivity, Layer 3 networking, and high-speed 10G uplinks.

Properties

Brand Ubiquiti
Model USW-Enterprise-8-PoE
SKU USW-Enterprise-8-PoE
Product Type 8-Port 2.5GbE Layer 3 PoE+ Managed Switch
Series UniFi Network
Port Count 8 RJ45 ports; 2 SFP+ ports
Interface (8) 1/2.5 GbE RJ45; (2) 1/10 Gbps SFP+
PoE Support PoE/PoE+
Power 120W Max PoE power
Dimensions 200 x 248 x 44 mm (7.9 x 9.8 x 1.7")
Weight 2.4 kg (5.29 lb)
Material Polycarbonate
Operating Temperature -5 to 45°C (23 to 113°F)

Specifications

Enclosure Material Polycarbonate
Mount Material Polycarbonate
Total Non-Blocking Throughput 40 Gbps
Switching Capacity 80 Gbps
Forwarding Rate 59.52 Mpps
Max PoE Power 120W

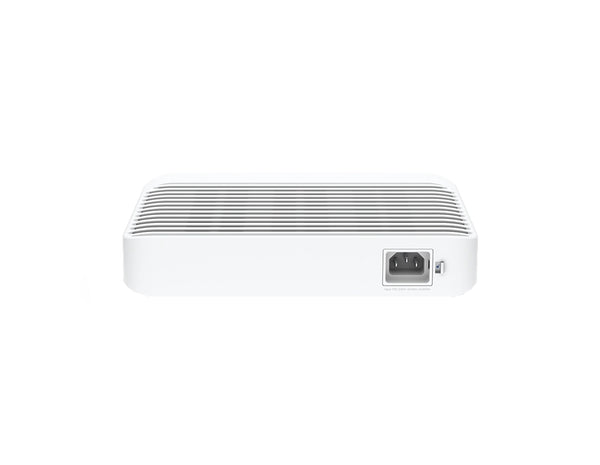

Power Method (1) 100-240V AC, 2A Max., 50/60 Hz, Universal Input
Power Supply AC/DC, Internal, 150W
Management Interface Ethernet In-Band
Networking Interface (8) 1/2.5 GbE RJ45
SFP+ Interface (2) 1/10 Gbps SFP+
PoE Interface (8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Max. PoE+ Wattage Per Port by PSE 32W
Voltage Range PoE Mode 44-57V
Voltage Range PoE+ Mode 50-57V
LCM Display (1) 1.3" Touchscreen
ESD/EMP Protection Air: ± 16 kV; Contact: ± 12 kV
Operating Humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Ethernet LED White: Link or activity
SFP+ LED White: Link or activity
