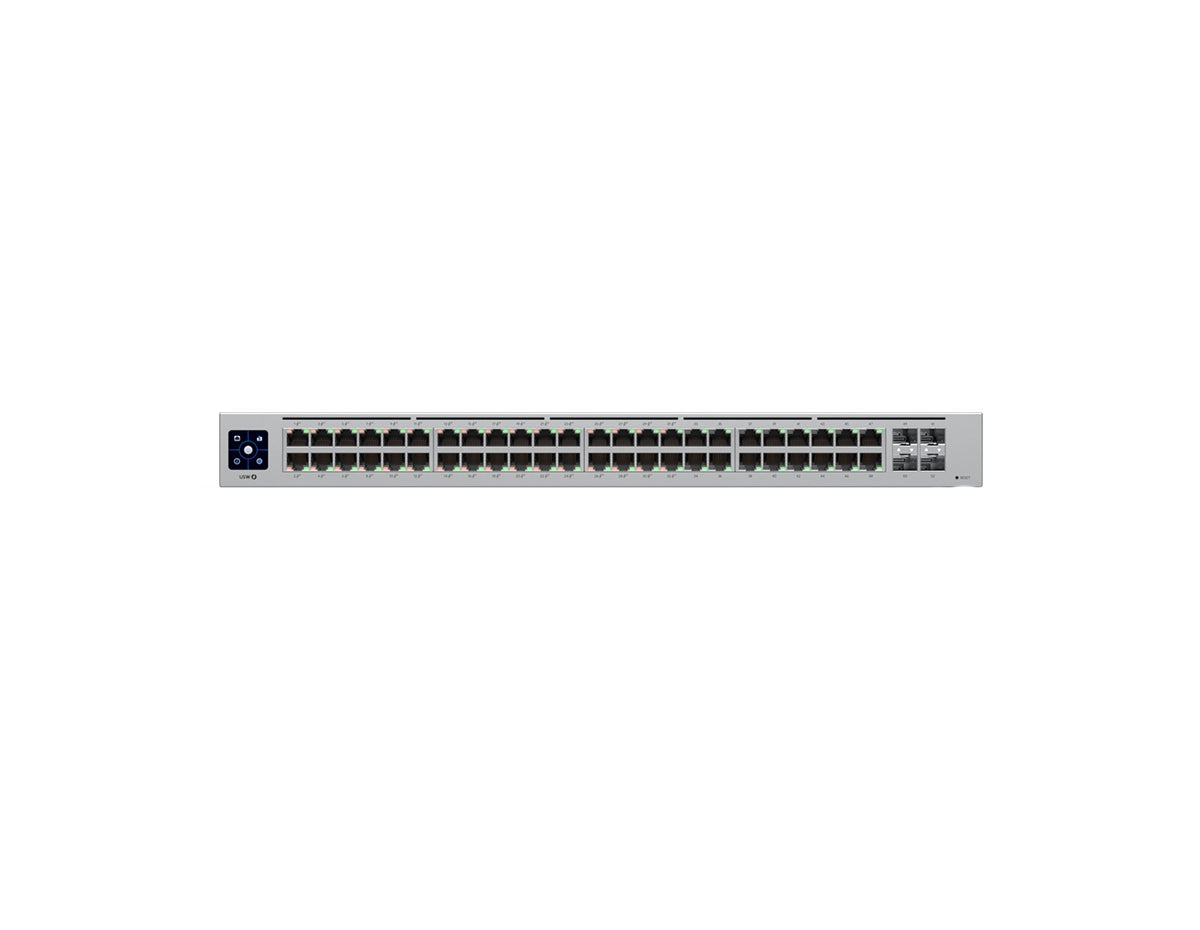

Ubiquiti USW-48-POE UniFi Switch, 48-Port PoE

Ubiquiti UniFi USW-48-POE Switch

The USW-48-PoE is a customizable Gigabit Layer 2 switch equipped with 48 Gigabit Ethernet ports, which includes 32 autosensing 802.3at PoE+ ports, and 4 SFP ports. This switch offers Gigabit PoE connections for RJ45 Ethernet devices and Gigabit fiber uplink choices for enterprise network connectivity. Additionally, the USW-48-PoE is equipped with a 1.3" touch LCM display to provide status information.

Quick Specs:

• 32x Gigabit RJ45 ports with 802.3af/at
• 16x Gigabit RJ45 ports
• 4x 1G SFP ports
• 1U Rackmountable (hardware included)

Please see the related tabs for the USW-48-PoE datasheet and compatible accessories.

Properties	USW-48-POE
Description	USW-48-PoE 48 RJ45 ports with 4 SFP ports
Product Family	Ubiquiti UniFi Switch
Product Type	Switch
Overview	(32) Gigabit RJ45 ports with 802.3af/at • (16) Gigabit RJ45 ports • (4) 1G SFP ports • 1U Rackmountable (hardware included)



Specifications	USW-48-POE
Dimensions	442.4 x 285 x 43.7 mm (17.42 x 11.22 x 1.72")
Weight With Rackmount Brackets	4.52 kg (9.97 lb) 4.61 kg (10.16 lb)
Interfaces       Networking       Management	(48) 10/100/1000 RJ45 Ports (4) 1G SFP Ethernet Ports Ethernet In-Band
Power Method	100-240VAC, 50/60 Hz, Universal Input
Power Supply	AC/DC, Internal, 240W
Voltage Range	100 to 240VAC
Max. Power Consumption (Excluding PoE Output)	45W
LEDs RJ45 Data Ports SFP Data Ports	PoE; Speed/Link/Activity Link/Activity
ESD/EMP Protection	Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration	ETSI300-019-1.4 Standard
Operating Temperature	-5 to 40° C (23 to 104° F)
Operating Humidity	10 - 90% Noncondensing
Certifications	CE, FCC, IC
PoE
Total Available PoE	195W
PoE Interfaces Ports 1-32	PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
Max. PoE Wattage per Port by PSE 802.3at	32W
Voltage Range 802.3at Mode	44-57V
Voltage Range 802.3at Mode	50-57V
