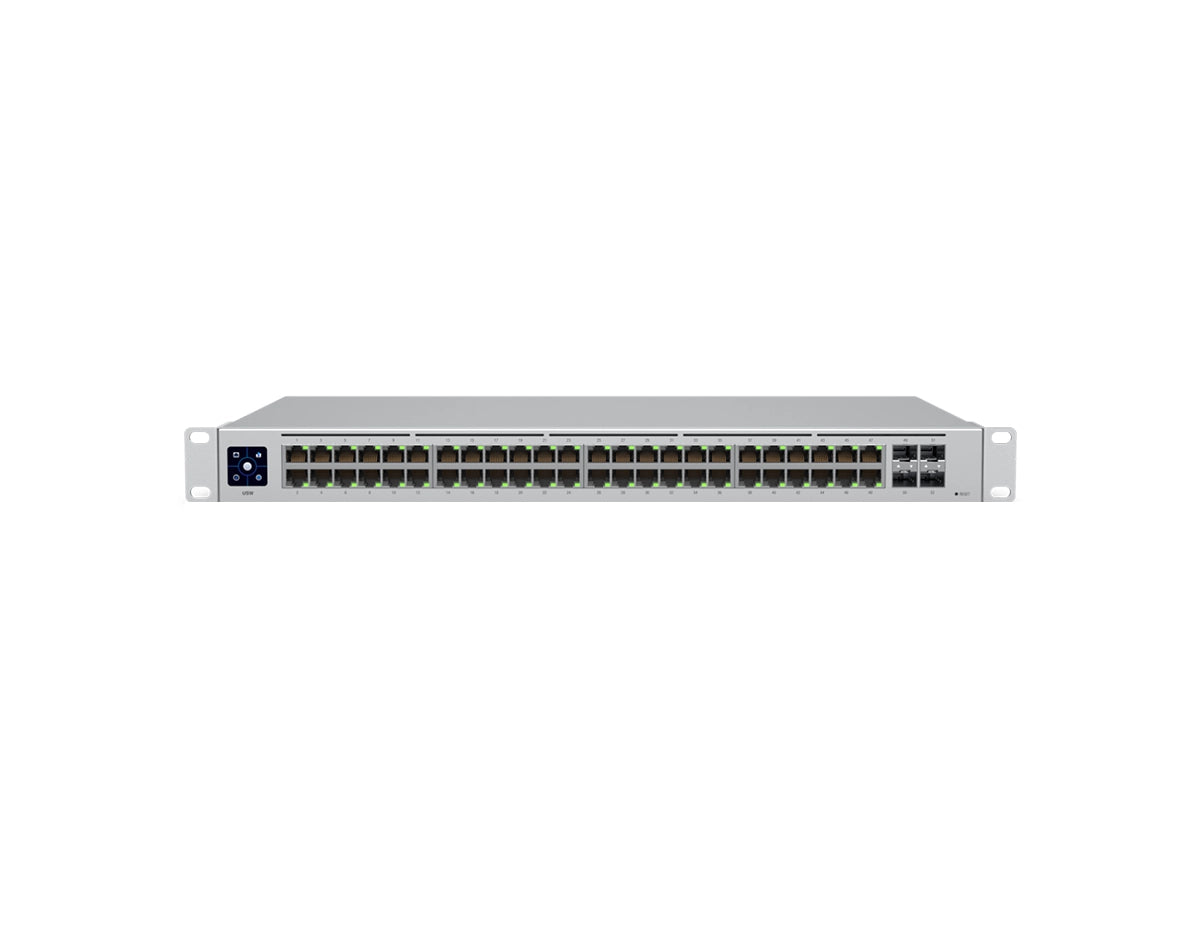

Ubiquiti USW-48 UniFi Switch 48

Ubiquiti USW-48 Switch

The USW-48 is equipped with a comprehensive range of Layer 2 functionalities and operates with fanless, noiseless cooling, making it suitable for deployment as an access layer switch. The UniFi Network Application and mobile app enable administrators to configure and monitor nearly all switch features conveniently through an intuitive graphical user interface accessible from any location. Additionally, the switch provides a wide array of Layer 2 switching protocols, including port-specific operation modes such as switching, mirroring, or aggregation.

Quick Specs:

• 48x 10/100/1000 Mbps Ethernet RJ45 Ports
• 4x 1G SFP Ports
• Layer3 switching features
• Non-blocking throughput: 52 Gbps

Please see the related tabs for the USW-48 datasheet and compatible accessories.



Properties	UniFi Switch 48 - USW-48
Description	The USW-48 is a configurable Gigabit Layer 2 switch with 48 Gigabit Ethernet ports and 4 SFP ports
Product Family	Ubiquiti UniFi Switch
Product Type	Switch
Features	The USW-48 is a configurable Gigabit Layer 2 switch with 48 Gigabit Ethernet ports and 4 SFP ports, providing 1 Gigabit links Fiber uplink options It features a 1.3" touch LCM A fanless design



Spesifications	UniFi Switch 48 - USW-48
Mechanical
Dimensions	442.4 x 285 x 43.7 mm (17.42 x 11.22 x 1.72")
Weight	Without Mount: 3.9 kg (8.6 lb) With Mount: 3.99 kg (8.8 lb)
Enclosure Characteristics	SGCC Steel
Hardware
Total Non-Blocking Line Rate	52 Gbps
Max. Power Consumption	40W
Forwarding Rate	77.376 Mpps
Power Method	Universal AC Input: 100-240VAC, 50/60 Hz
Power Supply	AC/DC, Internal, 60W
Supported Voltage Range	100 - 240VAC
Networking Interfaces	(48) 10/100/1000 Mbps Ethernet RJ45 Ports (4) 1 Gbps SFP Ports
ManagementInterface	EthernetIn-Band
Modes	SMB Layer 2 Gigabit Ethernet Switch
Operating Temperature	15 to 40° C (5 to 104° F)
Operating Humidity	10 - 90% Noncondensing
Certifications	CE, FCC, IC
LEDs
System	(1) Bootup Animation: Bootup in Progress Firmware Upgrade Icon: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted
Ethernet	Green: 1G, Amber: 10/100 Mbps
SFP	Green: 1G
