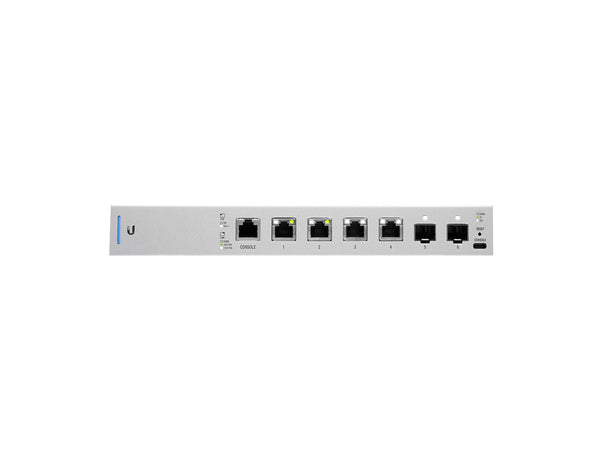

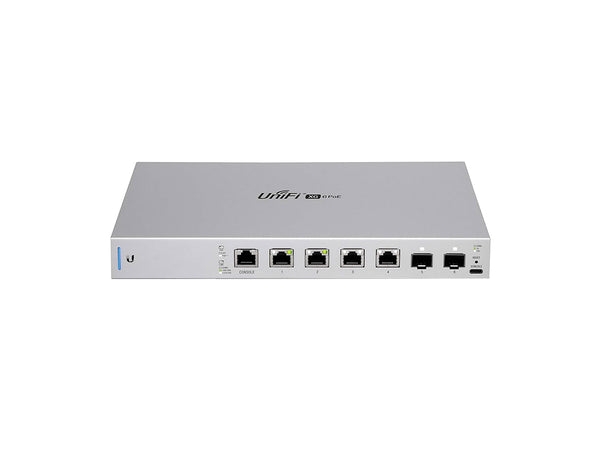

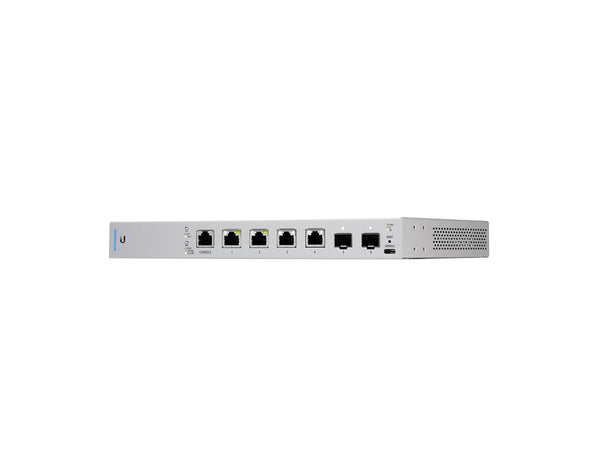

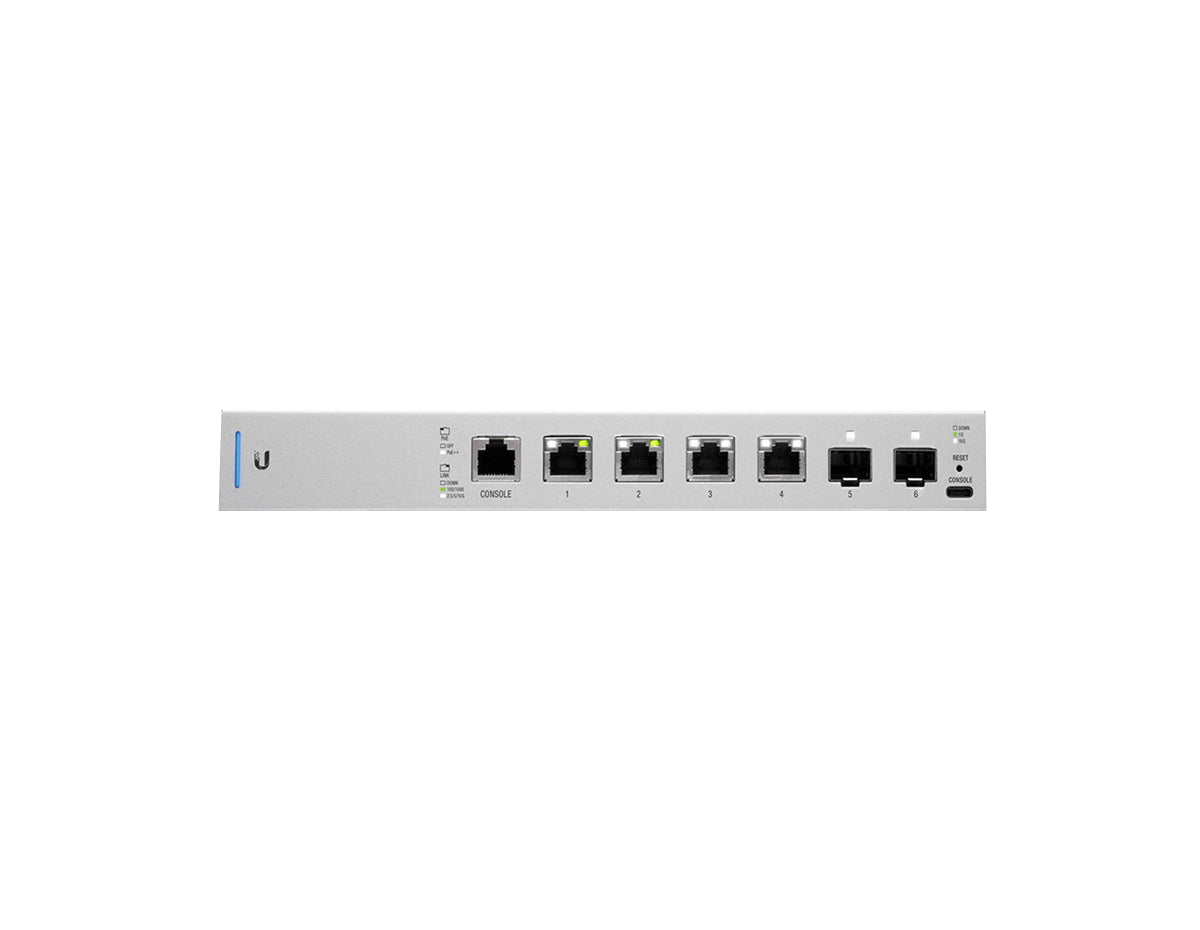

UniFi Switch XG 6 Poe (US-XG-6POE)

UniFi Switch US-XG-6POE

The US-XG-6-PoE is a fully managed, multi-gigabit, Layer 3 switch equipped with (4) 10GbE, PoE++ RJ45 ports, and (2) 10G SFP+ ports. Its networking interface is well-suited for use alongside the BaseStation XG, Access Point XG, and Access Point SHD. The US-XG-PoE offers a comprehensive range of Layer 2 features and advanced Layer 3 capabilities, including inter-VLAN routing, static routing, and a DHCP server. This switch can be remotely monitored and configured using the UniFi Network web application and mobile app, which provide powerful and user-friendly interfaces.

Quick Specs:

• 4x 100/1000 Mbps and 2.5/5/10G RJ45 ports
• 2x 1/10 SFP+ ports
• 4x 802.BT PoE ++ Ports
• Non-blocking throughput: 60 Gbps
• Layer 3 switching features

Please see the related tabs for the US-XG-6-PoE datasheet and compatible accessories.



Properties	US-XG-6POE
Description	Non-Blocking Throughput Switching
Product Family	UniFi XG Switch
Product Type	Switch
Overview	The Ubiquiti UniFi Switch XG 6POE, model US-XG-6POE. It is a fully managed, 6-port, 10G switch with 802.3bt PoE++. For deployment versatility, four 10G RJ45 ports offer 802.3bt PoE++ for powering devices and two SFP+ ports are designed for high‑capacity fiber uplinks.
Switching Performance	The switch features a total non-blocking throughput of up to 60 Gbps.
Switching Capacity	120 Gbps
Forwarding Rate	89.3 Mpps

Specifications	US-XG-6POE
Dimensions	(6.50 x 10.56 x 1.25") 165 x 268.1 x 31.8 mm
Weight	1.3 kg (2.87 lb)
Interfaces       Networking       Management	(4) 100/1000 Mbps and 2.5/5/10G RJ45 Ports (2) 1/10G SFP+ Ethernet Ports Ethernet In-Band (1) RJ45 Serial Port Out-of-Band (1) USB Type C Port Out-of-Band
Power Method	54VDC, 3.88A Power Adapter (Included) or DC Input with Terminal Block
Power Supply	External AC/DC Adapter (Included) or DC Power Source
Supported Voltage Range	44 to 57VDC
Max. Power Consumption (Excluding PoE Output)	40W
LEDs System RJ45 Data Ports SFP+ Data Ports	Status PoE; Speed/Link/Activity Link/Activity
ESD/EMP Protection	Air: ± 18 kV, Contact: ± 12 kV
Shock and Vibration	ETSI300-019-1.4 Standard
Operating Temperature	-5 to 45° C (23 to 113° F)
Operating Humidity	5 to 95% Noncondensing
Certifications	CE, FCC, IC
PoE
PoE Interfaces	PoE++ IEEE 802.3bt (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)
Max. 802.3bt Wattage per Port by PSE	60W
Voltage Range 802.3af Mode	44-57V
Voltage Range 802.3at/bt Mode	50-57V
Hardware Overview
802.3bt PoE++	The UniFi Switch XG 6POE offers 802.3bt PoE++ on all four RJ45 ports – up to 60W per port – for devices requiring additional power, such as the UniFi XG APs.

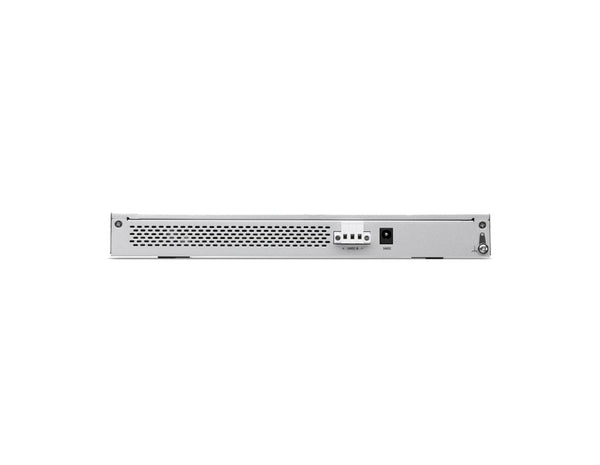

Power Options	The UniFi Switch XG 6POE includes a power adapter and features a DC input with terminal block so you have the option to use a DC power source (not included).
Mounting Versatility	The UniFi Switch XG 6POE can be mounted on a desktop or in a rack (rackmount accessory sold separately).
