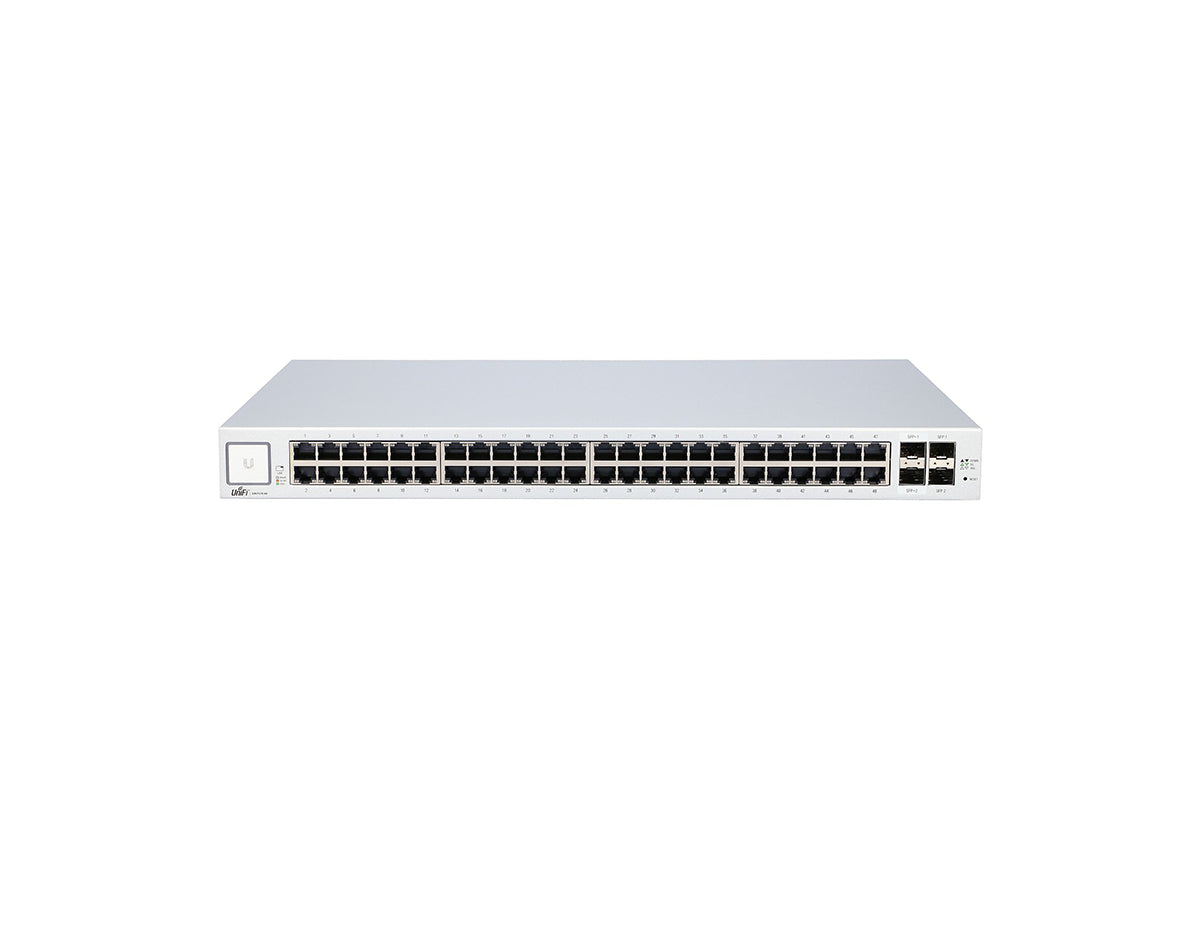

Ubiquiti US-48 Switch

A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.

The SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.

The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

Properties	Ubiquiti US-48 Switch (US-48)
Description	Non-Blocking Throughput Switching Performance
Product Family	Ubiquiti Unifi Switch
Product Type	Switch
Overview
Non-Blocking Throughput	70 Gbps
Switching Capacity	140 Gbps
Forwarding Rate	104.16 Mpps
Maximum Power Consumption	56W



Specifications	Ubiquiti US-48 Switch (US-48)
Dimensions	443 x 43 x 221 mm (17.44 x 1.69 x 8.70")
Weight With Rackmount Brackets	3.56 kg (7.85 lb) 3.65 kg (8.06 lb)
Gigabit RJ45 Ports	48
Networking Interfaces	(48) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1/10 Gbps SFP+ Ethernet Ports (2) 1 Gbps SFP Ethernet Ports
Management Interface	(1) RJ45 Serial Port Out-of-Band, Ethernet In-Band
Total Non-Blocking Throughput	70 Gbps
Switching Capacity	140 Gbps
Forwarding Rate	104.16 Mpps
Power Method	100-240VAC/50-60 Hz, Universal Input
Power Supply	AC/DC, Internal, 56W DC
Max. Power Consumption	56W
LEDs per Port	Speed/Link/Activity
Sound Level*	Fan Level: 0 - 0.7 dBr Fan Level: 1 - 13.5 dBr
ESD/EMP Protection	Air: ± 24 kV, Contact: ± 24 kV
Rack Mount	Yes, 1U High
Shock and Vibration	ETSI300-019-1.4 Standard
Operating Temperature	(-5 to 40° C (23 to 104° F))
Operating Humidity	5 to 95% Noncondensing
Certifications	CE, FCC, IC
