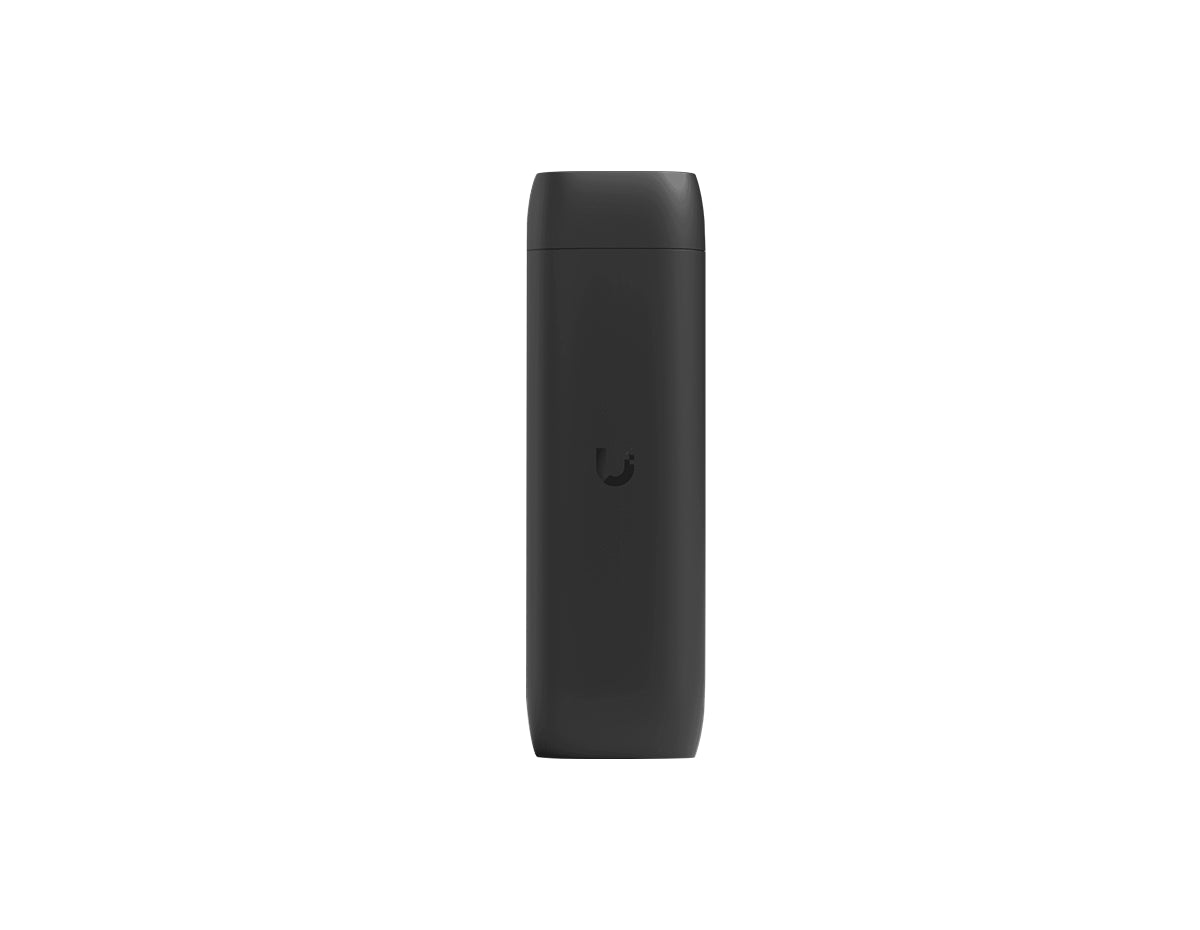

UniFi Protect ViewPort PoE - UFP-VIEWPORT

Dedicated UniFi Protect Viewing Hardware

The Ubiquiti UFP-VIEWPORT is a compact UniFi Protect HDMI Viewport designed to provide dedicated, low-latency access to a UniFi Protect surveillance environment without requiring a standalone computer. It combines a powerful ARM octa-core Kryo processor, 4GB of low-power DDR4X memory, Gigabit Ethernet connectivity, and an HDMI output capable of displaying high-definition video feeds directly onto a monitor or TV.

Its integrated GbE RJ45 interface supports reliable wired network communication, while standard PoE options handle power delivery and network connectivity through a single cable run. The device bridges your local UniFi Protect deployment to any display, streaming crisp surveillance layouts efficiently inside a lightweight polycarbonate enclosure.

Key Benefits and Features

• Direct HDMI Output: Connects to displays and TVs supporting high-definition and 4K video output at 30 FPS.
• High-Density Multi-Camera View: Displays up to 16 IP camera feeds simultaneously in custom matrix grid layouts.
• Centralized App Management: Streamlined adoption and configuration directly through the UniFi Protect platform.
• PoE Powered Efficiency: Utilizes a convenient power method with a low maximum power consumption of 9.5W.
• Robust Hardware Base: Equipped with an ARM octa-core Kryo processor, 4GB low-power DDR4X memory, and Bluetooth 5.0 connectivity.

Ideal Use Cases

• Dedicated UniFi Protect live-view monitoring stations in security offices
• Commercial, retail, and operational environments requiring continuous surveillance visibility
• Deployments seeking to reduce computer hardware overhead by using a dedicated HDMI appliance
• Clean installations where Power over Ethernet simplifies cabling behind walls or video displays

Technical Specifications

• Model: UFP-VIEWPORT
• Management Interface: UniFi Protect
• Processor: ARM octa-core Kryo
• Memory: 4GB low-power DDR4X

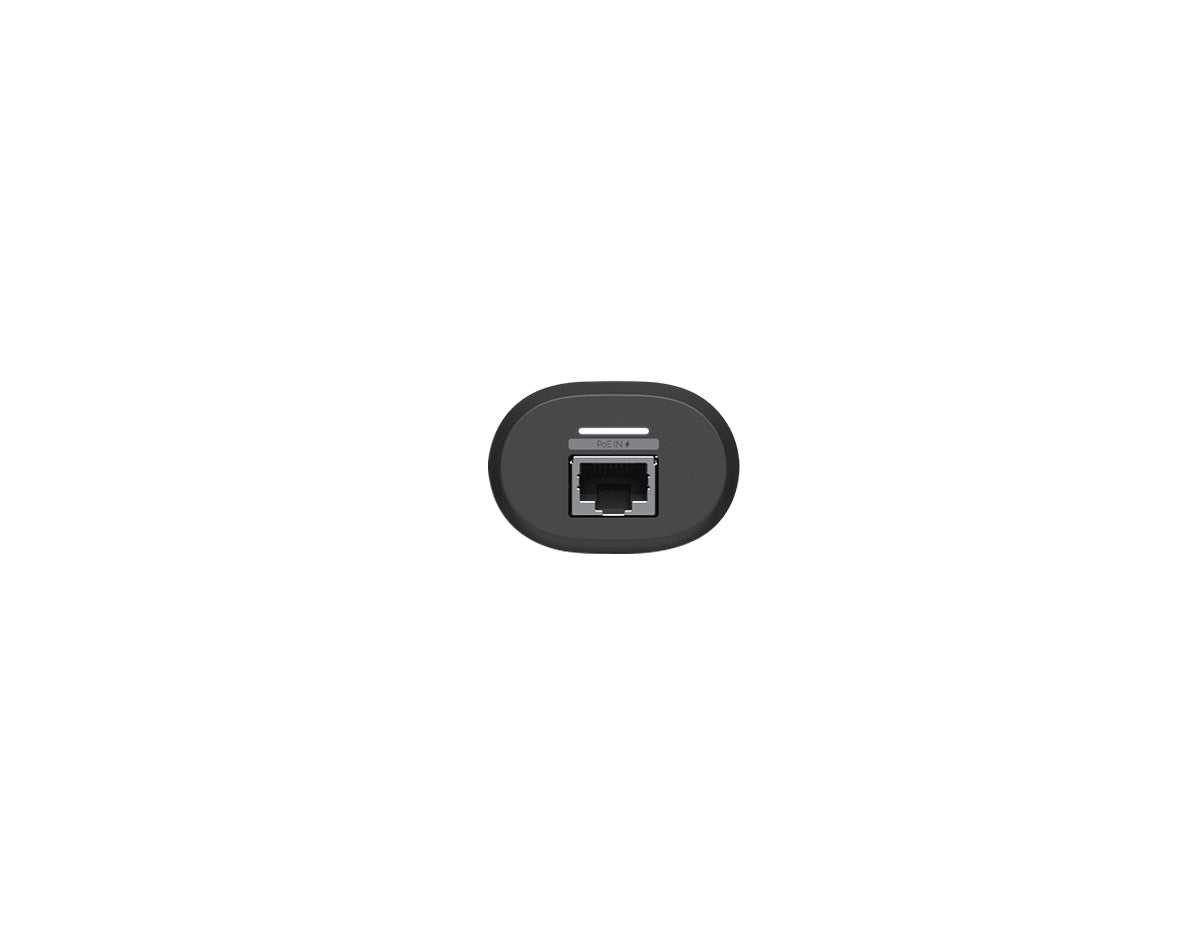

• Networking Interface: GbE RJ45 port
• Video Output: HDMI (Up to 4K @ 30 fps)
• Power Method: 802.3af PoE
• Maximum Power Consumption: 9.5W
• Bluetooth: Bluetooth 5.0 (2 dB antenna gain)
• Dimensions: 157 x 52 x 37 mm (6.18 x 2.05 x 1.46")
• Operating Temperature: 0 to 40°C (32 to 104°F)

Deploy a Dedicated UniFi Protect Viewport

Choose the Ubiquiti UFP-VIEWPORT for a compact, PoE-powered device built around UniFi Protect management, high-performance HDMI output, and dedicated multi-stream camera viewing requirements. Order today to upgrade your surveillance network deployment.
