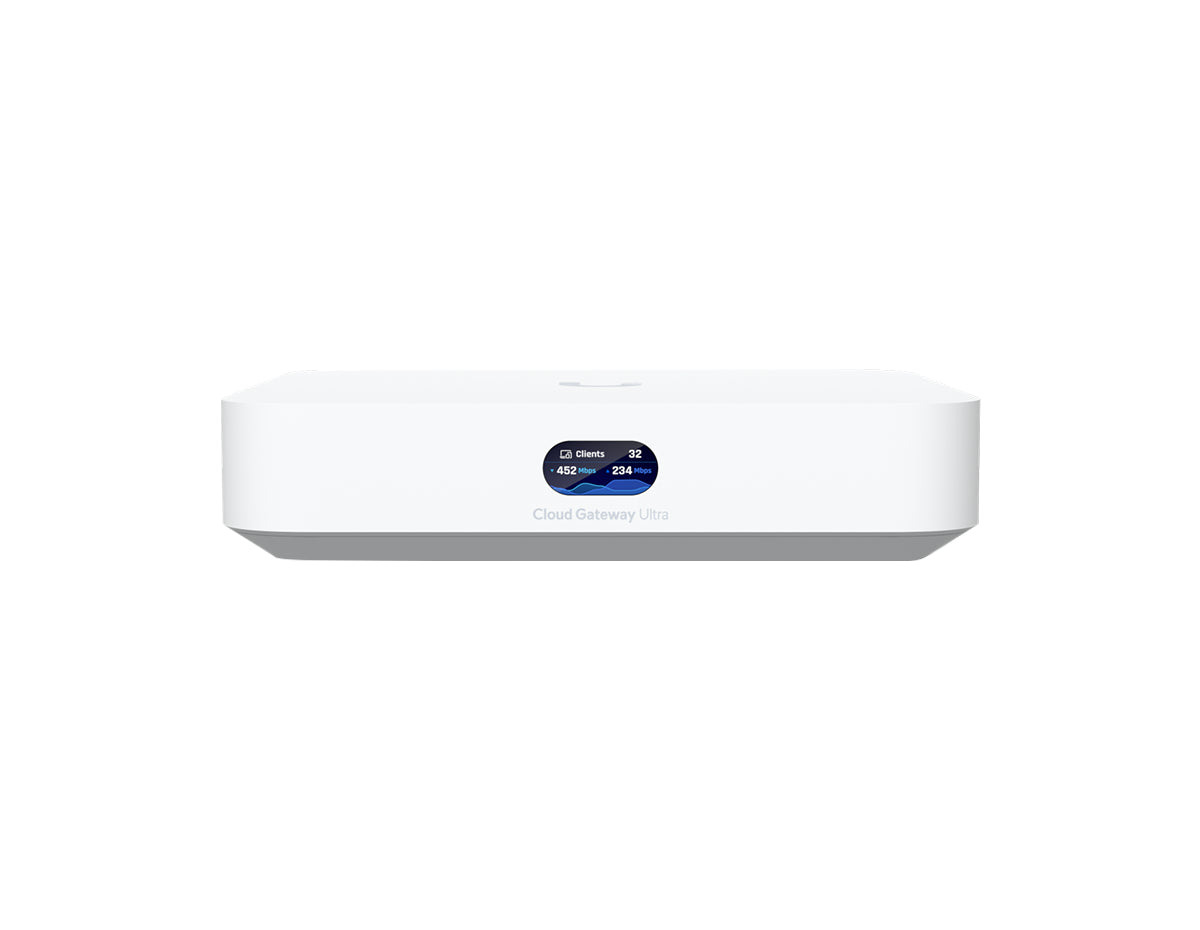

UBIQUITI MULTI-WAN UNIFI CLOUD GATEWAY ULTRA (UCG-ULTRA)
| Model: | UCG-ULTRA |
| Detail: |
Processor: Quad-core ARM Cortex-A53 at 1.5 GHz, System Memory: 3 GB DDR4, On-board Storage: 16 GB eMMC,
< |
| Price: | $144.00 |
| Condition: | Brand New Sealed |
| Availability: | Out of Stock |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Ubiquiti Cloud Gateway Ultra (UCG-ULTRA)
Monitor your network with the Ubiquiti Cloud Gateway Ultra (UCG-ULTRA). This advanced gateway is designed for high-performance network management, providing robust security features and seamless connectivity options.
Mechanical
- Dimensions: 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")
- Weight: 520 g (1.1 lb)
- Enclosure Material: Polycarbonate
Hardware
- Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz
- System Memory: 3 GB DDR4
- On-board Storage: 16 GB eMMC
- Management Interface: Ethernet, Bluetooth
Networking Interface
- LAN: (4) GbE RJ45 ports
- WAN: (1) 1/2.5 GbE RJ45 port
LEDs
- Green: link/activity
Application Requirements
- Mobile App: UniFi iOS™: Version 10.12.0 and later
- UniFi Android™: Version 10.11.2 and later
Advanced Networking
- License-free SD-WAN
- WireGuard, L2TP and OpenVPN server
- OpenVPN client
- OpenVPN and IPsec site-to-site VPN
- One-click Teleport and Identity VPN
- Policy-based WAN and VPN routing
- DHCP relay
- Customizable DHCP server
- IGMP proxy
- IPv6 ISP support
Gateway Features
- Redundant WAN with failover and load balancing
- WiFi QoS with UniFi APs
- Application, domain, and country-based QoS
- Application and device type identification
- Additional internet failover with LTE Backup
- Internet quality and outage reporting
Performance
- IDS/IPS Throughput: 1 Gbps
Power Method
- USB Type C (5V DC/3A)
- Supported Voltage Range: 100–240V AC
- Max. Power Consumption: 6.2W
Next-Generation Security
- Application-aware firewall rules
- Signature-based IPS/IDS threat detection
- Content, country, domain, and ad filtering
- VLAN/subnet-based traffic segmentation
- Full stateful firewall
Additional Specifications
- LCM Display: 0.96" status display
- Button: Factory reset
- Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
- Ambient Operating Humidity: 5 to 95% noncondensing
- Certifications: CE, FCC, IC
Specifications
| Mechanical Dimensions | 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2") |
| Weight | 520 g (1.1 lb) |
| Enclosure Material | Polycarbonate |
| Hardware | |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System Memory | 3 GB DDR4 |
| On-board Storage | 16 GB eMMC |
| Management Interface | Ethernet |
| Supported Temperature | Operation: 5° C - 35° C, Storage: -25° C - 60° C |
| Options | Roller Assembly Kit |
Properties
| Product | UCG-ULTRA |
| Power Method | USB type C (5V DC/3A) |
| Supported Voltage Range | 100–240V AC |
| Max. Power Consumption | 6.2W |
| LCM Display | 0.96" status display |
| Button | Factory reset |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Gateway Features | |
| Performance | Redundant WAN with failover and load balancing |
| WiFi QoS with UniFi APs | |
| Application, domain, and country-based QoS | |
| Application and device type identification | |
| Additional internet failover with LTE Backup | |
| Internet quality and outage reporting | |
| Next-Generation Security | Application-aware firewall rules |
| Signature-based IPS/IDS threat detection | |
| Content, country, domain, and ad filtering | |
| VLAN/subnet-based traffic segmentation | |
| Full stateful firewall | |
| Advanced Networking | License-free SD-WAN |
| WireGuard, L2TP and OpenVPN server | |
| OpenVPN client | |
| OpenVPN and IPsec site-to-site VPN | |
| One-click Teleport and Identity VPN | |
| Policy-based WAN and VPN routing | |
| DHCP relay | |
| Customizable DHCP server | |
| IGMP proxy | |
| IPv6 ISP support | |
| LEDs | Ethernet: Green: link/activity |
| Application Requirements | |
| Mobile App | UniFi iOS™: Version 10.12.0 and later |
| UniFi Android™: Version 10.11.2 and later |
