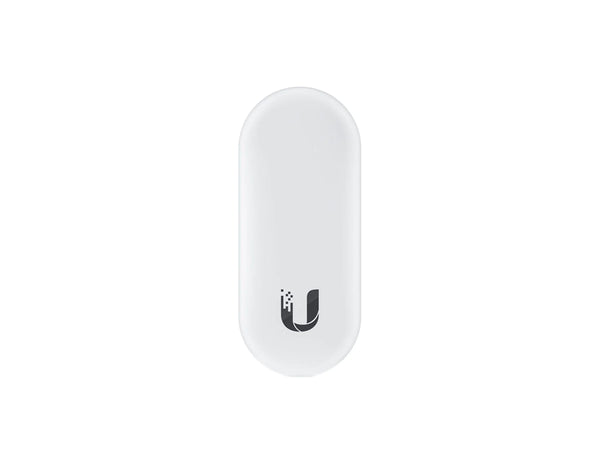

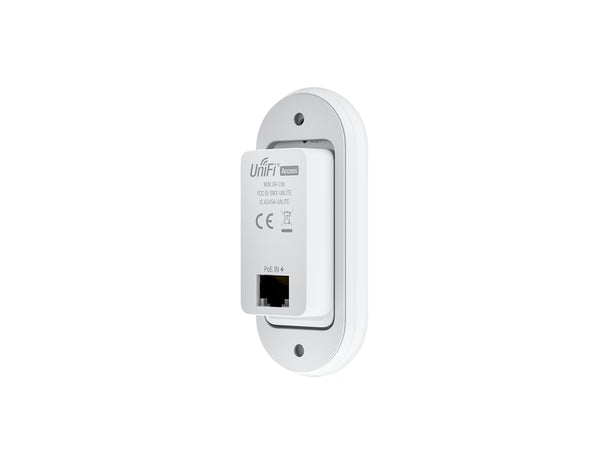

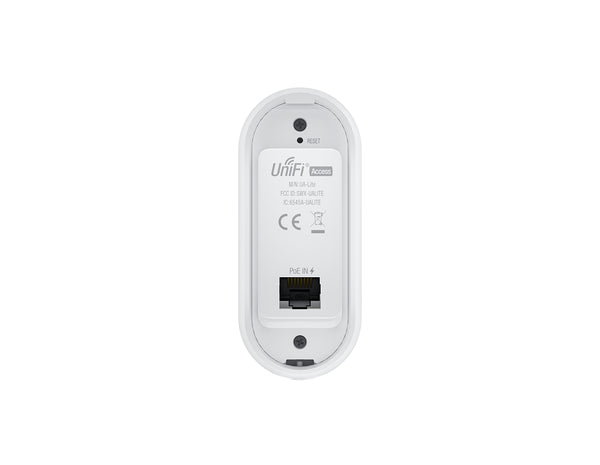

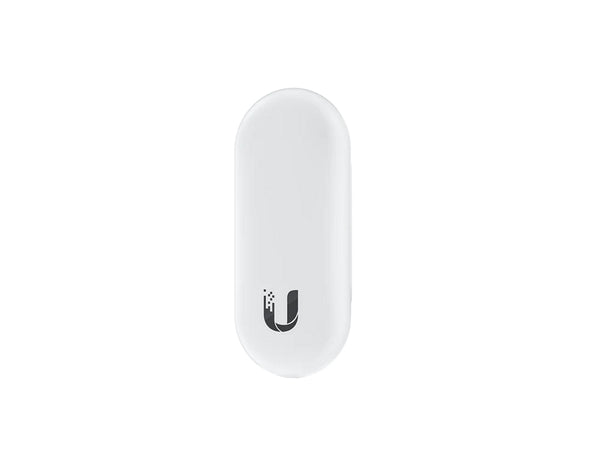

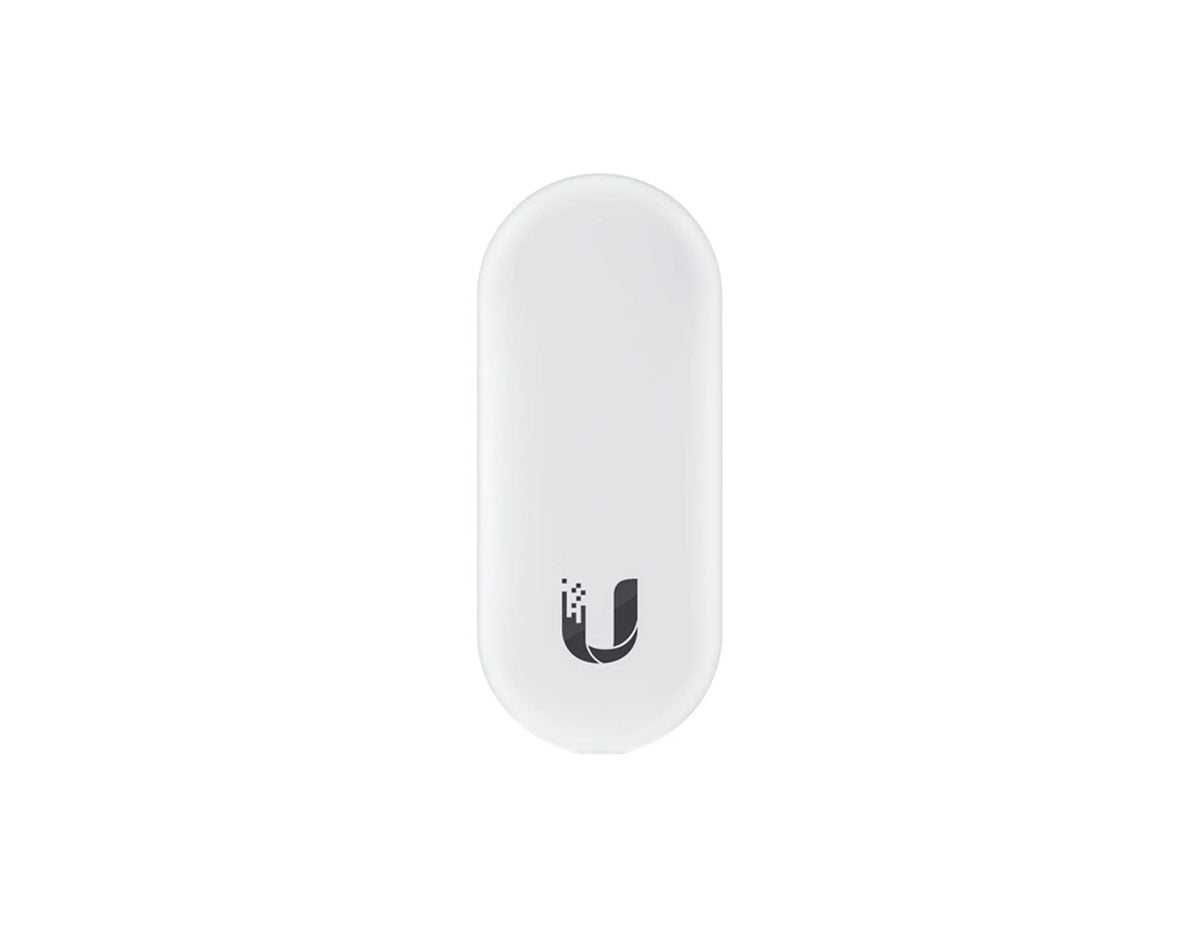

UniFi Access Reader Lite - UA-LITE-US

Ubiquiti UA-LITE-US

The UA-LITE-US represents an advanced access control system that operates using native PoE technology. It is compatible with traditional electric bolts/strikes, magnetic locks, push buttons, and alarms. This system necessitates minimal installation and provides the added benefit of the UniFi Access Controller, enabling straightforward management of users, visitors, schedules, and access regulations.

Quick Specs:

• 1x 10/100 Mbps Ethernet Port
• Power Method: 802.3af PoE
• LEDs: White/Blue
• Wall-Mount

Please see the related tabs for the UA-LITE-US datasheet and compatible accessories.

Properties	UA-Lite-US
Description	The UniFi Access Reader Lite is a modern NFC and Bluetooth reader, offering convenient and secure access with NFC cards or a mobile app. It's easy to install, powered by PoE, and compatible with the latest NFC security standards.
Product Family	Ubiquiti UniFi
Dimensions	94.91 x 40.00 x 31.10 mm (3.74 x 1.57 x 1.22")
Weight	67 g (2.36 oz)
Enclosure material	Polycarbonate
Mounting options*	Wall-mount, gang box mount* *The UA-Reader Lite must be installed either indoors or under a roof eave outdoors.
Weatherproofing	IP54
Networking interface	10/100 MbE
Max. power consumption	6W
Power method	PoE
Button	(1) Factory reset
LEDs	White/Blue

Specifications	UA-Lite-US
Connectivity	Ethernet, BLE 4.1
NFC frequency	13.56 MHz
NFC reading range	<30 mm
NFC standards	ISO 14443A, 14443B, 15693
NFC technology	NFC Tag 1, 2, 3, 4, 5 MIFARE Classic MIFARE Plus MIFARE Ultralight MIFARE DESFire
Operating temperature	-20 to 40° C (-4 to 104° F)
Operating humidity	5 to 90% noncondensing
Certifications	CE, FCC, IC
