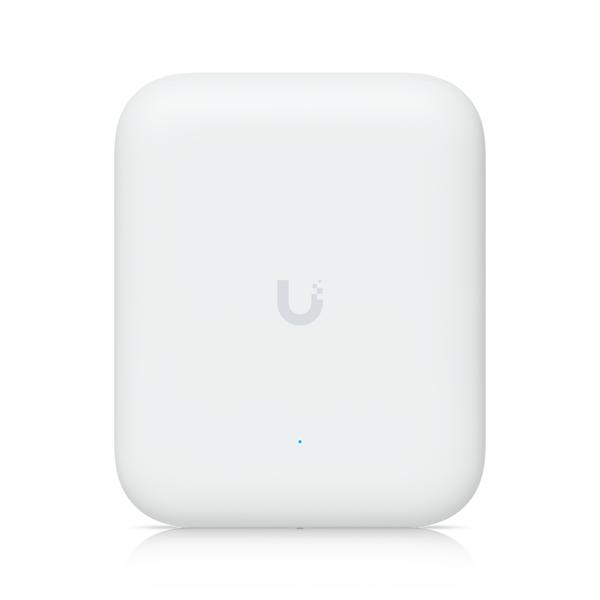

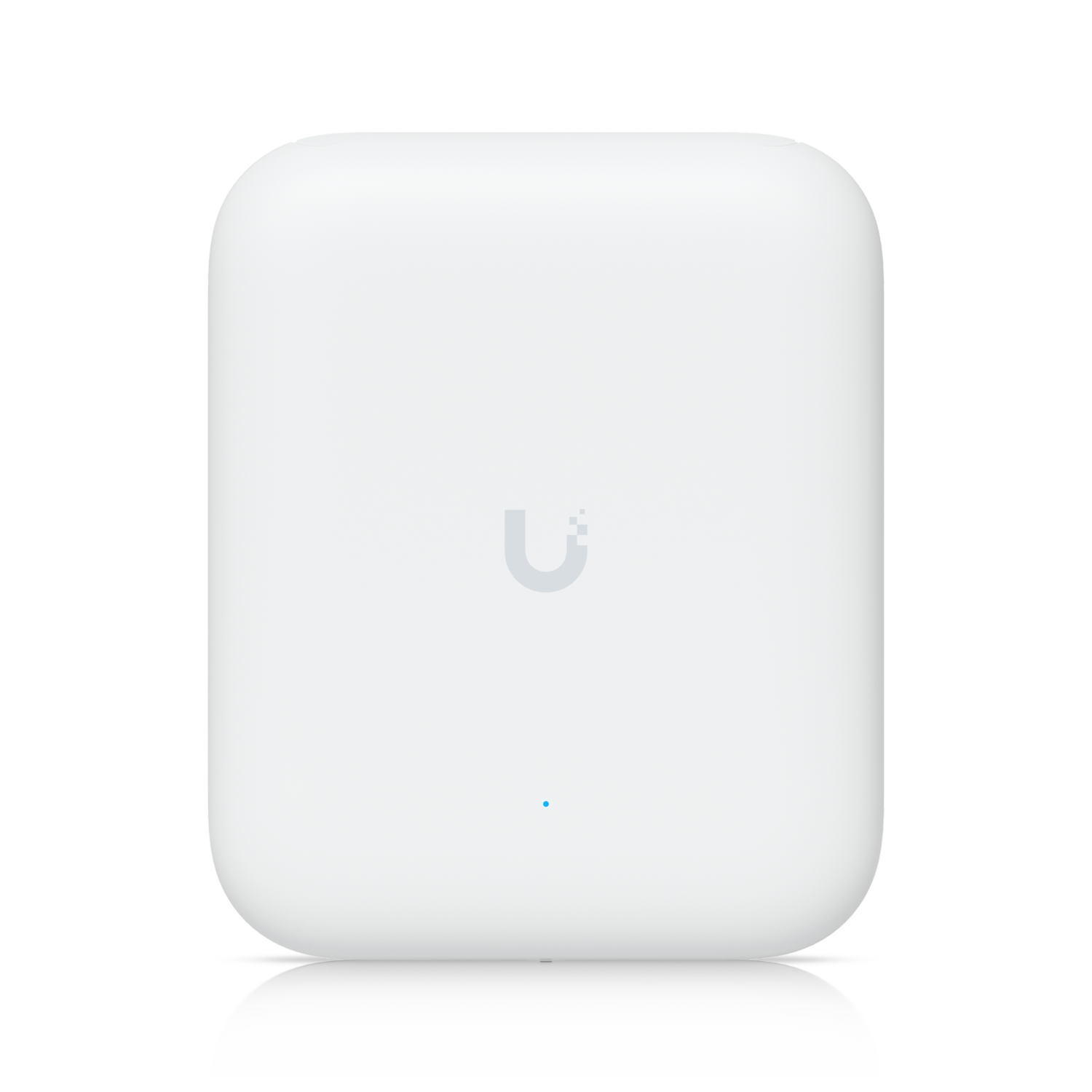

Ubiquiti Networks UniFi U7 Pro Outdoor Tri-Band Wi-Fi 7 Access Point

Next-Generation Outdoor Wi-Fi 7 Performance

The Ubiquiti UniFi U7 Pro Outdoor delivers enterprise-grade wireless performance with tri-band Wi-Fi 7 technology and up to 10.8 Gbps throughput. Designed for rugged environments, its IP67-rated housing ensures dependable operation in extreme weather, making it an ideal solution for high-density outdoor deployments.

Key Benefits & Features

• Tri-Band Wi-Fi 7: Simultaneous 2.4 GHz, 5 GHz, and 6 GHz bands with MU-MIMO for seamless multi-device connectivity.
• Ultra-Fast Speeds: Achieves 5.8 Gbps on 6 GHz, 4.3 Gbps on 5 GHz, and 688 Mbps on 2.4 GHz for a combined 10.8 Gbps.
• High Client Capacity: Supports over 300 concurrent connections, perfect for public venues, campuses, and enterprise sites.
• Durable IP67 Protection: Weather-resistant enclosure withstands dust, rain, and harsh outdoor conditions.
• Flexible Deployment: Includes pole and wall mounting kits, with support for external antennas via SMA connectors.

Ideal Use Cases

• Enterprise and campus outdoor Wi-Fi networks
• Public venues such as stadiums, parks, and transportation hubs
• Hospitality and education sectors requiring reliable outdoor connectivity
• Municipal and smart city wireless infrastructure

Technical Specifications

• Wi-Fi Standard: Wi-Fi 7 (802.11be), tri-band
• Throughput: Up to 10,788 Mbps total
• Radio Performance: 6 GHz: 5.8 Gbps, 5 GHz: 4.3 Gbps, 2.4 GHz: 688 Mbps
• MIMO: 2x2 per band with MU-MIMO
• Client Capacity: 300+ supported devices
• Networking: 1x 2.5 GbE RJ45 PoE+ (802.3at, 30W)
• Antenna Gain: Up to 11 dBi internal, 8 dBi external omni
• Enclosure Rating: IP67 weather resistance
• Operating Temp: -30 to 60°C (-22 to 140°F)
• Dimensions: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6 in)

Upgrade Your Outdoor Network Today

Boost your enterprise-grade wireless coverage with the UniFi U7 Pro Outdoor. Order now and deploy the future of Wi-Fi outdoors.

Model	U7-Pro-Outdoor
Product Type	Tri-Band Wi-Fi 7 Access Point
Wi-Fi Standard	Wi-Fi 7 (802.11be)
Frequency Bands	2.4 GHz / 5 GHz / 6 GHz
Spatial Streams	6
Coverage Area	465 m² (5,000 ft²)
Max Throughput	10.8 Gb/s (6 GHz: 5.8 Gbps, 5 GHz: 4.3 Gbps, 2.4 GHz: 688 Mbps)
Max Client Count	300+
Interfaces	1 × RJ45 2.5 GbE PoE+ Port; 2 × RP-SMA connectors (external antennas)
Power Method	PoE+ (802.3at)
Power Consumption	≤21 W
Environmental Resistance	IPX6; IP67 (with cable-gland door kit)
Operating Temperature	−30 °C to 60 °C (−22 °F to 140 °F)
Operating Humidity	5% to 95% noncondensing
Dimensions	Without mount: 170 × 208 × 66.5 mm (6.7 × 8.2 × 2.6 in) With mount: 170 × 208 × 121.8 mm (6.7 × 8.2 × 4.8 in)
Weight	Device: 1.2 kg (2.6 lb) With mount: 1.33 kg (2.9 lb)
Certifications	FCC, IC

MIMO Configuration	2 × 2 (DL/UL MU-MIMO) on 2.4 GHz, 5 GHz, and 6 GHz
Antenna Type	Internal directional and external omni (detachable)
Antenna Gain	6 GHz: 10 dBi, 90° × 45° 5 GHz: 11 dBi, 90° × 45° (internal); 8 dBi, 360° × 15° (external omni) 2.4 GHz: 8 dBi, 90° × 90° (directional); 6 dBi, 360° × 15° (omni)
Transmit Power	6 GHz: 26 dBm 5 GHz: 26 dBm 2.4 GHz: 23 dBm
Wireless Security	WPA, WPA2, WPA3 (Enterprise & PSK)
Guest Network Support	Yes
Max SSIDs Supported	24
Advanced Features	Band Steering, Wireless Meshing, 802.11r Fast Roaming, 802.11k RRM, 802.11v BSS Transition, Guest Isolation, PPSK, Passpoint (Hotspot 2.0), Wi-Fi Scheduling, Dynamic VLAN, RADIUS over TLS (RadSec)
Enclosure Material	UV-stabilized polycarbonate, aluminum alloy
Mounting Options	Pole or wall mount (kits included)
Wind Loading	74.6 N at 200 km/h (16.8 lbf at 125 mph)
LED Indicators	(1) Power: White/Blue; (4) Mesh signal: Blue
Software Compatibility	UniFi Network version 9.0.114 and later
App Support	UniFi App (iOS & Android)

Included in the Box	U7 Pro Outdoor Access Point; 2 × Antennas; Pole & Wall Mounting Kits; Cable-gland door kit; Quick Start Guide
Optional Accessories	Ubiquiti PoE adapters; UniFi network switches; Outdoor-rated Cat6 cables
