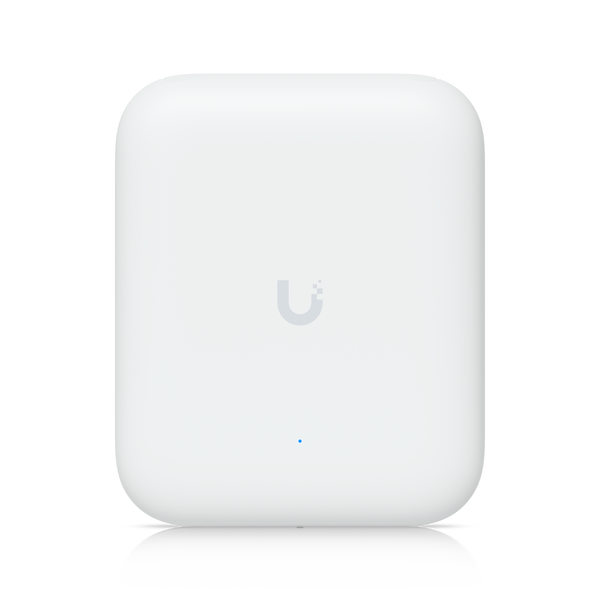

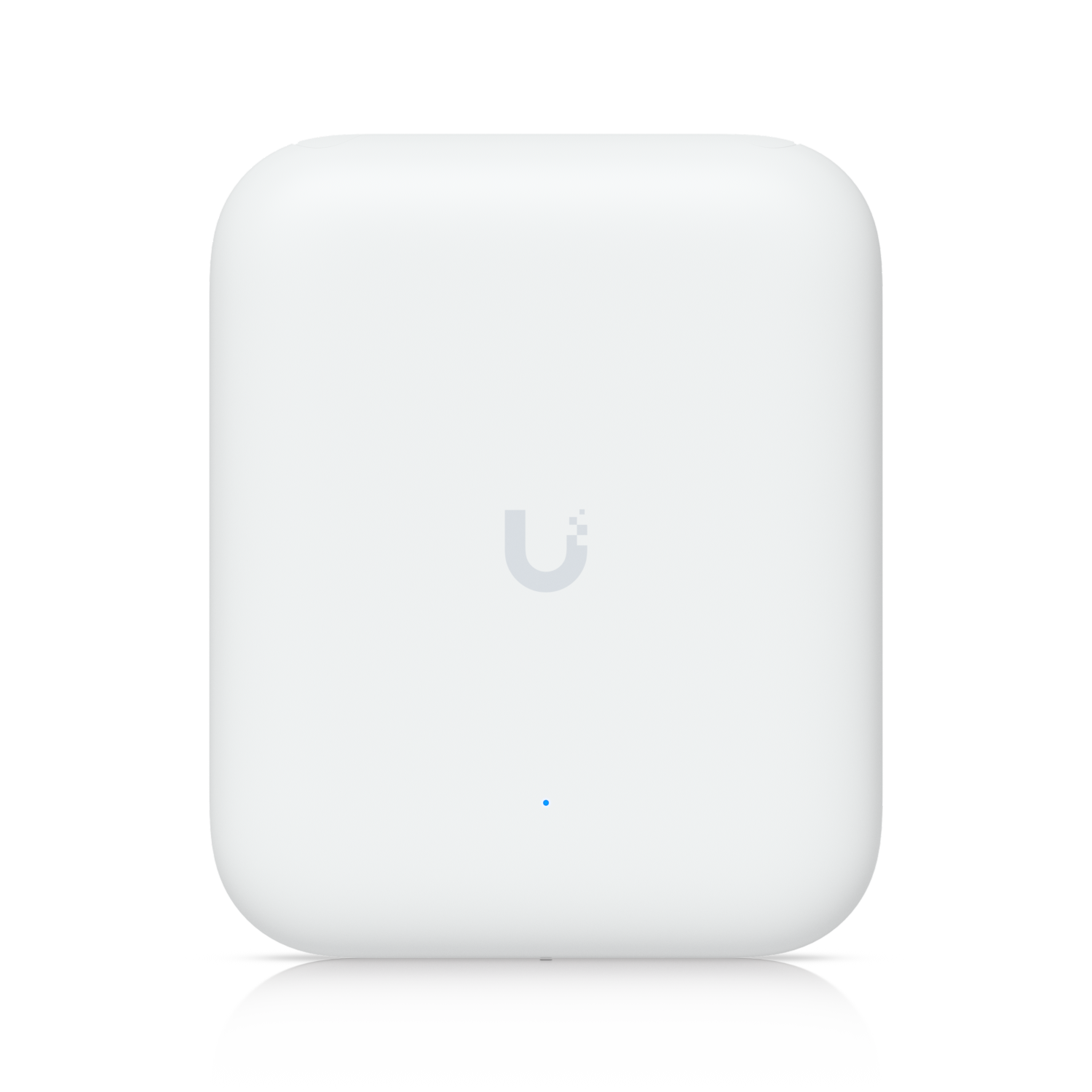

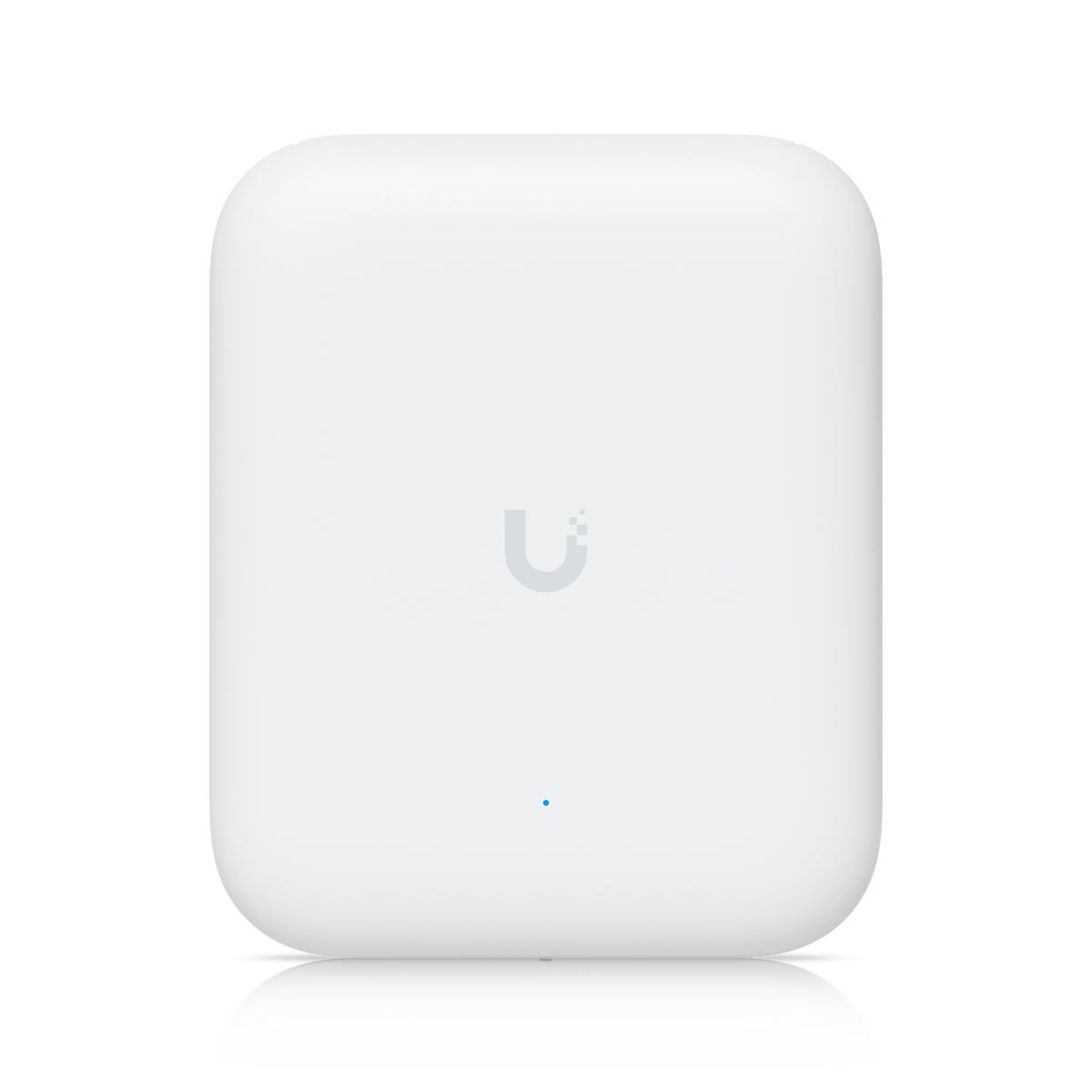

Ubiquiti UniFi U7-Outdoor WiFi 7 Access Point

The Ubiquiti UniFi U7-Outdoor is a high-performance outdoor access point designed to deliver robust, high-capacity wireless connectivity leveraging the advanced capabilities of WiFi 7. It features 4 spatial streams, delivering max data speeds of 4.3 Gbps on the 5 GHz band (BW240) and 688 Mbps on the 2.4 GHz band (BW40). Optimized for high-density environments, it supports over 250 concurrent clients across a broad 465 square meter (5,000 ft²) coverage area. Built with an IPX6-rated weatherproof enclosure, dual-antenna options (integrated directional or external omni antennas), and a 2.5 GbE uplink port, this versatile device ensures flexible and reliable outdoor installation.

Key Features:

• WiFi 7 Dual-Radio Performance: High-efficiency throughput powered by 4 spatial streams.
• High Client Capacity: Supports 250+ active devices over a 465 m² (5,000 ft²) coverage area.
• Blazing Fast Data Rates: Up to 4.3 Gbps (5 GHz) and 688 Mbps (2.4 GHz).
• Versatile Antenna Options: Integrated directional super antenna alongside external RP-SMA omni antennas.
• High-Speed Uplink: (1) 2.5 GbE RJ45 port featuring PoE+ support.
• Flexible Mounting: Includes complete wall and pole mounting hardware.
• Advanced Network Features: Supports Wireless Meshing, Band Steering, Fast Roaming (802.11r), and Guest Isolation.
• Enterprise Security: Includes PPSK, RADIUS over TLS (RadSec), and dynamic VLAN mapping.
• Rugged Build: IPX6-rated weather resistance with a wide operational range of -30°C to 60°C.
• Software Requirements: Managed with UniFi Network Version 8.2.93 and later.

Technical Specifications:

• WiFi Standard: 802.11be (WiFi 7) with backward compatibility
• Max Clients: 250+
• Coverage Area: 465 m² (5,000 ft²)
• Uplink: 1 x 2.5 GbE RJ45 (PoE+ Required, 42.5-57V DC)
• MIMO Configuration: 2x2 DL/UL MU-MIMO on both 2.4 GHz and 5 GHz bands
• Directional Antenna Gain: 5 GHz: 12.5 dBi (45°), 2.4 GHz: 8 dBi (90°)
• Omni Antenna Gain: 5 GHz: 4 dBi, 2.4 GHz: 3 dBi
• Max TX Power: 5 GHz: 26 dBm, 2.4 GHz: 23 dBm
• Max BSSIDs: 8 per radio
• Operating Temperature: -30°C to 60°C (-22°F to 140°F)
• Enclosure Material: UV-stabilized polycarbonate and aluminum alloy
• Mount Options: Wall and pole (mounts included)
• Power Consumption: Max. 19W
• Weight: 1.2 kg (2.6 lbs)
• Compliance: NDAA, CE, FCC, IC, Anatel

Brand	Ubiquiti
Model	U7 Outdoor
SKU	U7-Outdoor
Series	UniFi
Product Type	Outdoor WiFi 7 Access Point
Wireless Standard	WiFi 7 (802.11be)
Port Count	1
Interface	(1) 1/2.5 GbE RJ45 port
Speed	5 GHz: 4.3 Gbps (BW240); 2.4 GHz: 688 Mbps (BW40)
PoE Support	PoE+
Power	19W Max. Power Consumption
Dimensions	170 x 208 x 54.5 mm (6.7 x 8.2 x 2.1")
Weight	1.2 kg (2.6 lb)
Material	UV-stabilized polycarbonate, aluminum alloy
Mounting Type	Wall, Pole (Mounts Included)
Operating Temperature	-30 to 60°C (-22 to 140°F)

Spatial Streams	4
Coverage Area	465 m² (5,000 ft²)
Max. Client Count	250+
Uplink	2.5 GbE
Weatherproofing	IPX6
MIMO	5 GHz: 2 x 2 (DL/UL MU-MIMO); 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Antenna Gain	5 GHz Directional internal: 12.5 dBi; External omni: 4 dBi; 2.4 GHz Directional internal: 8 dBi; External omni: 3 dBi
Max. TX Power	5 GHz: 26 dBm; 2.4 GHz: 23 dBm
Max. BSSIDs	8 per Radio
Supported Data Rates	802.11be: 7.3 Mbps to 4.3 Gbps; 802.11ax: 7.3 Mbps to 2.4 Gbps; 802.11ac: 6.5 Mbps to 1.7 Gbps; 802.11n: 6.5 Mbps to 300 Mbps
Wireless Features	Wireless Meshing; Band Steering; 802.11v BSS Transition Management; 802.11r Fast Roaming; 802.11k Radio Resource Management (RRM); Advanced Radio Management; Passpoint (Hotspot 2.0)
Captive Hotspot Portal	Custom Branding Landing Page; Voucher Authentication; Payment-Based Authentication; External Portal Server Support; Password Authentication
Security Features	Guest Network Isolation; Private Pre-Shared Key (PPSK); Client Device Isolation; RADIUS over TLS (RadSec); Dynamic RADIUS-assigned VLAN
Supported Voltage Range	42.5 to 57V DC
Wind Loading	74.6 N at 200 km/h (16.8 lbf at 125 mph)
Pole Mount Diameter	1 to 2.36" (25 to 60 mm)
Antennas	(1) Directional internal antenna; (2) External omni antennas; (2) RP-SMA connectors for external antenna
Antenna Beamwidth	5 GHz: 45°; 2.4 GHz: 90°
Management	Ethernet
Mount Material	Polycarbonate, SGCC steel
LEDs	(1) Power: White/Blue; (1) System: White/Blue; (4) Mesh Signal: Blue
Channel Bandwidth	HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
Certifications	CE, FCC, IC, Anatel
Operating Humidity	5 to 95% noncondensing
Operating Frequency	US/CA: 2400-2472 MHz, 5150-5850 MHz; Worldwide: 2400-2483.5 MHz, 5150-5850 MHz
