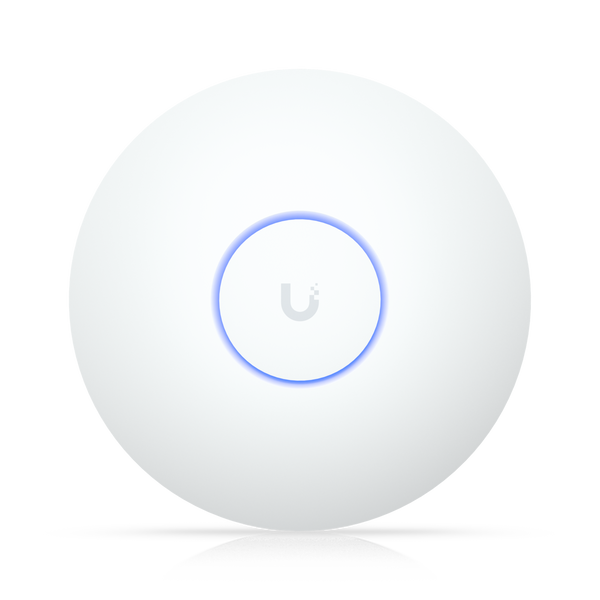

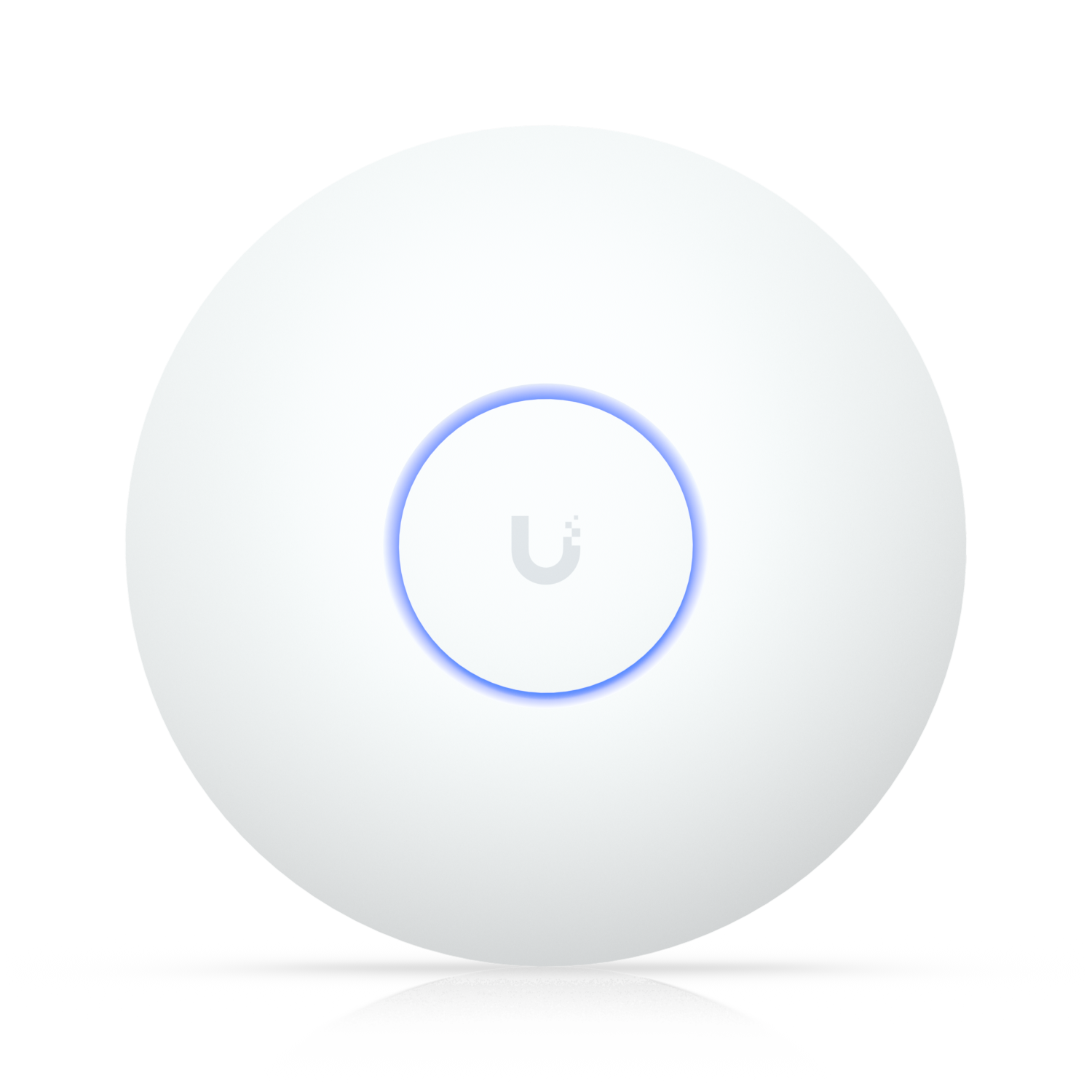

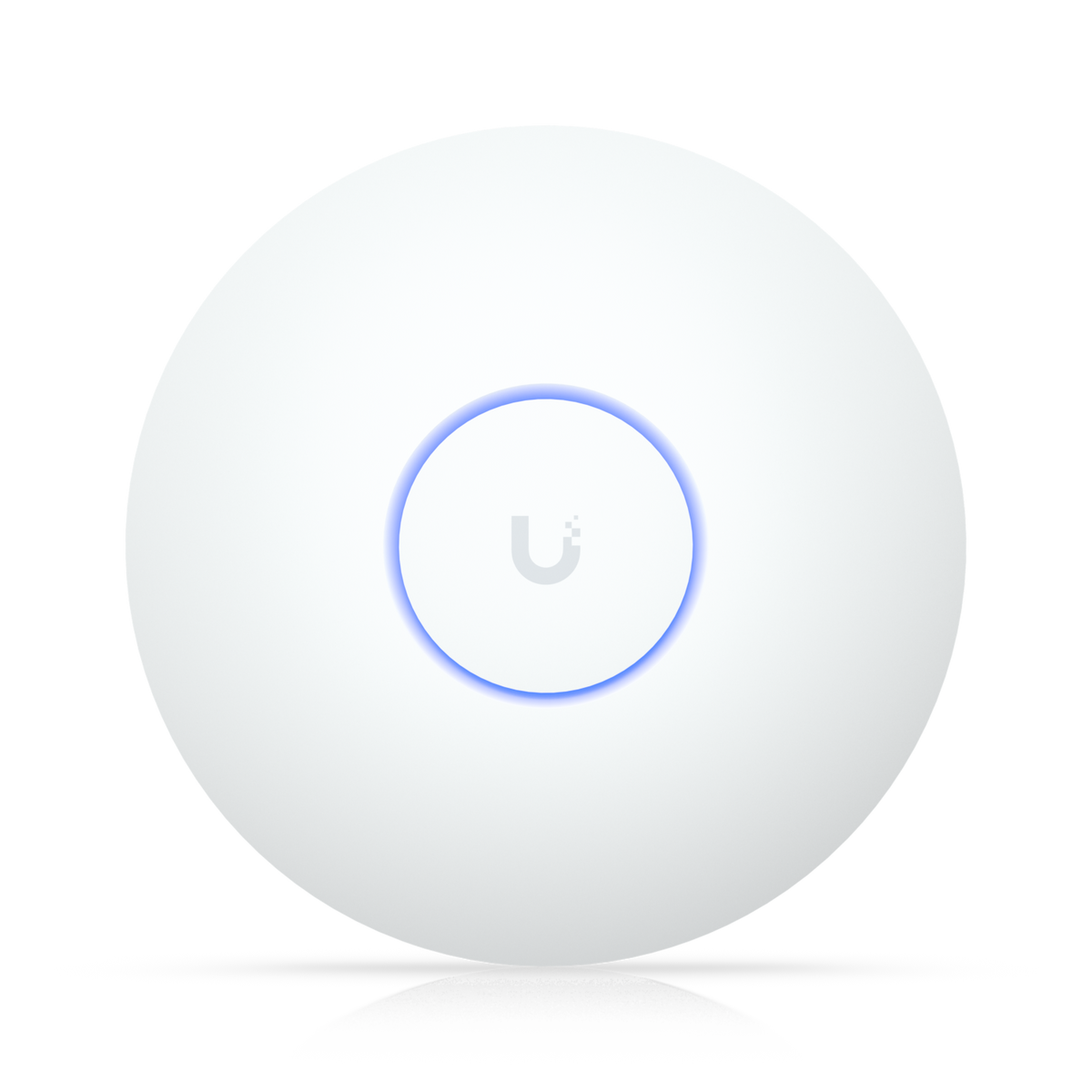

Ubiquiti UniFi U7-LR Long-Range Wi-Fi 7 Access Point

Next-Generation Wi-Fi 7 Performance for Enterprise Networks

The Ubiquiti UniFi U7-LR delivers Wi-Fi 7 (802.11be) with EHT 160 MHz channels, multi-gig speeds, and robust coverage. Built for high-density deployments, it supports over 300 clients and maintains seamless performance across large spaces. Dual-band radios and high-gain antennas make it ideal for enterprises, campuses, and modern offices that need long-range, reliable connectivity.

Key Benefits & Features

• Wi-Fi 7 Technology: Up to 4.3 Gbps on 5 GHz and 688 Mbps on 2.4 GHz for faster, more efficient networking.
• 2.5 GbE PoE Port: Simplifies deployments with multi-gig connectivity and single-cable power.
• Long-Range Coverage: Internal high-gain antennas deliver up to 160 m² (1,750 ft²) of reliable wireless coverage.
• High Client Capacity: Supports 300+ devices simultaneously for smooth performance in dense environments.
• Enterprise Security: WPA3, guest isolation, PPSK, and dynamic VLAN assignments enhance protection.

Ideal Use Cases

• Enterprise offices requiring multi-gigabit Wi-Fi performance
• Educational campuses with high-density client environments
• Hospitality venues offering seamless guest connectivity
• Retail environments needing secure, scalable wireless coverage
• Branch networks seeking cost-effective, long-range APs

Technical Specifications

• Wi-Fi Standard: 802.11be (Wi-Fi 7), backward compatible with Wi-Fi 6/5/4
• Max Throughput: 4.3 Gbps (5 GHz), 688 Mbps (2.4 GHz), 4988 Mbps total
• Spatial Streams: 5 (3×3 MU-MIMO at 5 GHz, 2×2 at 2.4 GHz)
• Coverage Area: 160 m² / 1,750 ft²
• Client Support: 300+ concurrent devices
• Ethernet Interface: 1× 2.5 GbE RJ45, PoE
• Transmit Power: 27 dBm (5 GHz), 26 dBm (2.4 GHz)
• Antenna Gain: 6 dBi (5 GHz), 4 dBi (2.4 GHz)
• Power Consumption: ≤14 W; Input 42.5–57 V DC
• Operating Temp: −30 to 50 °C (−22 to 122 °F)
• Mounting: Ceiling or wall (hardware included)
• Dimensions & Weight: 175.7 × 43 mm; 448 g

Upgrade to Wi-Fi 7 Today

Boost your network with the Ubiquiti UniFi U7-LR and experience unmatched speed, coverage, and reliability. Order now and stay ahead of tomorrow’s wireless demands.

Model	Ubiquiti UniFi U7 Long-Range (U7-LR)
Product Type	Dual-Band Wi-Fi 7 Access Point
Wi-Fi Standard	802.11be (Wi-Fi 7); backward compatible with 802.11a/b/g/n/ac/ax
Frequency Bands	2.4 GHz / 5 GHz
Maximum Throughput	4988 Mbps total (5 GHz: 4300 Mbps; 2.4 GHz: 688 Mbps)
Spatial Streams	5 streams total (5 GHz 3×3; 2.4 GHz 2×2)
Antenna Gain	5 GHz: 6 dBi; 2.4 GHz: 4 dBi
Transmit Power	5 GHz: 27 dBm; 2.4 GHz: 26 dBm
Maximum Client Count	300+
Coverage Area	160 m² (1,750 ft²)
Interfaces	(1) 2.5 GbE RJ45 (PoE)
Mounting Options	Ceiling, Wall (plastic mounting plate included)
Power Method	PoE; Input Voltage 42.5–57 VDC
Power Consumption	≤14 W
Enclosure Material	Polycarbonate, aluminum alloy
Mount Material	Polycarbonate, galvanized steel (SGCC)
Operating Temperature	−30 °C to 50 °C (−22 °F to 122 °F)
Operating Humidity	5% to 95% noncondensing
Dimensions	Ø175.7 × 43 mm (Ø6.9 × 1.7 in)
Weight	448 g (15.8 oz)
Certifications	CE, FCC, IC, Anatel; NDAA compliant

MIMO Configuration	5 GHz: 3×3 (DL/UL MU-MIMO); 2.4 GHz: 2×2 (DL/UL MU-MIMO)
Supported Data Rates	Wi-Fi 7 (802.11be): 7.3 Mbps – 4.3 Gbps; Wi-Fi 6 (802.11ax): up to 3.6 Gbps; Wi-Fi 5 (802.11ac): up to 2.6 Gbps; Wi-Fi 4 (802.11n): up to 450 Mbps
Channel Bandwidth	HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 MHz
Guest Network Features	Captive Portal, Voucher Authentication, Payment-Based Authentication, External Portal Server, Passpoint (Hotspot 2.0)
Security	WPA, WPA2, WPA3; RADIUS over TLS (RadSec); PPSK; Client & Guest Isolation; Dynamic VLAN
Advanced Features	Wireless Meshing, Band Steering, 802.11v/k/r roaming, Radio Resource Management, Speed Limiting, Wi-Fi Schedules
LEDs	System: White/Blue
Management	UniFi Network version 9.1.120+; Mobile app (iOS 10.20.2+, Android 10.21.7+)
Environmental Resistance	Not rated (no specific IP protection)

Optional – Power	Ubiquiti U-POE Adapter (PoE injector)
Optional – Network Accessories	Ubiquiti UniFi Switches; Cat 6 Network Cables
Optional – Others	Rack accessories, external routers, and compatible UniFi devices
